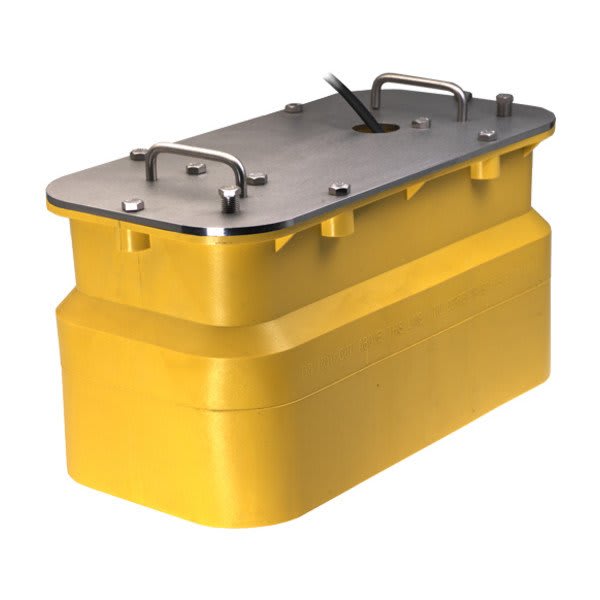

The AIRMAR® R111LH is an in-hull or pocket mounted transducer uses narrow beams at low/high frequencies to display depth & temperature data to your Garmin sonar.
General
|
| Transducer frequency |
CHIRP Low (38-75 kHz) & CHIRP High (130-210 kHz) |
| Transducer power |
2 kW |
| Transducer beamwidth |
10°x19°/4°-8° |
| Transducer maximum depth |
6,000 ft. |
| Transducer cable length |
49 ft. |
| Transducer depth/speed/temperature |
Depth and Temperature |
| Transducer number of pins |
Bare wires |
| Transducer supported deadrise/transom angles |
0°-25° degree deadrise |
Transducer Support
|
| Transducer frequency |
CHIRP Low (38-75 kHz) & CHIRP High (130-210 kHz) |
