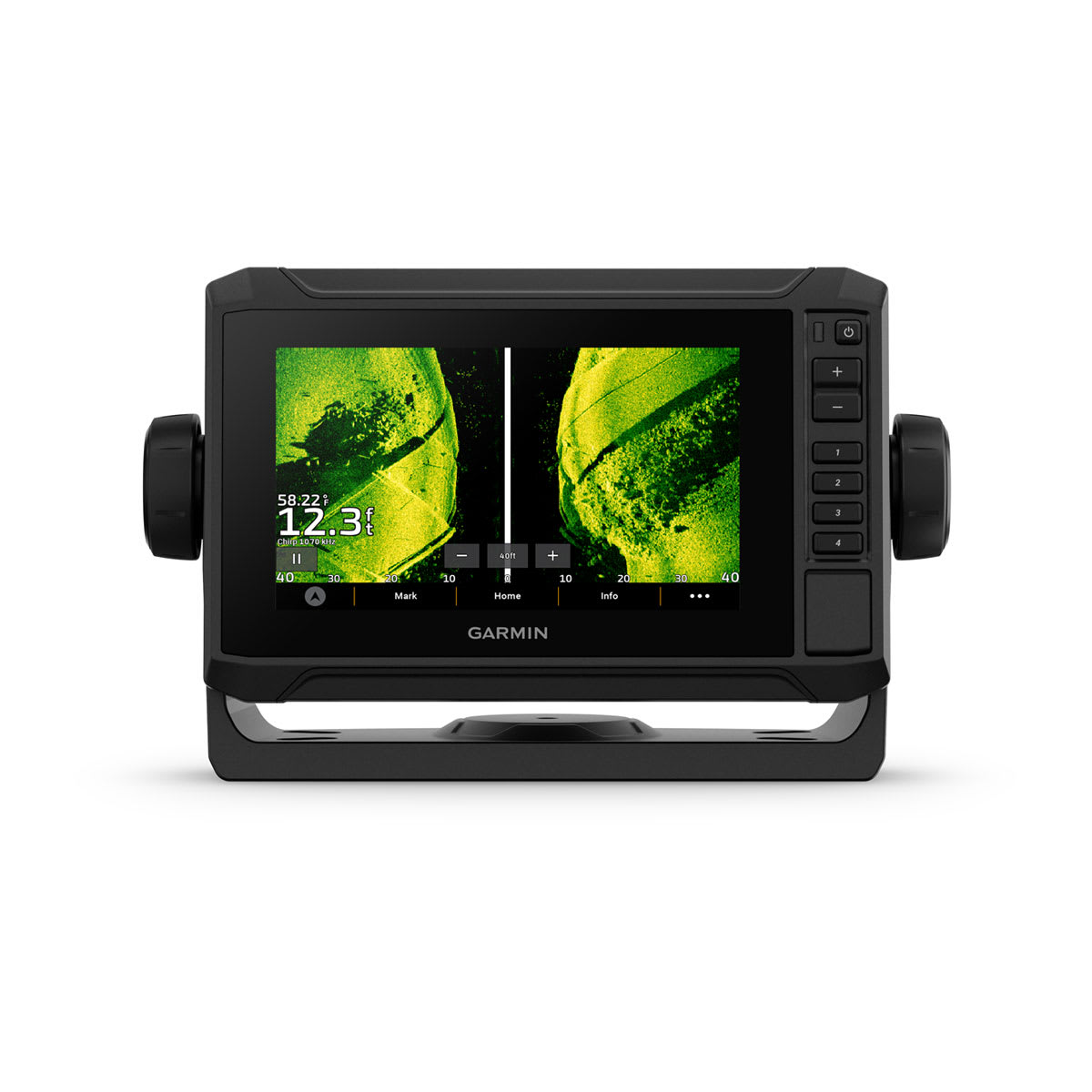

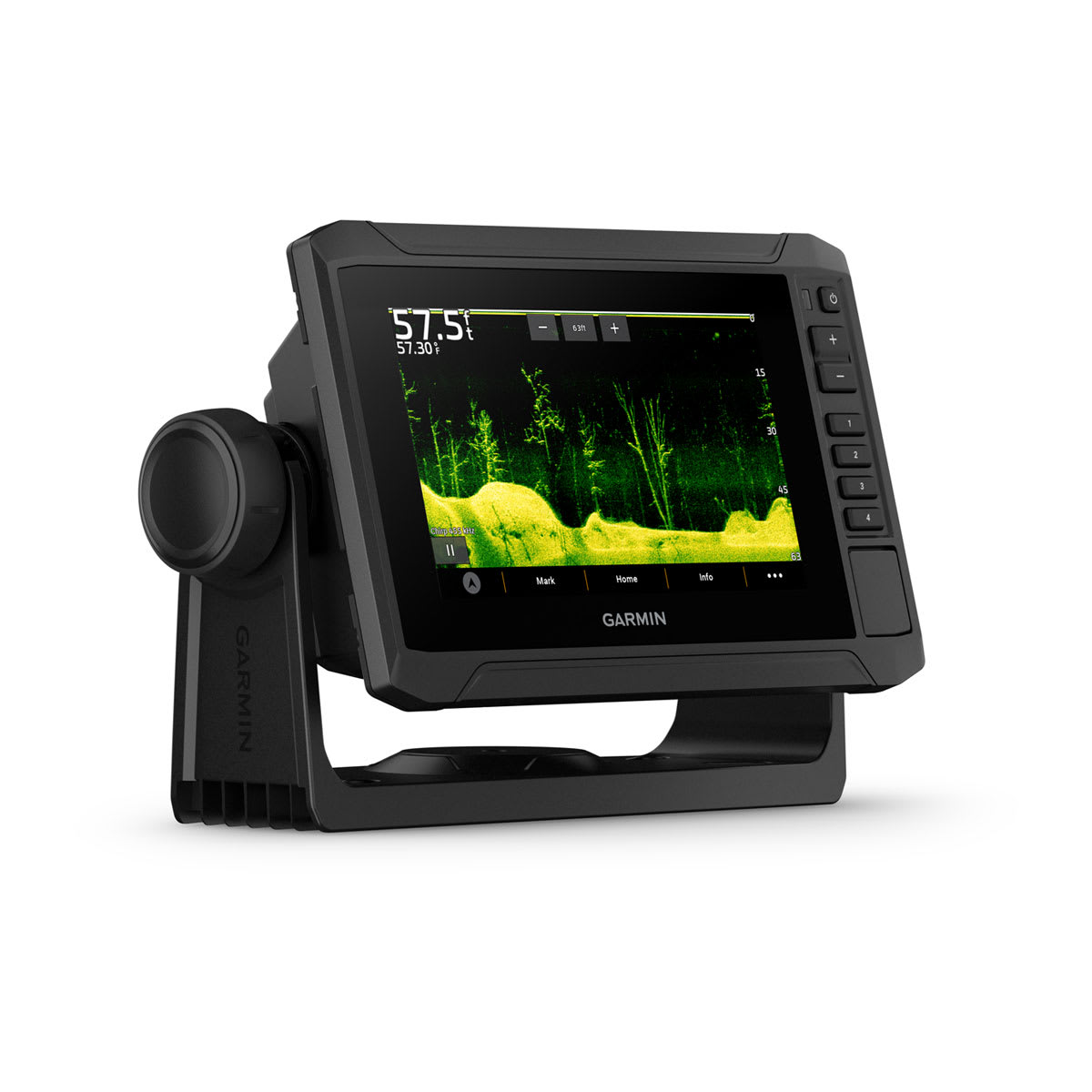

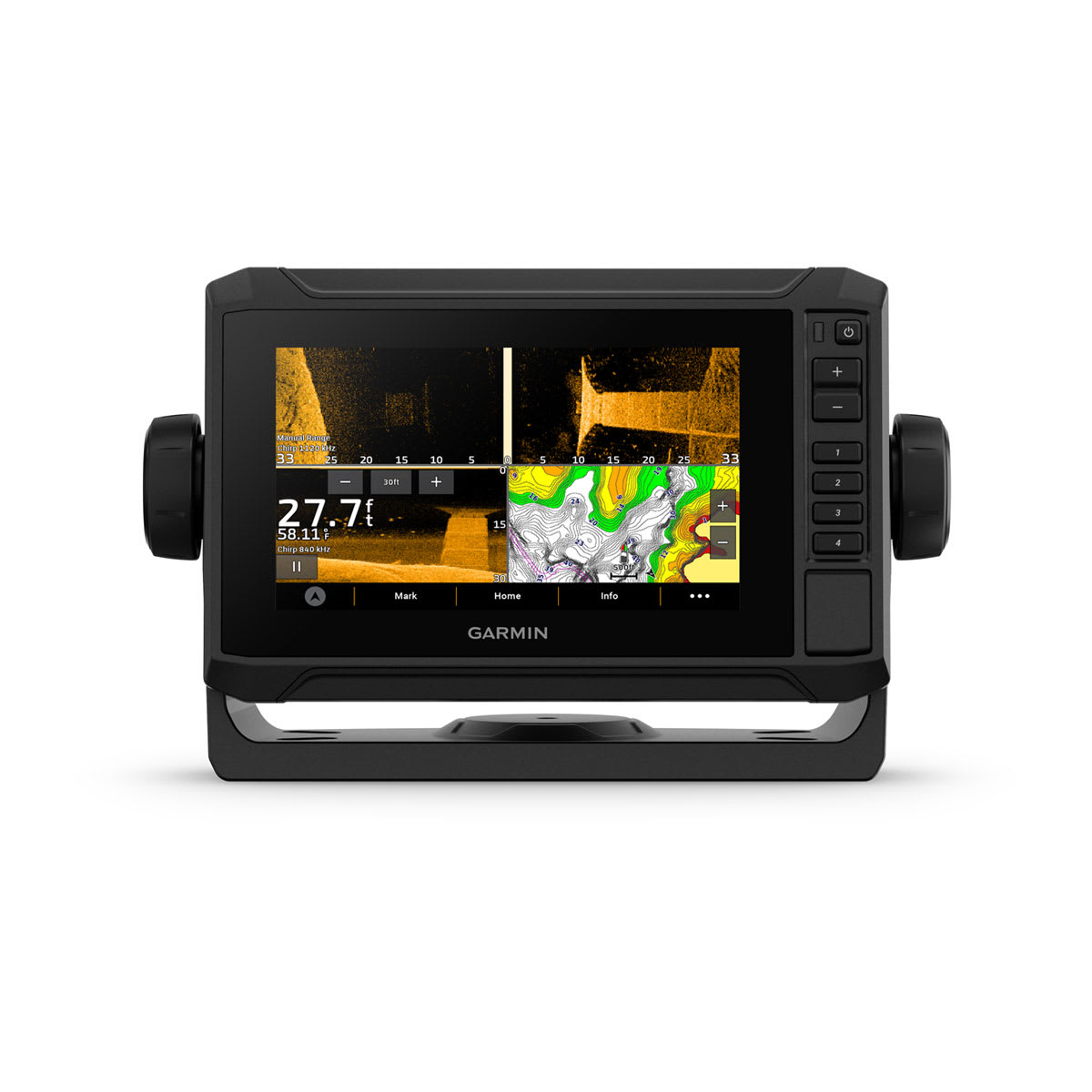

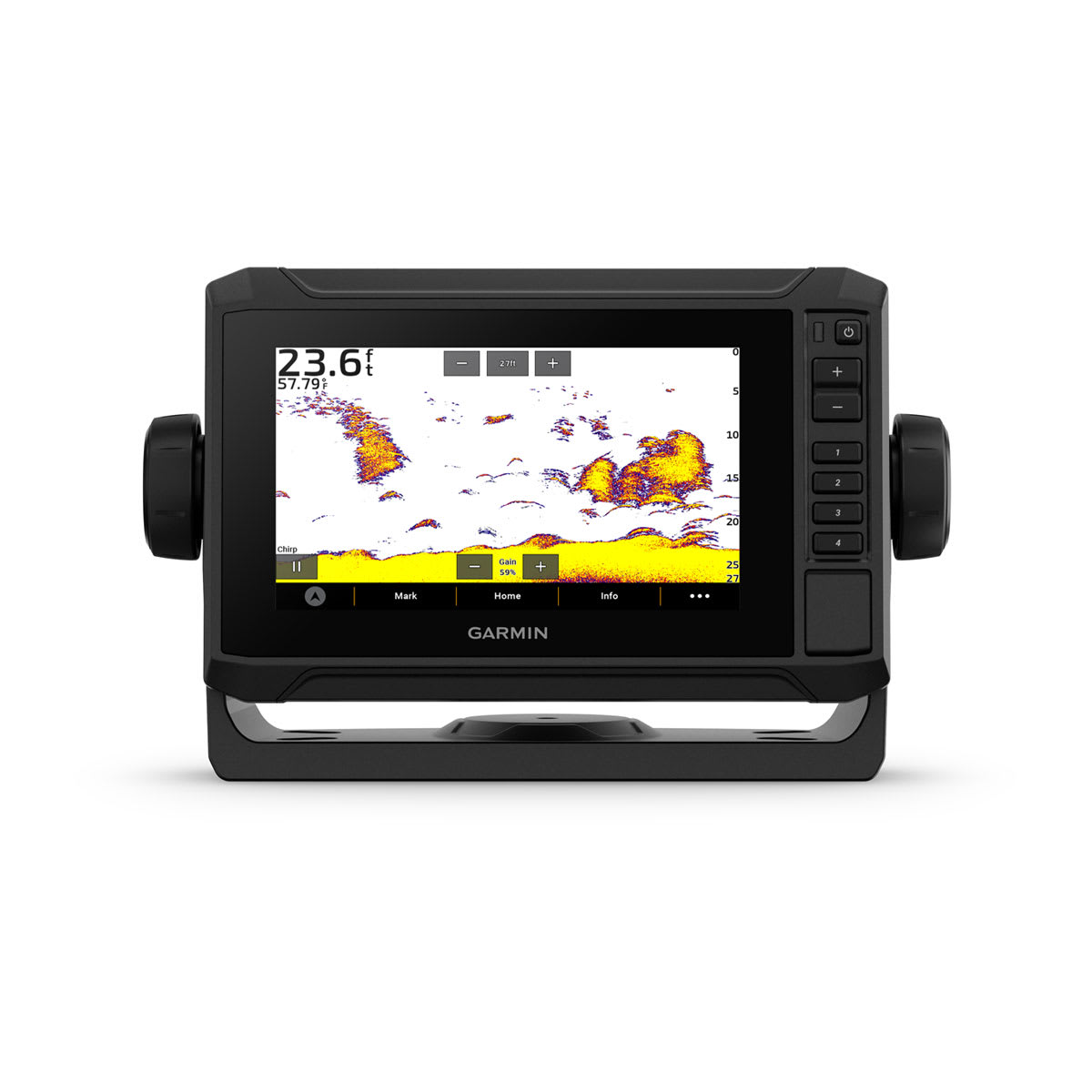

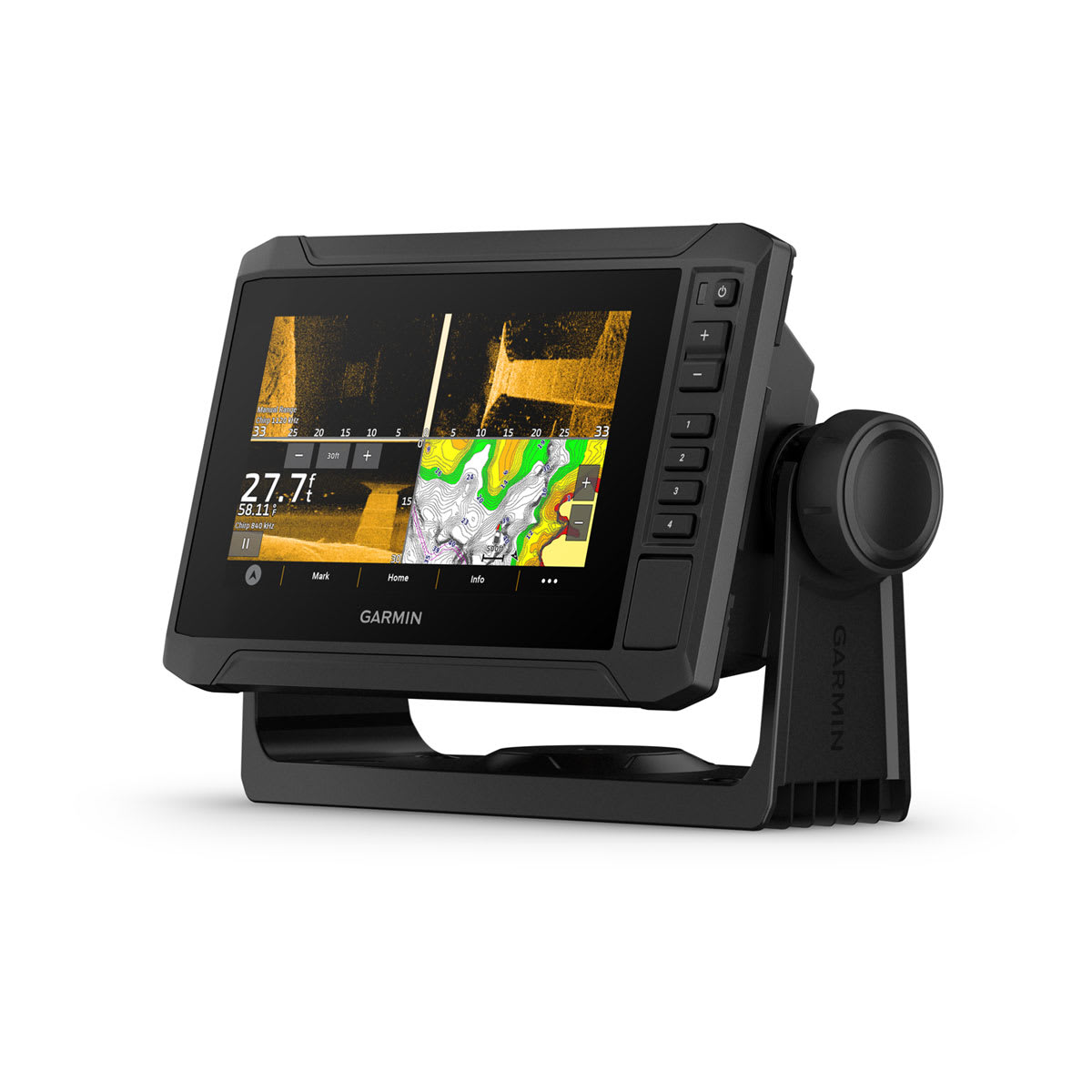

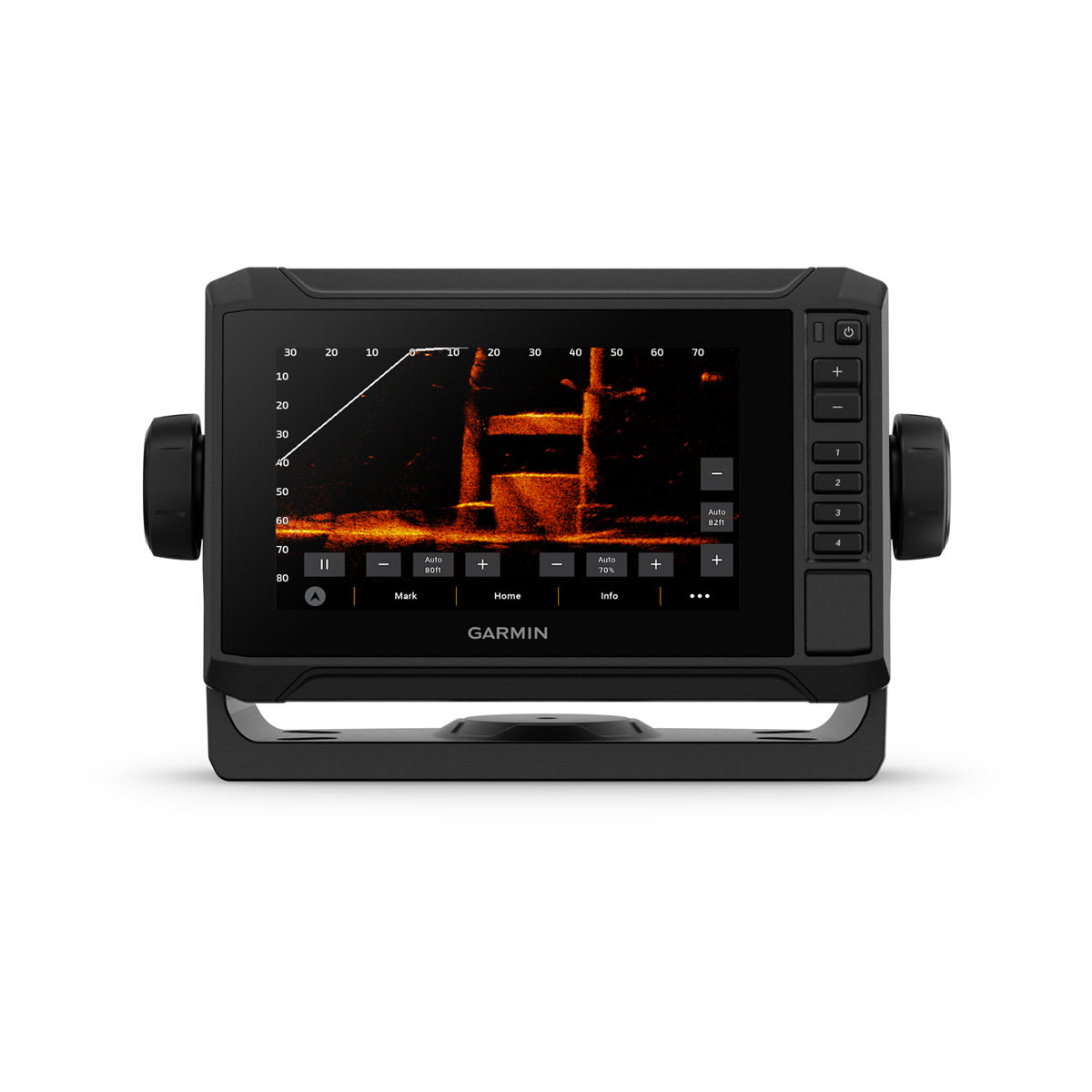

ECHOMAP™ UHD2 6″ Chartplotter helps you get to know the waters, & catch more fish with crystal-clear ClearVu and SideVu Sonar, 6-inch touchscreen display, & Garmin Navionics+ preloaded maps.
General
|
| Dimension |
8.1″ x 5.2″ x 2.6″ (20.6 x 13.1 x 6.7 cm) |
| Weight |
1.8 lbs (0.8 kg)
|
| Water rating |
IPX7 |
| Touchscreen |
|
| Display Type |
WVGA, TN |
| Display Size |
5.4″ x 3.1″, 6.2″ (13.8 x 7.8, 15.7 cm) |
| Display resolution |
800 x 480 pixels |

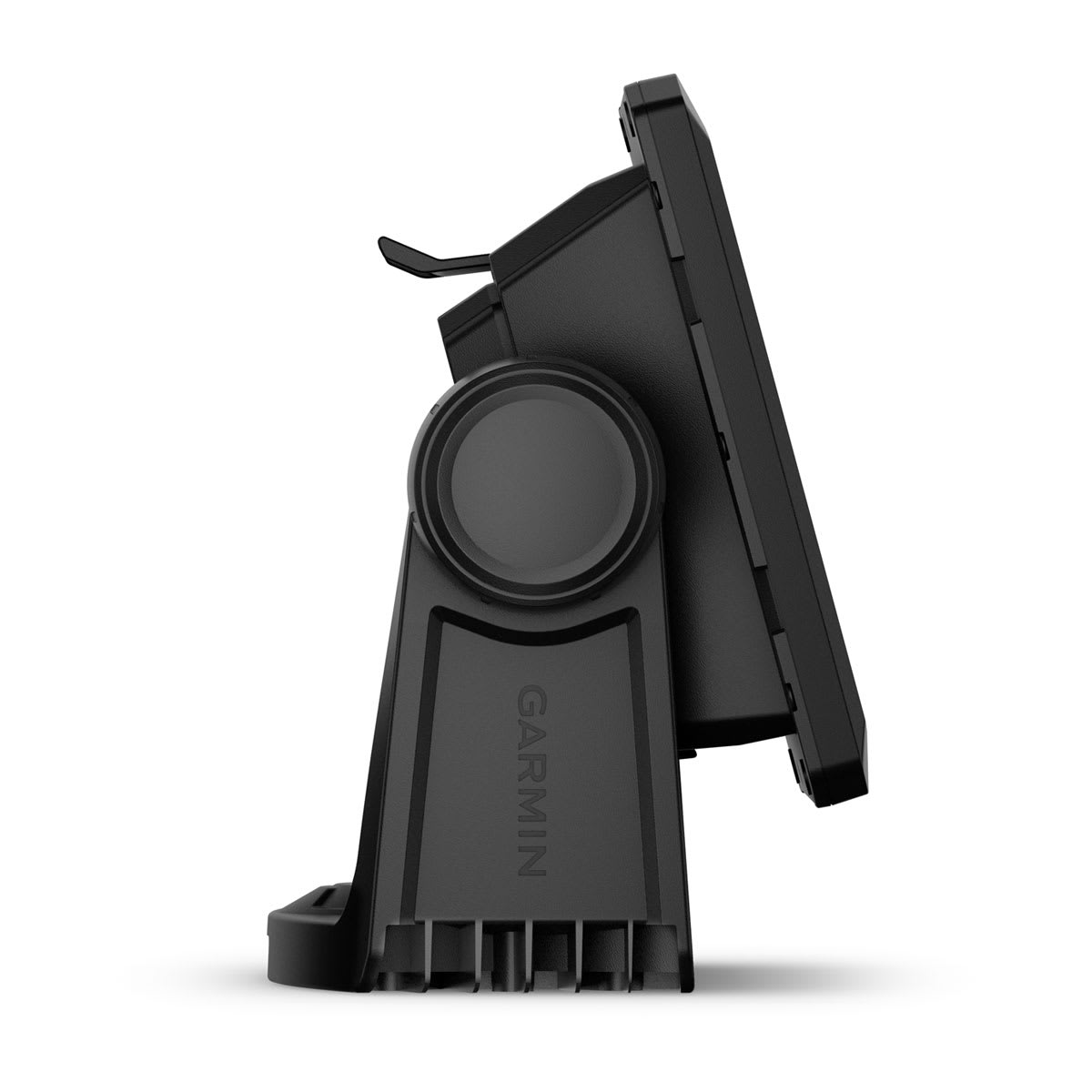

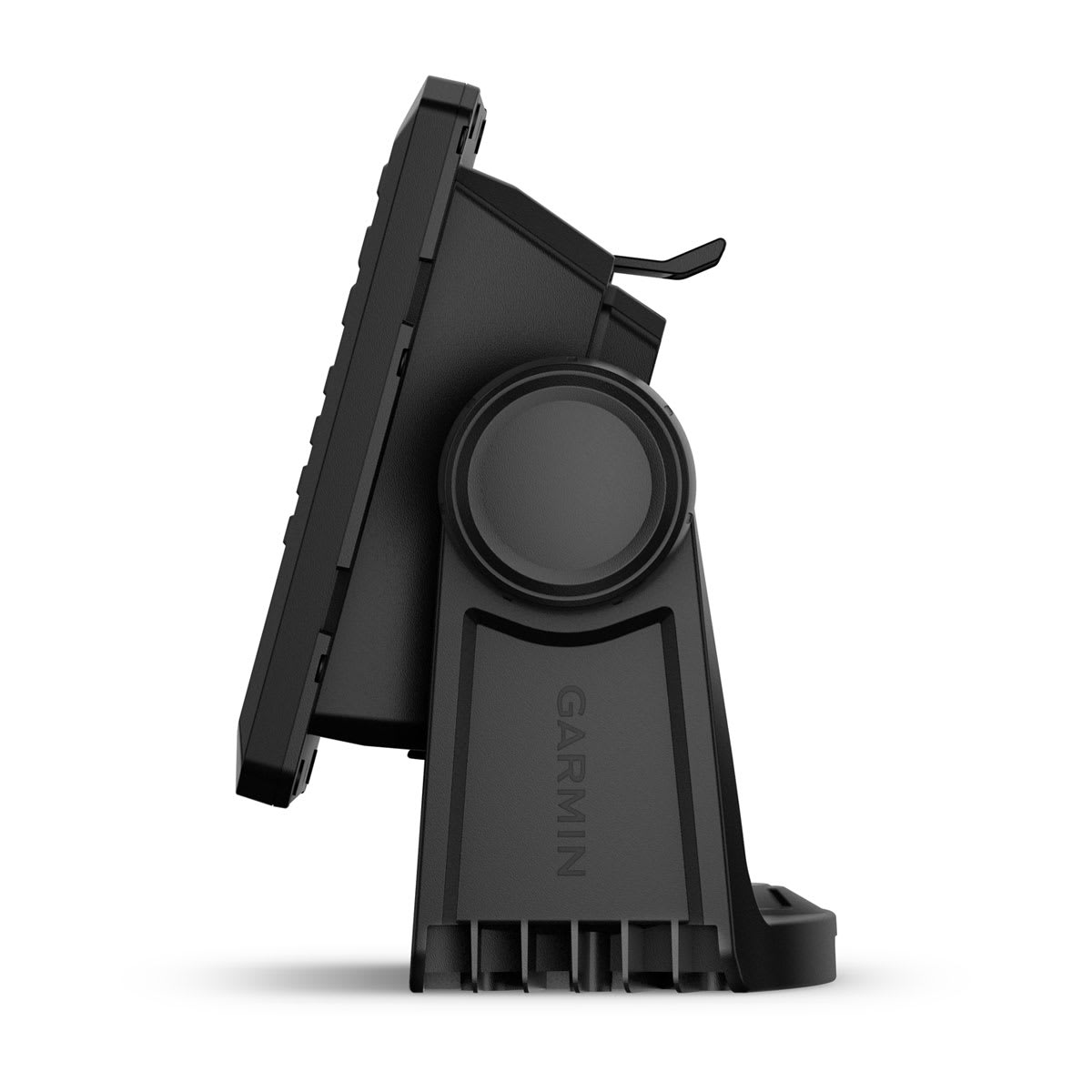

| Mounting Options |
bail or flush |
| Input |
Touchscreen with keyed assist |
Maps & Memory
|
| Accepts Data Cards |
1 microSD™ card; 32 GB maximum size
|
| Waypoints |
5,000
|
| Track points |
50,000 |
| Tracks |
50 saved tracks |
| Navigation Routes |
100 |
Sensors
|
| GPS |
|
| GLONASS |
|
| Galileo |
|
| BeiDou |
|
| Has built-in receiver |
|
| Receiver |
10 Hz
|
| NMEA 2000 Compatible |
|
| Supports WAAS |
|
| Supports multi-band, multi-constellation GPS |
|
Built-in Maps
|
| Built-in Auto Guidance+ |
yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal |
yes (see Additional) |
| Garmin Navionics+ (Coastal) |
yes (see Additional) |
| Garmin Navionics+ (Inland) |
yes (see Additional) |
| Tide tables |
yes (see Additional) |
Optional Map Support
|
| BlueChart g3 |
|
| BlueChart g3 Vision |
|
| LakeVü g3 |
|
| LakeVü g3 Ultra |
|
| Garmin Navionics+™ |
|
| Garmin Navionics Vision+™ |
|
| TOPO 100K |
|
| Standard Mapping |
|
| Garmin Quickdraw Contours |
|
Chartplotter Features
|
| AIS |
|
| DSC |
|
| Supports Fusion-Link™ compatible radios |
|
| ActiveCaptain® compatible |
|
| Sailing Features |
|
Electrical Features
|
| Power Input |
9 to 18 Vdc |
| Typical current draw at 12 Vdc |
1.53 A |
| Maximum current draw at 12 Vdc |
3.2 A |
| Maximum power usage at 10 Vdc |
18.4W |
Sonar Features
|
| Displays sonar |
|
| Power output |
500 W |
| Traditional sonar (dual frequency/beam) |
Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü |
Built-in 260/455/800/1000/1200 kHz |
| SideVü |
Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar |
|
| LiveScope |
|

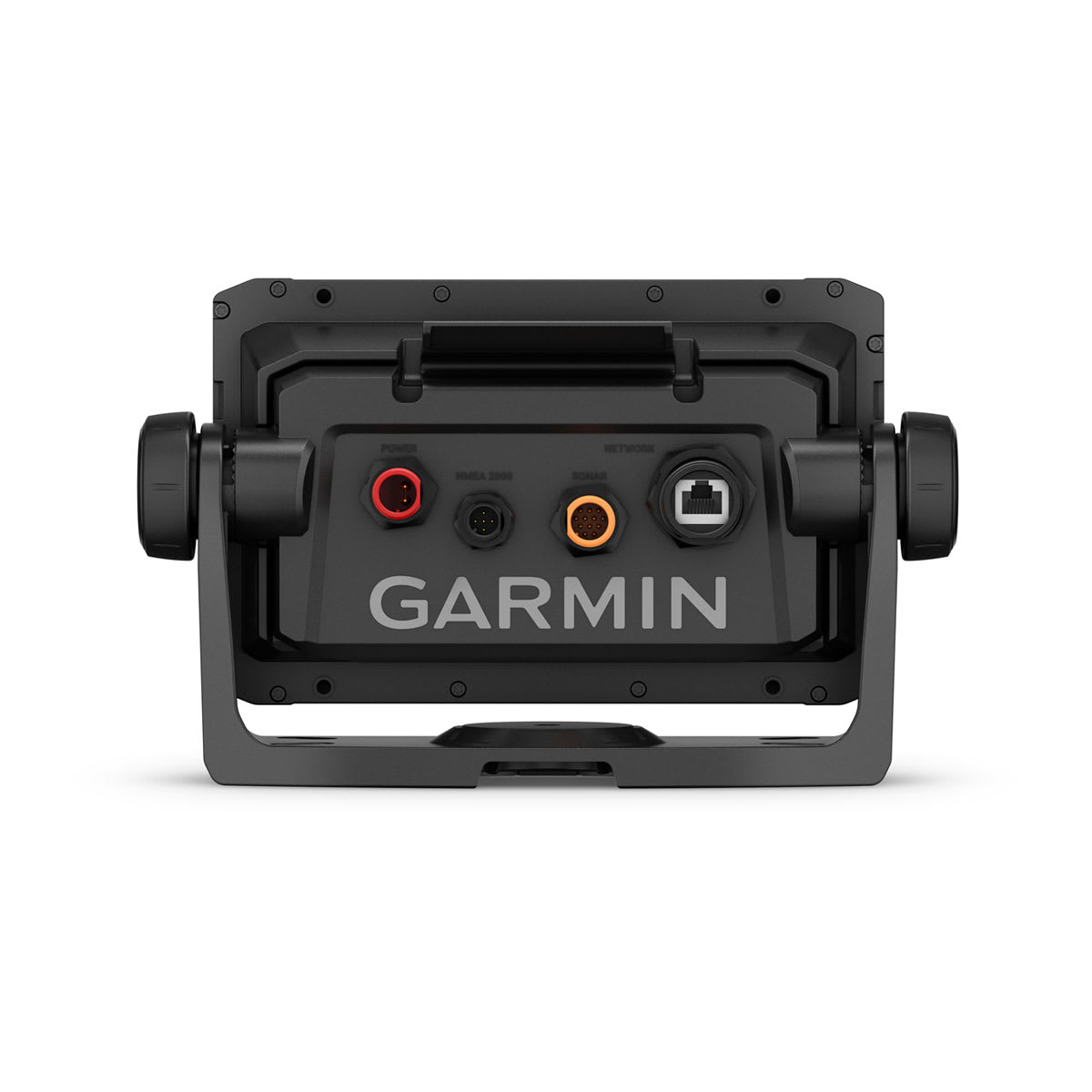

Networking & Connections
|
| NMEA 2000® ports |
|
| Garmin Marine Network Ports |
1
|
| 12-pin transducer ports |
1 |
| Bluetooth® pairing |
|
| ANT® (Connectivity) |
|
| Garmin Wi-Fi network (local connection) |
|
Additional
|
| Additional |
- Garmin Navionics+ (inland and coastal): 65sv Canada, Australia and New Zealand
- Garmin Navionics+ (coastal): 64sv U.S. coastal, 65sv UK/Ireland
- Garmin Navionics+ (inland): 63sv U.S. lakes
- Tide tables: 63sv, 64sv, 65sv
|
