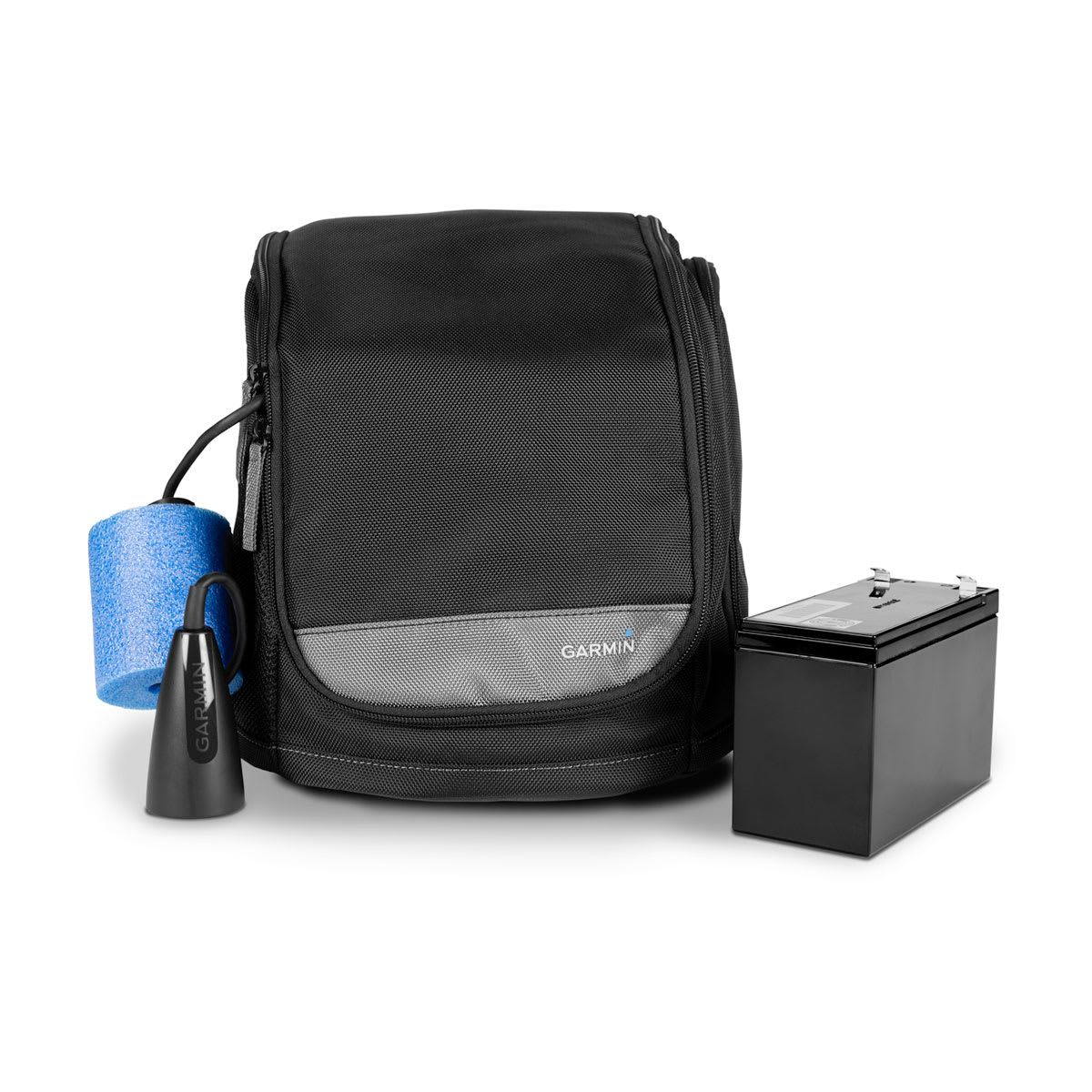

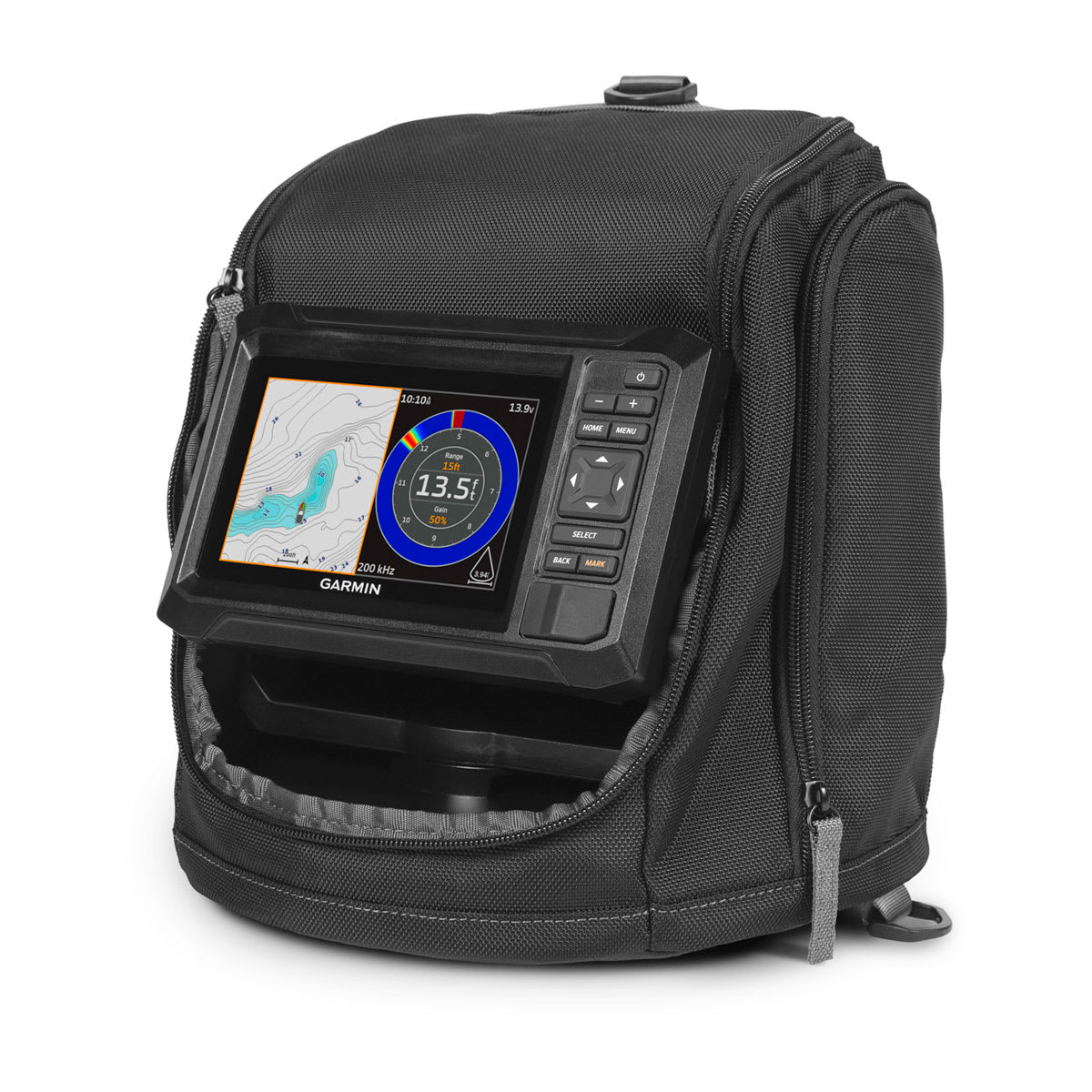

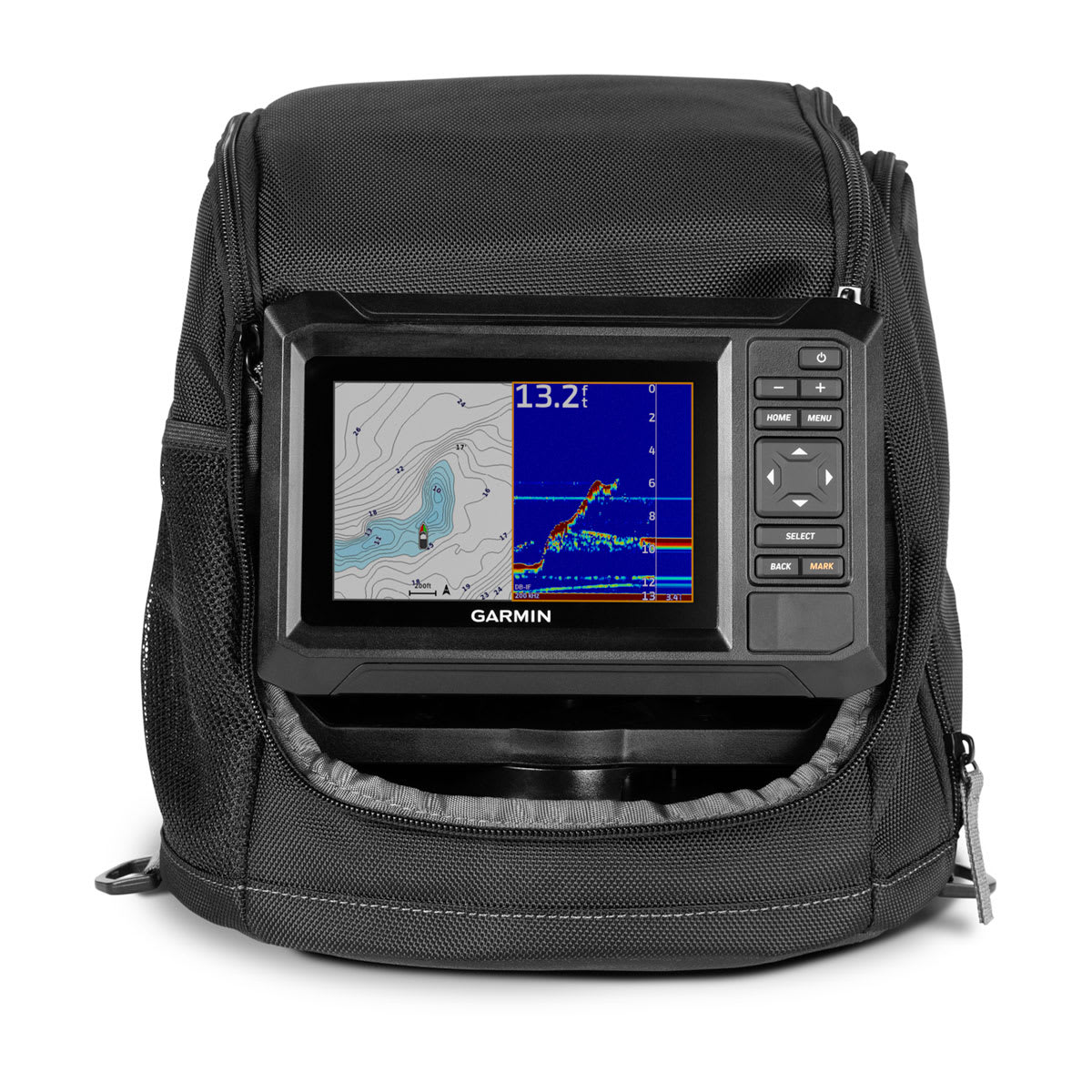

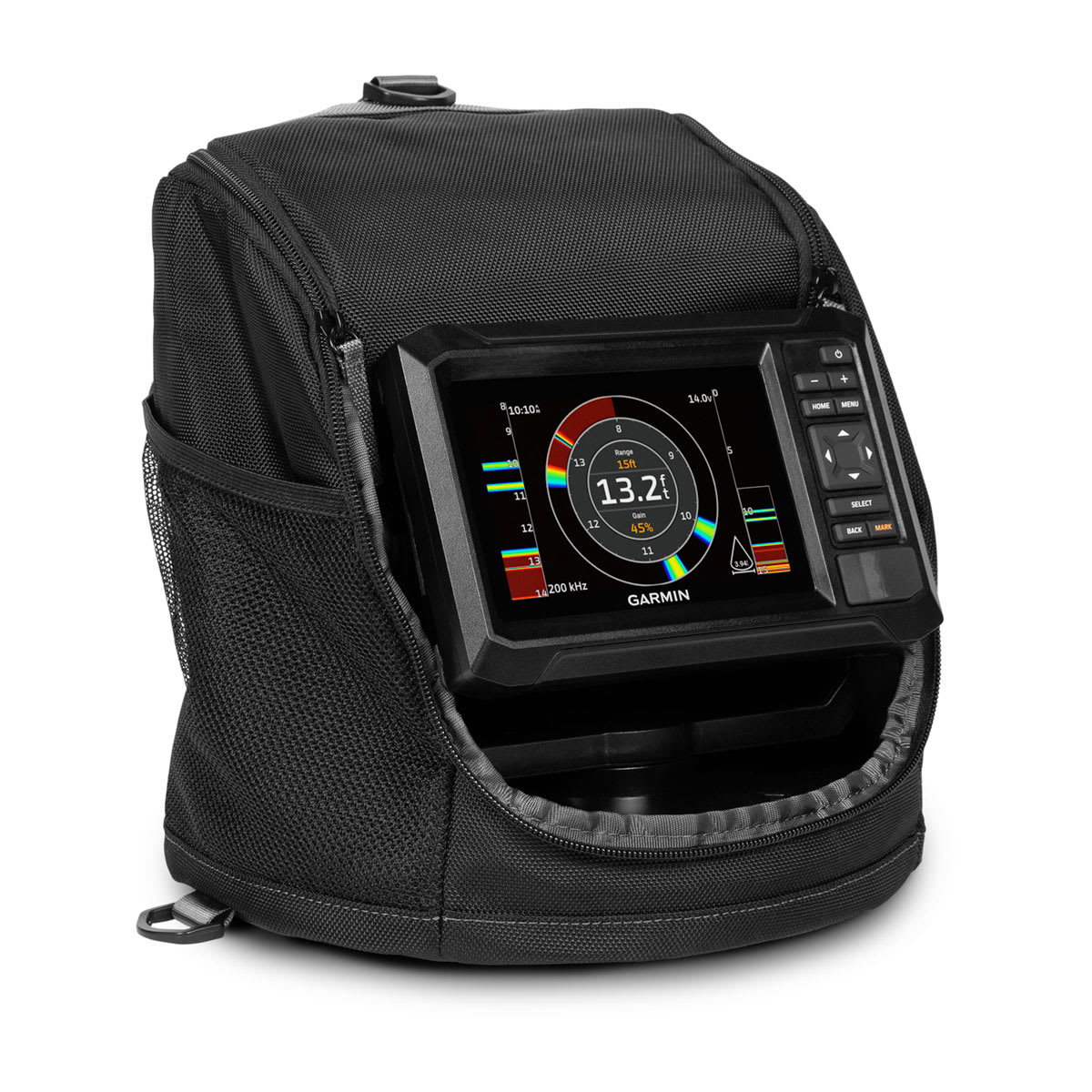

Ice Fishing Bundle features a ECHOMAP™ 53cv chartplotter, dual beam-IF transducer, Garmin Navionics+ maps, and a 5” sunlight-readable display.
General
|
| Dimension |
7.4″ x 4.8″ x 2.4″ (18.8 x 12.2 x 6.2 cm) |
| Weight |
9.5 lbs (4.3 kg)
|
| Water rating |
IPX7
|
| Display Type |
WVGA, IPS |
| Display Size |
4.3″ x 2.6″ (10.9 x 6.6 cm) |
| Display resolution |
800 x 480 pixels |
| Input |
Keyed |
Maps & Memory
|
| Accepts Data Cards |
1 microSD™ card; 32 GB maximum size
|
| Waypoints |
5000
|
| Track points |
50,000 |
| Tracks |
50 saved tracks |
| Navigation Routes |
100 |
Ice Fishing Details
|
| Battery type, size |
SLA, 7Ah |

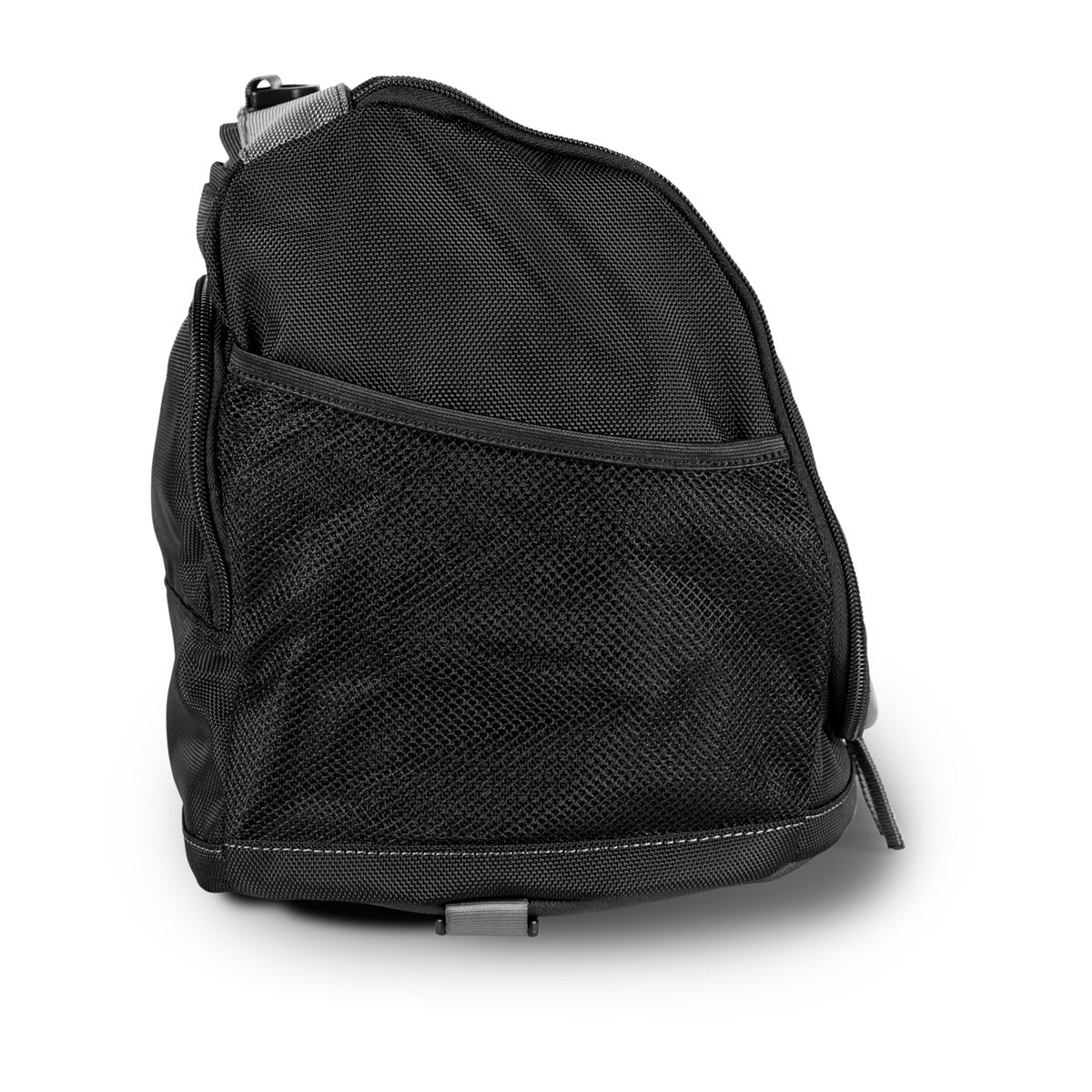

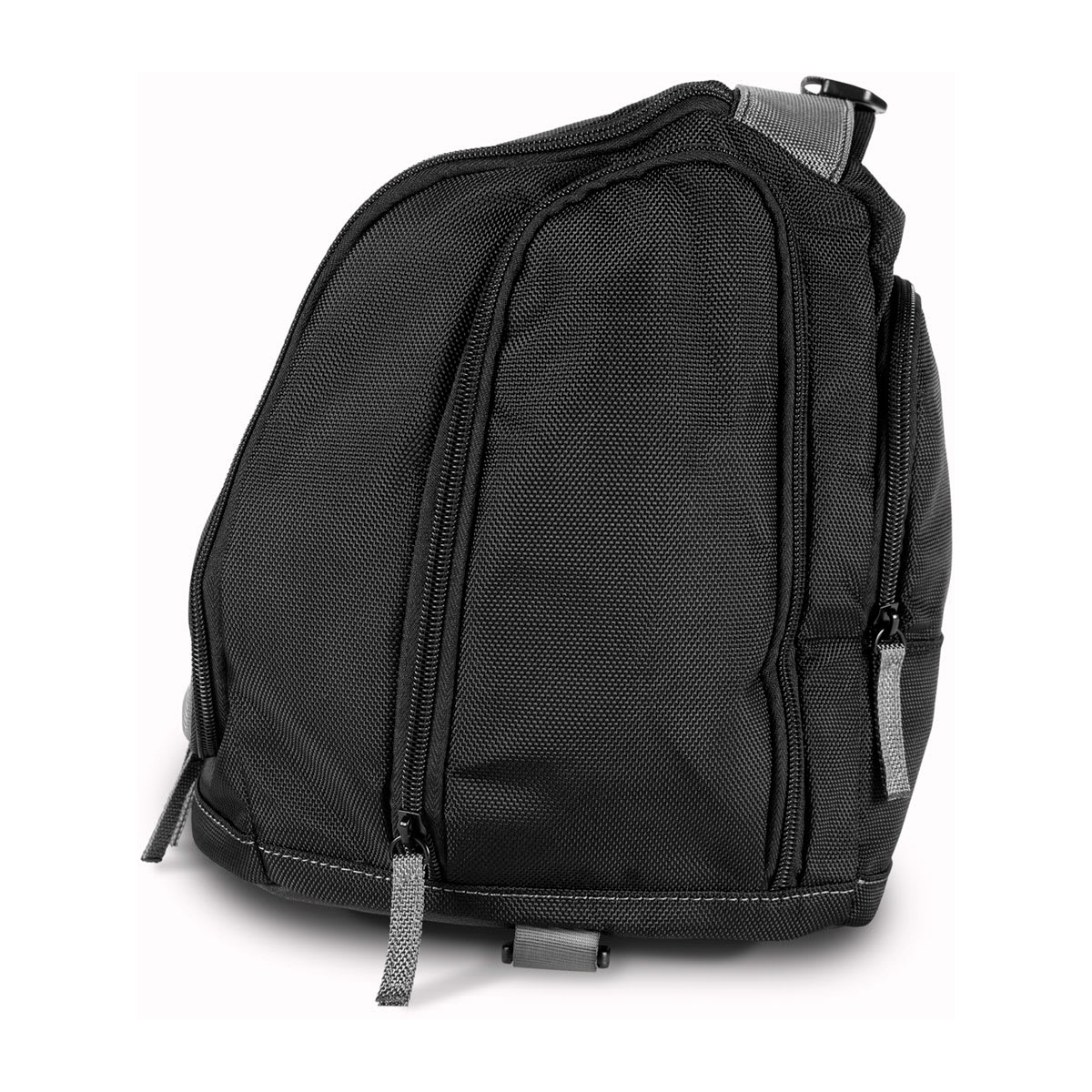

| Bag size |
S |
| Included transducer |
DB-IF |
| Transducer holding feature |
Foam float |
Sensors
|
| GPS |
|
| GLONASS |
|
| Galileo |
|
| Has built-in receiver |
|
| Receiver |
5 Hz
|
| NMEA 2000 Compatible |
|
| Supports WAAS |
|
Built-in Maps
|
| Built-in Auto Guidance+ |
yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal |
yes (see Additional) |
| Garmin Navionics+ (Inland) |
yes (see Additional) |
Optional Map Support
|
| Garmin Navionics+™ |
|
| Garmin Navionics Vision+™ |
|
| TOPO 100K |
|
| Standard Mapping |
|
| Garmin Quickdraw Contours |
|
Chartplotter Features
|
| ActiveCaptain® compatible |
yes
|
Electrical Features
|
| Power Input |
9 to 18 Vdc |
Sonar Features
|
| Displays sonar |
|
| Power output |
500 W |
| Traditional sonar (dual frequency/beam) |
Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü |
Built-in 260/455/800/1000/1200 kHz |
Networking & Connections
|
| 4-pin transducer ports |
1 |
| Garmin Wi-Fi network (local connection) |
|
Additional
|
| Additional |
Garmin Navionics+ Inland & Coastal: 55cv Canada
Garmin Navionics + (Inland): 53cv U.S. Lakes
|
