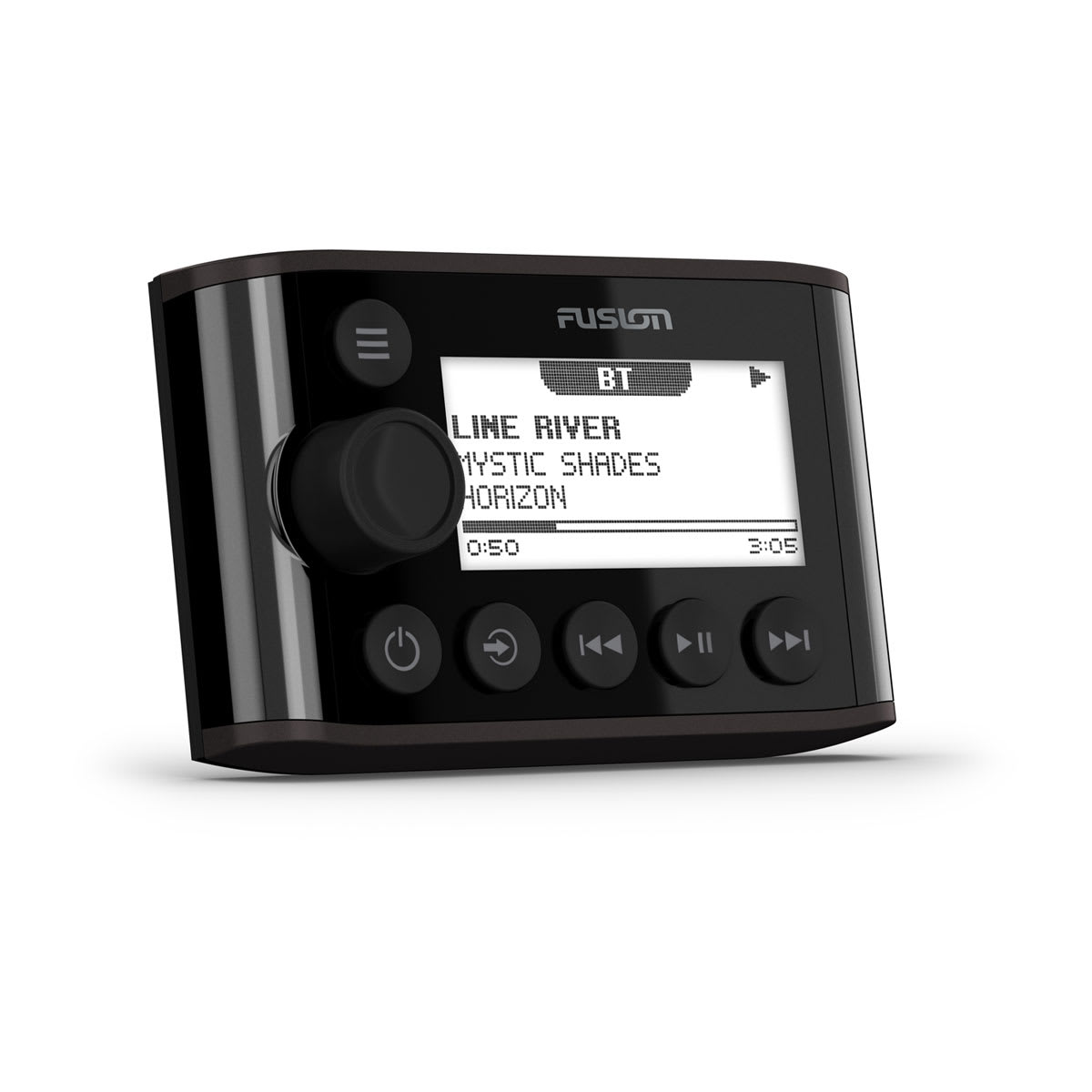

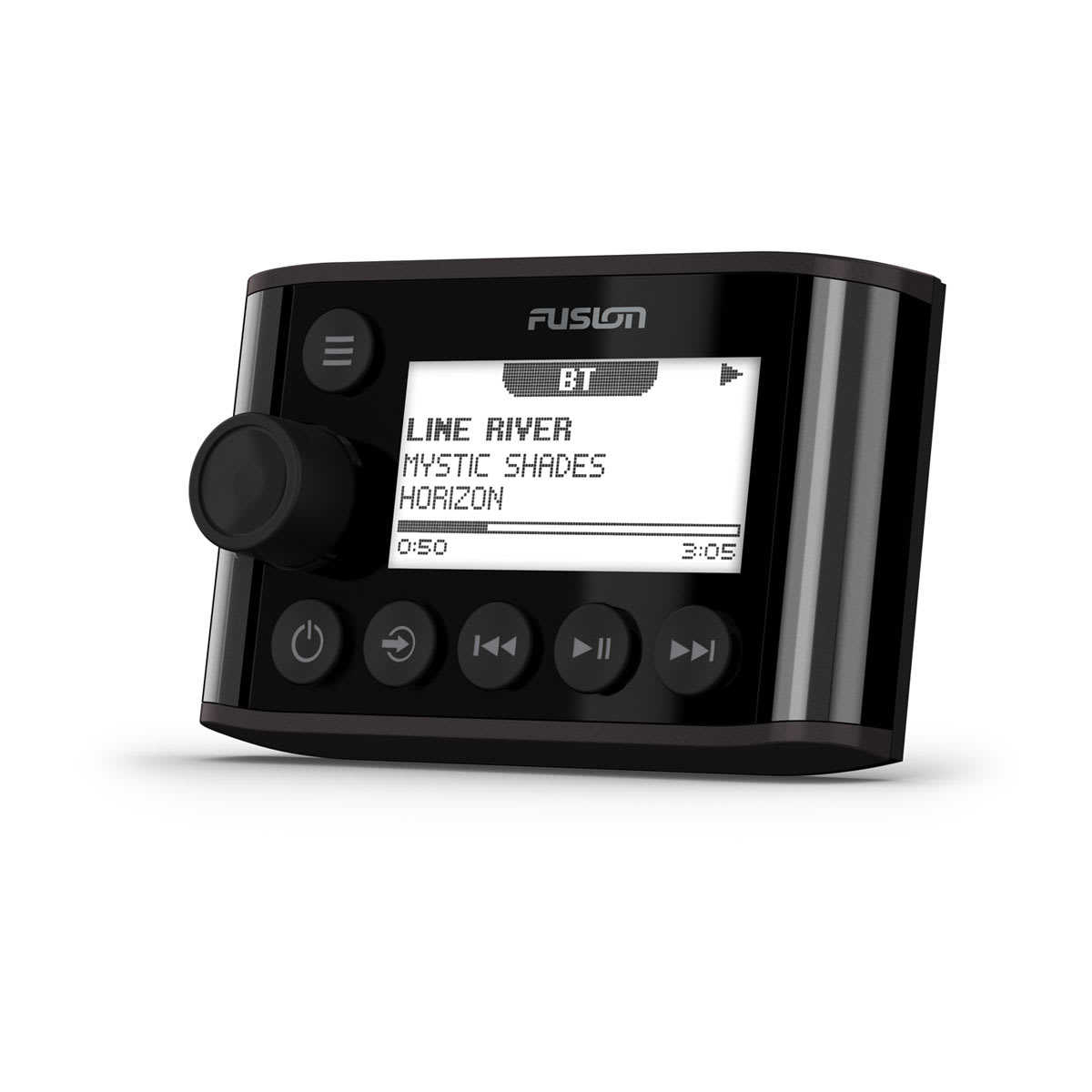

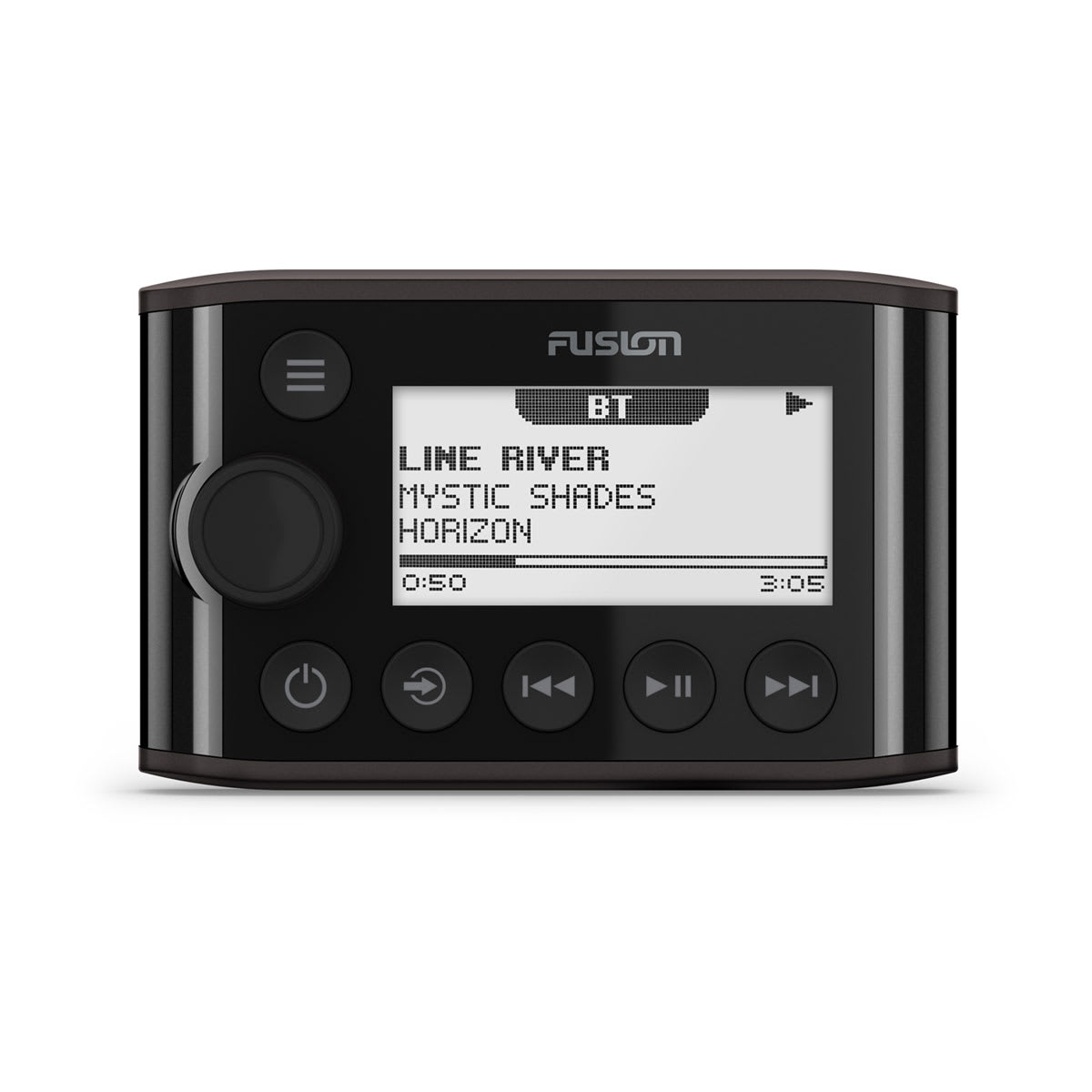

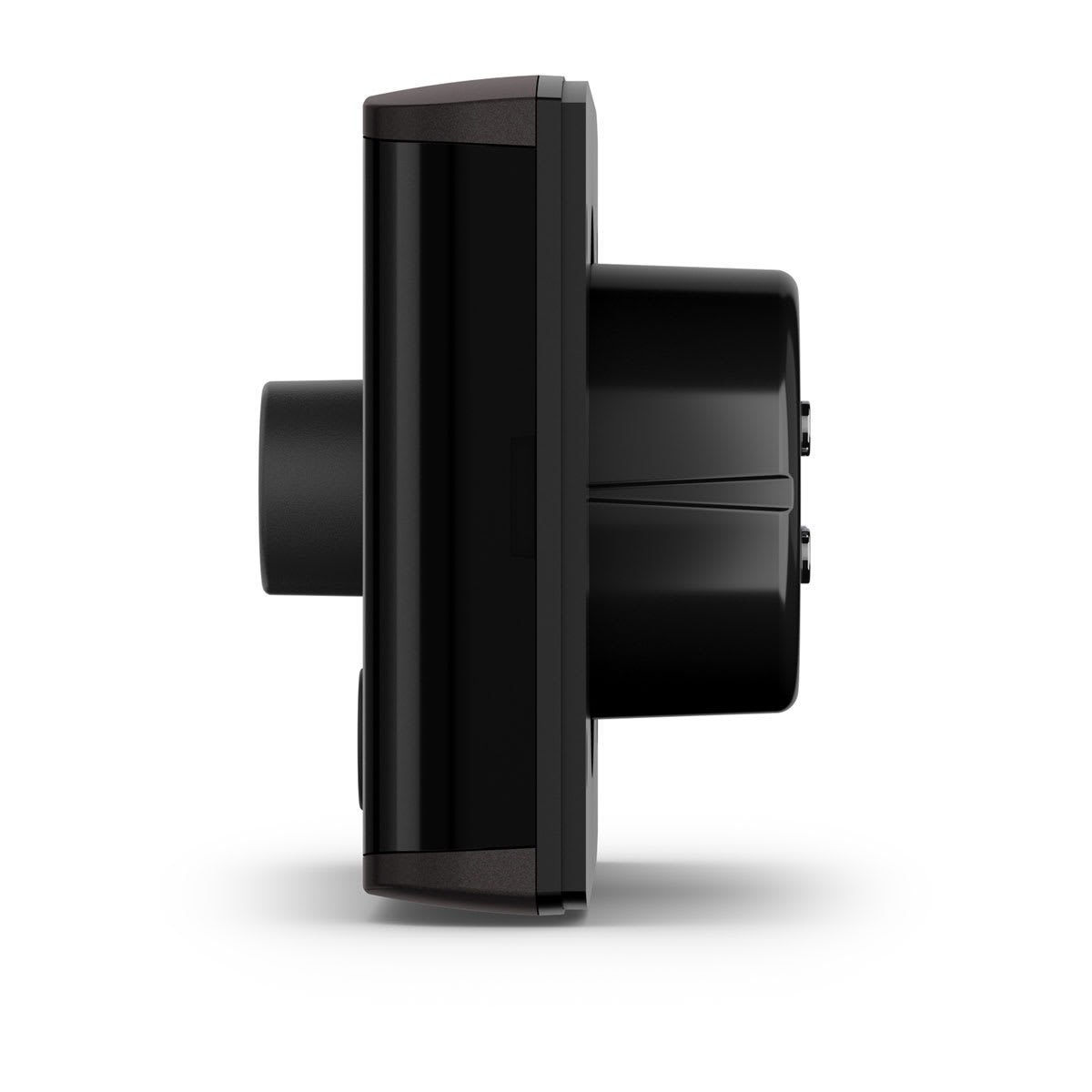

An easy to install wired remote that connects to the NMEA 2000® Network and allows you to enjoy localized audio control from any audio zone on board your boat.
General |
|
| Physical dimensions (HxWxD) | 2.76" x 4.33" x 1.97" (70 x 110 x 50 mm) |
|---|---|
| Water rating | IPX7 |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 110 mA at 12 VDC |
Remote Features |
|
| Display | 2.6" optically bonded monochrome LCD |
|---|---|
| Supported NMEA 2000 PGN data | 127250 – Heading sensor reference (true, magnetic) 128259 – Water speed reference (paddle wheel, pitot tube, doppler log, correlation log, electromagnetic log) 128267 – Water depth (offset add or subtract) 129025 – Position (latitude and longitude) 129026 – Course Over Ground (COG) and Speed Over Ground (SOG) [COG reference true, magnetic] 129029 – Global Navigation Satellite System (GNSS) position data 129284 – Navigation data (ETA) 130306 – Wind data reference (apparent wind relative to the vessel centerline) 130310 – Water temperature and air pressure 130311 – Water temperature and air pressure 130312 – Temperature and temperature source (sea temperature) |
| Warranty | 3 years |
Connectivity |
|
| NMEA 2000 | 1 port |
|---|---|
