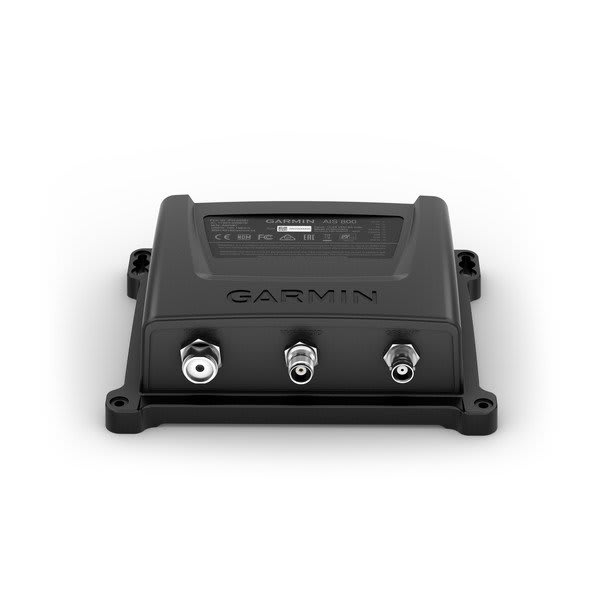

The Garmin AIS™ 800 Blackbox Transceiver allows you to receive AIS target data as well as transmit your own vessel information to other AIS receivers in your area.
General
|
| Unit size |
175 x 142 x 55 mm (6.9″ x 5.6″ x 2.1″) |
| Weight |
0.9 lb (414 g)
|
| Operating voltage |
9.6 – 31.2 VDC |
| Water rating |
IPX7 |
| Operating temperature |
-15°C to 55°C (5°F to 131°F ) |
| Splitter connector |
TNC |
VHF Radio
|
| Spurious response |
70 dB |
| Max antenna gain |
6 dBi |
AIS Transponder Features
|
| AUX VHF splitter |
|
AIS
|
| Class |
SOTDMA Class B; CSTDMA Class B (optional) |
| Long range position reports (Msg 27) |
|
| Frequency range |
156.025 – 162.025 MHz |
| AIS Sensitivity (20% PER) |
-110 dBm |
| Adjacent channel selectivity |
70 dB |
| Intermodulation |
65 dB |
| Splitter insertion loss |
RX 0 dB, TX -0.9 dB |
GNSS
|
| Integrated GNSS receiver |
|
| Integrated GNSS antenna |
|
| Constellations |
GPS, GLONASS, Galilleo |
| Differential support |
SBAS, AIS Msg 17 |
| Navigation rate |
1 Hz |
Sensors
|
| NMEA 2000 Compatible |
|
| NMEA 0183 Compatible |
|
Tactical Features
|
| Stealth Mode |
|
Electrical Features
|
| Typical current draw at 12 Vdc |
400 mA |
| Compass-safe distance |
40 cm (15.8″) |
Sonar Features
|
| Power output |
5 W |
Networking & Connections
|
| NMEA 0183 detail |
1 NMEA 0183 port, AIS & GPS sentences, 4800/38400 baud |
| External GNSS antenna connector |
BNC |
| Ant connector |
SO-239 (50 Ω) |
