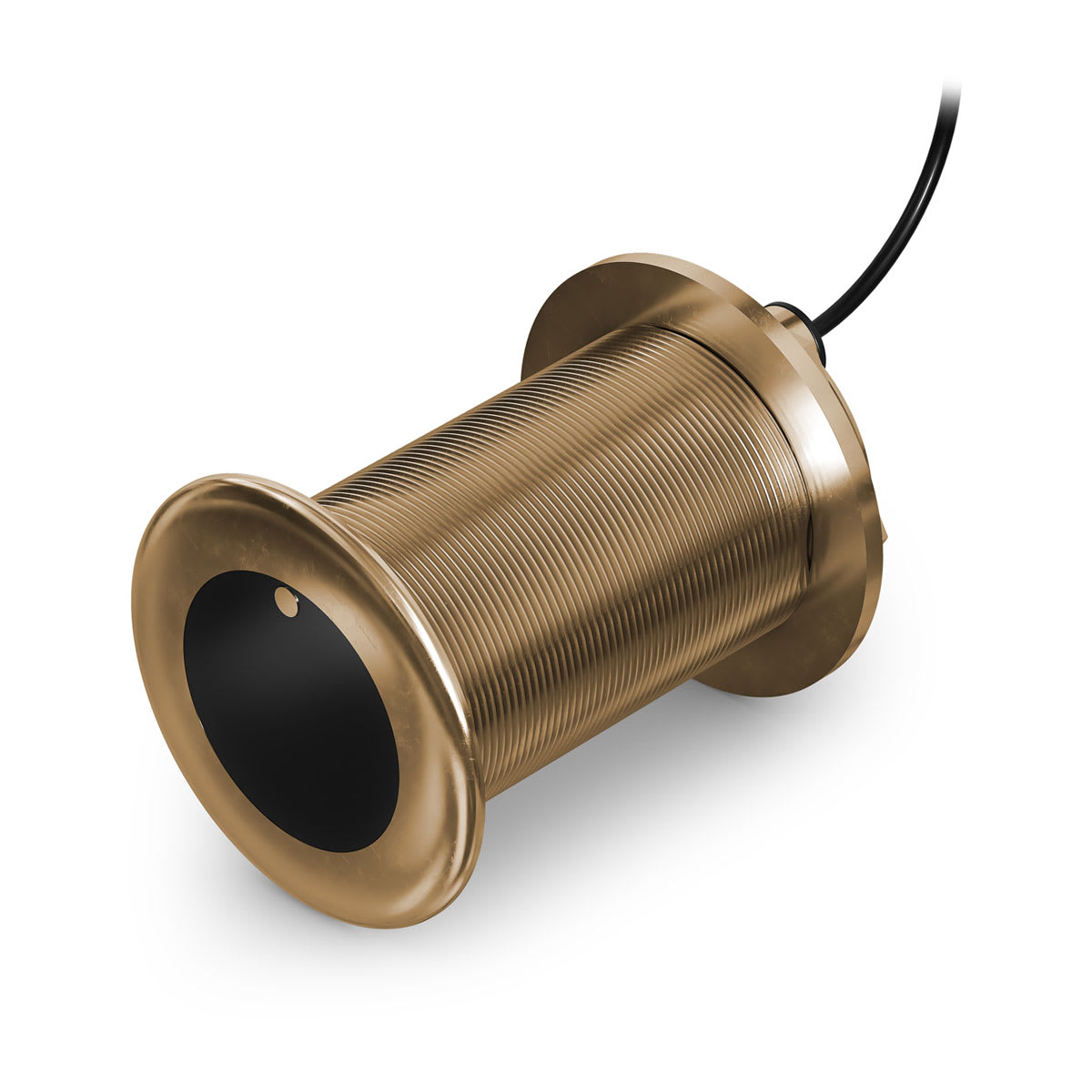

GT12M-THF is a 350-watt CHIRP transducer that clearly defines fish arches, structure, bottom depth, & has a maximum depth performance to 1200′ in freshwater.
General |
|
| Transducer frequency | medium band CHIRP (85-165 kHz) |
|---|---|
| Transducer power | 350 W |
| Transducer beamwidth | 24°-16° |
| Transducer maximum depth | 800 ft saltwater; 1200 ft freshwater |
| RapidReturn™ sonar compatible | |
| Transducer cable length | 50 ft |
| Transducer depth/speed/temperature | depth, temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 0° supports hull deadrise angles from 0° to 7° 12° supports hull deadrise angles from 8° to 15° 20° supports hull deadrise angles from 16° to 24° |
| Housing material | bronze |
Transducer Support |
|
| Transducer frequency | medium band CHIRP (85-165 kHz) |
|---|---|
