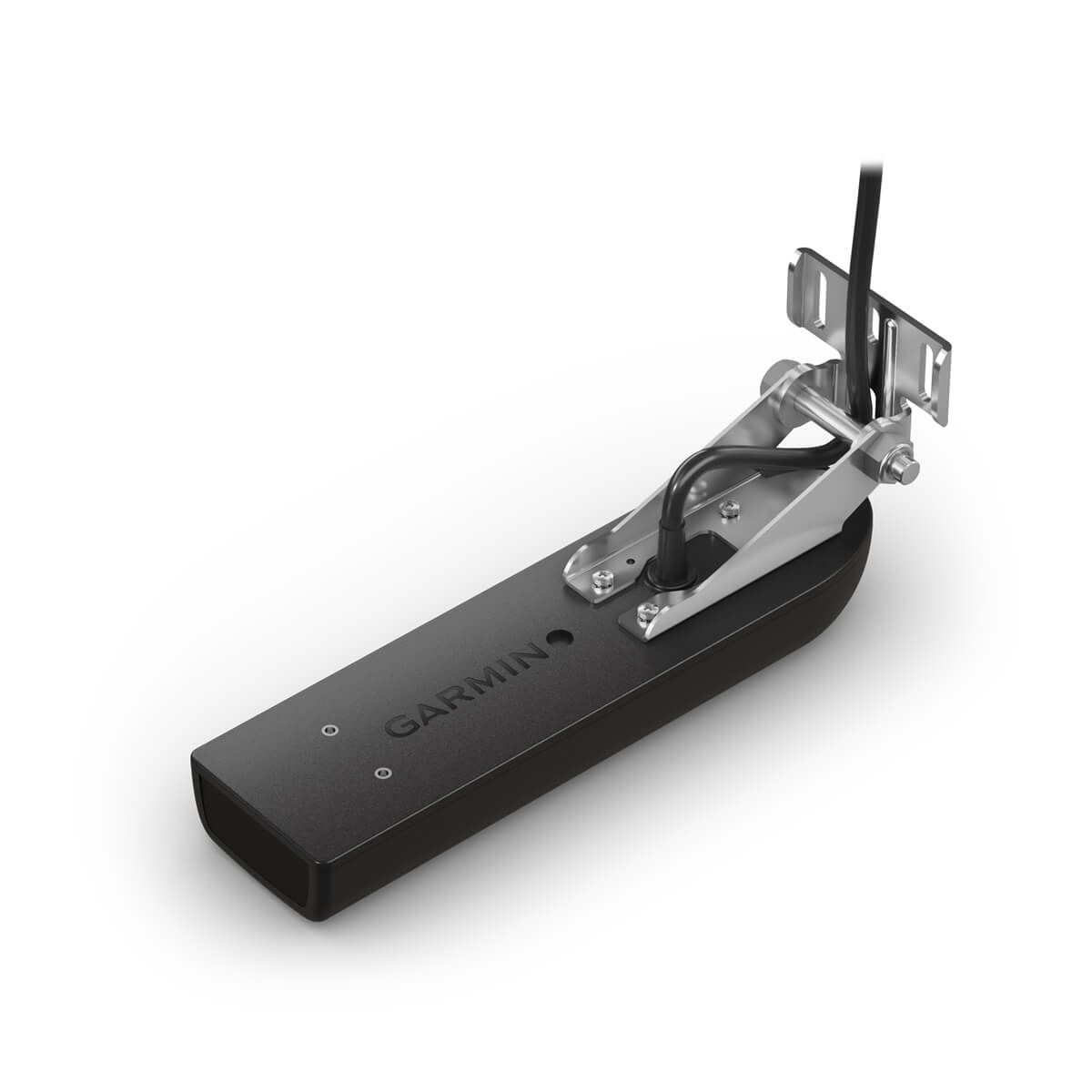

The Garmin GT23M-TM is a trolling motor mounted transducer that is ideal for freshwater fisherman who want CHIRP traditional and CHIRP ClearVü scanning sonar.
General |
|
| Transducer frequency | CHIRP Mid-band (80-160 kHz); ClearVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz) |
|---|---|
| Transducer power | CHIRP Traditional 600 W; ClearVü 500 W |
| Transducer beamwidth | Traditional: 24°-13° ClearVü: 2.0°x51° @ 260 kHz 1.4°x29° @ 455 kHz |
| Transducer maximum depth | Traditional: 1,800 ft.; ClearVü: 1,000 ft. |
| Transducer cable length | 30 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 0°-70° degree transom |
Transducer Support |
|
| Transducer frequency | CHIRP Mid-band (80-160 kHz); ClearVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz) |
|---|---|
