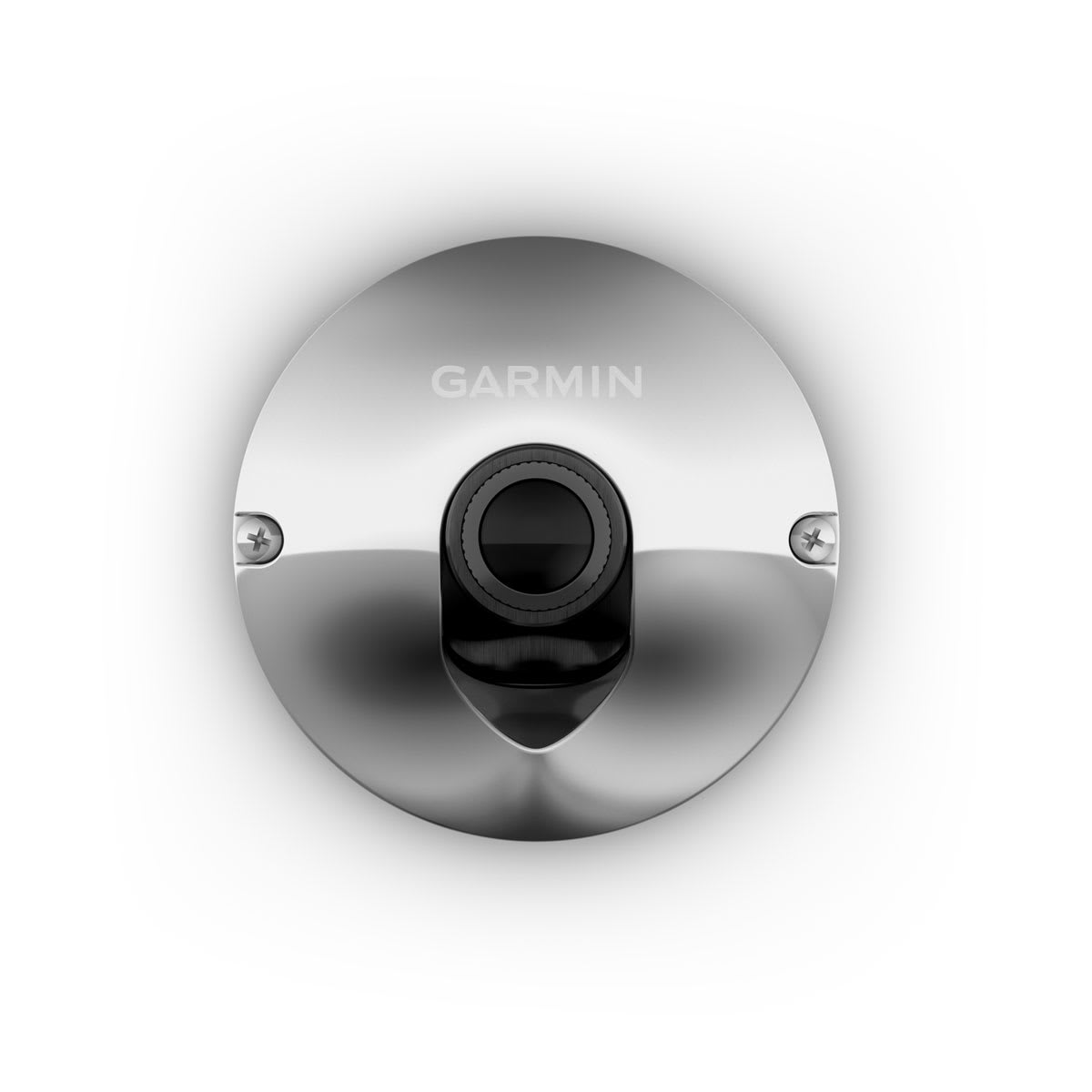

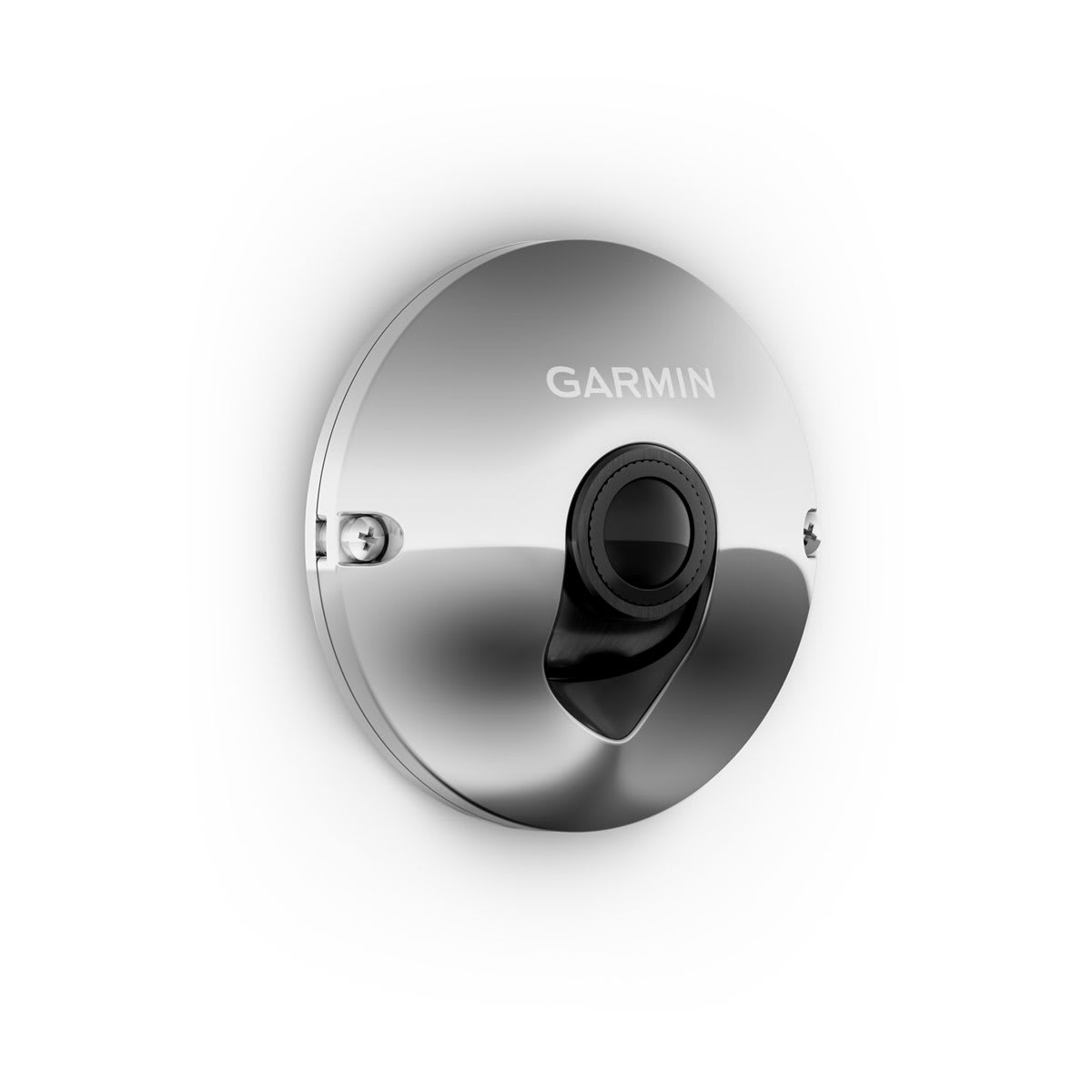

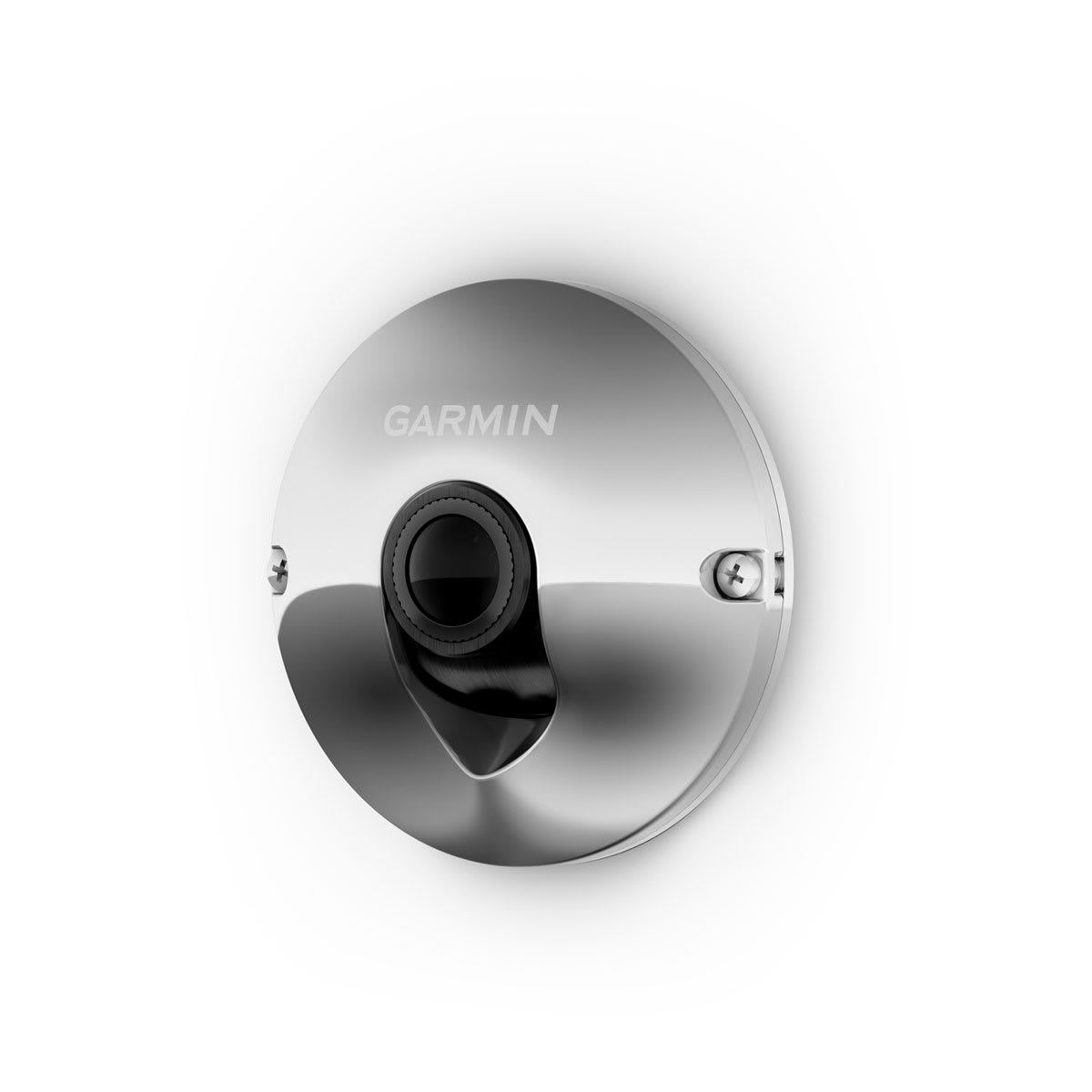

GC 255 Flush Mount Camera is a stainless-steel marine camera with 1080P high-resolution, three camera views, guidance lines, and distance markers.
- Unit dimensions: 3.2” x 3.2” x 3.3” (8.1 x 8.1 x 8.38 cm), body; 3.2" x 3.2" x 0.95" (8.1 x 8.1 x 2.4 cm)
- Weight: 22.9 oz (650 g)
- Hardwire power: 12V/24V
- Operating current: 300 mA at 12VDC; 200 mA at 24VDC
- Power consumption: 4.5 W
- Connection to chartplotter: IP
- Versatile mounting options: thru-hull installation
- Rugged housing: yes (high impact)
- Install below rub rail: yes
- Setup: plug-and-play
- Water rating: IPX7
- Video resolution: 1920 x 1080 pixels*
- Video output: H.264 over GMN and BlueNet™
- Images: Standard and reverse
- Selectable views: FishEye, standard, BirdsEye (OEM calilbrated)
- Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
- Viewing angle (H/V): 160°H/90°V
- Operating temperature: -20°C to +60°C
- Scanning system: progressive scan
- Day/night operation: RGB mode full-time
*1080p resolution available on select chartplotters only
