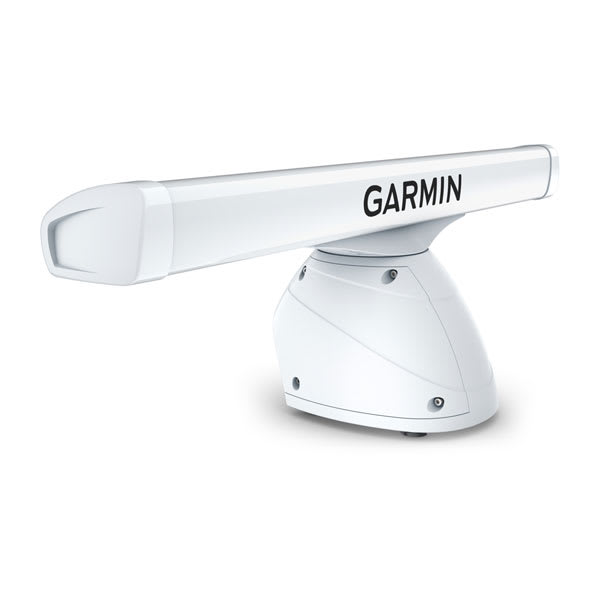

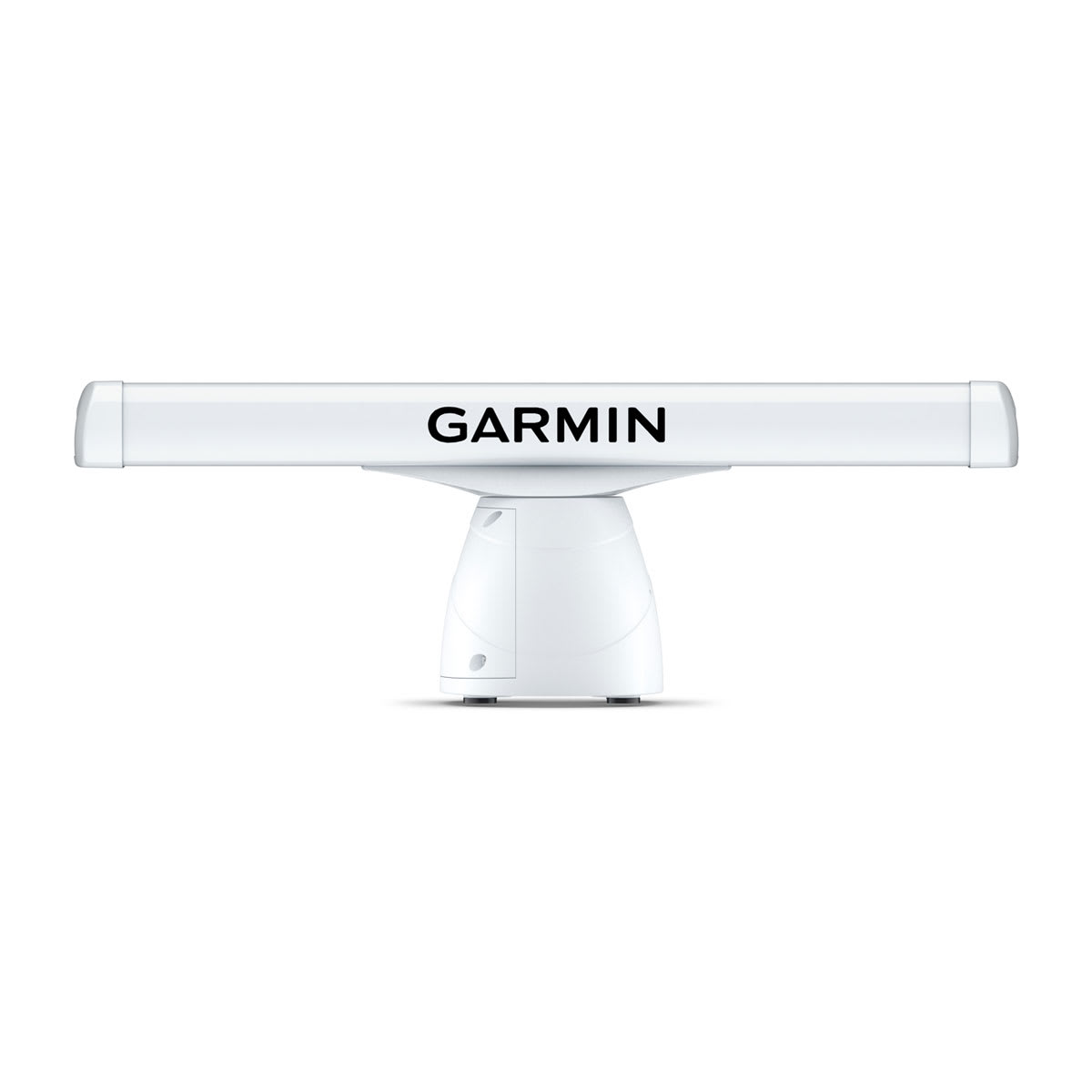

GMR™ 1234/1236 xHD3 are robust 4’ and 6’ open-array magnetron radars with 12 KW of power & superior object/traffic detection for cruising & fishing offshore.
General |
|
| Antenna Length | 4′ array: 48″ (122 cm) 6′ array: 72″ (183 cm) |
|---|---|
| Rotation speed (RPM) | 24 and 48 rpm |
| Dimension | 4′ array: 1325 x 122 x 170 mm (52.2″ x 4.8″ x 6.7″) 6′ array: 1938 x 122 x 170 mm (76.5″ x 4.8″ x 6.7″) Pedestal: 520 x 328 x 314 mm (20.5″ x 12.9″ x 12.4″) |
| Weight |
4' array and pedestal: 27.7 kg |
| Water rating | IPX6 |
| Max Wind Load | 100kt |
| Beam width | 4′ array: 1.8° horizontal, 23° vertical 6′ array: 1.1° horizontal, 23° vertical |
| Maximum range | 96 nm |
| Minimum range | 20 meters |
| Radar type | Open-array |
Electrical Features |
|
| Power Input | 10-32 V DC |
|---|---|
| Power Consumption (standby) | 18 W |
| Typical power consumption, transmitting (normal mode) | 70 W |
| Transmit power | 12 kW |
Radar Features |
|
| Dual range | |
|---|---|
| Overlay | |
| Dual radar support | |
| Auto Bird Gain | |
| Auto Gain | Dynamic |
| MARPA target tracking | yes (requires heading sensor, sold separately) |
| Echo Trails | True |
| Programmable antenna parking | |
| Target size | |
| Scan averaging | |
