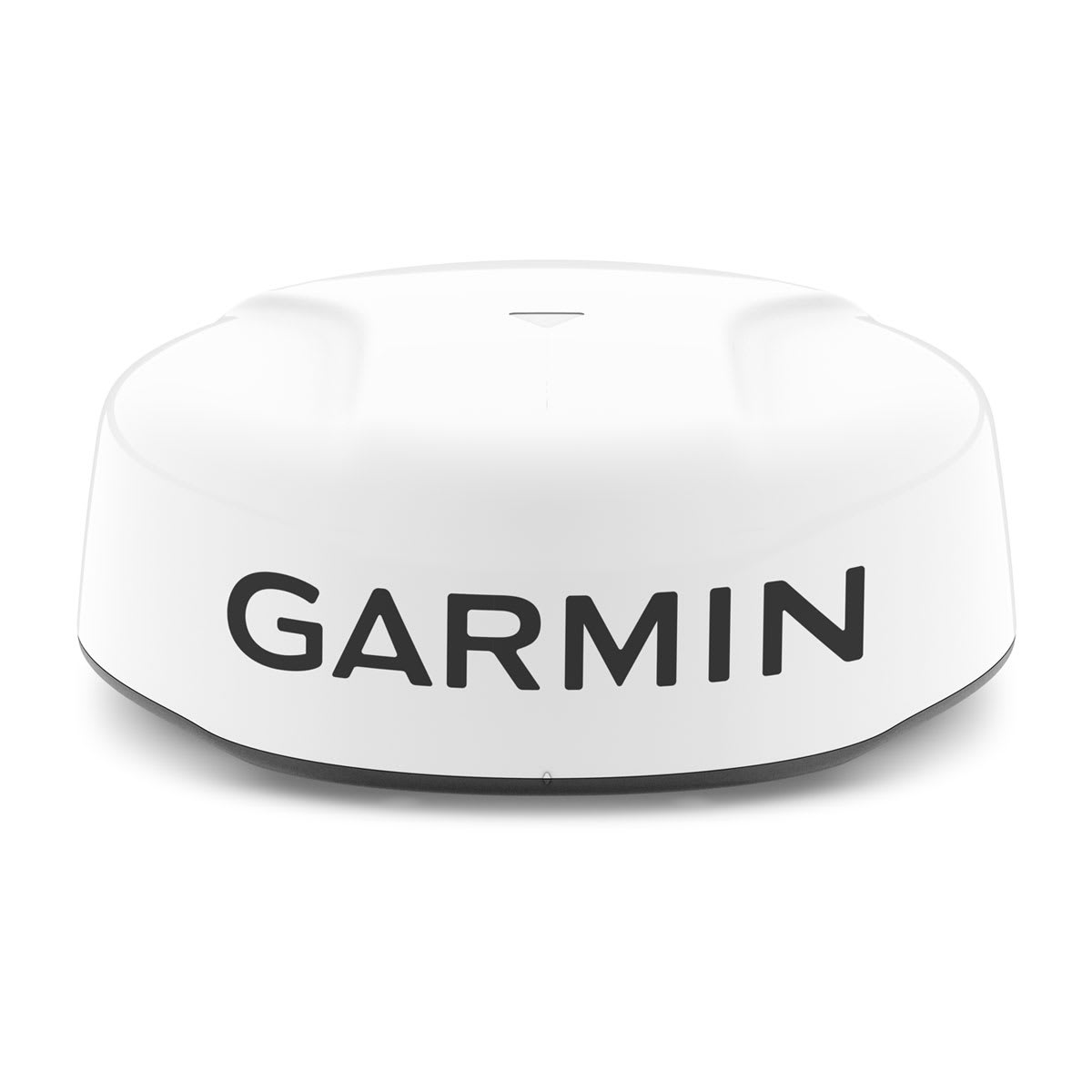

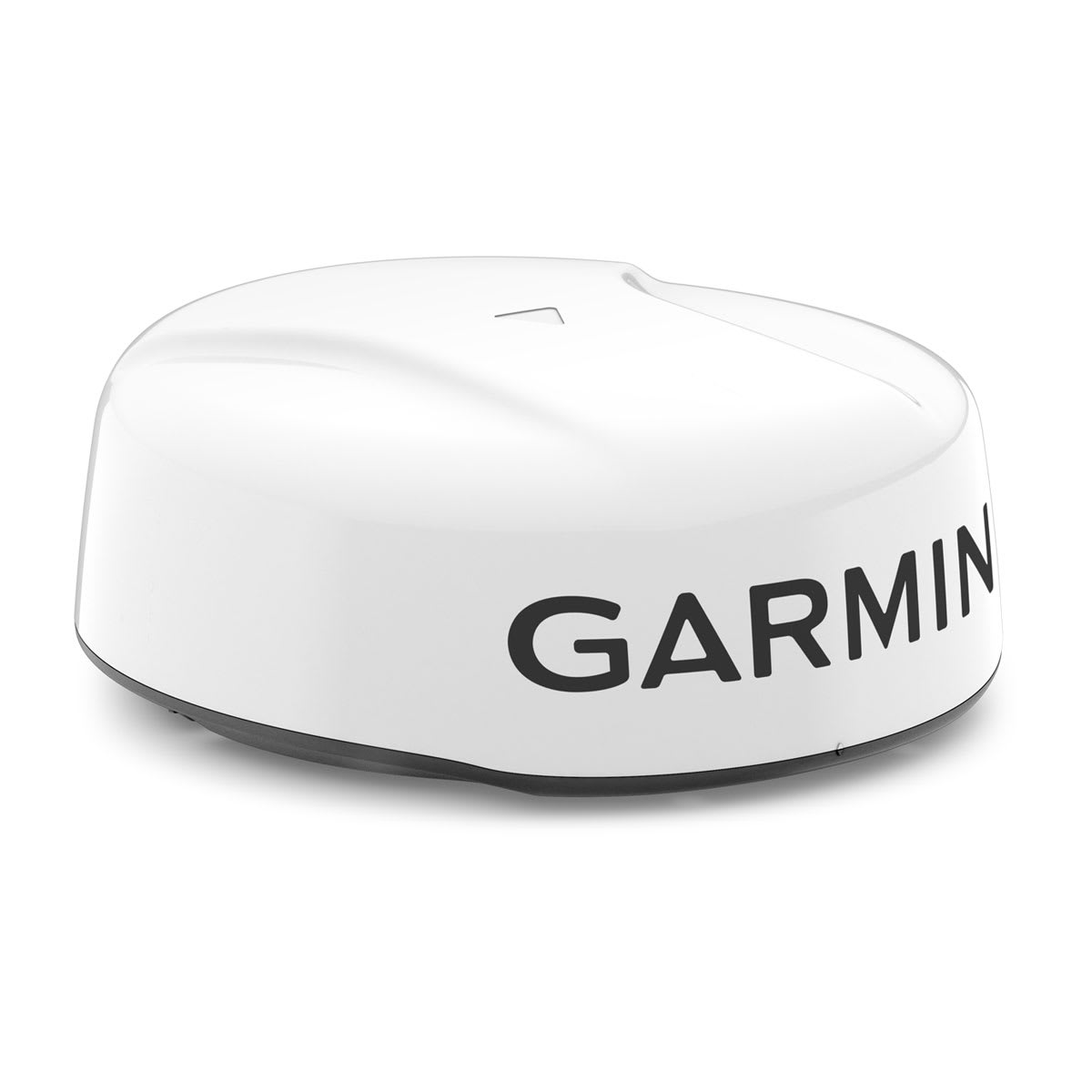

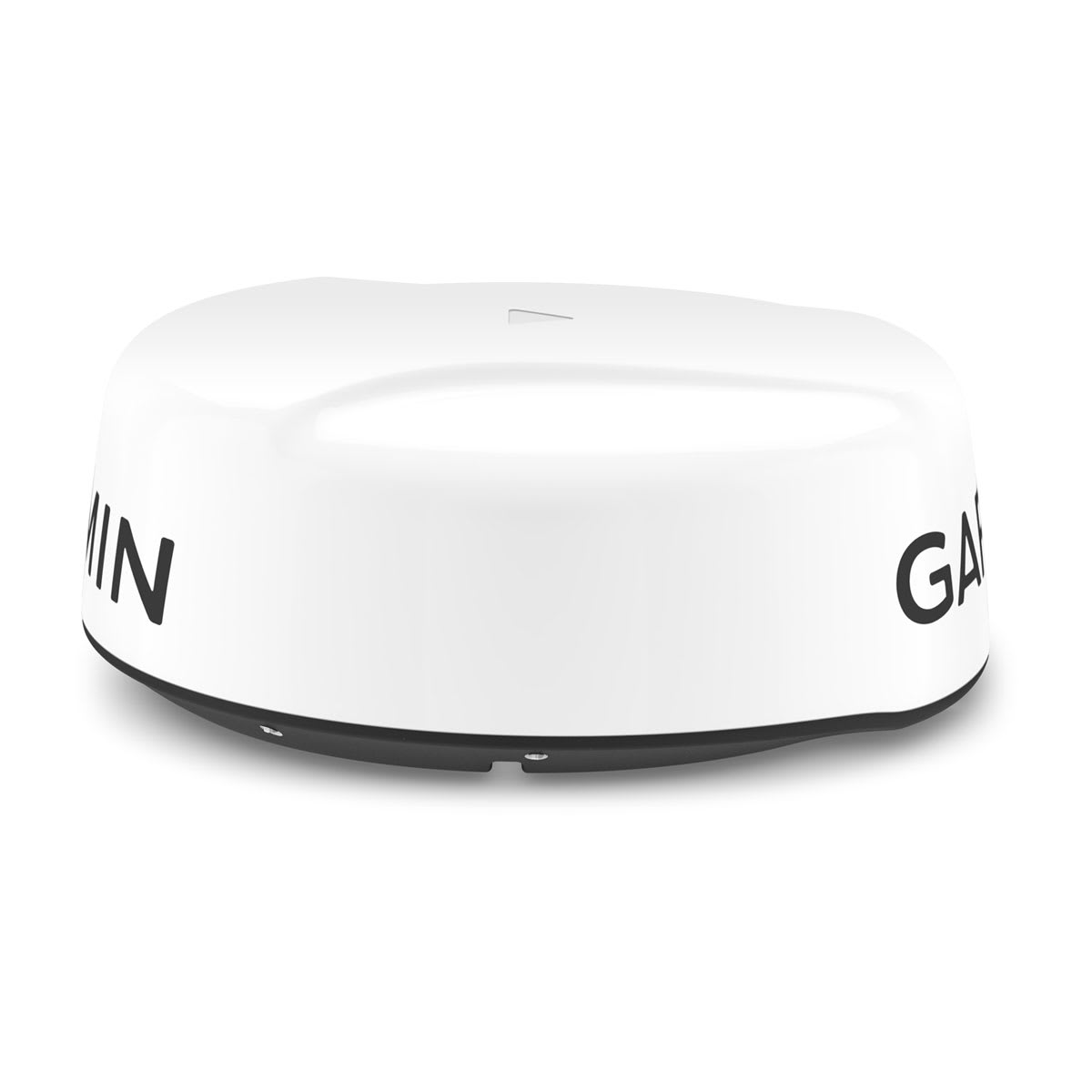

GMR 18 HD3 is an 18” magnetron dome radar with 4 KW of power and scanning features that work to maximize your confidence and situational awareness on the water.
General |
|
| Antenna Length | 18: 17″ (43 cm) 24: 23″ (58 cm) |
|---|---|
| Rotation speed (RPM) | Up to 60 rpm, depending on settings |
| Dimension | 18: 20″ x 9.8″ (508 mm x 248 mm) 24: 25.4″ x 9.8″ (64.5 cm x 24.9 cm) |
| Weight |
18: 7.0 kg |
| Water rating | IPX7 |
| Beam width | 18: 5.2° horizontal, 25° vertical 24: 3.7° horizontal, 25° vertical |
| Maximum range | 48 nm |
| Minimum range | 20 meters |
| Radar type | Radome |
Electrical Features |
|
| Power Input | 11-32 V DC |
|---|---|
| Power Consumption (standby) | 15 W |
| Typical power consumption, transmitting (normal mode) | 40 W |
| Transmit power | 4 KW |
Radar Features |
|
| Dual range | |
|---|---|
| Overlay | |
| Dual radar support | |
| Auto Bird Gain | |
| Auto Gain | Dynamic |
| MARPA target tracking | yes (requires heading sensor, sold separately) |
| Echo Trails | True |
| Target size | |
| Scan averaging | |
