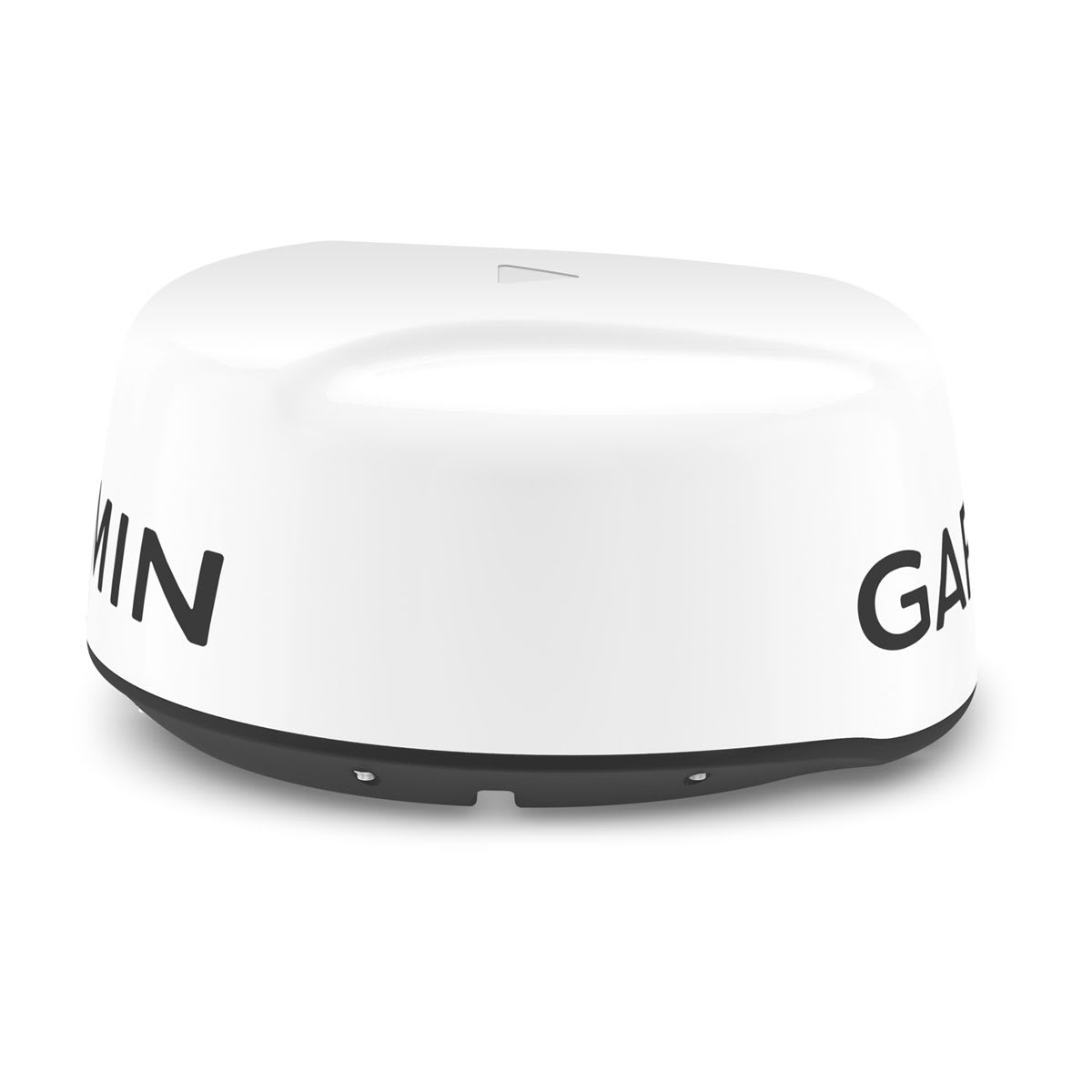

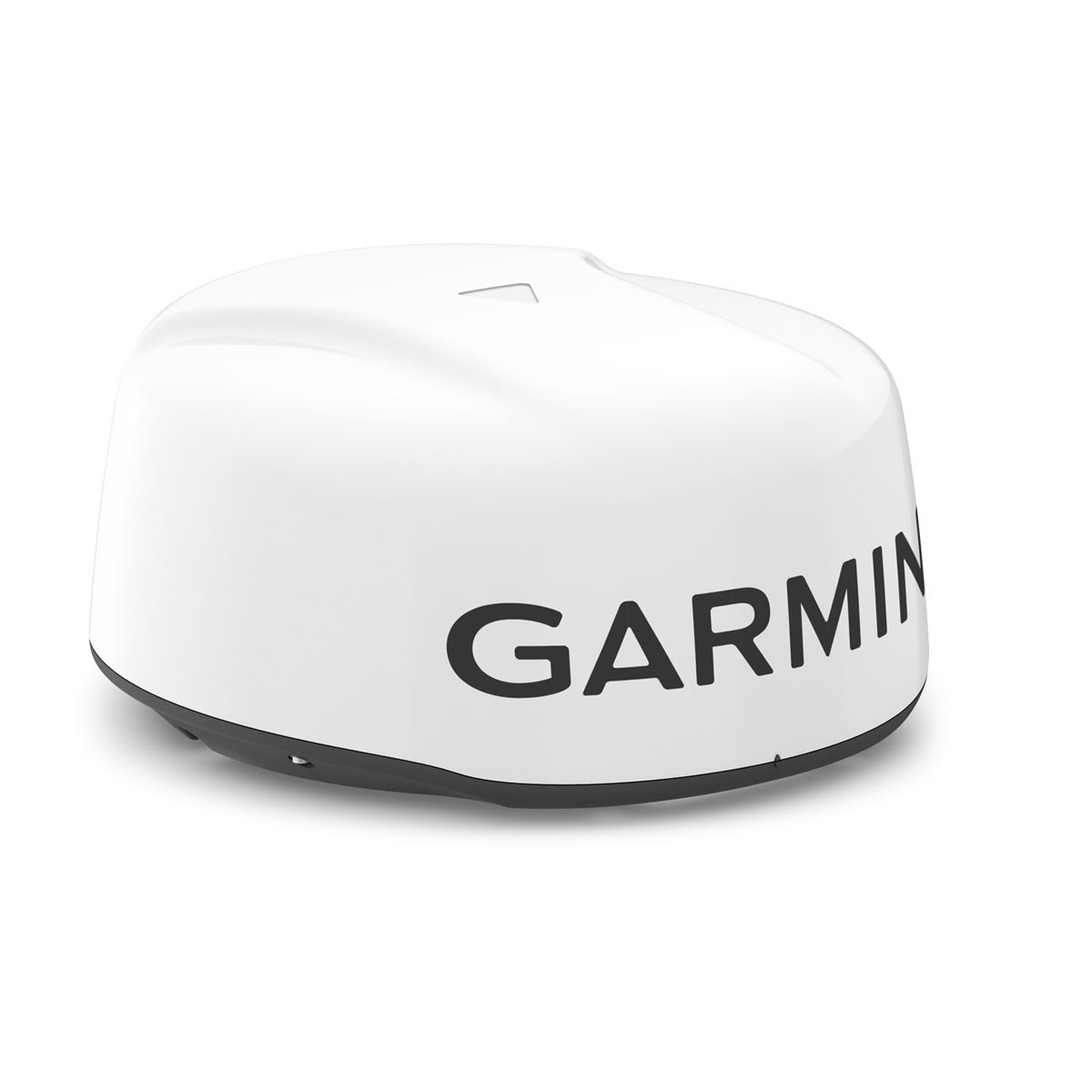

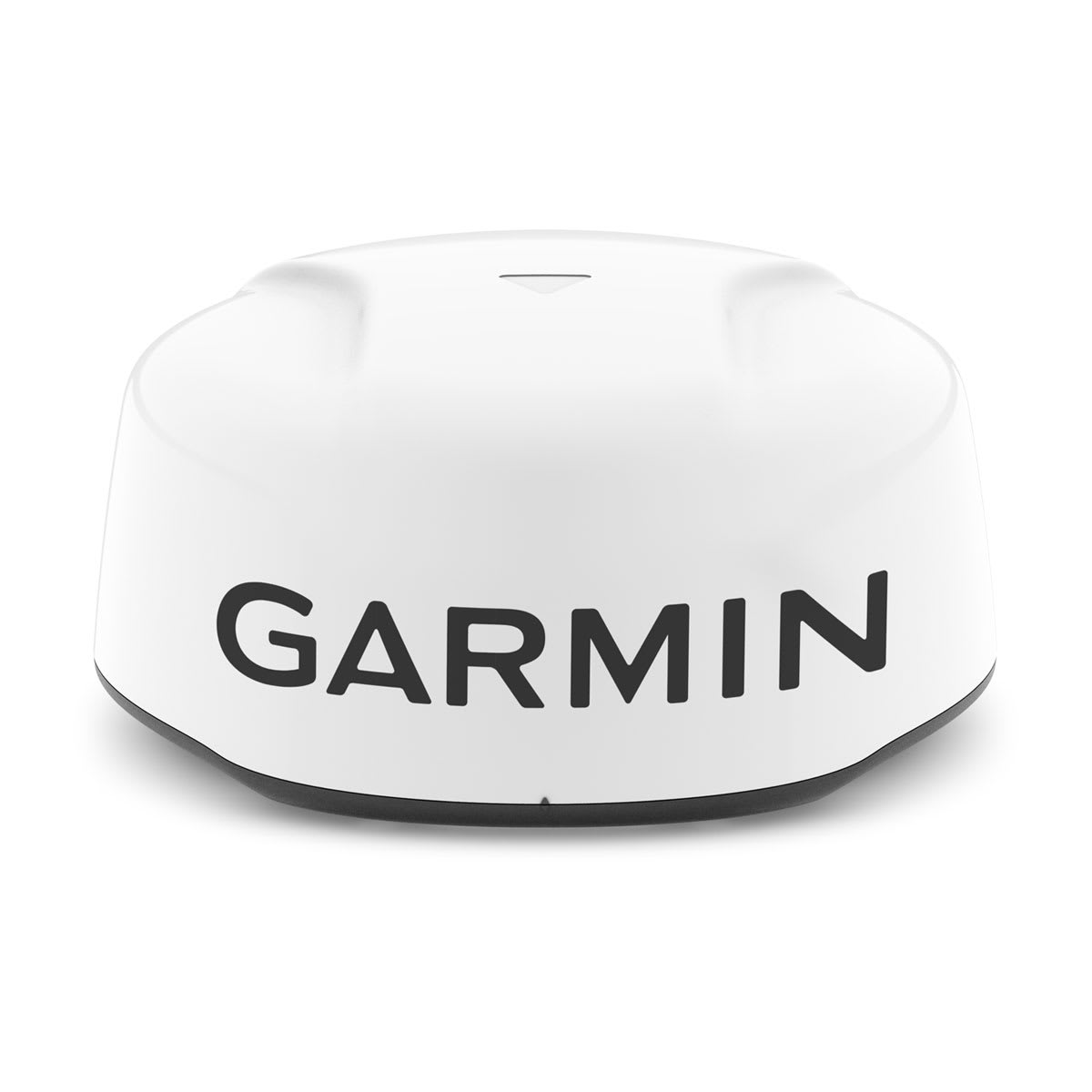

GMR 18 HD3 is an 18” magnetron dome radar with 4 KW of power and scanning features that work to maximize your confidence and situational awareness on the water.
General
|
| Antenna Length |
17″ (43 cm) |
| Rotation speed (RPM) |
24 rpm |
| Dimension |
20″ diameter, 9.8″ high (508 mm diameter, 248 mm high) |
| Weight |
7.0 kg
|
| Water rating |
IPX7 |
| Beam width |
5.2° horizontal, 25° vertical |
| Maximum range |
36 nm |
| Minimum range |
20 meters |
| Radar type |
Radome |
Electrical Features
|
| Power Input |
11-32 V DC |
| Power Consumption (standby) |
15 W |
| Typical power consumption, transmitting (normal mode) |
40 W |
| Transmit power |
4 kW |
Radar Features
|
| Overlay |
|
| Dual radar support |
|
| Auto Gain |
Dynamic |
| MARPA target tracking |
yes (requires heading sensor, sold separately) |
