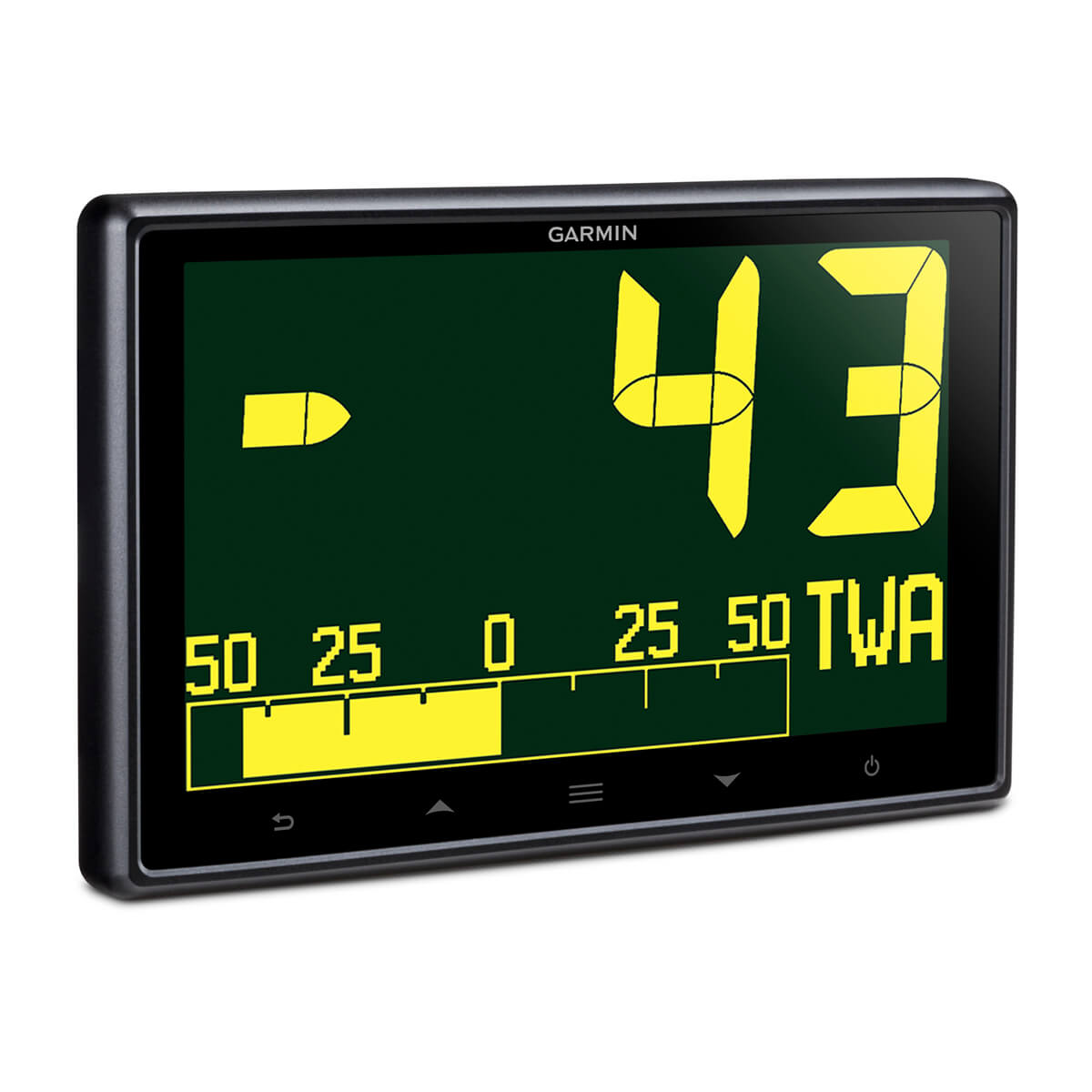

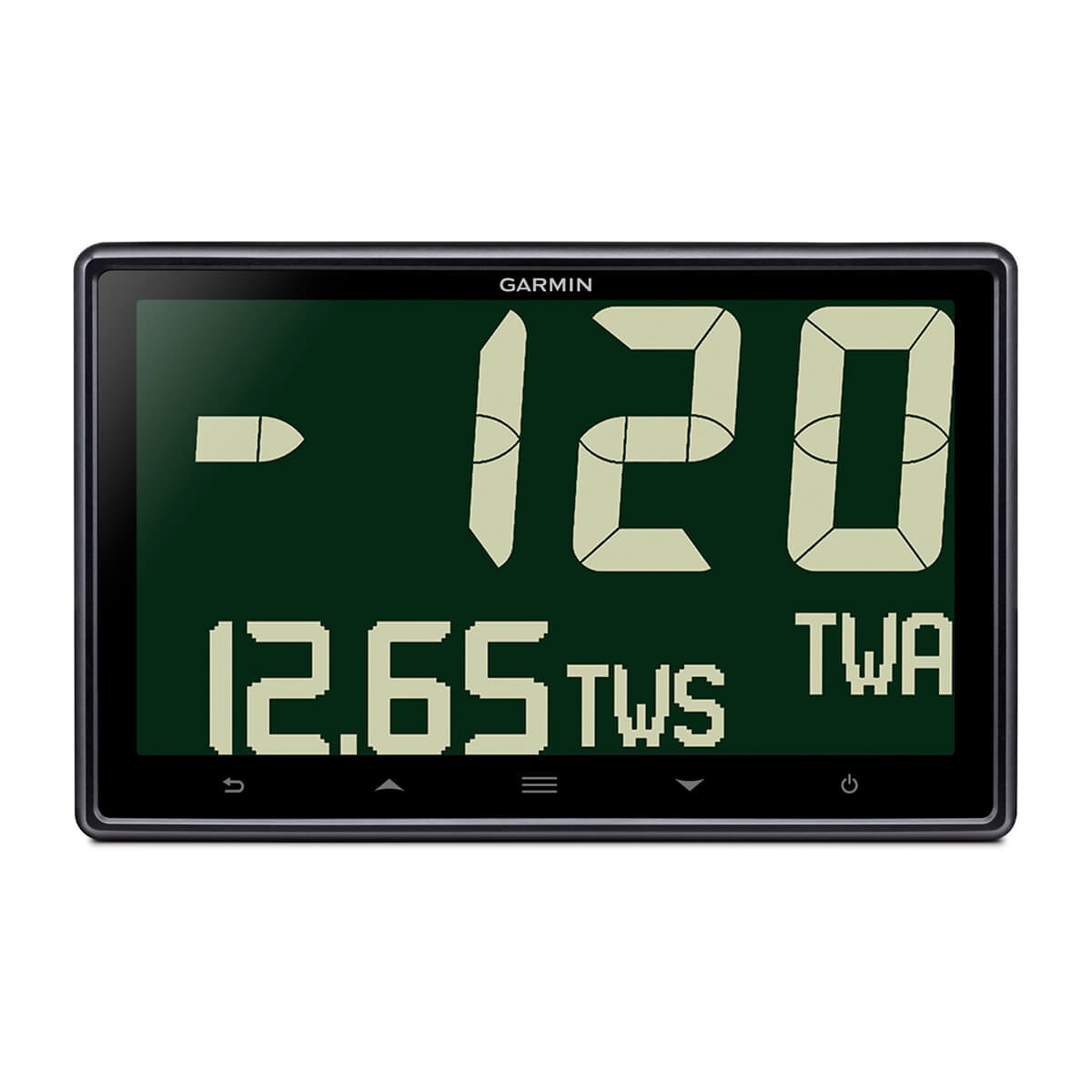

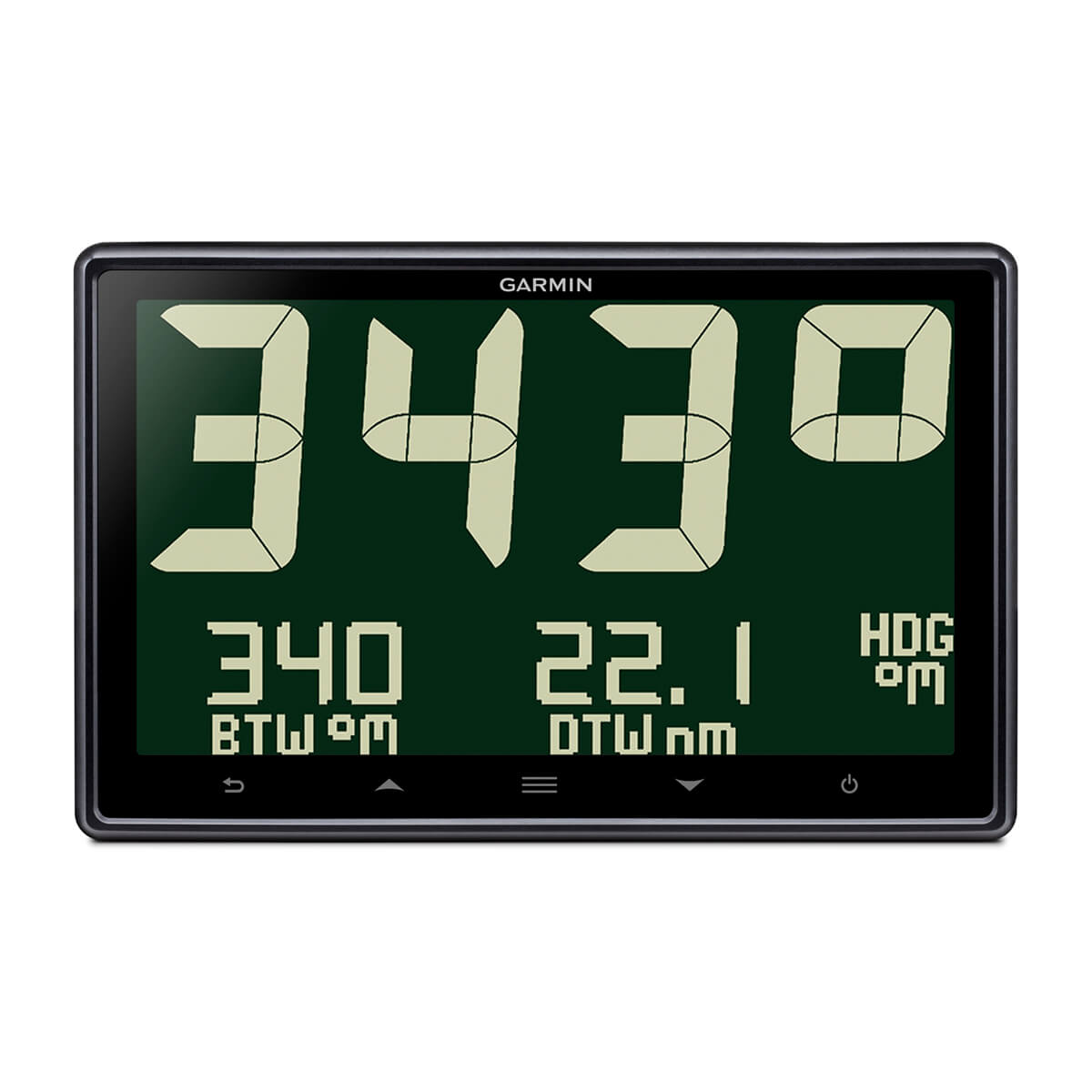

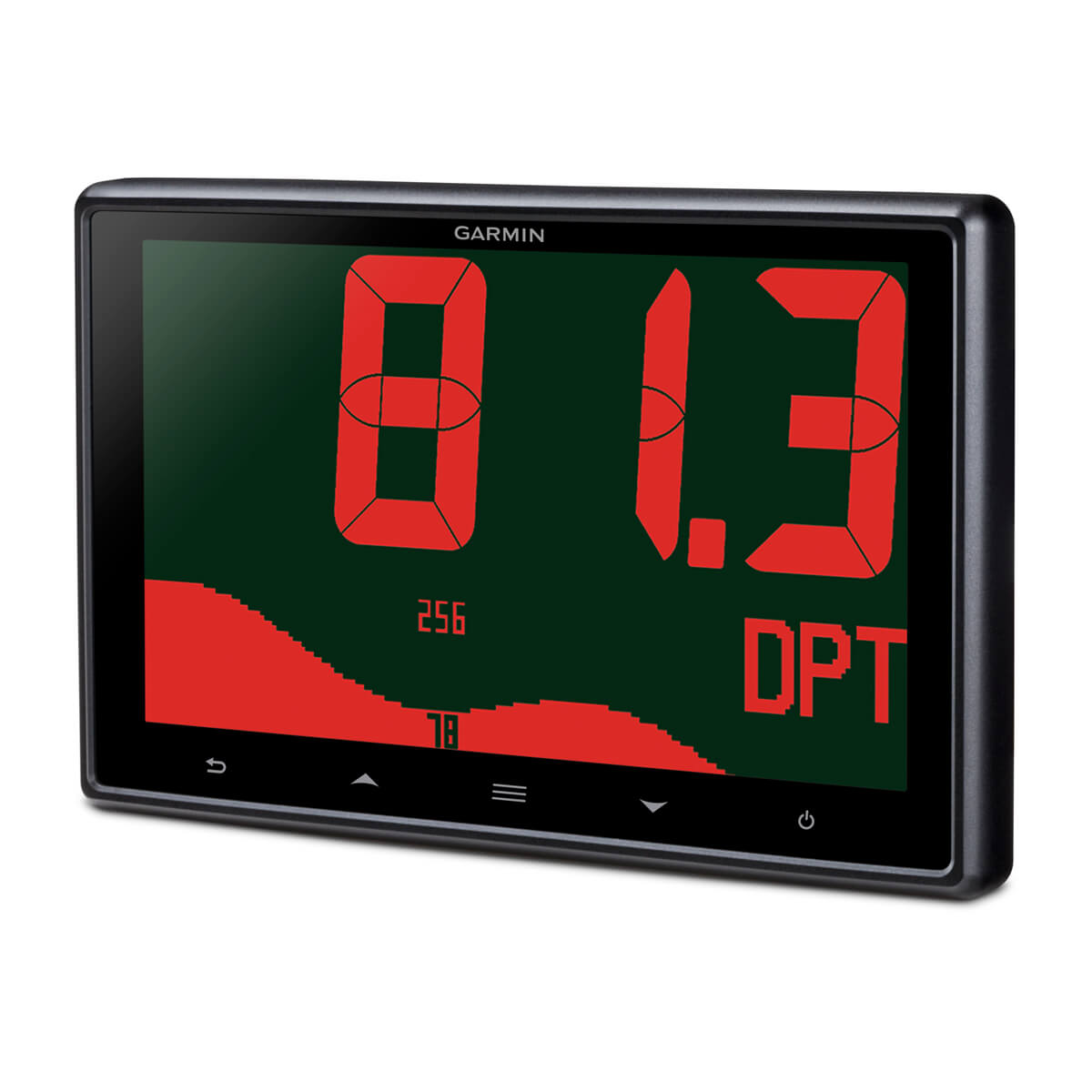

The GNX™ 130 10-inch Large Format Marine Instrument designed for serious sailors displays more than 50 marine & boat parameters for wind, sea & vessel conditions.
General |
|
| Dimension | 249 x 153 x 19 mm (9.8” x 6.02” x .75”) |
|---|---|
| Weight | 820 g (28.9 oz) |
| Water rating | IPX7 |
| Display Type | Inverted LCD, monochrome |
| Display Size | 207 x 116 mm (8.15” x 4.57”) |
| Mounting Options | Flush |
| Glass bonded display | |
| Temperature range | From 5° to 158°F (from -15° to 70°C) |
Electrical Features |
|
| Power Consumption |
0.36 W (day); 0.4 W (night) |
|---|---|
Instrument Features |
|
| Auto-on | |
|---|---|
| User profiles | |
Note for NMEA 0183 compatibility: Yes (when data is bridged over NMEA 2000 from another device, no direct NMEA 0183 connection)
