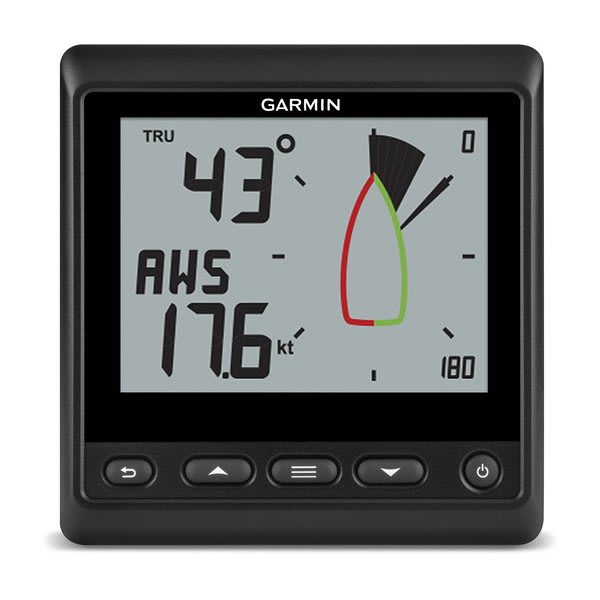

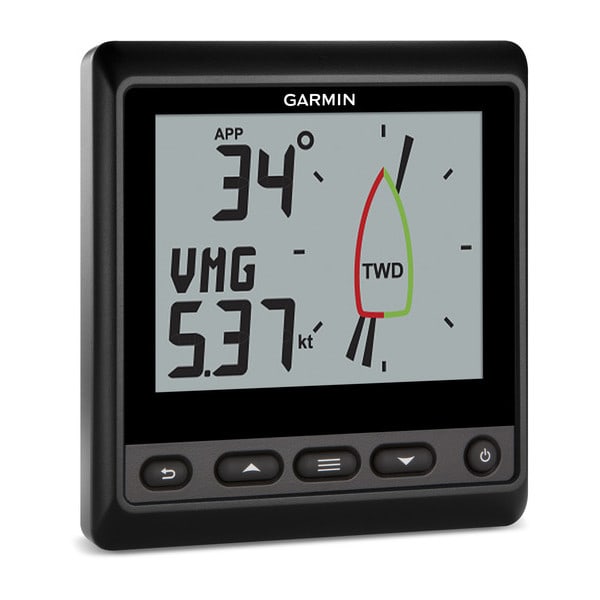

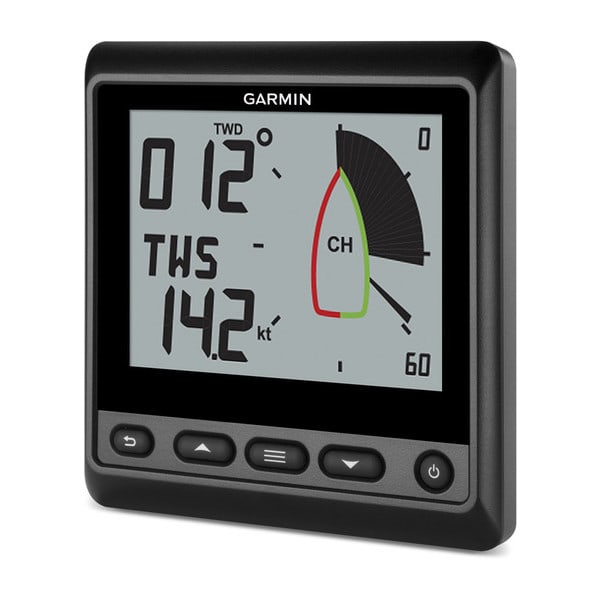

The GNX™ Wind Marine Instrument is an affordable solution for those with no wind system or an older wind system onboard.
General |
|
| Dimension | 110 x 115 x 30 mm (4.33″ x 4.53″ x 1.18″) |
|---|---|
| Weight | 230 g (8 oz) |
| Water rating | IPX7 |
| Display Type | Standard LCD, monochrome |
| Display Size |
83 x 60 mm; 101.6 mm diagonal (3.3” x 2.4”; 4.0” diagonal) |
| Mounting Options | Flat or Flush |
| Glass bonded display | |
| Temperature range | From 5° to 158°F (from -15° to 70°C) |
Electrical Features |
|
| Power Consumption |
0.35 W (day); 0.4 W (night) |
|---|---|
| Compass-safe distance | 209 mm (8.25 in.) |
Instrument Features |
|
| Auto-on | |
|---|---|
| User profiles | |
