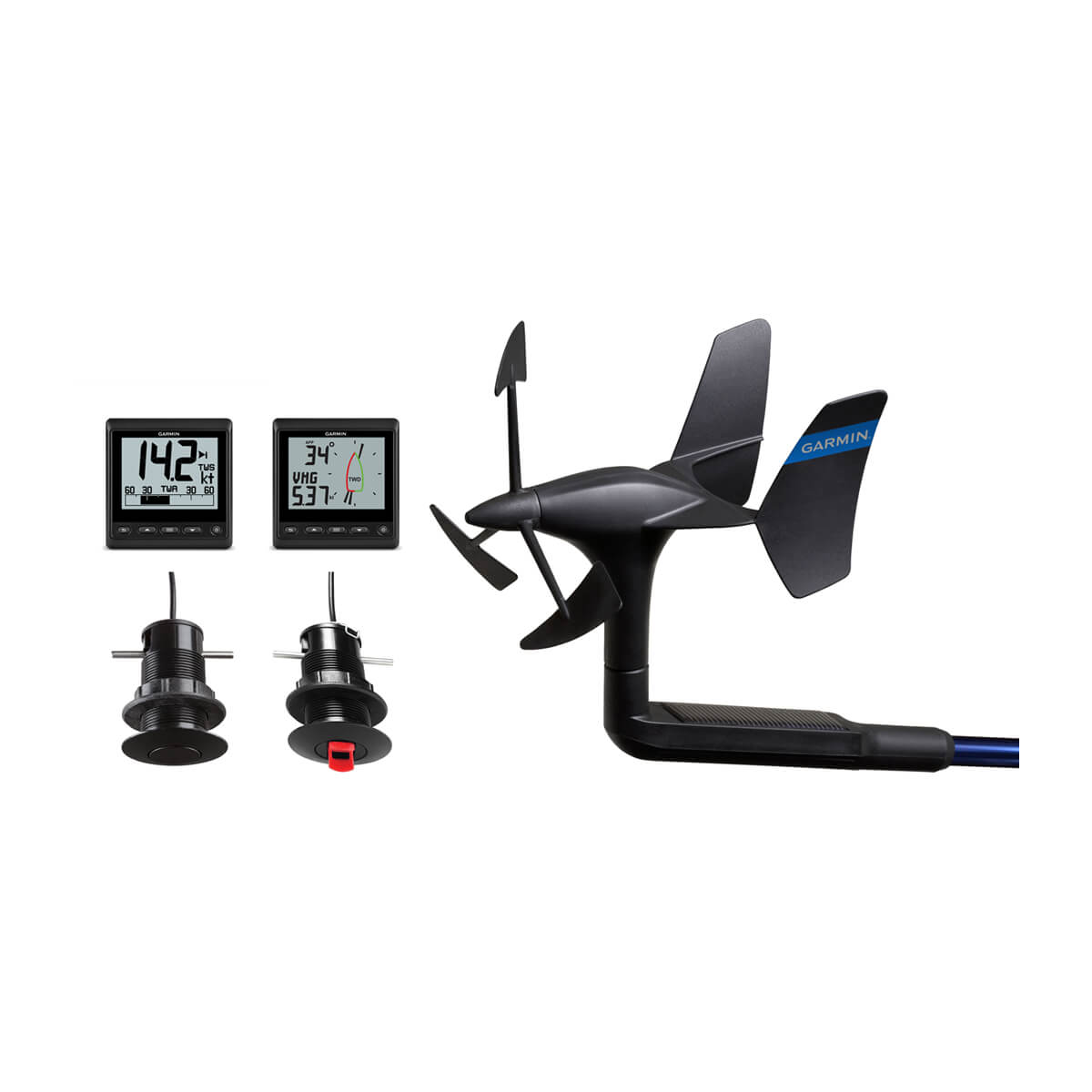

The GNX™ Wireless Sail Pack 43 gives you the wind data necessary to make confident decisions.
gWind Wireless 2 Transducer
- Unit Dimension, WxH: 13.6″ x 24″ (345 mm x 610 mm)
- Weight: 350 g
- Waterproof: Yes (IPX6)
- Temp Range: From 5°F to 158°F (-15°C to 70°C)
- Storage Temperature: From -4°F to 176°F (-20°C to 80°C)
- Power Usage: Battery (rechargeable though the solar panel)
- Accuracy Angle: Better than ±1.5°
- Speed: Better than ±3%
- Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
- Wireless Connectivity: Yes
GNX Wind instrument:
- Physical dimensions: 4.3″ x 4.5″ x 1.2″ (110 x 115 x 30 mm)
- Display size, WxH: 3.3″ x 2.4″; 4.0″ diagonal (83 x 60 mm; 101.6 mm diagonal)
- Weight: 8 oz (230 g)
- Water rating: IPX7
- NMEA 2000 certified: Yes
- Power consumption: 0.35 W (day); 0.4 W (night)
- Voltage range: 9-16 V (from NMEA 2000)
- Mounting options: Flush or Flat
- Temperature range: From 5 to 158 degrees F (from -15 to 70 degrees C)
- Compass-safe distance: 8.25″ (209 mm)
GNX 20 instrument:
- Physical dimensions: 4.3″ x 4.5″ x 1.2″ (110 x 115 x 30 mm)
- Display size, WxH: 3.3″ x 2.4″; 4.0″ diagonal (83 x 60 mm; 101.6 mm diagonal)
- Weight: 8.0 oz (230 g)
- Water rating: IPX7
- NMEA 2000 certified: Yes
- Power consumption: 0.35 W (day); 0.4 W (night)
- Voltage range: 9-16 V (from NMEA 2000)
- Mounting options: Flush or Flat
- Temperature range: From 5 to 158 degrees F (from -15 to 70 degrees C)
- Compass-safe distance: 8.25″ (209 mm)
