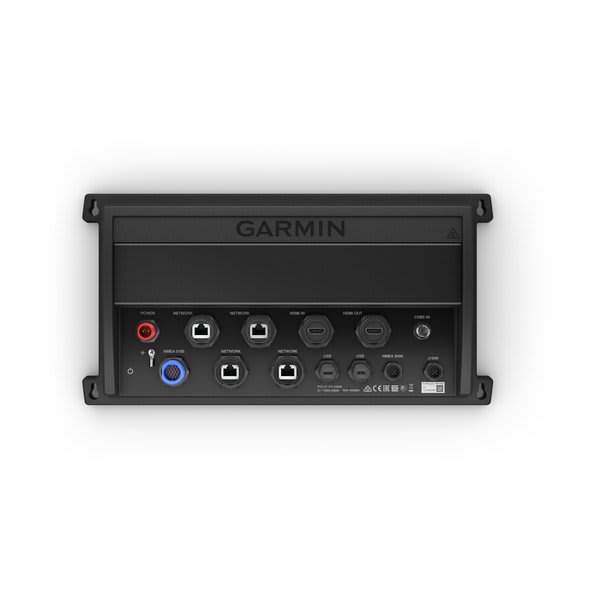

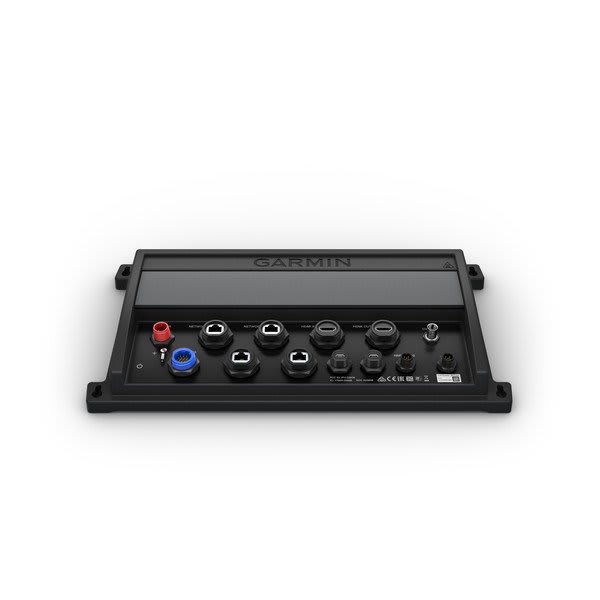

GPSMAP® 8700 Black Box allows you to fully integrate your marine system including sonar technologies, autopilot, engine data, multimedia and more.
General |
|
| Dimension | 15.1″ x 7.8″ x 1.9″ (38.3 x 19.8 x 4.7 cm) |
|---|---|
| Weight |
3.06 lbs (1.39 kg) |
| Water rating | IPX7 |
| Display Type | None (external display) |
| Display Size | None |
| Display resolution | 1024 x 768 1280 x 1024 1920 x 1080 1920 x 1200 |
Maps & Memory |
|
| Accepts Data Cards | 2 SD™ cards (Garmin Card Reader required) |
|---|---|
| Waypoints | 5,000 |
| Navigation Routes | 100 |
Sensors |
|
| NMEA 2000 Compatible | |
|---|---|
| NMEA 0183 Compatible | |
Chartplotter Features |
|
| Smart Mode Compatible | |
|---|---|
| AIS | |
| DSC | |
| Supports Fusion-Link™ compatible radios | |
| GSD Black Box Sonar Support | |
| GCV Black Box Sonar Support | |
| ActiveCaptain® compatible |
yes |
| GRID (Garmin Remote Input Device) compatible | |
| Sailing Features | |
Networking & Connections |
|
| NMEA 0183 Input (Rx) Ports | 4 |
|---|---|
| Video input ports |
1 – BNC composite |
| Video output ports |
1 – HDMI |
| Garmin Marine Network Ports | 4 |
Additional |
|
| Additional |
|
|---|---|
