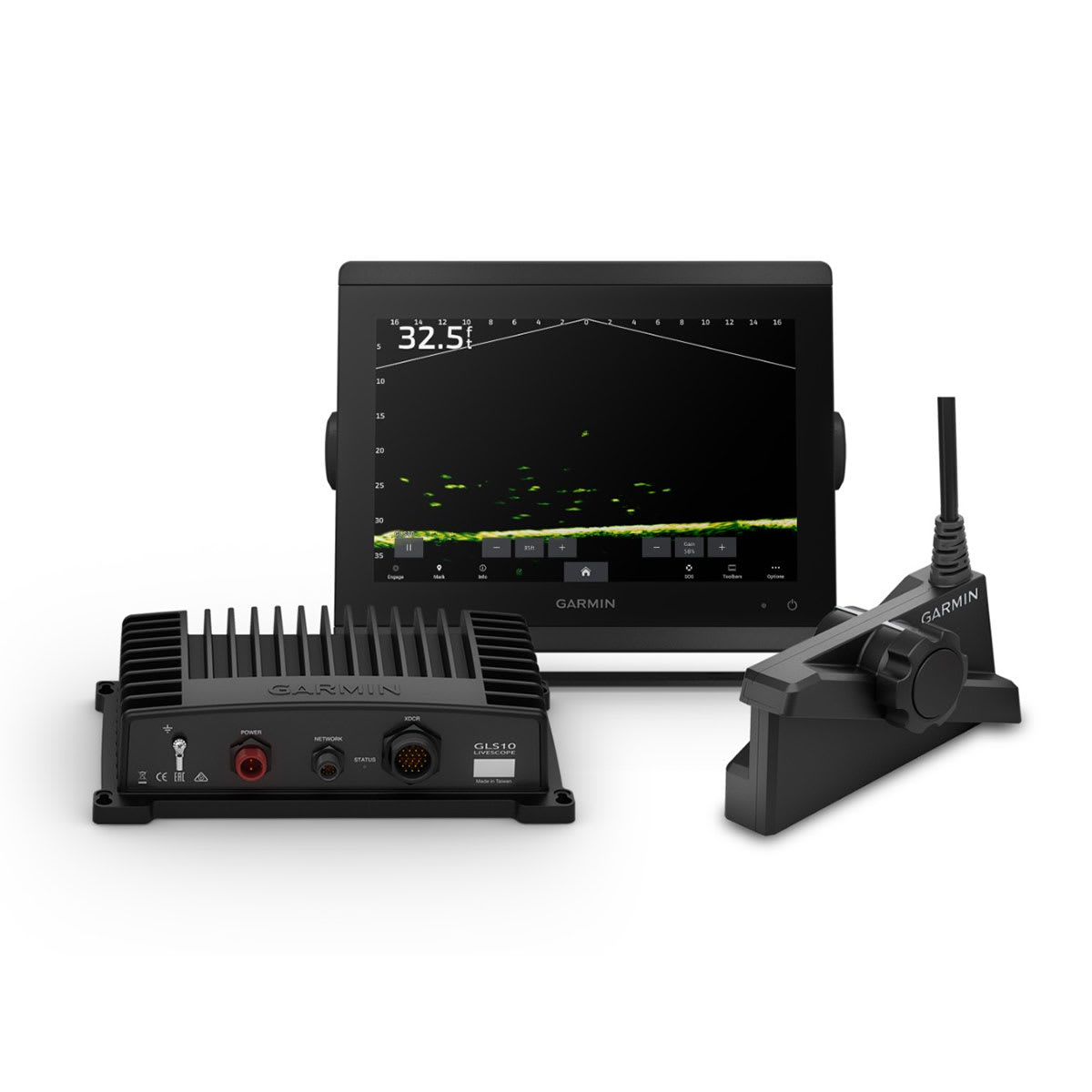

Livescope Plus Ice House System includes a GPSMAP® 8610xsv chartplotter with a 10” HD touchscreen display, LVS34-IF transducer & a GLS 10 sonar black box.
General |
|
| Dimension | 10.25″ x 8.0625″ x 2.95″ (25.9 cm x 20.5 cm x 7.5 cm) |
|---|---|
| Weight |
15.4 lbs (7.0 kg) |
| Water rating |
IPX7 |
| Touchscreen | |
| Display Type | WUXGA, IPS |
| Display Size | 8.6″ x 5.4″; 10.1″ diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal) |
| Display resolution | 1920 x 1200 pixels |
| Input | Touchscreen |
Maps & Memory |
|
| Accepts Data Cards |
2 microSD™ cards |
|---|---|
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Ice Fishing Details |
|
| Bag size | none |
|---|---|
| Included transducer | LiveScope™ Plus System with LVS34-IF |

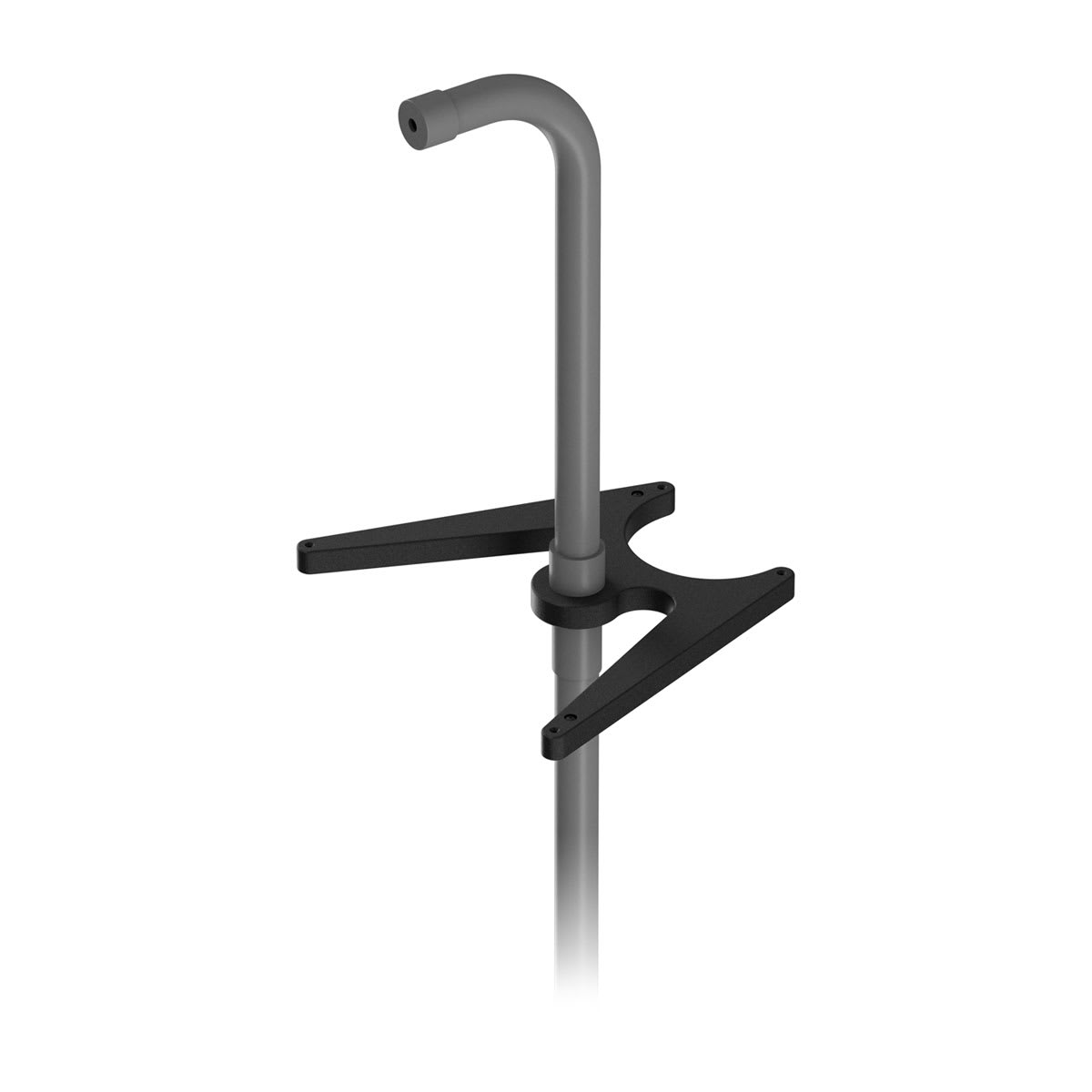

| Transducer holding feature | Pole mount |
Sensors |
|
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| Has built-in receiver | |
| Receiver |
10 Hz |
| NMEA 2000 Compatible | |
| Supports WAAS | |
Built-in Maps |
|
| Built-in Auto Guidance+ | |
|---|---|
Optional Map Support |
|
| BlueChart g3 | |
|---|---|
| BlueChart g3 Vision | |
| LakeVü g3 | |
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
| Raster chart support | |
Chartplotter Features |
|
| ActiveCaptain® compatible |
yes |
|---|---|
| Supports voice commands | |
Electrical Features |
|
| Power Input | 10 to 32 Vdc |
|---|---|
Sonar Features |
|
| Displays sonar | |
|---|---|
| Power output | 1 kW |
| Traditional sonar (dual frequency/beam) | built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | |
| LiveScope | |
Networking & Connections |
|
| NMEA 2000® ports | 1 |
|---|---|
| Video input ports |
1 (BNC composite); 1 HDMI (HDCP compliant) |
| Video output ports |
1 HDMI |
| Garmin Marine Network Ports |
2 |
| 8-pin transducer ports | |
| 12-pin transducer ports | |
| Bluetooth® pairing | |
| ANT® (Connectivity) | |
| Garmin Wi-Fi network (local connection) | |
