GTX™ 335 ADS-B “Out” Transponder

Physical & Performance

• Physical dimensions (unit, rack, connectors); for panel mounts, depth is measured from face of instrument panel: 1.68” x 6.30” x 10.07” (42 x 160 x 256 mm)
• Display type: Digital
• Weight (unit, rack, connectors)  2.8/2.9 lbs (1.27/1.32 kg)
• Voltage range: 14/28 VDC (15/17 W Max)
• Transmit power: 200 W minimum
• Temperature: -40° C to +70° C
• Operating altitude: To 55,000 ft (16,800 m)
• Cooling input: Not required
• Environmental compliance (TSO Approved): DO-160G
• Software compliance (TSO Approved): DO-178 Levels B, C, D
• Hardware compliance (TSO Approved): DO-254 Level C; TSO compliance (Approved): "TSO-C88b (w/opt. alt. encoder); TSO-C112e (Class 1, Level 2els); TSO-C166b (Class B1S)"
• Mount type: Panel
• Transponder type: Mode A/C, S and ES
• Squawk code selection: Push-button
• Traffic Information Services (TIS) alerts compatible: Yes

Transponder Features

• Solid state transmitter (more efficient, longer life) Yes
• Aural alerts: Yes
• Total Air Temperature (TAT): Yes

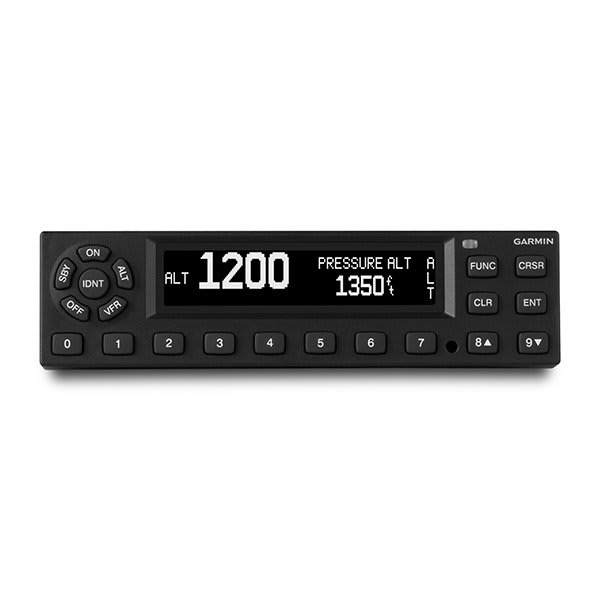

• Pressure altitude readout: Yes
• Altitude monitor function: Yes
• Density altitude readout: Yes

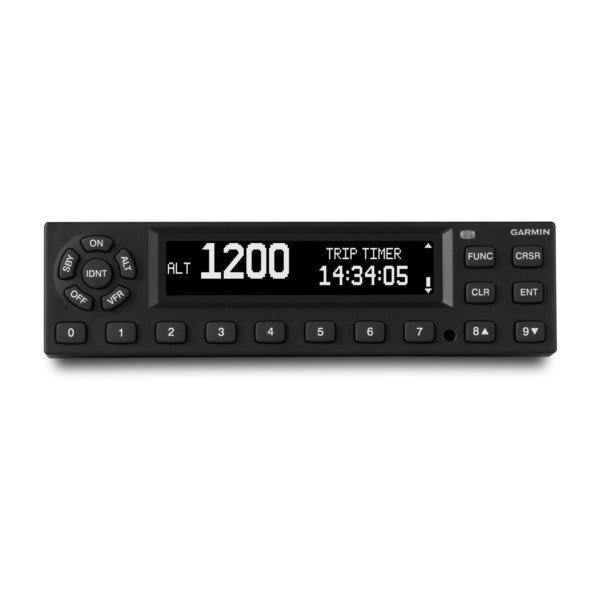

• Built-in timers: Yes
• Automatic ALT/GND mode: Yes
• 1090 MHz ADS-B Out: Yes
• Built in GPS/WAAS receiver: Optional
• Displays on G500/G600, GTN 650/750, GNS 430W/530W, and others: Yes
• Pressure altitude encoder module (mounts to connector backplate): Optional
• Night vision compatible: Optional
