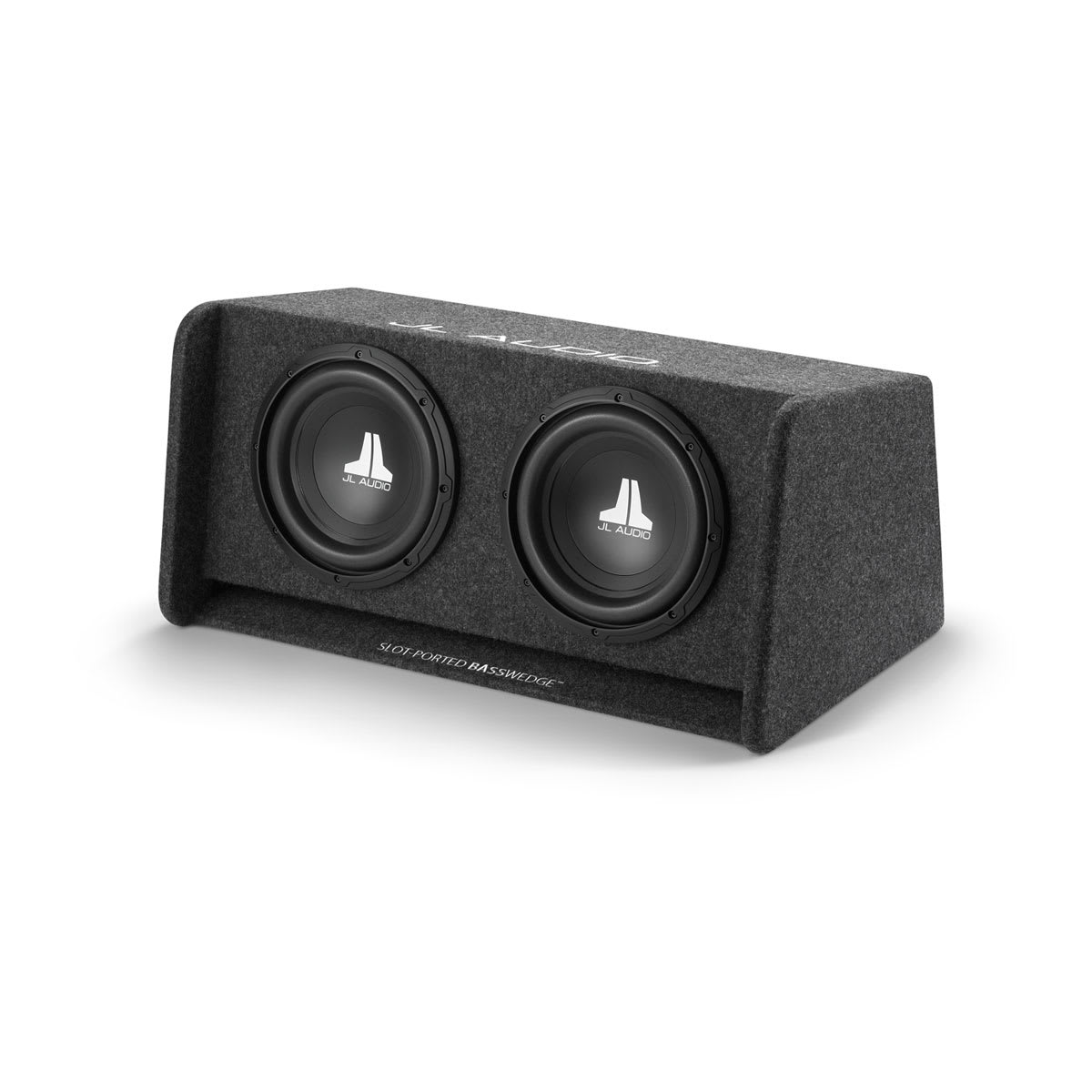

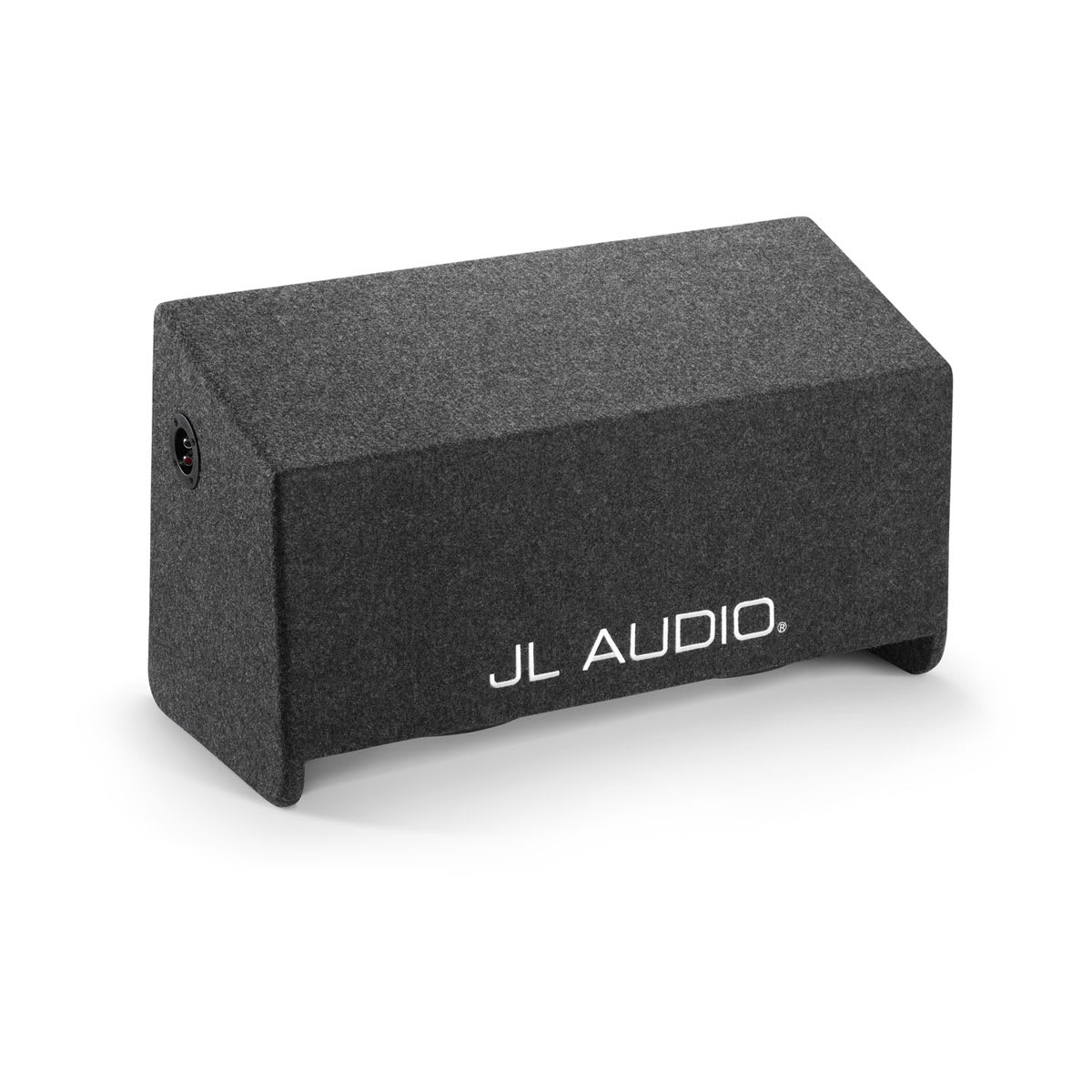

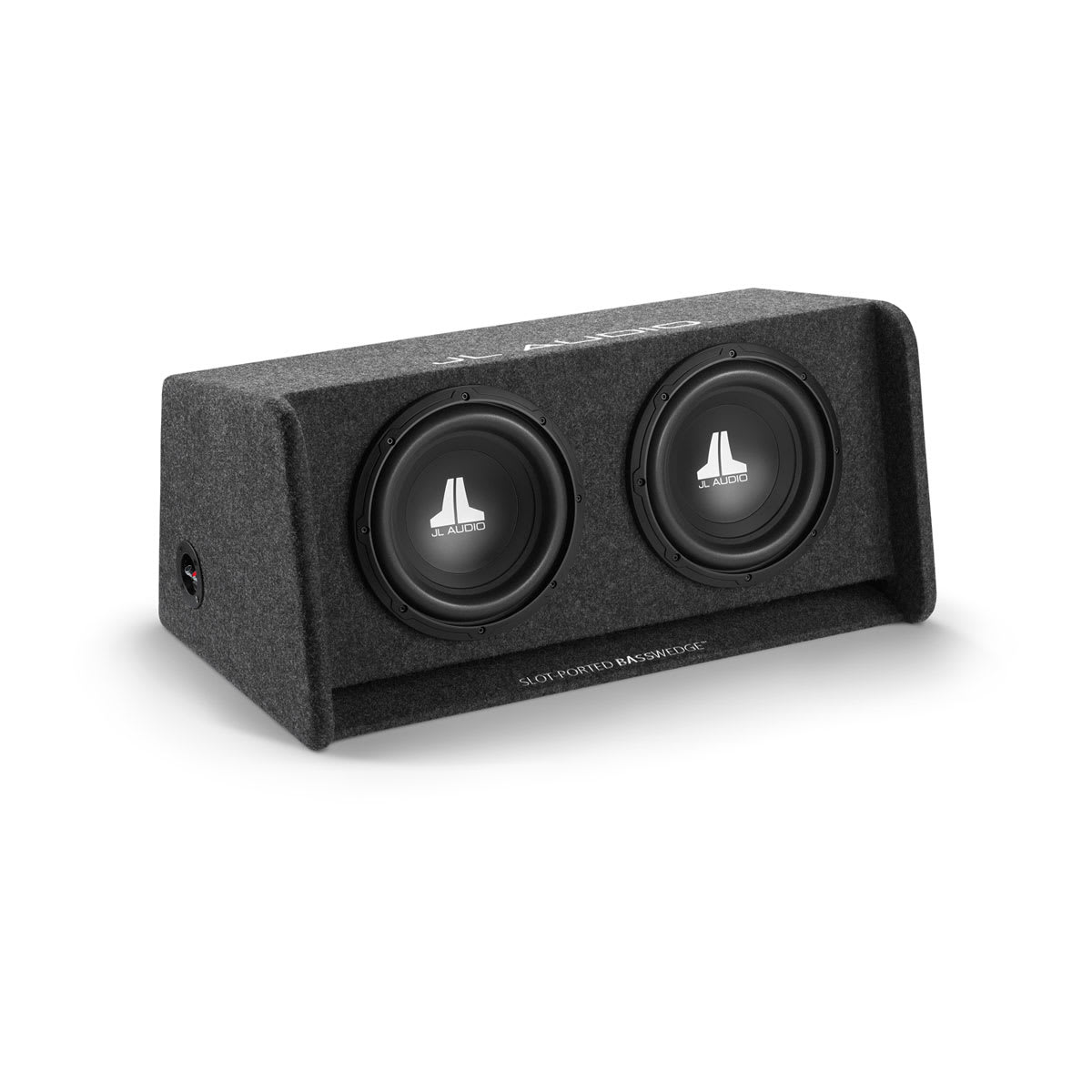

BassWedge™ is an enclosed car subwoofer with slot-ported enclosures, versatile placement options, single or dual woofer options, and a 2-year warranty.
General |
|
| Warranty | 2 years |
|---|---|
| Sizes | 10″/Dual 10″/12″/Dual 12″ |
| Physical dimensions (Height) | 10″/Dual 10″: 13.77″ (350 mm) 12″/Dual 12″: 15.18″ (386 mm) |
| Physical dimensions (Width) | 10″: 15.51″ (394 mm) 12″: 16.31″ (414 mm) Dual 10″: 29.61″ (752 mm) Dual 12″: 31.375″ (797 mm) |
| Physical dimensions (Depth) | 10″/Dual 10″: Top: 14″ (356 mm) 10″/Dual 10″: Base: 17.38″ (441 mm) 12″/Dual 12″: Top: 15.75″ (400 mm) 12″/Dual 12″: Base: 20.3″ (516 mm) |
| Weight | 10″: 29 lbs (13.15 kg) 12″: 33.1 lbs (15 kg) Dual 10″: 50.7 lbs (23 kg) Dual 12″: 60.3 lbs (27.35 kg) |
| Continuous power handling (RMS) | 10″/12″: 300 W Dual 10″/Dual 12″: 600 W |
| Nominal impedance | 2 Ω or 4 Ω |
| Recommended amplifier power (RMS) | 10″/12″: 75-300 W Dual 10″/Dual 12″: 150-600 W |
| Cone material | Mineral-filled polypropylene |
| Enclosure type | Slot-ported |
Networking & Connections |
|
| Speaker connections | Push-button terminal |
|---|---|
