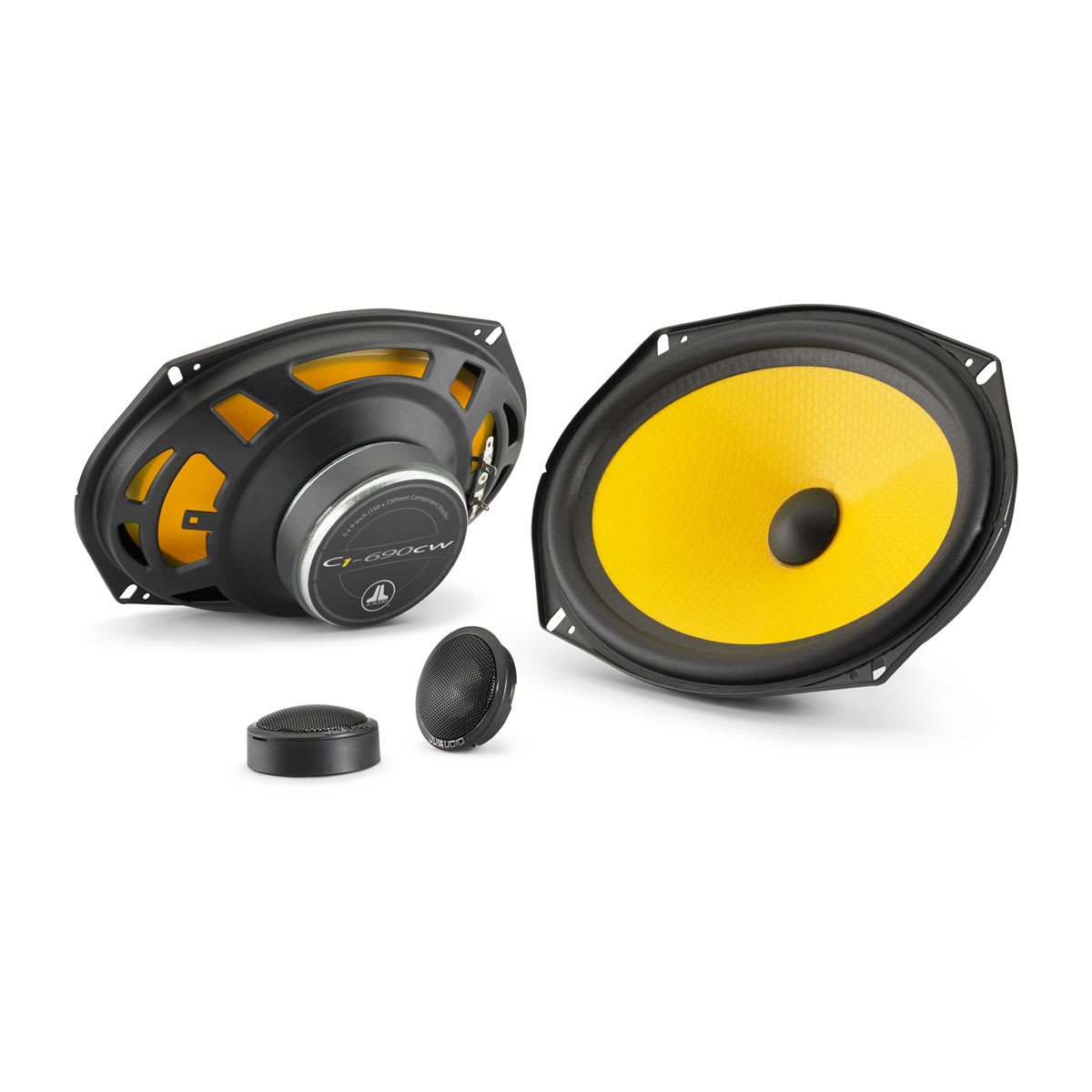

C1 two-way component car speaker system with DMA-optimized woofers, aluminum dome tweeters, a near-universal fit, and a 1-year warranty.
General |
|
| Warranty | 1 year |
|---|---|
| Sizes | 6 x 9″/6.5″ |
| Continuous power handling (RMS) | 6.5″: 50 W 6 x 9″: 60 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5″: 91 dB 6 x 9″: 91.5 dB |
| Frequency response (+/- 3 dB) | 6 x 9″: 39 Hz-22 KHz 6.5″: 48 Hz-24 KHz 6.5″ (se): 48 Hz-21 KHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6 x 9″: 10-100 W/Channel 6.5″: 10-75 W/Channel |
| Voice coil diameter | 6 x 9″/6.5″ (se): 1.2″ (30 mm) 6.5″: 1″ (25 mm) |
| Cone material | Mineral-filled polypropylene |

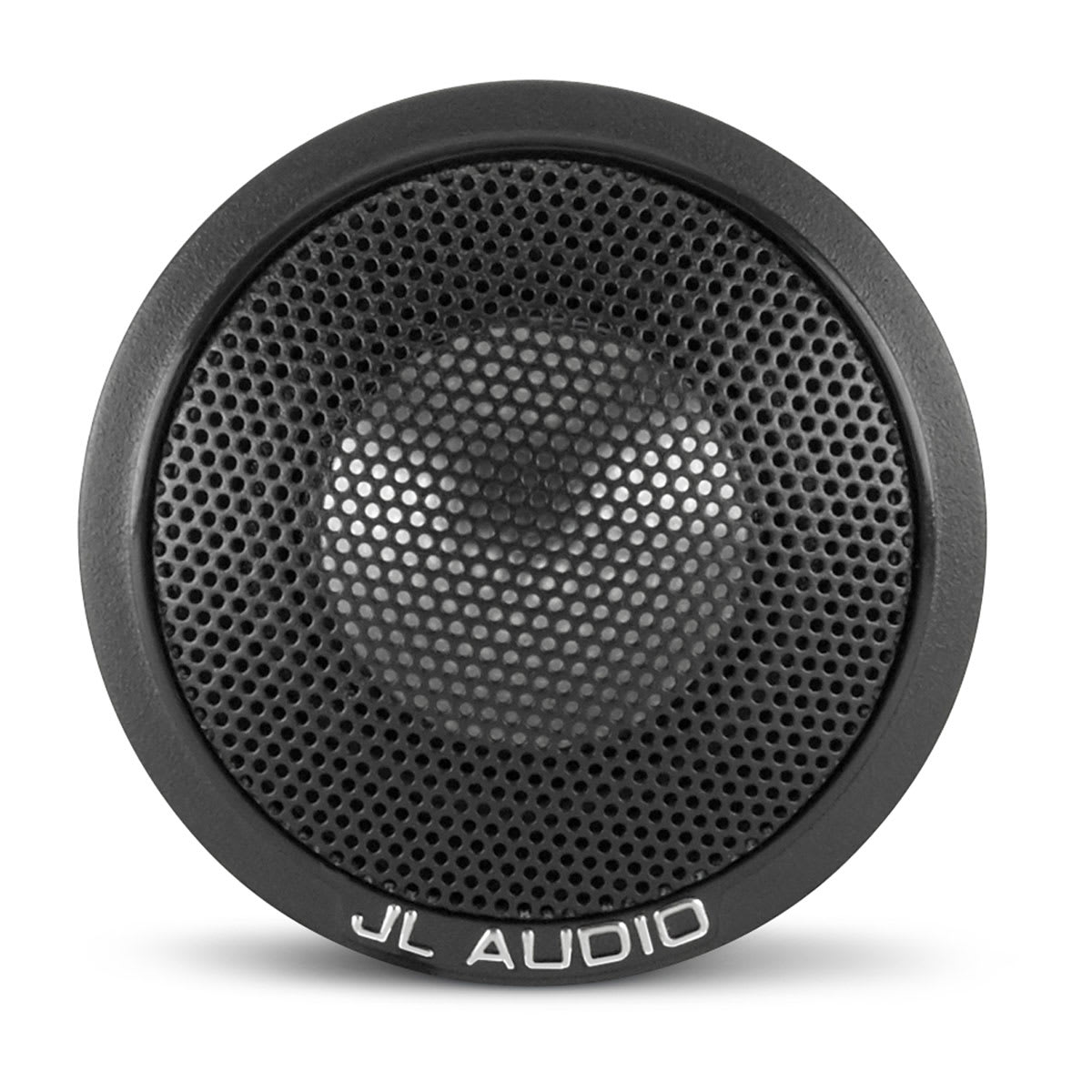

| Tweeter type | Aluminum Dome |
| Tweeter size | 6 x 9″/6.5″ (se): 1″ (25 mm) 6.5″: 0.75″ (19 mm) |
| Grille(s) included | Tweeters only |
Networking & Connections |
|
| Speaker connections | Spade connectors |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 6 x 9″: 6.38 x 9.33″ (162 x 237 mm) 6.5″: 6.25″ (159 mm) |
|---|---|
| Mounting depth clearance | 6 x 9″: 2.75″ (70 mm) 6.5″: 2.07″ (53 mm) |
| Mounting hole | 6.5″: 5.02″ (128 mm) |
| Motor outer diameter | 6 x 9″: 3.54″ (90 mm) 6.5″: 3.15″ (80 mm) |
Tweeter Specifications |
|
| Flush mount fixture diameter | 6.5″: 1.67″ (42 mm) 6.5″ (se)/6″ x 9″: 1.97″ (50 mm) |
|---|---|
| Surface mount fixture diameter | 6.5″: 1.71″ (43 mm) 6.5″ (se)/6″ x 9″: 2.01″ (51 mm) |
| Flush mount mounting hole diameter | 6.5″: 1.46″ (37 mm) 6.5″ (se)/6″ x 9″: 1.75″ (45 mm) |
| Flush mount mounting depth | 0.40″ (10 mm) |
| Flush mount tweeter frontal protrusion | 6.5″: 0.23″ (6 mm) 6.5″ (se)/6″ x 9″: 0.32″ (8 mm) |
| Surface mount tweeter frontal protrusion | 6.5″: 0.76″ (19 mm) 6.5″ (se)/6″ x 9″: 0.87″ (22 mm) |
Crossover Specifications |
|
| Width | 1.96″ (50 mm) 6.5″ (se) (features both crossovers): 2.53″ (64 mm |
|---|---|
| Height | 0.90″ (23 mm) 6.5″ (se) (features both crossovers): 1.93 (49 mm) |
| Depth | 1.34″ (34 mm) 6.5″ (se) (features both crossovers): 1.09″ (28 mm) |
