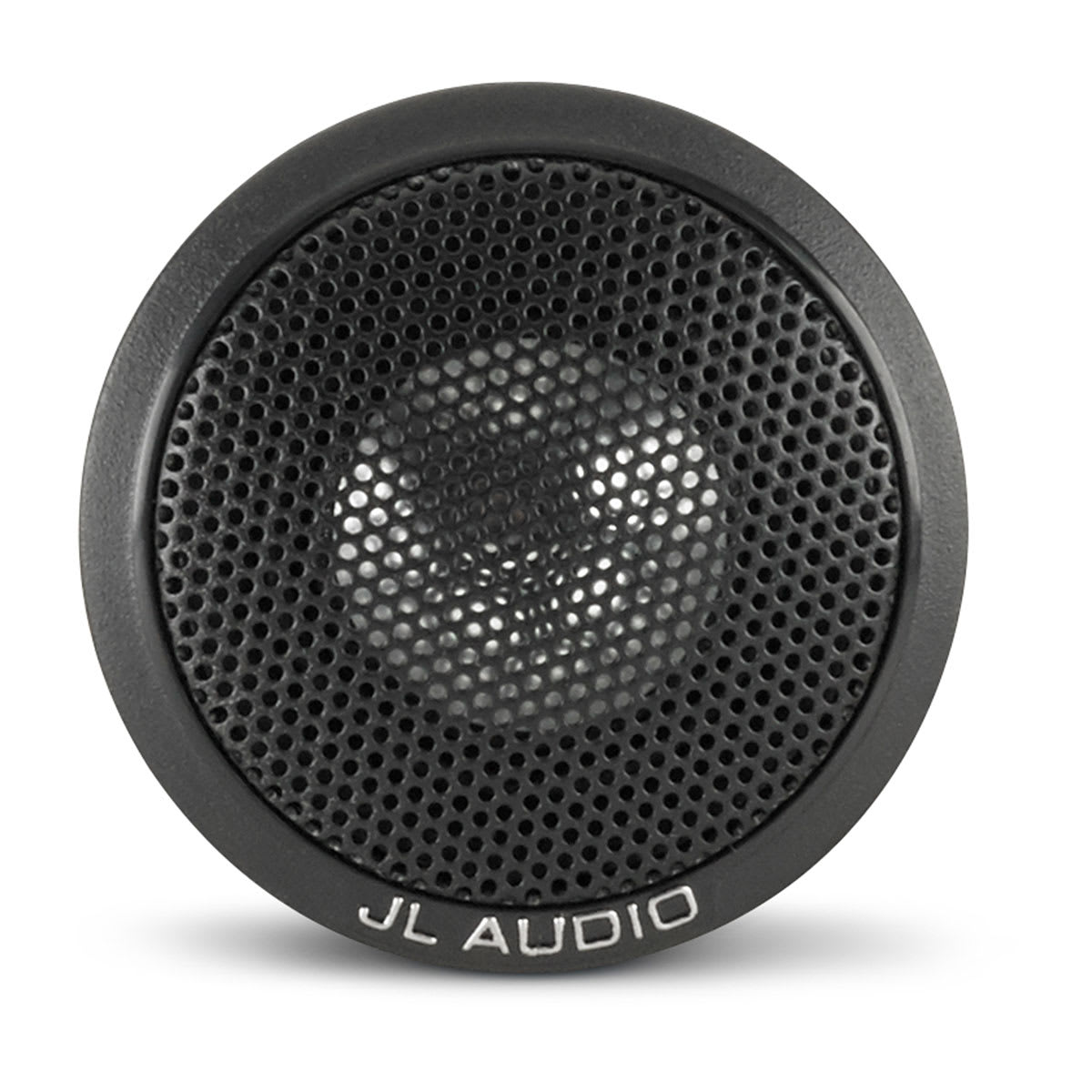

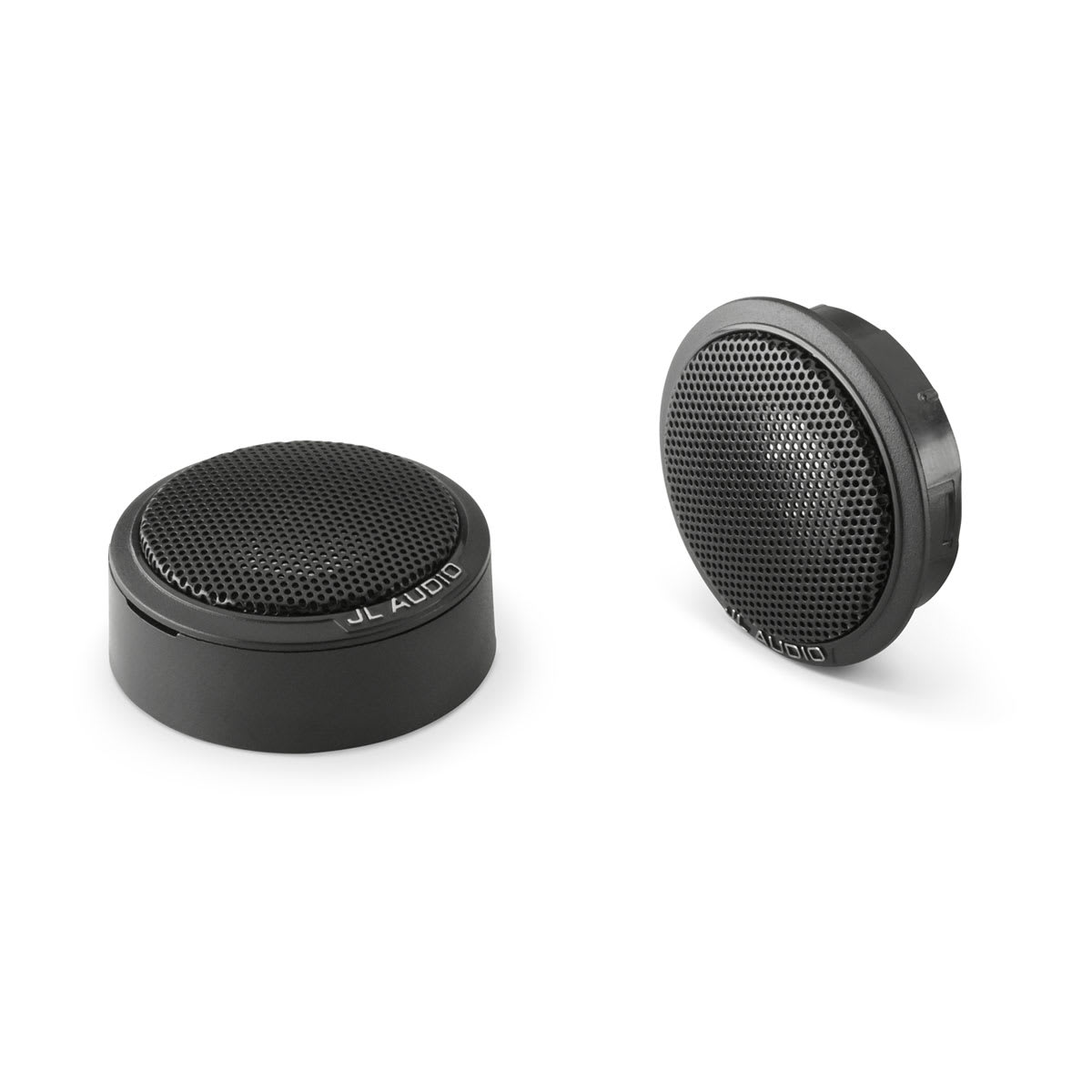

C1 component tweeters with edge-driven aluminum domes, detailed treble frequencies, and versatile for various installation needs.
General |
|
| Warranty | 1 year |
|---|---|
| Sizes | 0.75″/1″ |
| Continuous power handling (RMS) | 0.75″: 50 W 1″: 60 W |
| Sensitivity (SPL @ 1 W/1 m) | 0.75″: 91 dB 1″: 91.5 dB |
| Frequency response (+/- 3 dB) | 0.75″: 4 kHz-24 KHz 1″: 3.6 kHz-22 KHz |
| Nominal impedance | see Additional |
| Recommended amplifier power (RMS) | 0.75″: 20-50 W/Channel 1″: 20-60 W/Channel |
| Cone material | Mineral-filled polypropylene |
| Tweeter type | Aluminum Dome |
| Tweeter size | 0.75″: 0.75″ (19 mm) 1″: 1″ (25 mm) |
Networking & Connections |
|
| Speaker connections | Spade connectors |
|---|---|
Tweeter Specifications |
|
| Flush mount fixture diameter | 0.75″: 1.67″ (42 mm) 1″: 1.97″ (50 mm) |
|---|---|
| Surface mount fixture diameter | 0.75″: 1.71″ (43 mm) 1″: 2.01″ (51 mm) |
| Flush mount mounting hole diameter | 0.75″: 1.46″ (37 mm) 1″: 1.75″ (45 mm) |
| Flush mount mounting depth | 0.40″ (10 mm) |
| Flush mount tweeter frontal protrusion | 0.75″: 0.23″ (6 mm) 1″: 0.32″ (8 mm) |
| Surface mount tweeter frontal protrusion | 0.75″: 0.76″ (19 mm) 1″: 0.87″ (22 mm) |
Crossover Specifications |
|
| Width | 1.96″ (50 mm) |
|---|---|
| Height | 0.90″ (23 mm) |
| Depth | 1.34″ (34 mm) |
Additional |
|
| Additional |
Nominal impedence: 0.75": 6 Ω; 1": 4 Ω |
|---|---|
