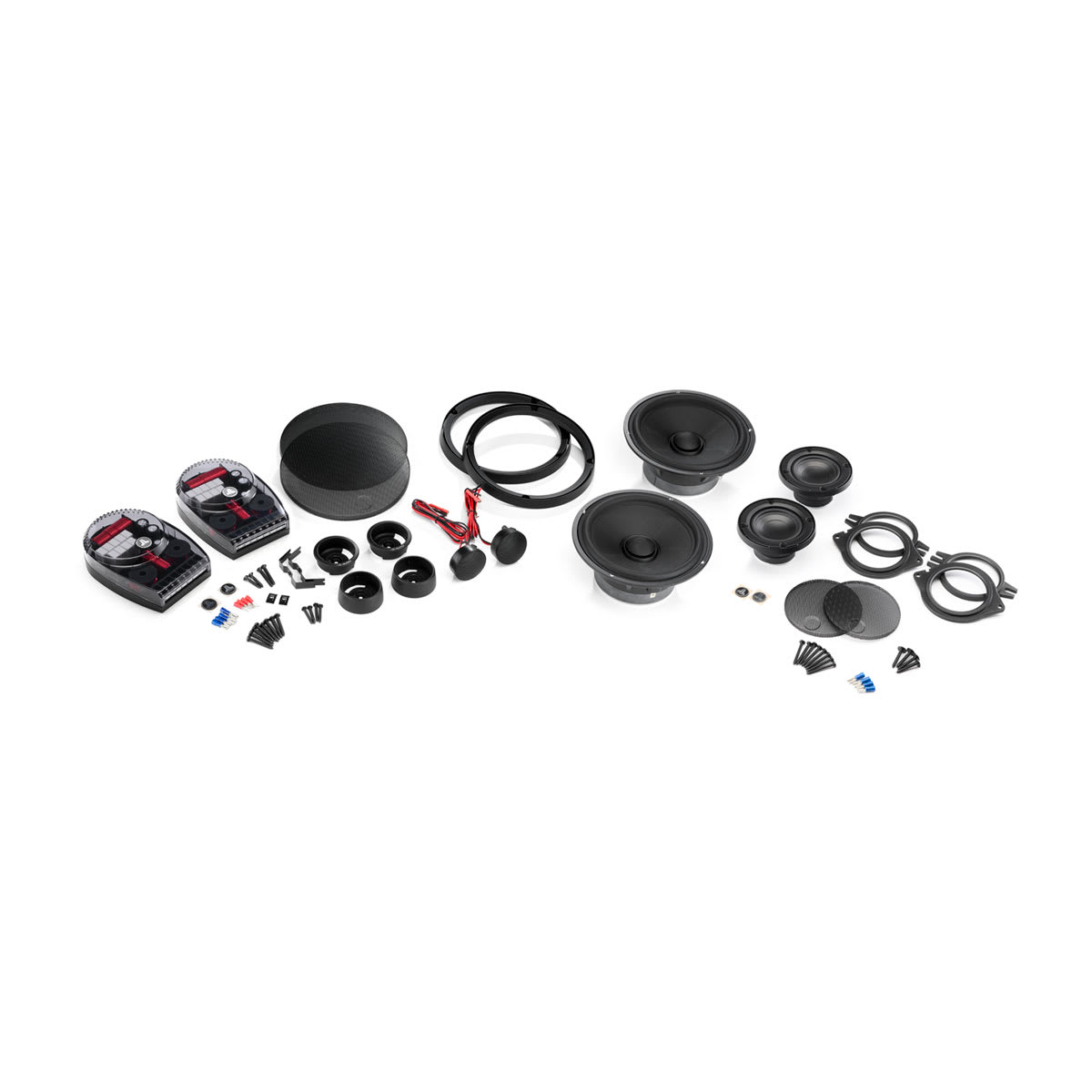

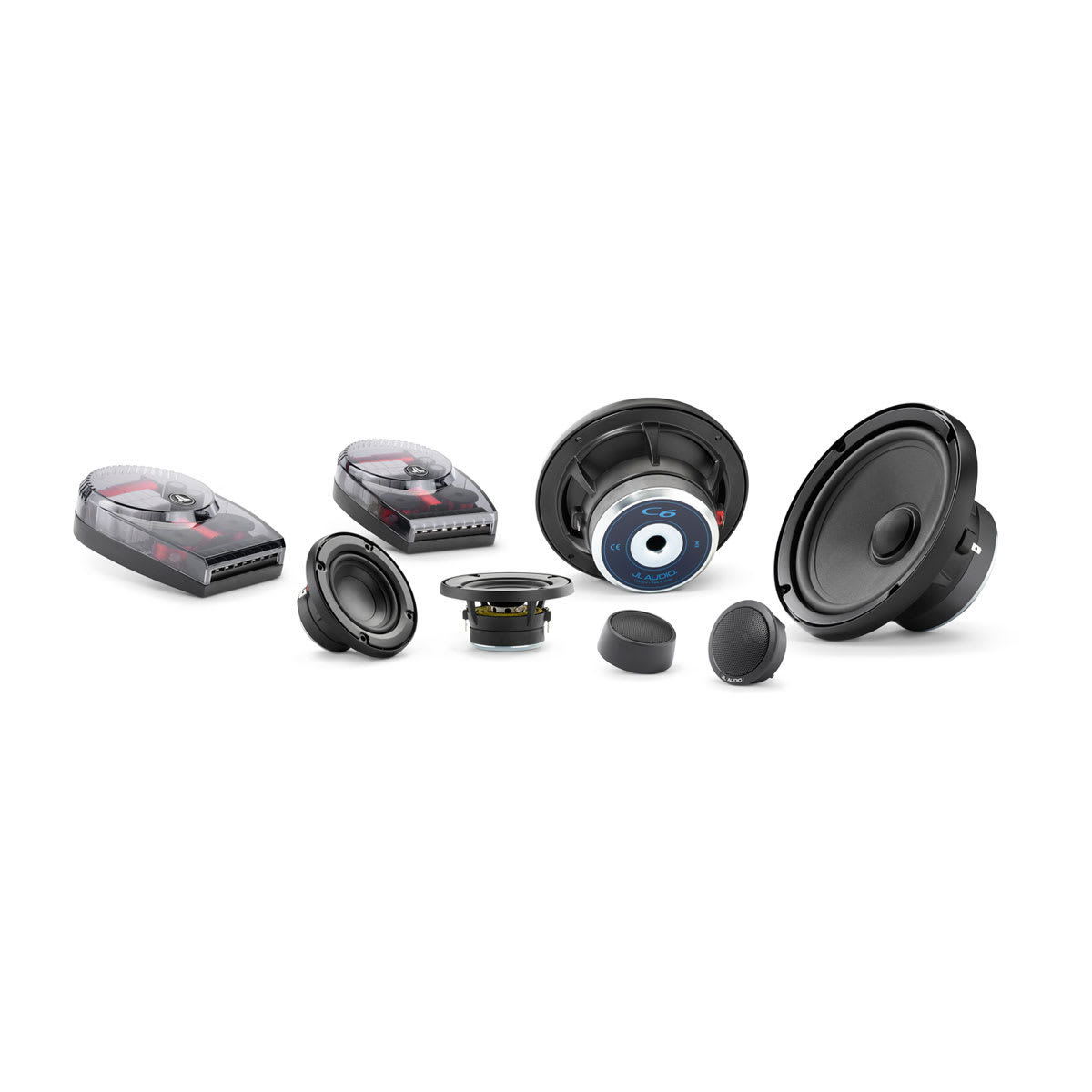

C6 two-way component car speaker system with DMA-optimized woofers, silk dome tweeters, 6.5-inch woofer, flexible installations, and a 2-year warranty.
General |
|
| Warranty | 1 year |
|---|---|
| Sizes | 6.5″ |
| Continuous power handling (RMS) | 100 W |
| Sensitivity (SPL @ 1 W/1 m) | 2.75″: 83.50 dB 6.5″: 87.37 dB |
| Sensitivity (SPL @ 1 W/0.5 m) | 1″: 96 dB |
| Sensitivity (SPL @ 2.83 V/1 m) | 2.75″: 86.50 dB 6.5″: 90.33 dB |
| Frequency response (+/- 3 dB) | 53 Hz-21 KHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 25-150 W/Channel |
| Voice coil diameter | 2.75″: 0.8″ (20.5 mm) 6.5″: 1.27″ (32 mm) |
| Cone material | Vacuum-formed, mineral-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 1″ (25 mm) |
| Grille(s) included | |
Networking & Connections |
|
| Speaker connections | Spade connectors |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 2.75″: 2.52″ (77 mm) 6.5″: 6.5″ (165 mm) |
|---|---|
| Mounting depth clearance | 2.75″: 1.42″ (36 mm) 6.5″: 2.60″ (66 mm) |
| Frontal grille protrusion | 2.75″: 0.47″ (12 mm) 6.5″: 1″ (25 mm) |
| Mounting hole | 2.75″: 2.52″ (64 mm) 6.5″: 5.46″ (139 mm) |
| Grille tray outer diameter | 2.75″: 3.58″ (91 mm) 6.5″: 6.76″ (172 mm) |
| Bolt hole circle | 2.75″: 3.03″ (77 mm) 6.5″: 6.12″ (156 mm) |
| Motor outer diameter | 2.75″: 2.75″ (69 mm) 6.5″: 3.54″ (90 mm) |
Parameters |
|
| Free Air Resonance (FS) | 1″: 1500 Hz 2.75″: 185 Hz 6.5″: 52.8Hz |
|---|---|
| Electrical “Q” (Qes) | 2.75″: 0.769 6.5″: 0.647 |
| Mechanical “Q” (Qms) | 2.75″: 7.848 6.5″: 5.076 |
| Total “Q” (Qts) | 2.75″: 0.700 6.5″: 0.574 |
| Equivalent Compliance (Vas) | 2.75″: 0.0353 cu ft (0.125 L) 6.5″: 0.532 cu ft (15.069 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 2.75″: 0.059″ (1.50 mm) 6.5″: 0.148″ (3.75 mm) |
| Reference Efficiency (NO) | 2.75″: 0.1414% 6.5″: 0.344% |
| Moving mass (Mms) | 2.75″: 4.65 g 6.5″: 16.42 g |
| Mechanical compliance (Cms) | 2.75″: 0.00031 m/N 6.5″: 0.000581 m/N |
| Magnetic strength (BL) | 2.75″: 5.03 N/A 6.5″: 5.186 N/A |
| Effective piston area (SD) | 2.75″: 3.66 in² (0.00236 m²) 6.5″: 21.4 in² (0.013807 m²) |
| DC resistance (RE) | 1″/6.5″: 3.20 Ω 2.75″: 3.58 Ω |
Tweeter Specifications |
|
| Flush mount fixture diameter | 2.13″ (54 mm) |
|---|---|
| Surface mount fixture diameter | 2.11″ (54 mm) |
| Flush mount mounting hole diameter | 1.85″ (47 mm) |
| Flush mount mounting depth | 1.85″ (47 mm) |
| Flush mount tweeter frontal protrusion | 0.30″ (8 mm) |
| Surface mount tweeter frontal protrusion | 1.04″ (26 mm) |
