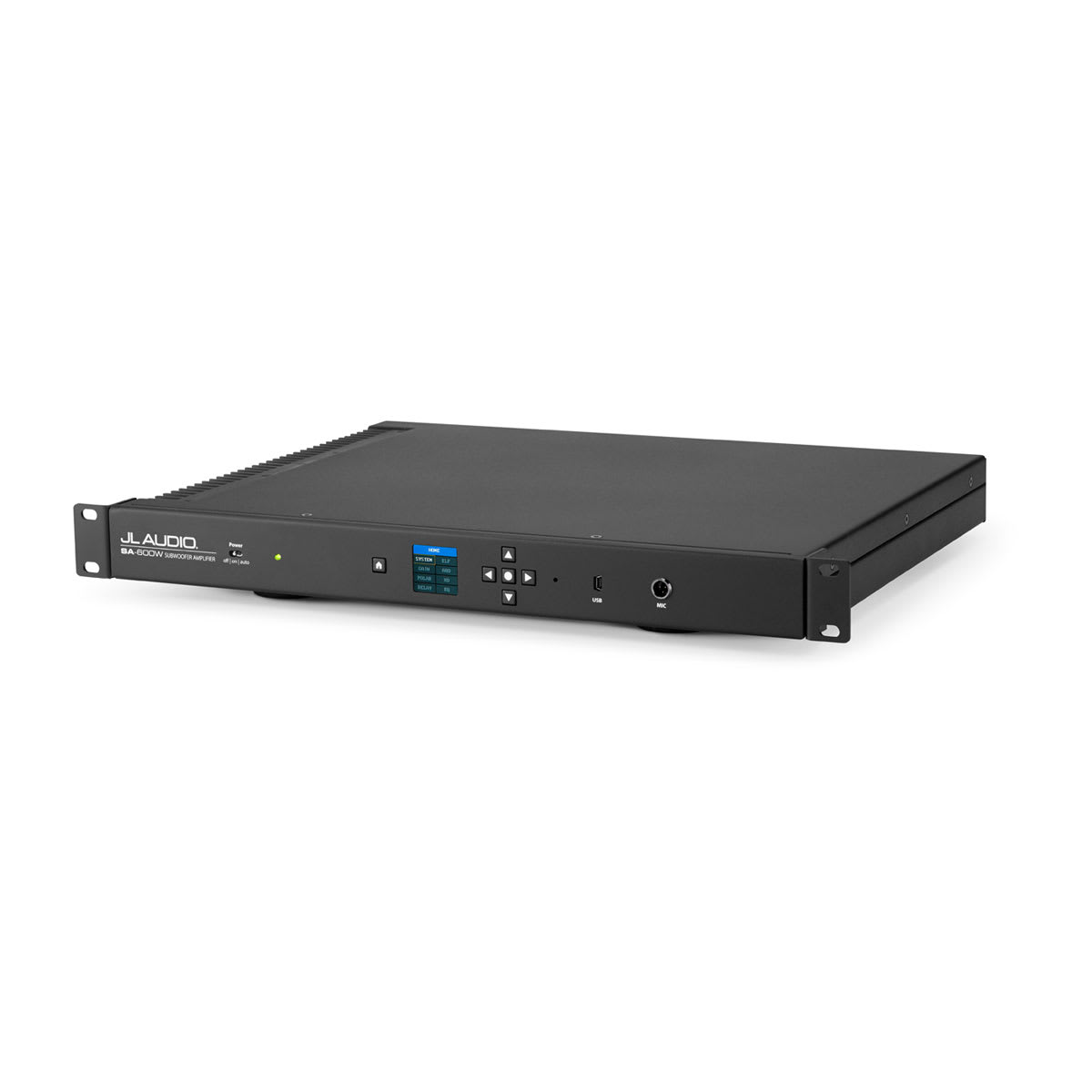

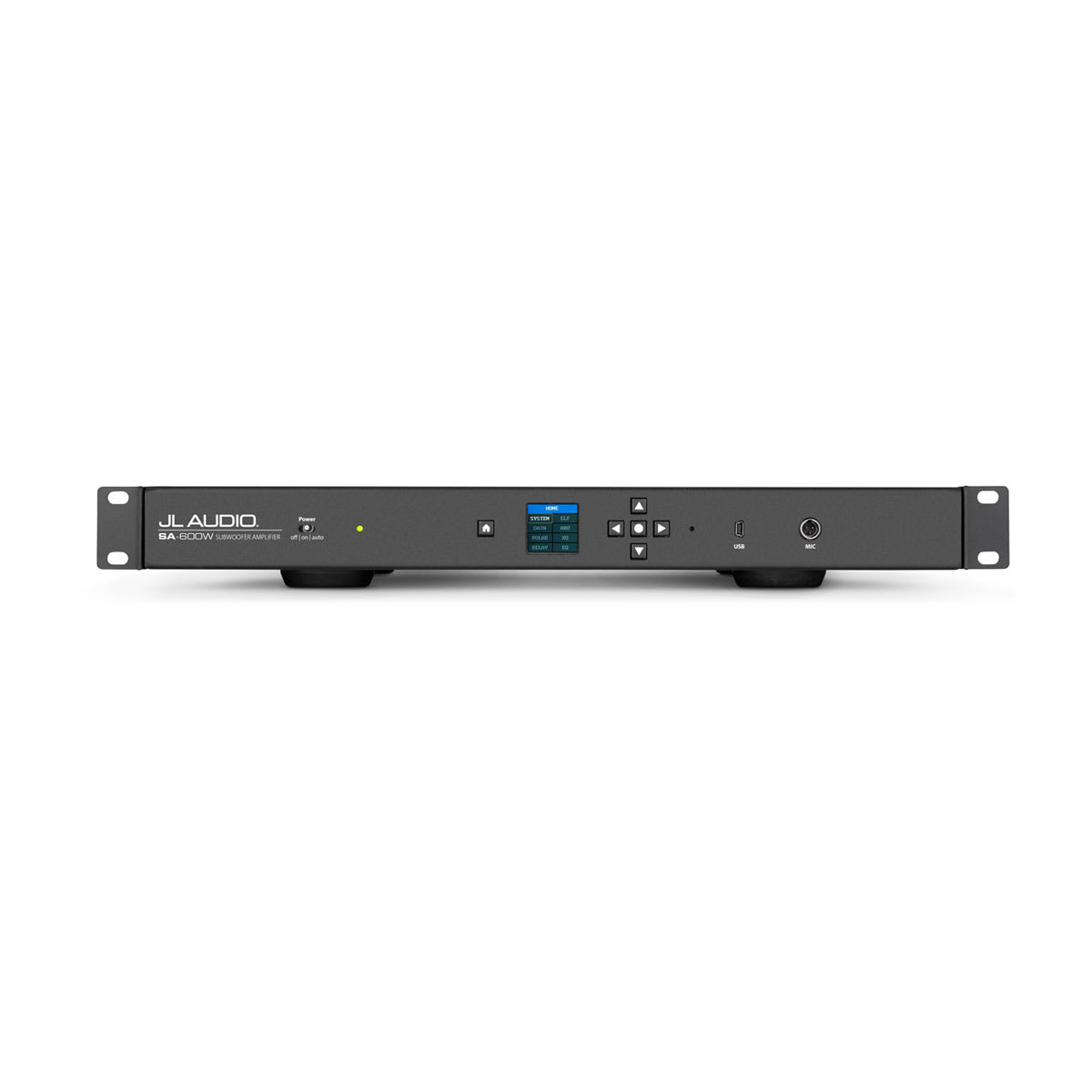

Fathom® home subwoofer amplifier is a subwoofer amplifier with 600 watts of power, an intuitive LCD display, two-way active crossover, and built-in optimized EQ optimized for JL Audio drivers.
General |
|
| Warranty | 3 years |
|---|---|
| 12 V trigger output capacity | 150 mA (1/8″ (3.5 mm) mini jack) |
| Amplifier Power (RMS) | 600 W x 1 at 3 Ω 450 W x 1 at 4 Ω 300 W x 1 at 6 Ω 225 W x 1 at 8 Ω |
| Power modes | off, on or automatic (signal-sensing or 12V trigger) |
Signal Processing |
|

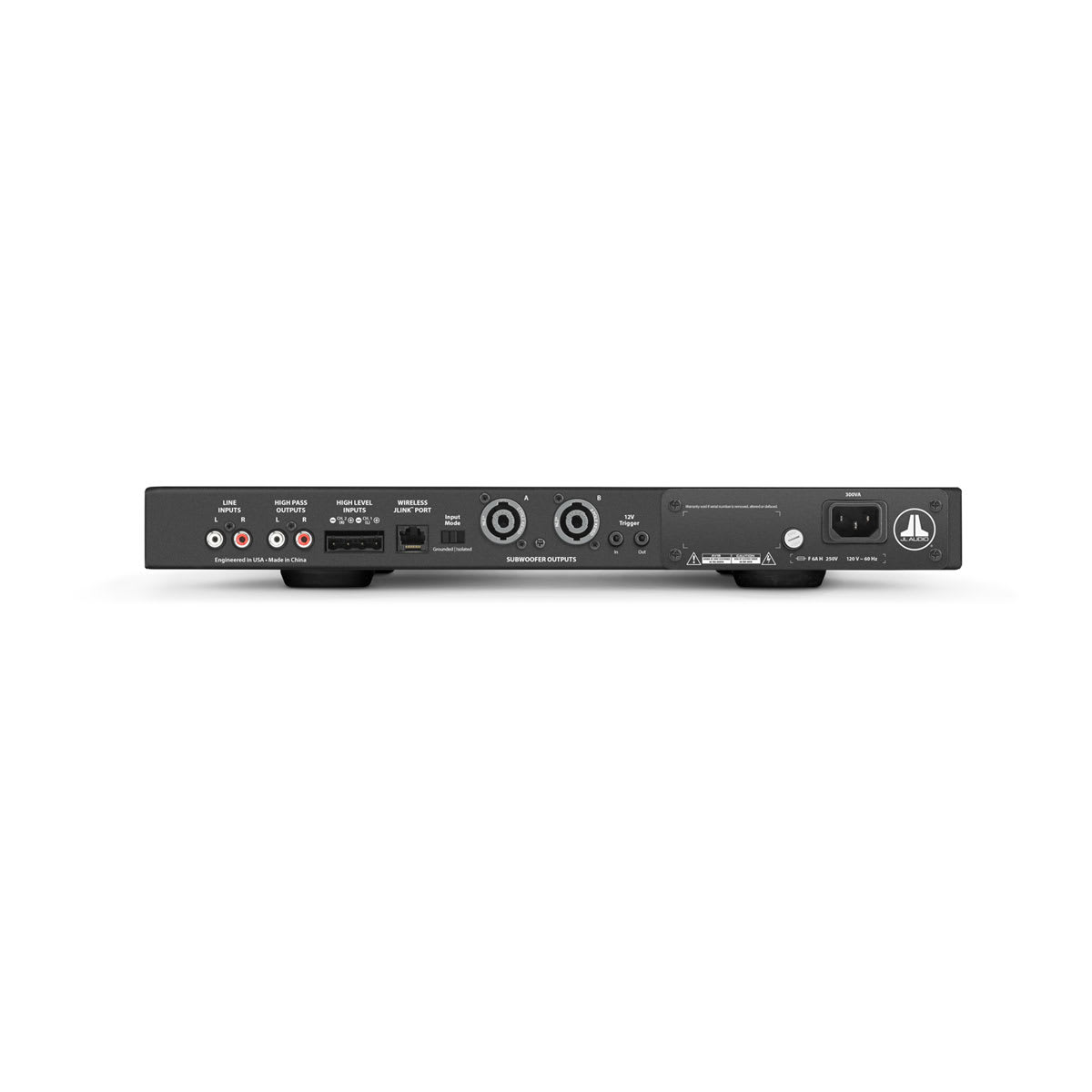

| Unbalanced input(s) | Stereo or mono (two RCA jacks – Input Impedance of 50k Ohms) |
|---|---|
| Speaker/High-level inputs | Stereo or mono (removable plug – Input Impedance of 4.4k Ohms) |
| Input grounding | Isolated or grounded |
| Level control | Reference (fixed gain) or Variable from -50 dB to +15 dB over reference gain (0.5 dB increments) |
| Filter mode(s) | Low-pass, with tracking High-pass Outputs |
| Filter slope(s) | 12/24 dB/octave |
| Filter frequency range | 30 Hz-130.1 Hz |
| Filter defeat function | |
| Polarity | 0 or 180º |
| Delay (Phase) | Variable from 0-25 ms (0.1 ms increments, Sub and HP outputs) |
| Extreme Low Frequency (E.L.F.) trim | Variable, -12 dB to +3 dB at 25 Hz (0.5 dB increments) |
| Line outputs | Stereo or mono (two RCA jacks – Pass-through or High-pass) |
| Subwoofer outputs | Neutrik speakOn® 2-Pole Connectors (uses Neutrik part: NL2FX) |
| Calibration mode | Digital Automatic Room Optimization (D.A.R.O.), requires microphone (sold separately) |
| Equalizer bands | 3 |
| Equalizer frequency range | 20 to 160 Hz (1 Hz increments) |
| Equalizer gain range | -12 dB to +12 dB (0.2 dB increments) |
| Equalizer Q range | 0.7 to 5.0 (0.1 increments) |
Amplifier Specifications |
|
| Width (W) | 16.84″ (428 mm) |
|---|---|
| Height (H) | 1.75″ (44 mm) |
| Depth (D) | 13.63″ (346 mm) |
| Net weight (each) | 13.5 lbs (6.12 kg) |
