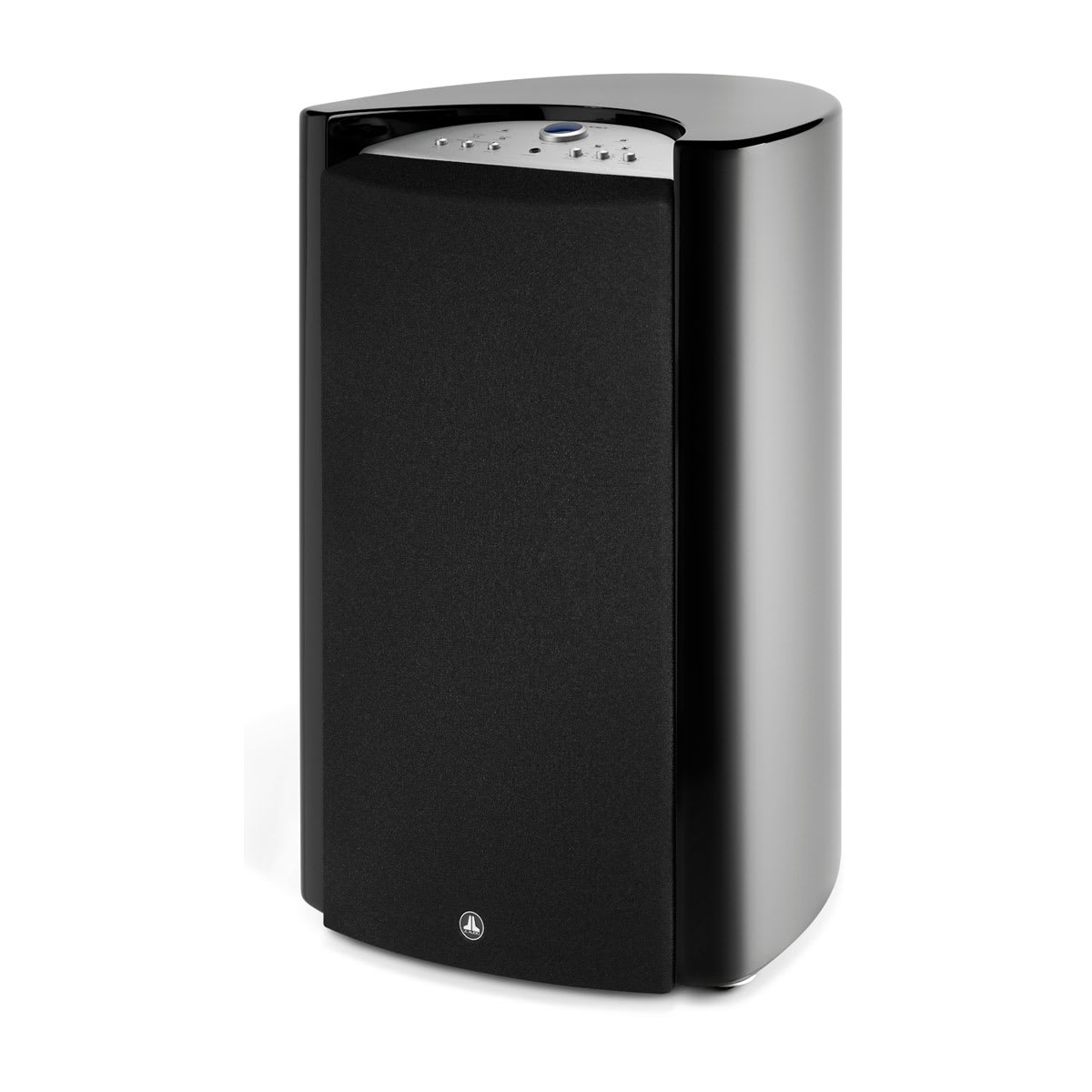

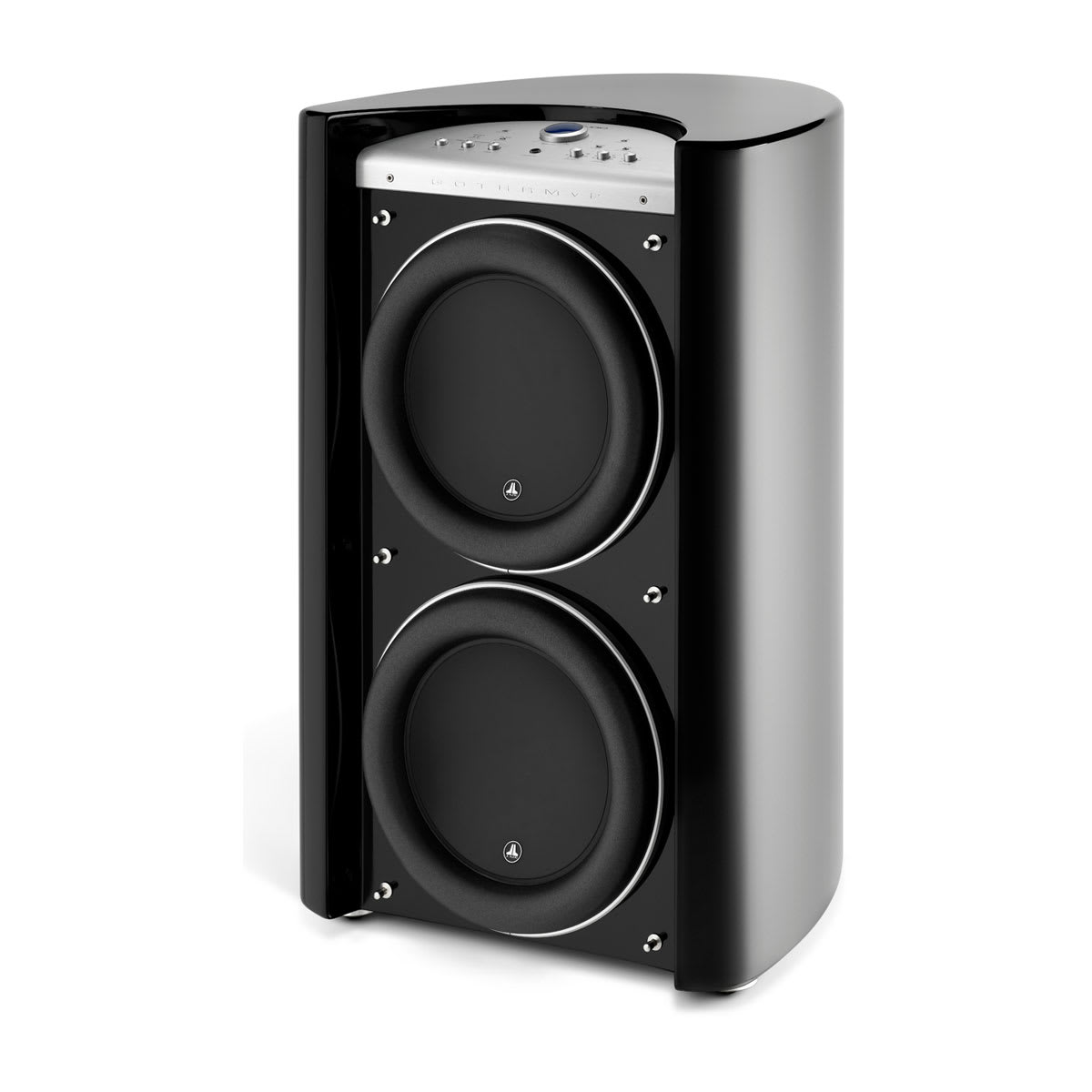

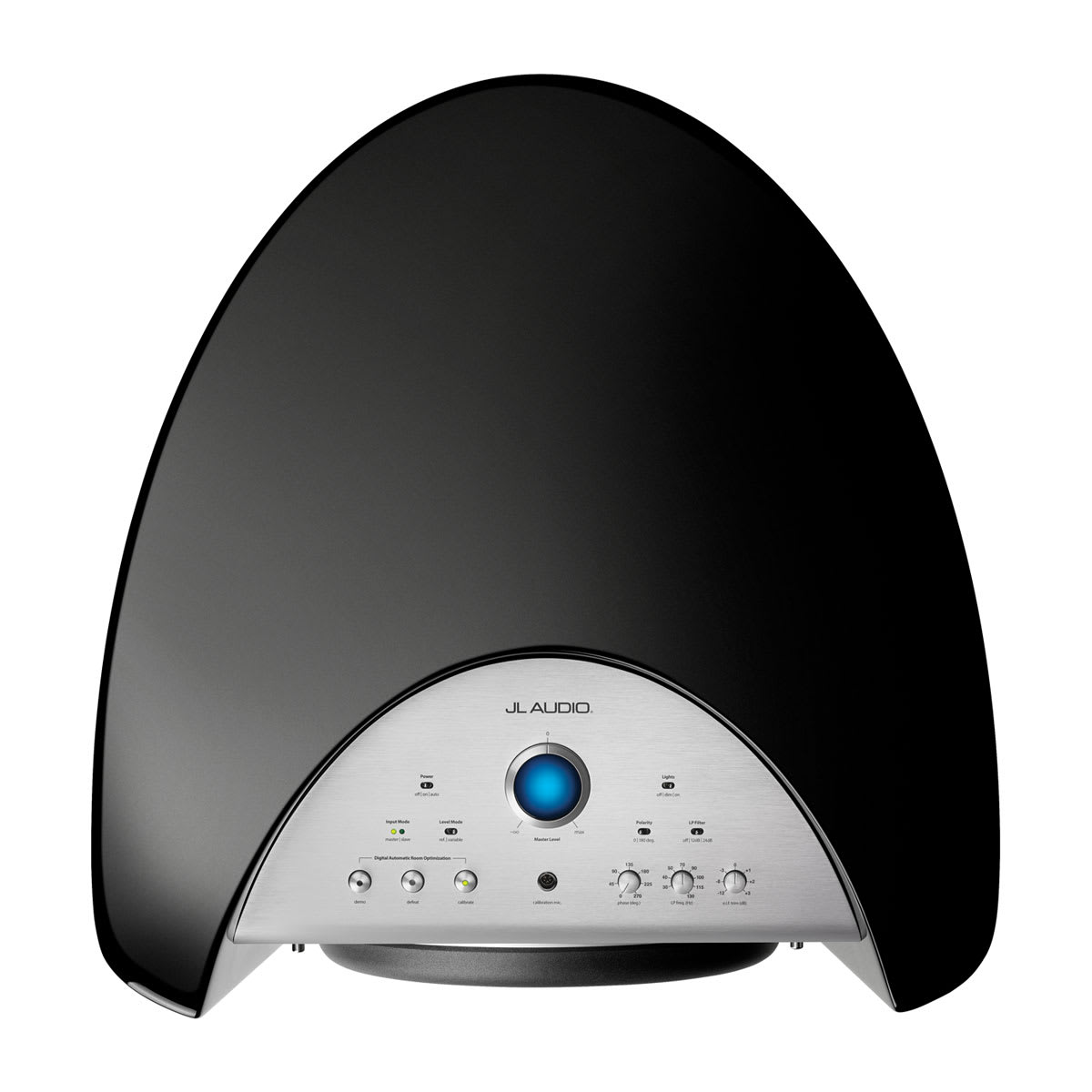

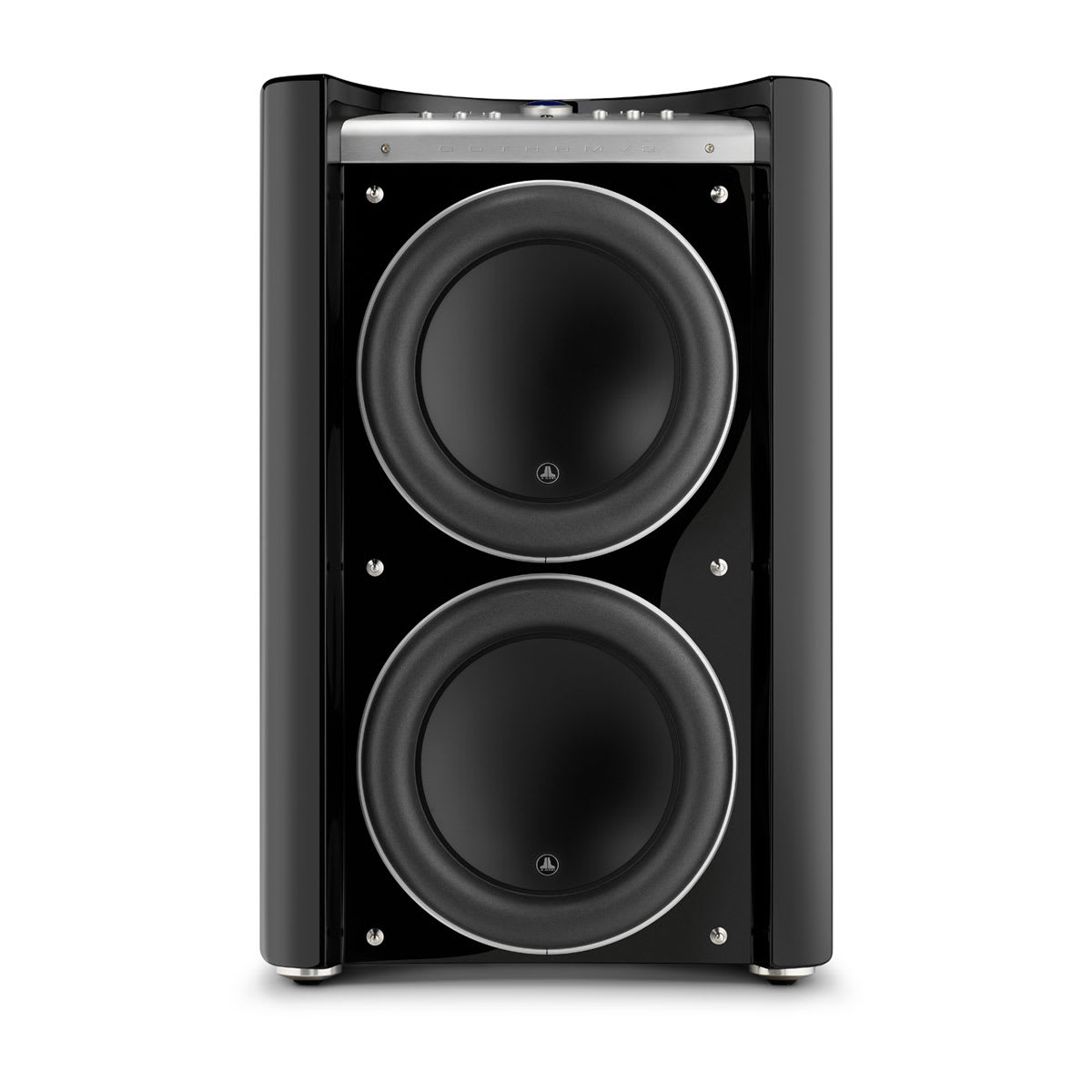

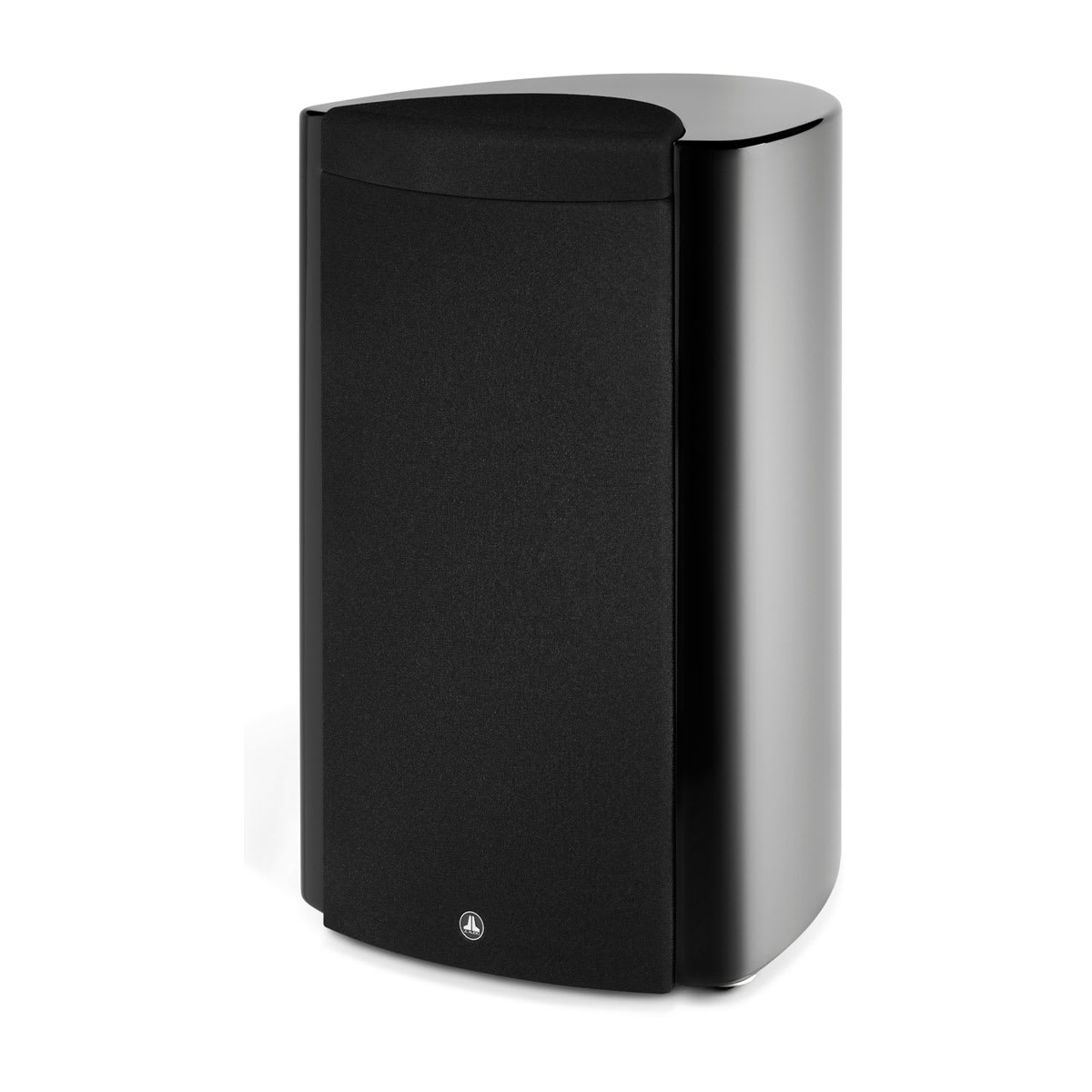

Gotham® v2 home subwoofer delivers the highest integrity of low-frequency reproduction with dual 13.5″ drivers, 4,500 watts of power, & studio-grade signal processing.
General
|
| Warranty |
3 years |
| Sizes |
Dual 13.5″ |
| Physical dimensions (Height) |
34.13″ (867 mm) |
| Physical dimensions (Width) |
21.50″ (546 mm) |
| Physical dimensions (Depth) |
21.50″ (546 mm) |
| Weight |
360 lbs (163 kg)
|
| Light modes |
off, on or dim |
| Amplifier Power (RMS) |
4500 W short-term |
| Frequency response (Anechoic) |
19-112 Hz (±1.5 dB) |
| Frequency response (Anechoic, -3dB) |
17.5 Hz/120 Hz |
| Frequency response (Anechoic, -10dB) |
14 Hz/150 Hz |
| Enclosure type |
Sealed, with non-parallel walls |
| Enclosure finish |
Black gloss |
| Grille(s) included |
|
| Power modes |
off, on or automatic (signal-sensing) |
Signal Processing
|

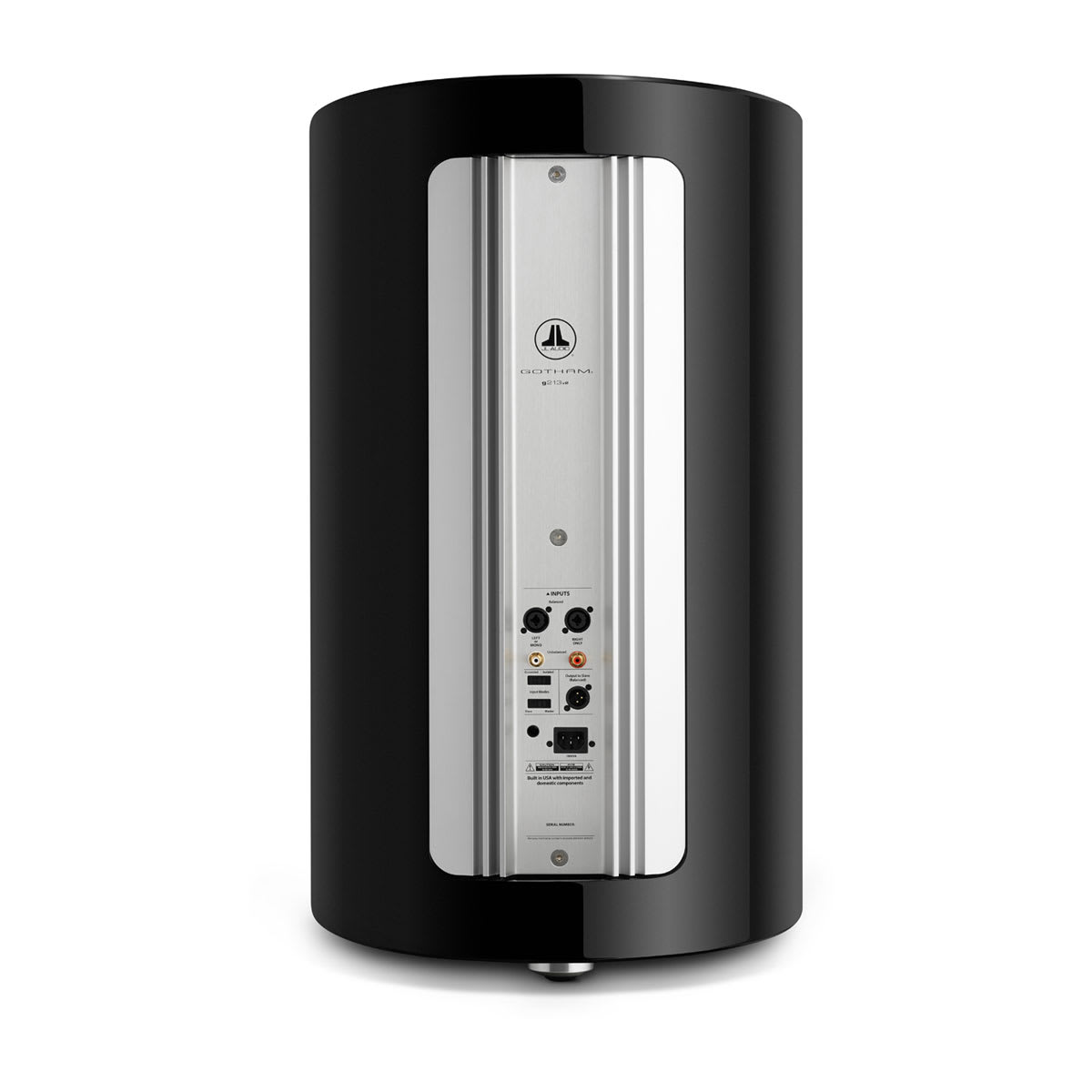

| Unbalanced input(s) |
Stereo or mono (two RCA jacks) |
| Balanced input(s) |
Stereo or mono (two female XLR jacks) |
| Input grounding |
Isolated or grounded |
| Input modes |
Master or slave |
| Level control |
Reference (fixed gain) or variable, from full mute to +15 dB over reference gain |
| Filter mode(s) |
Low-pass |
| Filter slope(s) |
12/24 dB/octave |
| Filter frequency range |
30 Hz-130 Hz |
| Filter defeat function |
|
| Polarity |
0 or 180º |
| Phase |
Variable, 0-270º |
| Extreme Low Frequency (E.L.F.) trim |
Variable, -12 dB to +3 dB at 28 Hz |
| Output to slave |
Balanced (one male XLR jack) |
| Calibration mode |
Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone |
Parameters
|
| Effective piston area (SD) |
214.70 in² (0.1386 m²) |
| Effective displacement |
773 cu in (12.7 L) |
