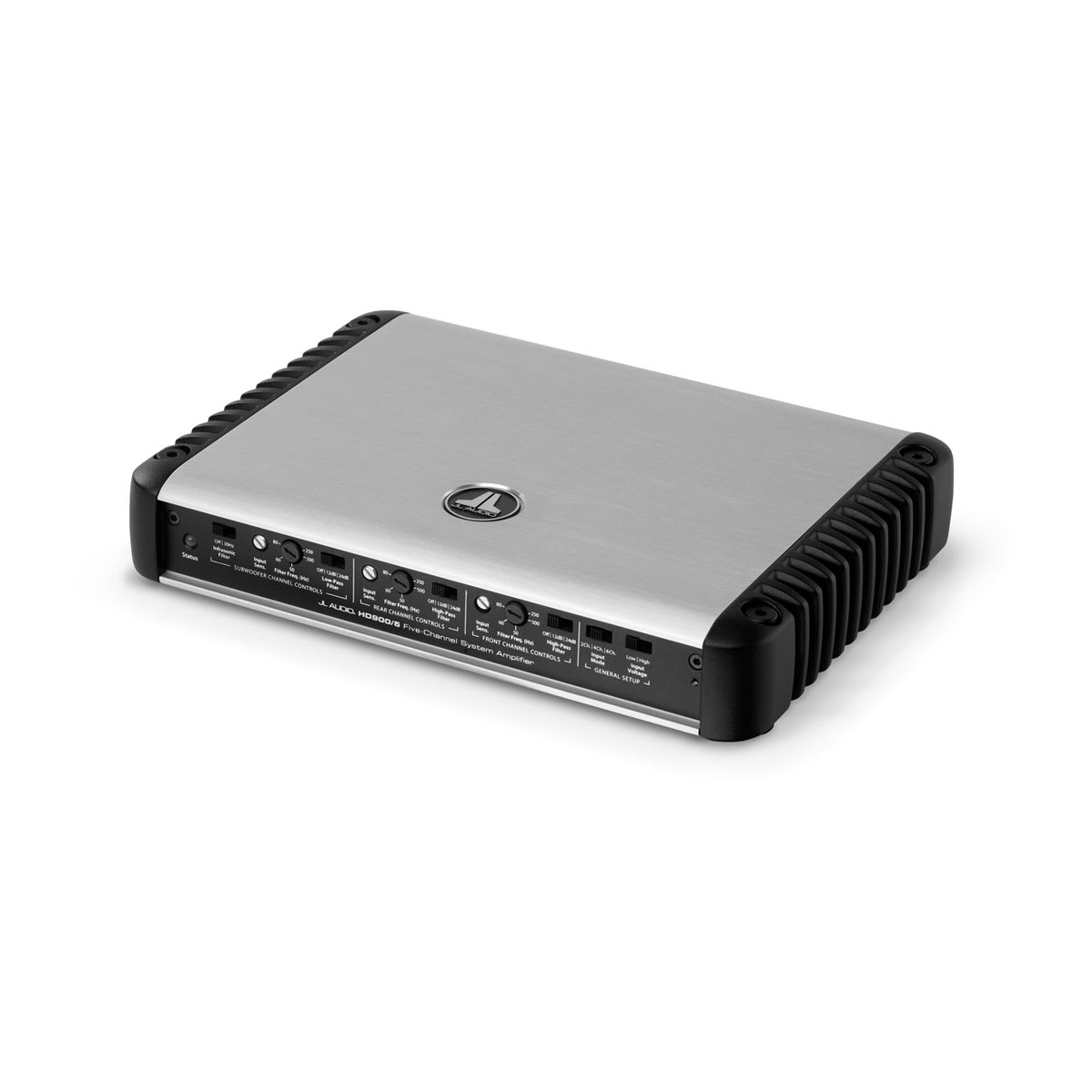

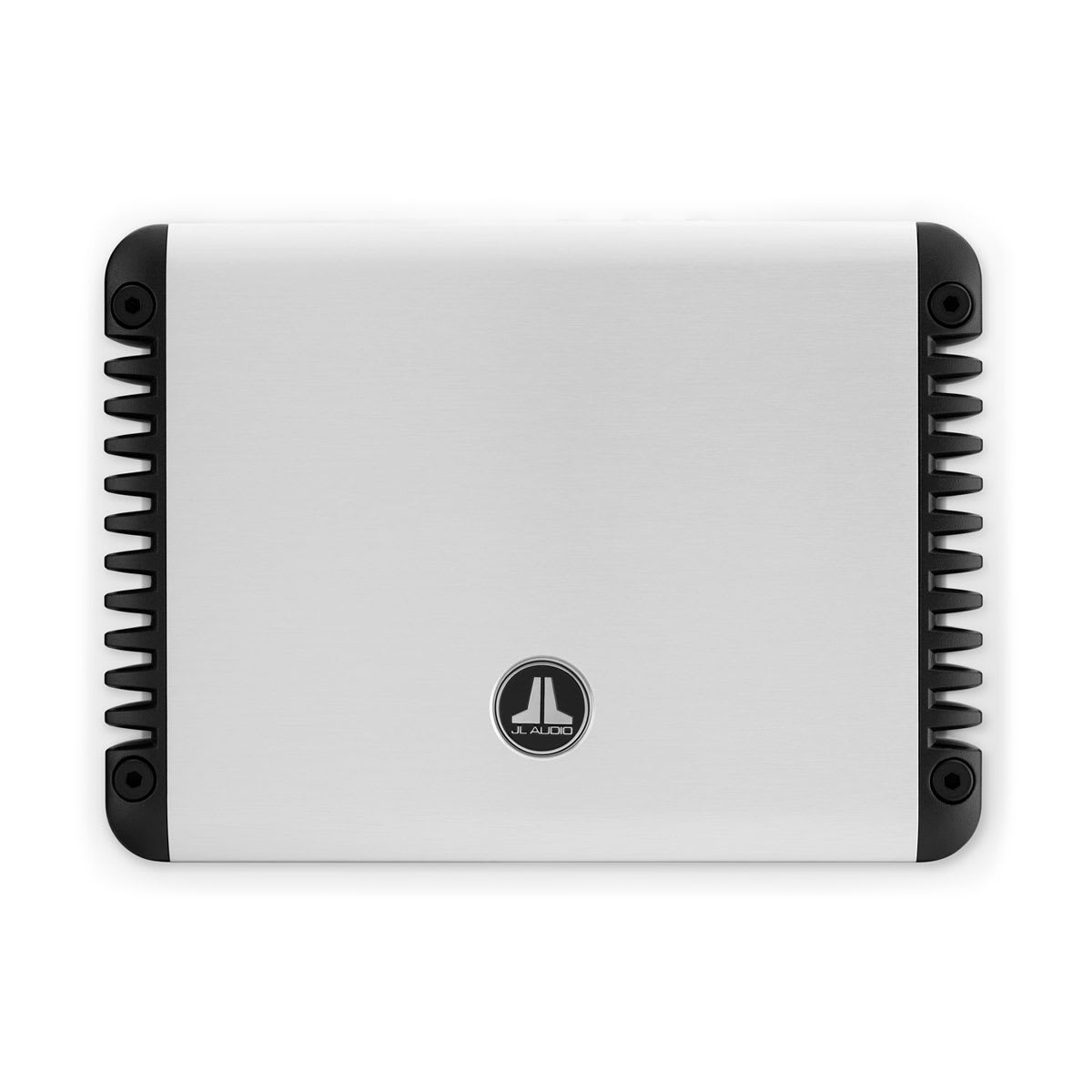

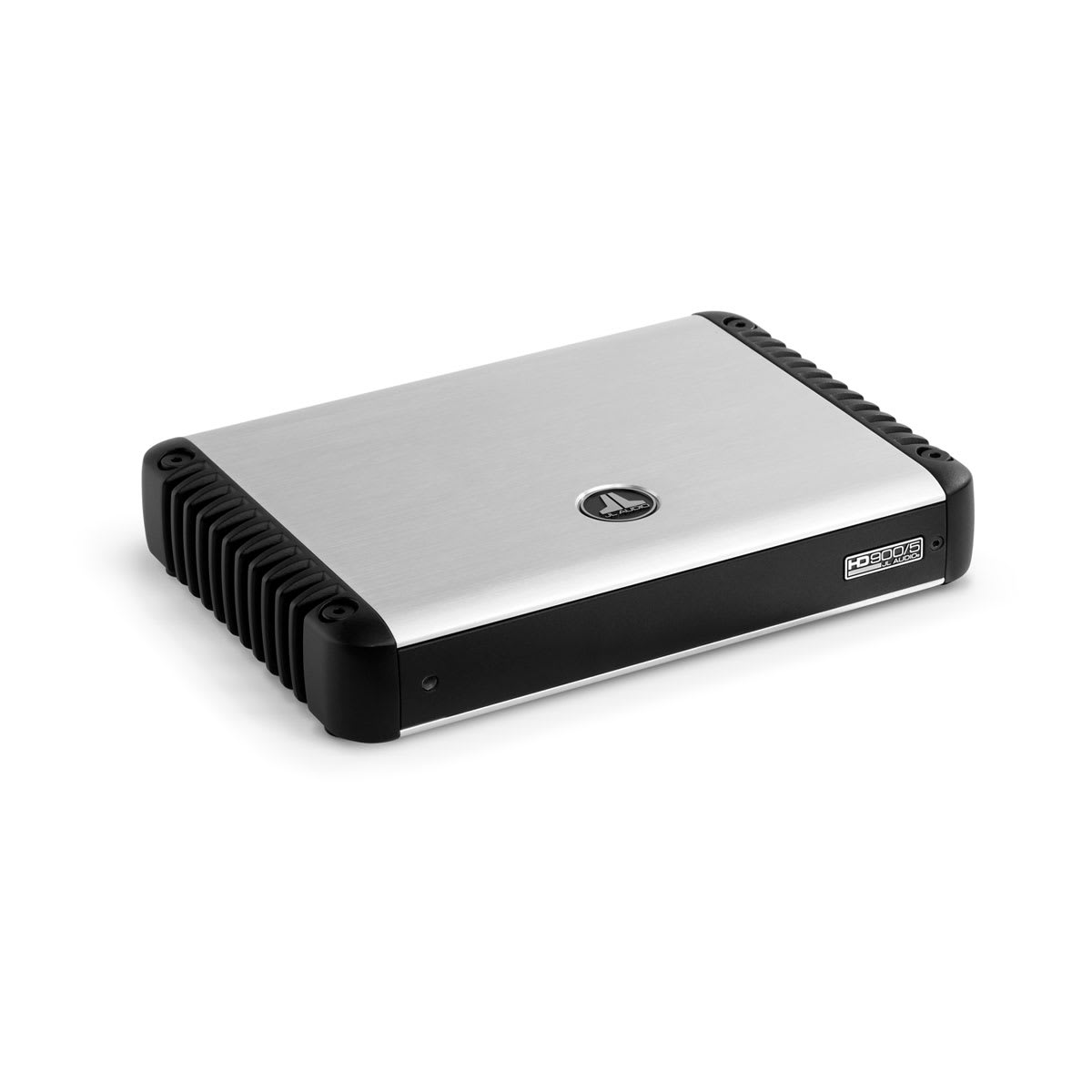

HD car system amplifier has 5-channels – 4 satellite speakers and 1 subwoofer, with single cycle control switching, R.I.P.S. and a 2-year warranty.
General
|
| Warranty |
2 years |
| Channels |
5 |
| Physical dimensions (Height) |
1.93″ (49 mm) |
| Physical dimensions (Width) |
10.74″ (273 mm) |
| Physical dimensions (Depth) |
7.85″ (199 mm) |
| Weight |
6.85 lbs (3.11 kg)
|
| Operating voltage |
11-14.5 VDC |
Audio
|
| Amplifier class |
Class D |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) |
Main: 100 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) |
Main: 75 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) |
Main: 100 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) |
Main: 75 W x 4/Sub: 500 x 1 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Main Channels |
108 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Main Channels |
88 dB |
| Damping factor @ 4 Ω |
>400/50 Hz |
| Damping factor @ 2 Ω |
>200/50 Hz |
| THD+N @ Rated Power: Main Channels |
<0.03% @ 4Ω |
| THD+N @ Rated Power: Subwoofer Channel |
<0.05% @ 4Ω |
| Frequency response (+0, -1dB): Main Channels |
12 Hz-28 kHz |
| Frequency response (+0, -1dB): Subwoofer Channel |
12 Hz-10 kHz |
| Input voltage range @ RCA inputs |
Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Fuse rating |
60 A |
| Recommended fuse type(s) |
AFS, AGU or MaxiFuse™ |
| Min. copper power/Ground wire gauge |
4 AWG wire |
Signal Processing
|
| Filter mode(s): Channels 1 & 2 |
Off or High-pass only |
| Filter Slope(s): Channels 1 & 2 |
12/24 dB/octave |
| Filter frequency range: Channels 1 & 2 |
50 Hz-500 Hz |
| Filter mode(s): Channels 3 & 4 |
Off or High-pass only |
| Filter Slope(s): Channels 3 & 4 |
12/24 dB/octave |
| Filter frequency range: Channels 3 & 4 |
50 Hz-500 Hz |
| Filter mode(s): Subwoofer Channel |
Off or Low-pass only |
| Filter slope(s): Subwoofer Channel |
12/24 dB/octave |
| Filter frequency range: Subwoofer Channel |
50 Hz-500 Hz |
| Detented, calibrated filter frequent potentiometers |
|
| Infrasonic filter: Subwoofer Channel |
30 Hz, Defeatable |
| Remote level control |
Optional (HD-RLC) |
| Remote level modes |
Sub Channels only |
| Channel input mode switch |
yes (2/4/6 Channels) |
| Pass-through preamp output |
Buffered |
