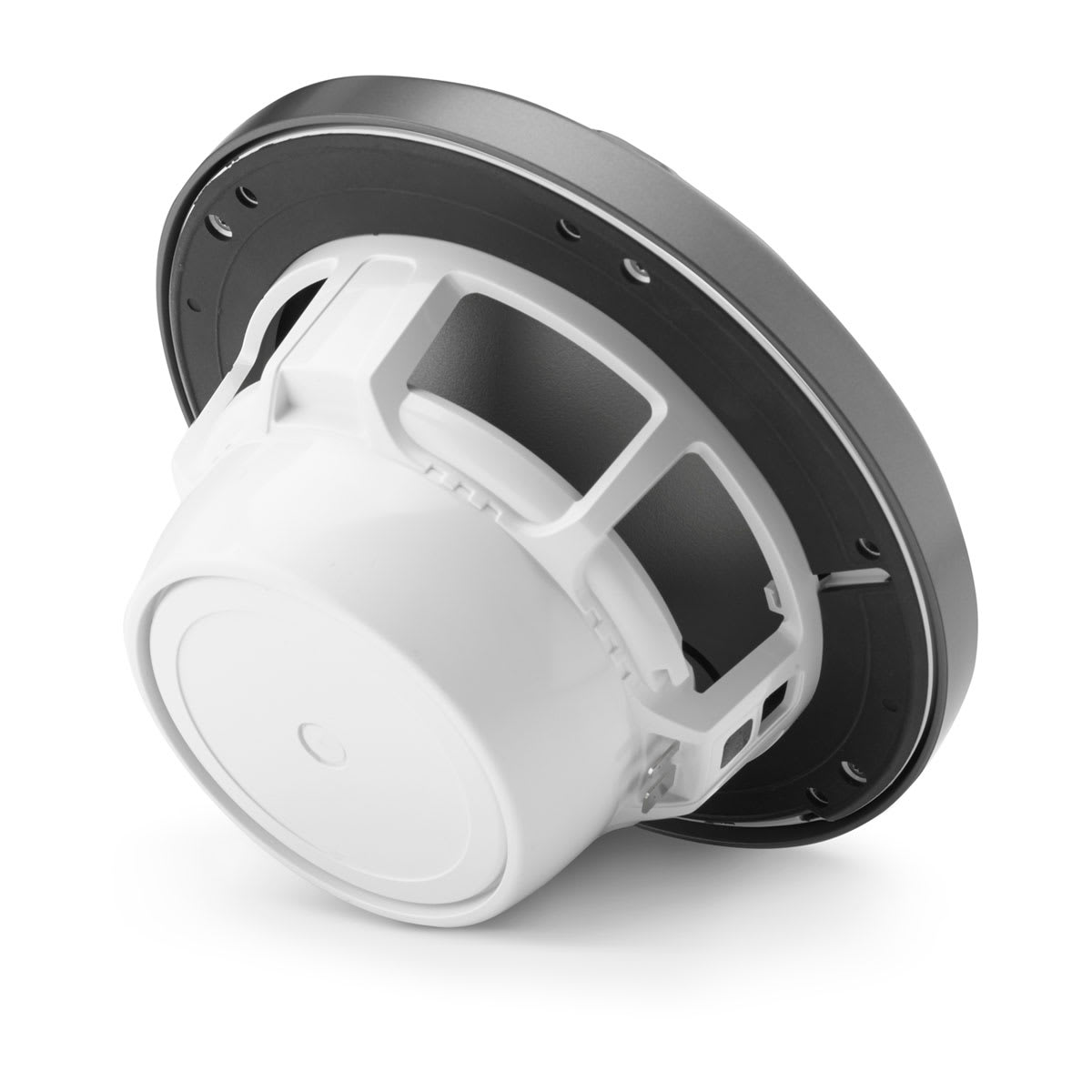

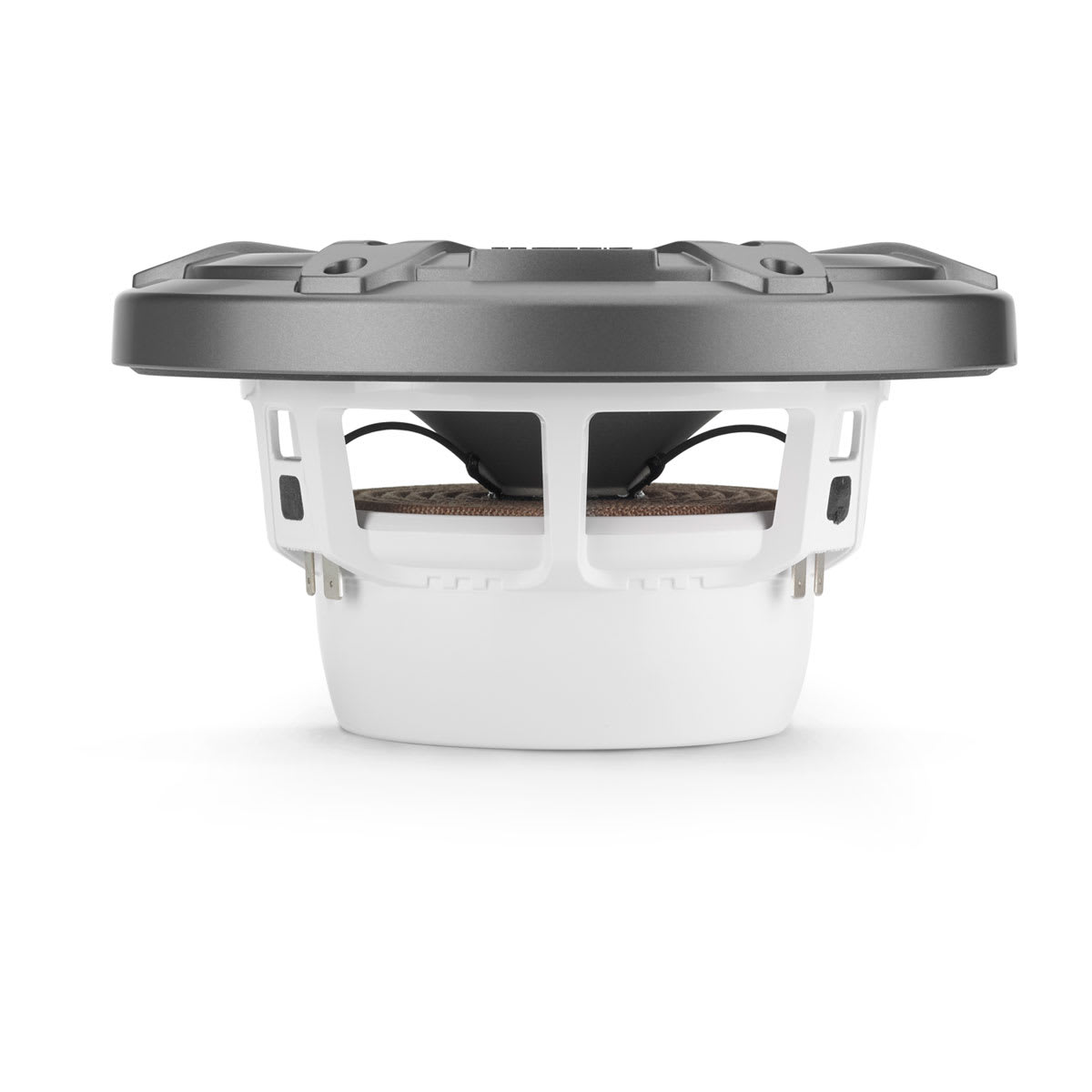

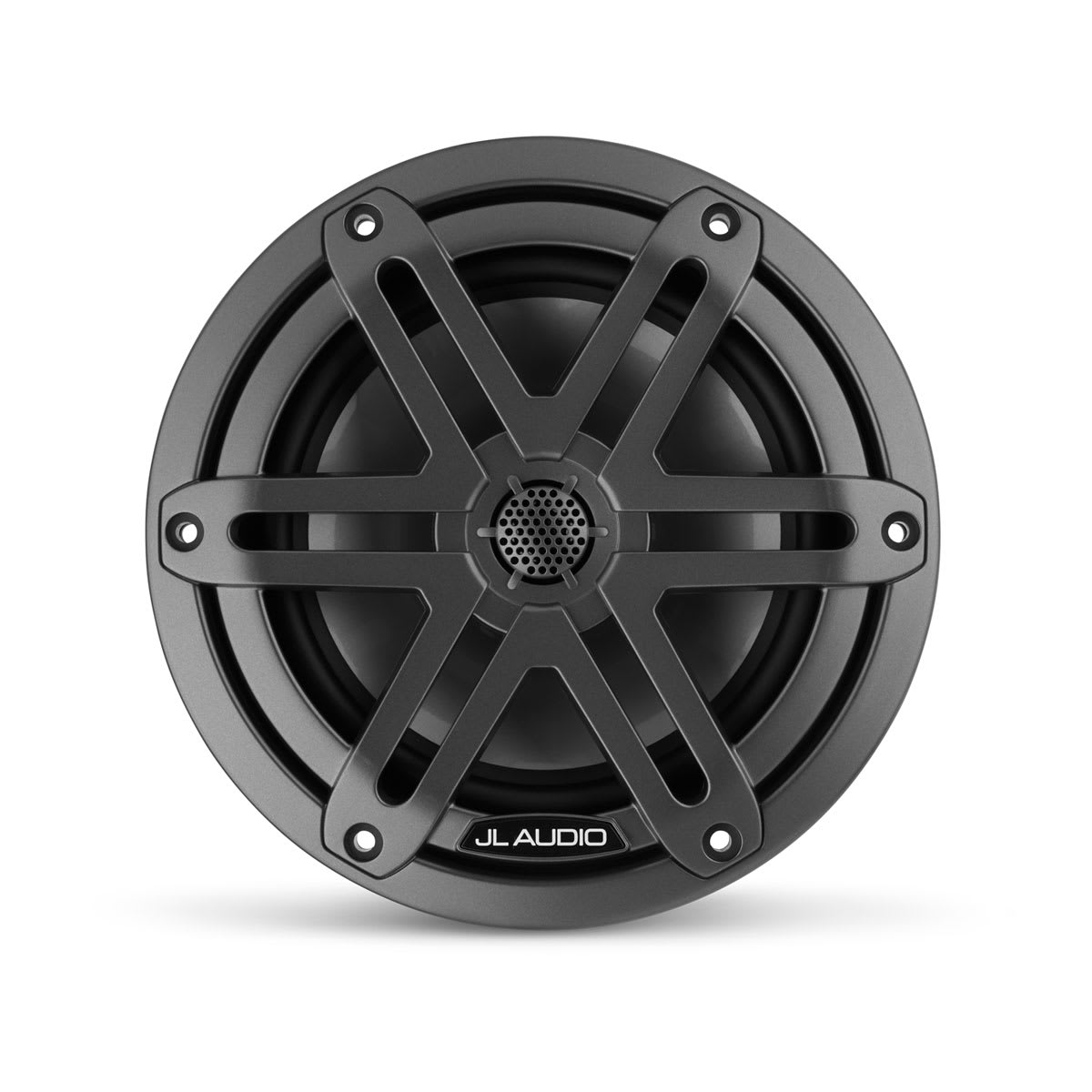

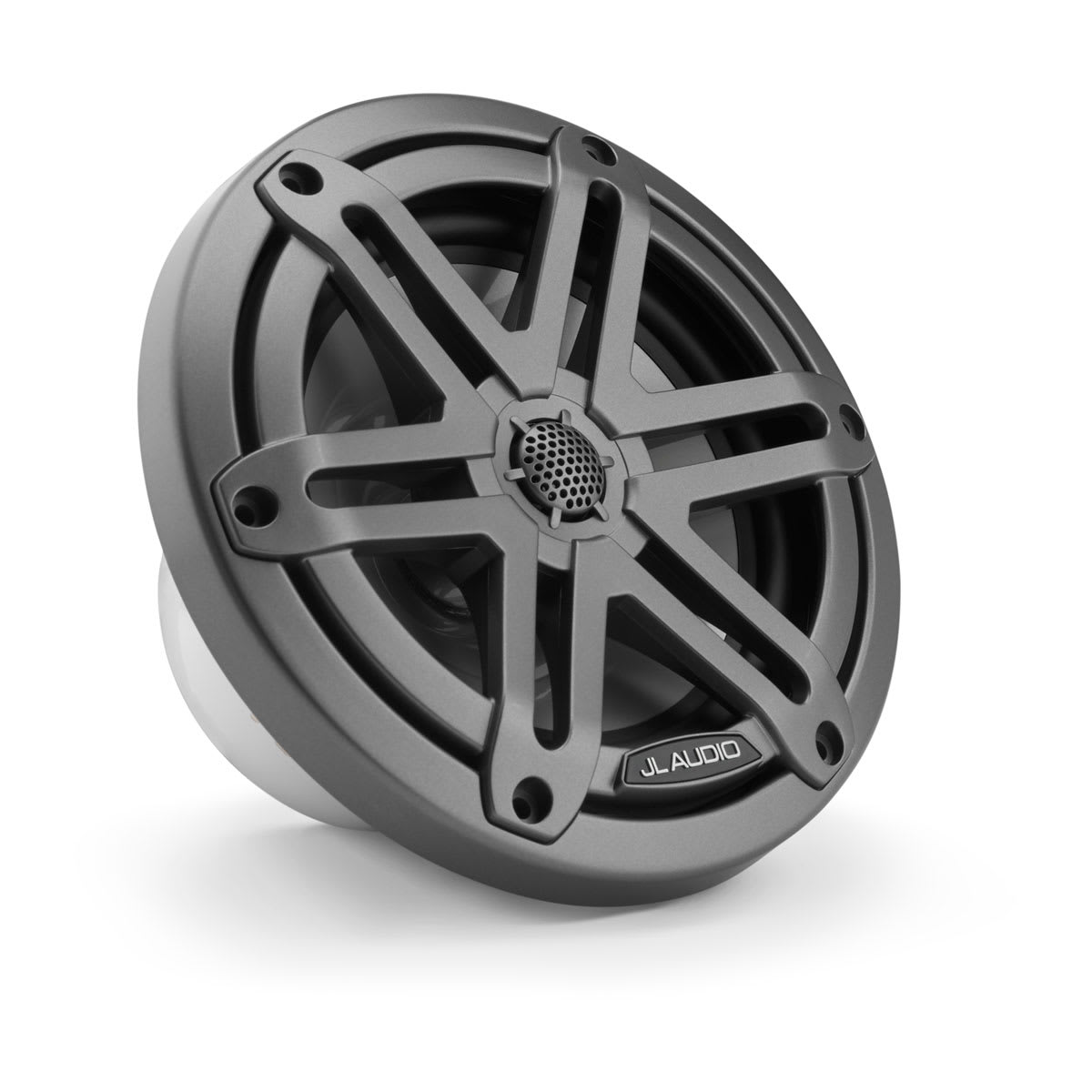

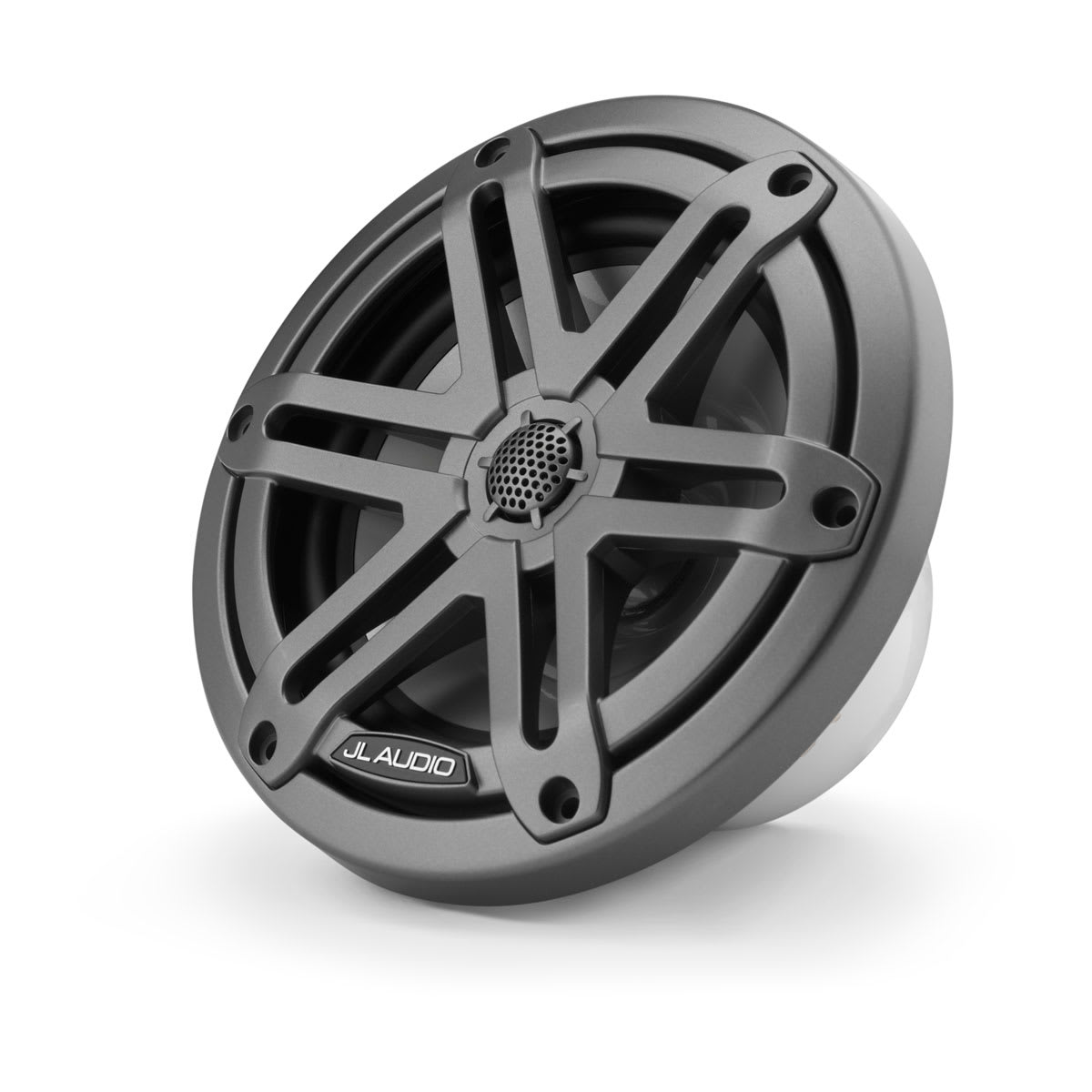

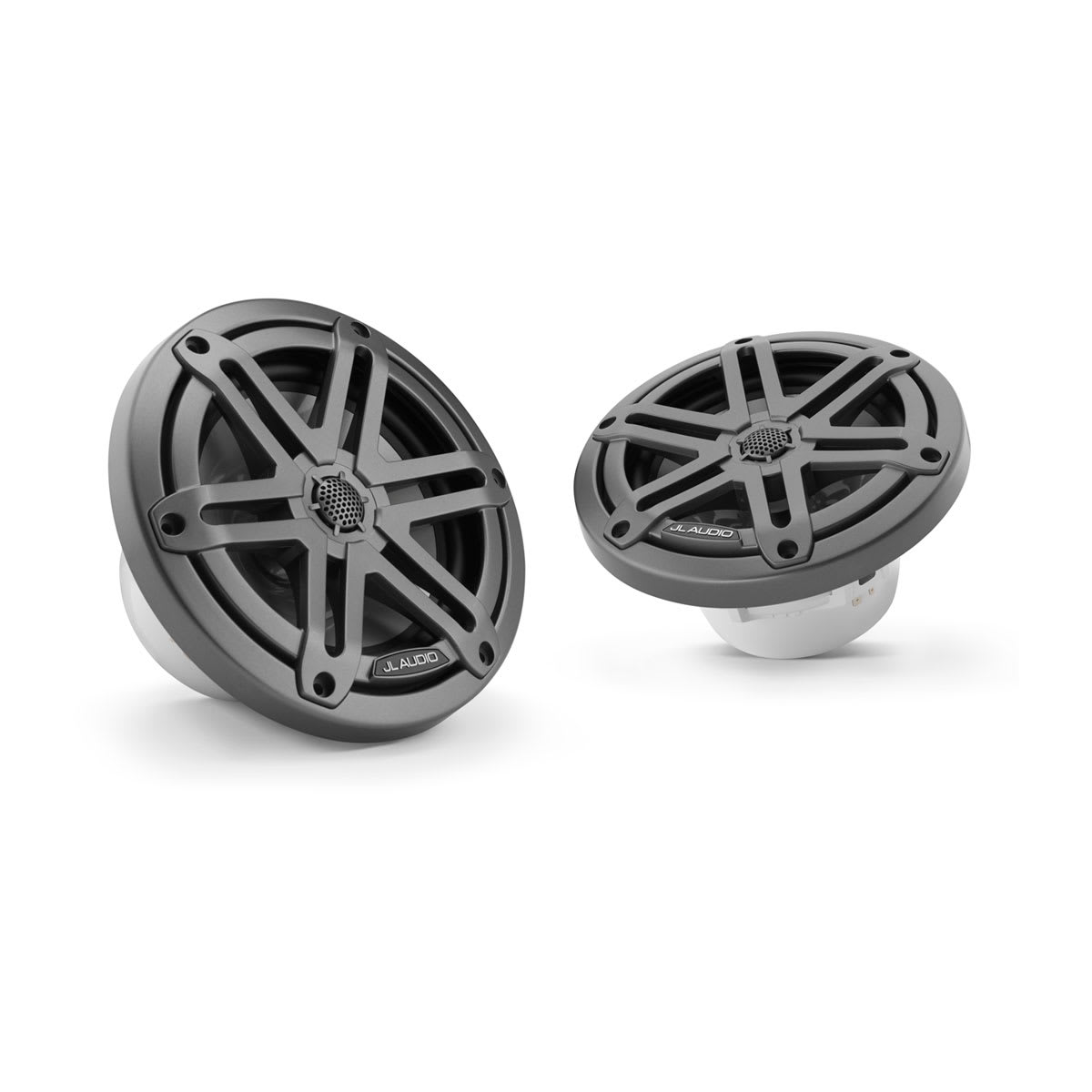

M3 marine speakers are designed to produce a powerful, smooth sound with amazing fidelity, 2 sizes and 5 styles, and models with built-in RGB LED Lighting.
General |
|
| Warranty | 3 years |
|---|---|
| Sizes | 6.5″/7.7″ |
| Color | White Classic, White Sport or Gray Sport |
| Physical dimensions (Diameter) | 6.5″ (Classic/Sport): 6.90″ (175 mm) 7.7″: (Classic/Sport): 7.70″ (196 mm) |
| Physical dimensions (Depth) | 6.5″ (Classic): 3.75″ (95 mm) 6.5″ (Sport): 3.79″ (96 mm) 7.7″: (Classic): 4.19″ (106 mm) 7.7″: (Sport): 4.27″ (108 mm) |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5″: 60 W 7.7″: 70 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5″: 89.5 dB 7.7″: 90.5 dB |
| Frequency response (+/- 3 dB) | 6.5″: 55 Hz-25 kHz 7.7″: 45Hz-25 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5″: 20-120 W/Channel 7.7″: 20-140 W/Channel |
| LED lighting | yes – RGB (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 108 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 0.75″ (19 mm) |
Networking & Connections |
|
| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Flying Lead with 4-conductor 22 AWG wire (selected Sport models only) |
Mounting Dimensions |
|
| Mounting depth clearance | 6.5″ (Classic/Sport): 2.78″ (71 mm) 7.7″: (Classic/Sport): 3.17″ (81 mm) |
|---|---|
| Frontal grille protrusion | 6.5″ (Classic): 0.97″ (25 mm) 6.5″ (Sport): 1.01″ (26 mm) 7.7″ (Classic): 1.02″ (26 mm) 7.7″ (Sport): 1.10″ (28 mm) |
| Mounting hole | 6.5″: 5″-5.25″ (127-133 mm) 7.7″: 6.25″ (59 mm) |
| Bolt hole circle | 6.5″: 6.125″ (156 mm) 7.7″: 6.92″ (176 mm) |
Additional |
|
| Additional |
The enclosure recommendations listed above are external dimensions which assume the use of 0.75" (19 mm) thick material. If you are using 0.625" (16 mm) thick material, subtract 0.25" (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625" (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
|---|---|
