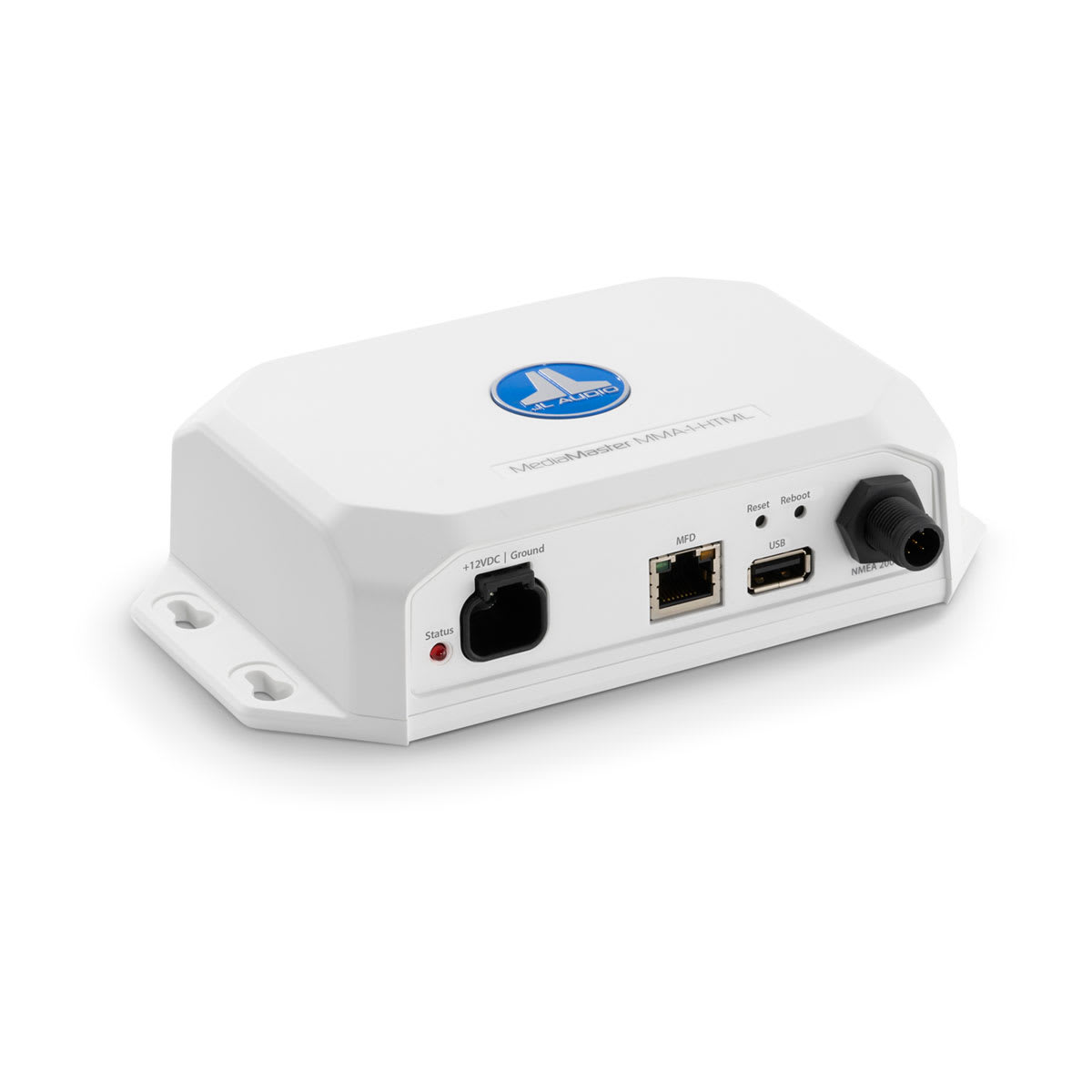

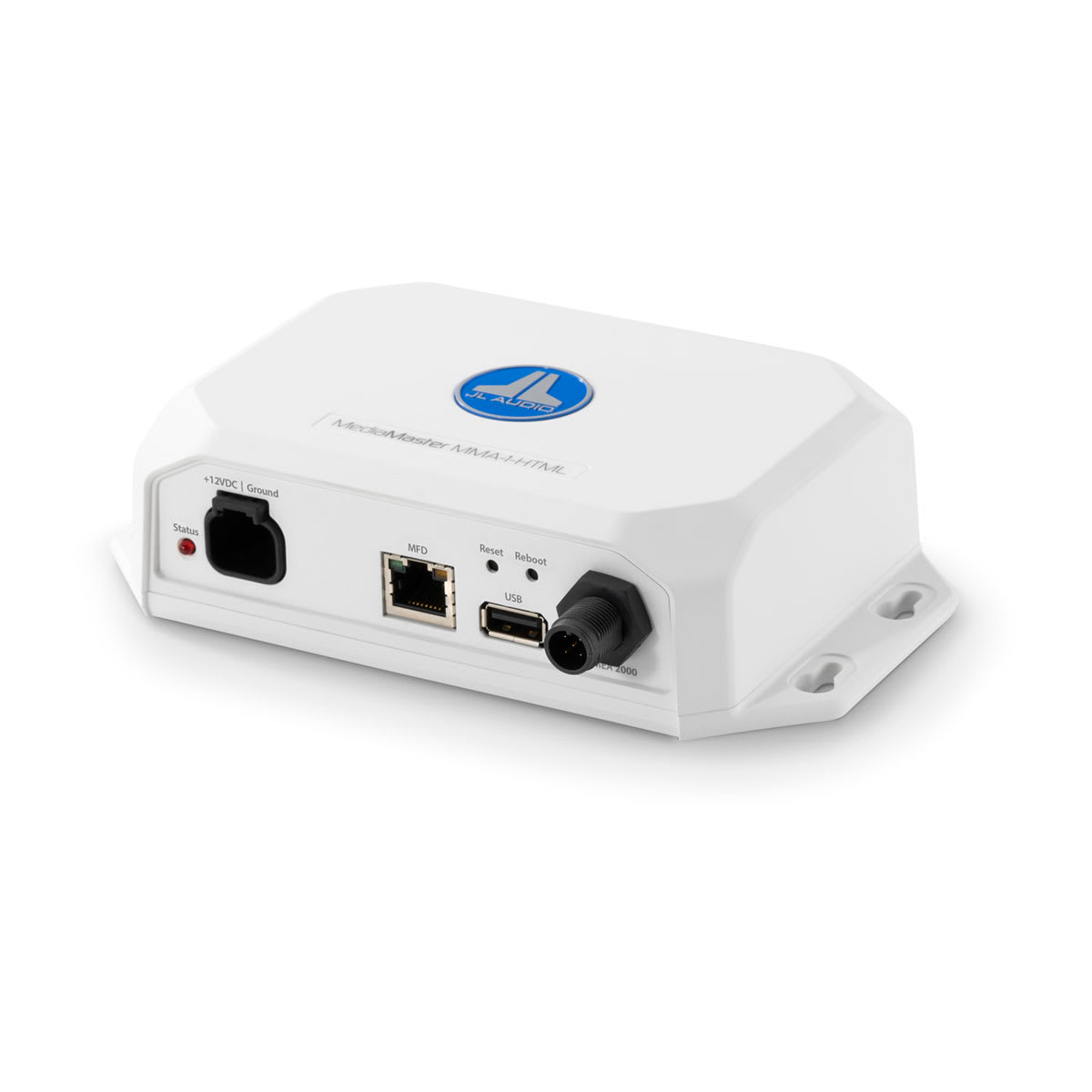

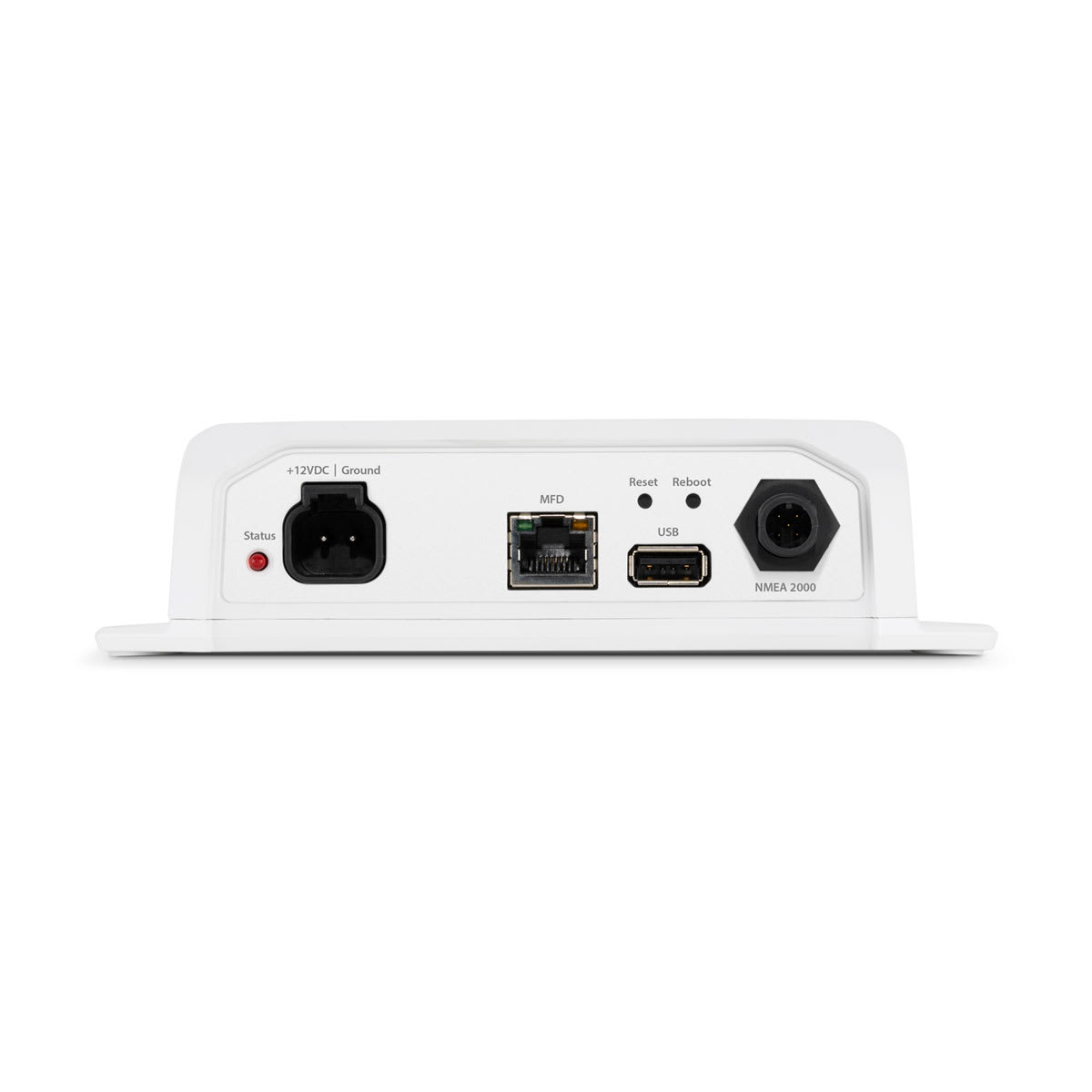

The MMA-1-HTML is an NMEA 2000 certified data interface engineered to generate MediaMaster-themed UI navigation and controls onto your vessel’s compatible MFD.
General |
|
| Warranty | 3 years |
|---|---|
| Physical dimensions (Height) | 1.73″ (44 mm) |
| Physical dimensions (Width) | 6.77″ (172 mm) |
| Physical dimensions (Depth) | 3.98″ (101 mm) |
| Operating temperature range | -4° F to +149° F (-20° C to +65° C) |
| Current draw (max) | 150 mA |
| Multi-language interface | English/French/German/Italian/Spanish |
Electrical Features |
|
| Power Input | 10-15.9 VDC |
|---|---|
Stereo Features |
|
| Software updates | USB |
|---|---|
Sources |
|
| Supported sources | Derived from host source unit |
|---|---|
| Supported audio formats (USB) | Derived from host source unit |
Networking & Connections |
|
| Ethernet ports | 1 |
|---|---|
| NMEA 2000® ports | 1 (Micro-C connector) |
| NMEA 2000® LEN | 1 (50 mA) |
| USB 2.0 ports | 1 (Software update only) |
