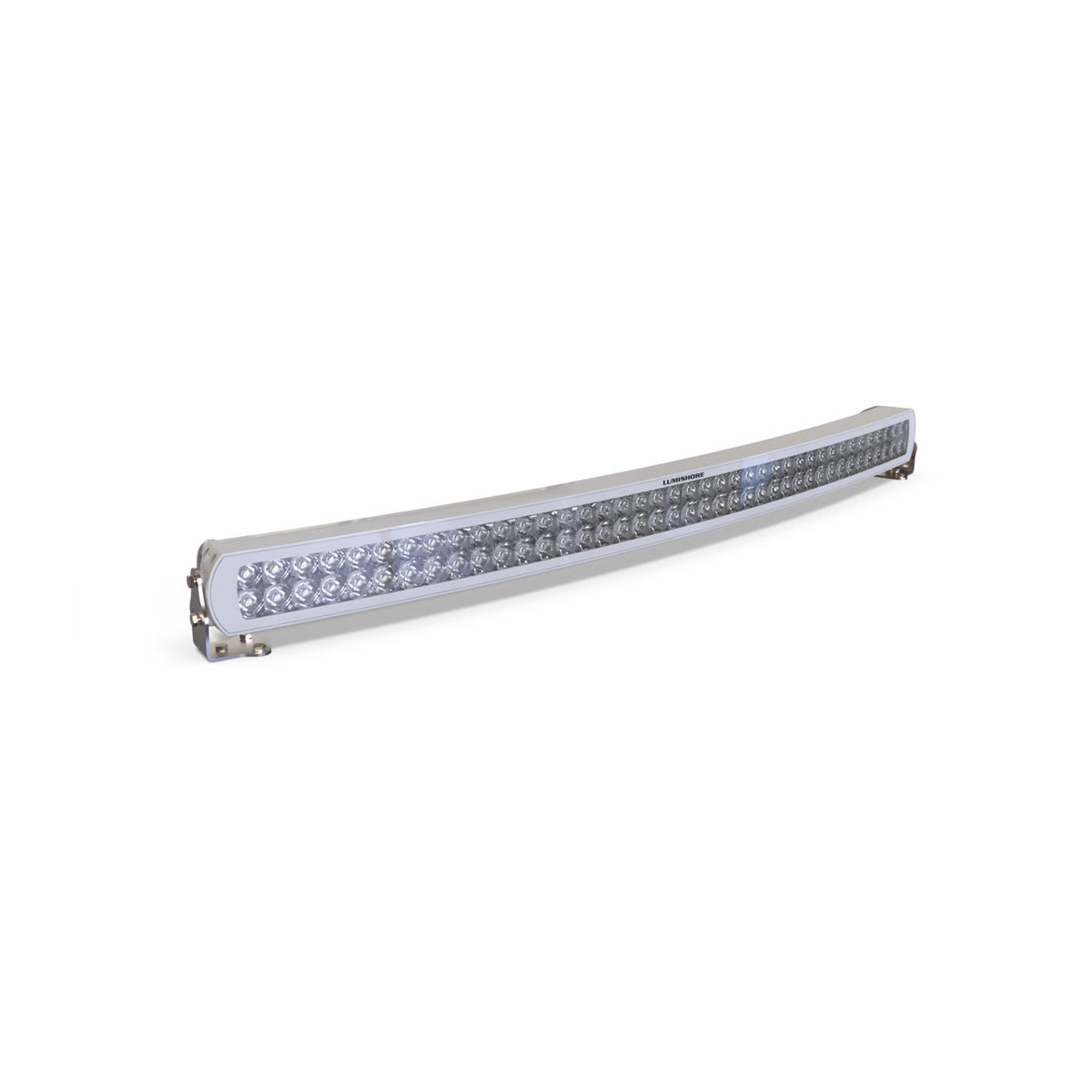

Delivers a powerful, crisp white beam with smooth dimming control.
General |
|
| Warranty | 3 years |
|---|---|
| LED colors | White (5000 K) |
| LED type | 20″: 40 x 10 W – White 30″: 60 x 10 W – White 40″ 80 x 10 W – White 50″ 100 x 10 W – White |
| Fixture lumens | 20″: 15,000 30″: 23,760 40″: 31,680 50″: 39,600 |
| Beam angle | Letterbox beam (vertical – horizontal) 20″: 9°-20° 30″: 9°-32° 40″ 9°-45° 50″ 9°-50° |
| Number of lights via direct power | Not limited |
| Number of lights per Eclipse Comand Center/Expansion module zone | 16 max (Vin and Gnd are supplied separately to Command Center/Expansion Module) |
| Number of lights per LUX light control module | 16 maximum |
| Electrical installation | 3 wire |
| Operating voltage | 10.5-31 VDC |
| Current consumption 12 V (max) | 20″: 12.8 A 30″: 19.3 A 40″: 25.7 A 50″: 32 A |
| Current consumption 24 V (max) | 20″: 6.4 A 30″: 9.6 A 40″: 12.8 A 50″: 16 A |
| Average power draw | 20″: 154 W 30″: 232 W 40″: 308 W 50″: 384 W |
| Construction | Powder coated aluminum body with Makrolon lens |
| Water and dust rating | IP68 |
Control Options |
|
| Direct power via on/off switch | |
|---|---|
| Momentary switch | yes (via ECLIPSE Command Center or LUX Control Module) |
| Eclipse Command Center | |
| EOS-LUX Command Center | |
| Compatible MFD | yes (via ECLIPSE Command Center or EOS-LUX Command Center) |
| Smart device | yes (via ECLIPSE Command Center or EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display | yes (via EOS-LUX Command Center) |
Mounting Dimensions |
|
| Dimensions (width) | 20″: 22.56″ (573 mm) 30″: 32.40″ (823 mm) 40″: 42.14″ (1070 mm) 50″: 51.80″ (1315 mm) |
|---|---|
| Dimensions (depth) | 20″: 2.83″ (72 mm) 30″: 2.83″ (72 mm) 40″: 2.83″ (72 mm) 50″: 2.83″ (72 mm) |
| Dimensions (height) | 20″: 3.78″ (96 mm) 30″: 4.37″ (111 mm) 40″: 5.20″ (132 mm) 50″: 6.23″ (158 mm) |
| Mechanical installation |
Stainless steel fixing brackets |
