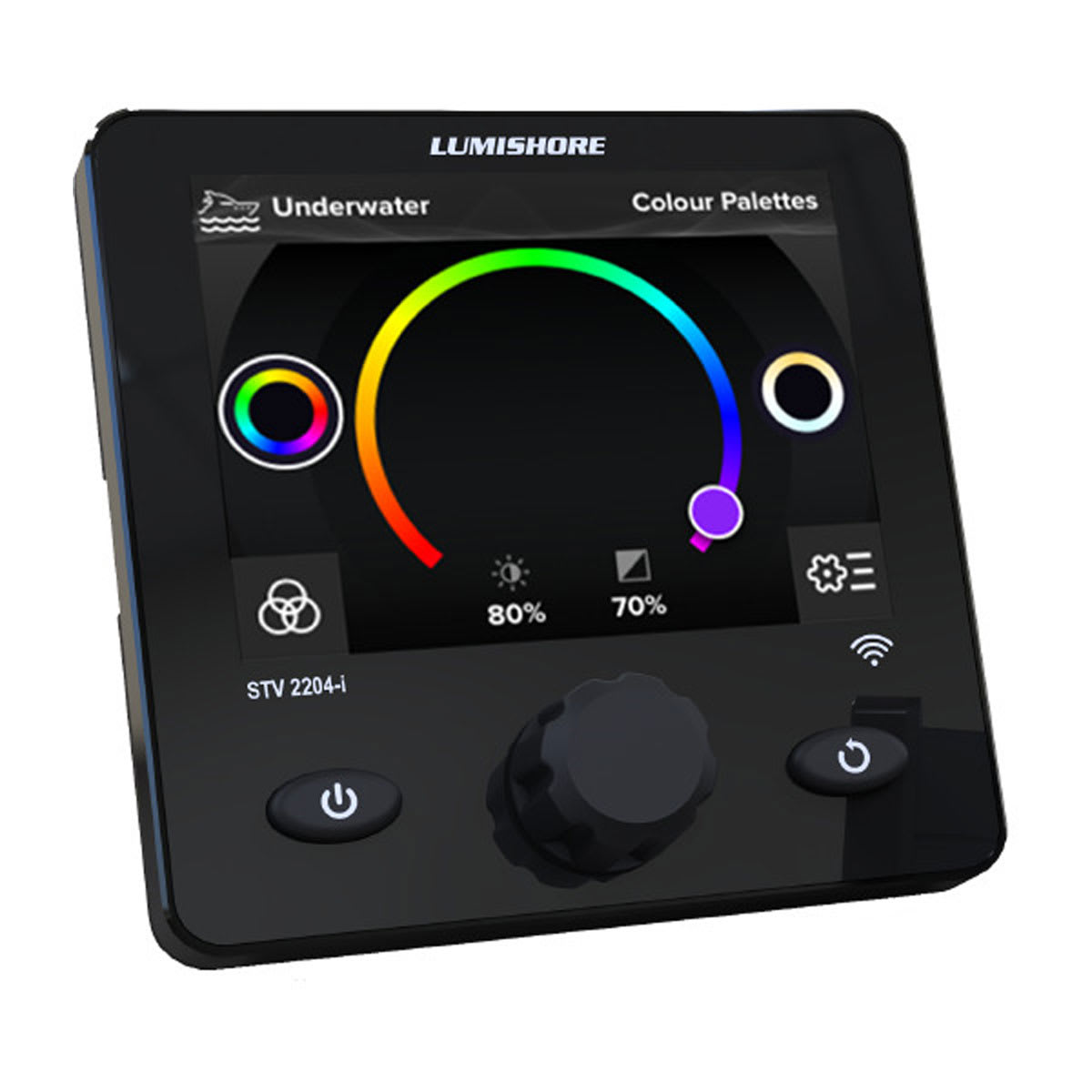

This dedicated display provides fast, intuitive control of your LUX above-water, full-color and dual-color change underwater lighting systems1.
General
|
| Warranty |
3 years |
| Electrical installation |
Ethernet cable |
| Operating voltage |
12 V/24 V |
| Operating voltage range |
10.5-31 VDC |
| Current consumption 12 V (max) |
0.3 A |
| Current consumption 24 V (max) |
0.15 A |
| Average power draw |
3.6 W |
| Construction |
Glass bridge-style front with polymer molded recessed back |
| Water and dust rating |
IP68 |
Control Options
|
| EOS-LUX Command Center |
|
Mounting Dimensions
|
| Mounting depth clearance |
3.71″ (94 mm) |
| Frontal protrusion (profile) |
0.39″ (10mm) |
| Mounting hole |
3.27″ x 3.27″ (83 mm x 83 mm) |
| Dimensions (width) |
3.62″ (92 mm) |
| Dimensions (depth) |
4.64″ (118mm) |
| Dimensions (height) |
3.62″ (92 mm) |
| Mechanical installation |
Panel mount (bracket supplied)
|
