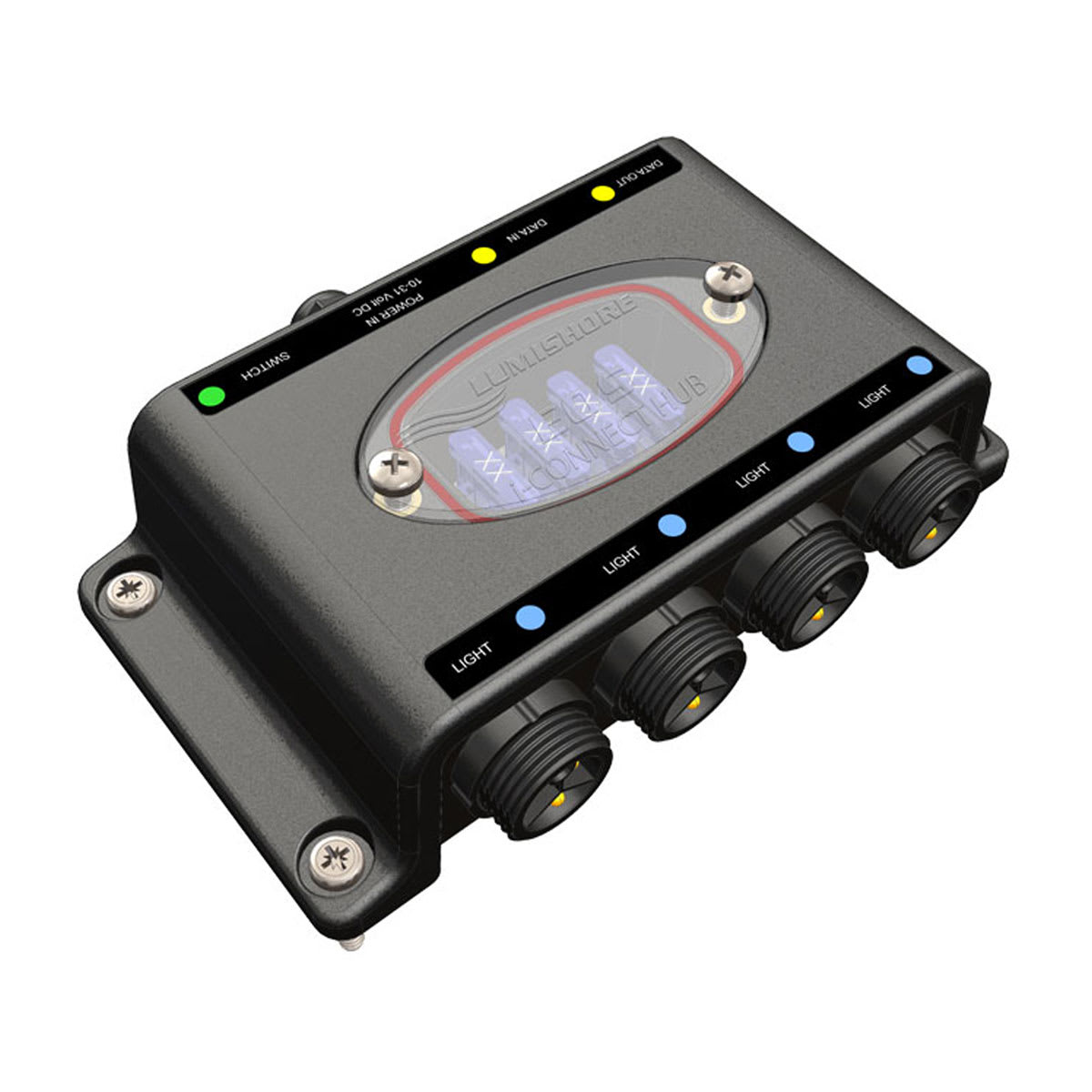

This kit is required to unlock full control of up to 4 full-color SMX154 or TIX404 underwater lights. This compact hub delivers complete lighting functionality through the EOS-LUX Command Center.
General
|
| Warranty |
3 years |
| Electrical installation |
Plug and play |
| Operating voltage |
12 V/24 V |
| Operating voltage range |
10.5-31 VDC |
| Current consumption 12 V (max) |
0.1 A (device only) |
| Current consumption 24 V (max) |
0.05 A (device only) |
| Average power draw |
1.2 W (device only) |
| Construction |
Robust weatherproof ABS (flame retardant and halogen-free) |
| Water and dust rating |
IP68 |
Control Options
|
| EOS-LUX Command Center |
|
Mounting Dimensions
|
| Dimensions (width) |
5.83″ (148 mm) |
| Dimensions (depth) |
3.11″ (79 mm) |
| Dimensions (height) |
1.5″ (38 mm) |
| Mechanical installation |
Screw fixings |
