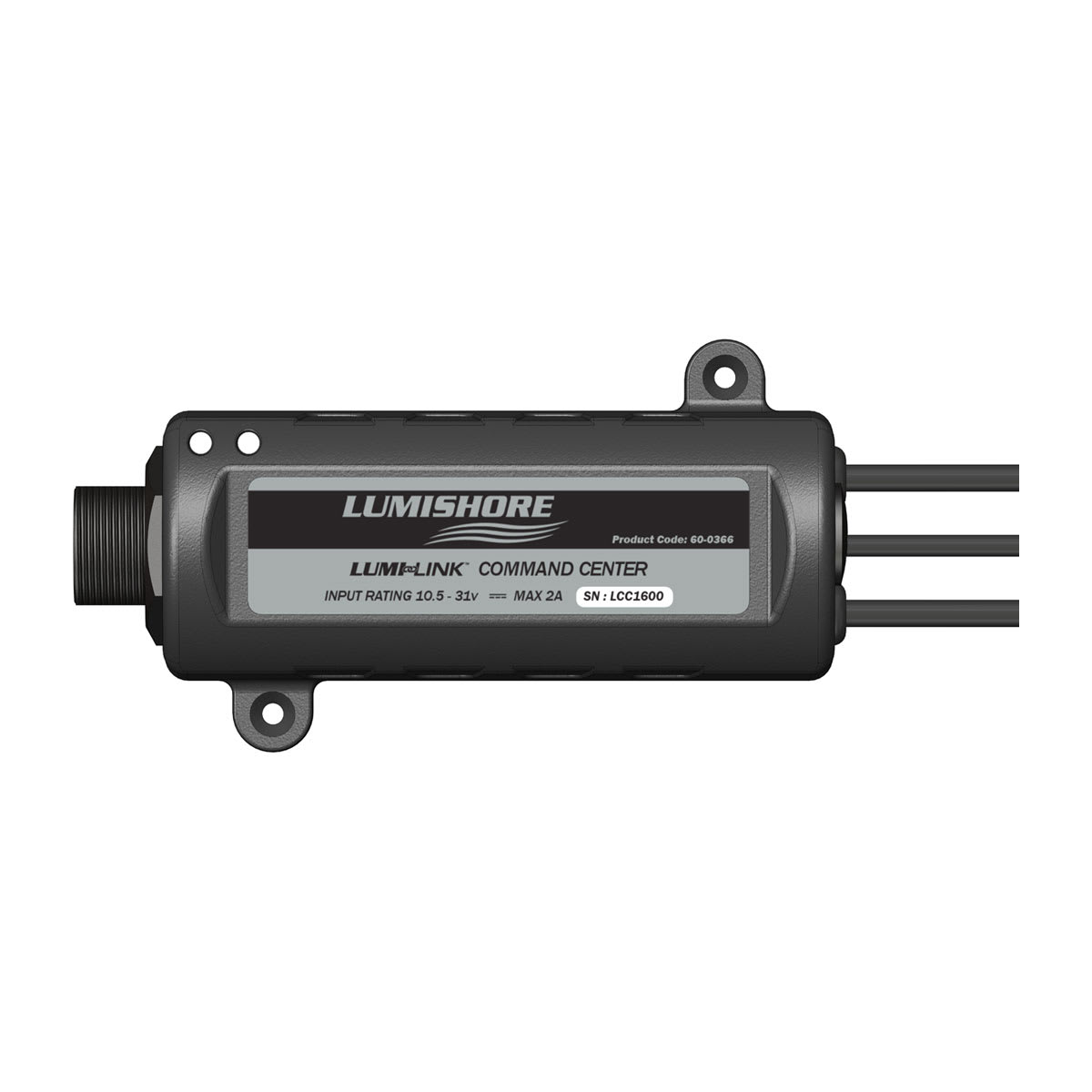

This Command Center is the heart of your LUX above-water and full-color change underwater lighting systems, bringing every connected fixture together under one controller.
General
|
| Warranty |
3 years |
| Electrical installation |
Plug and play/hard-wired |
| Operating voltage |
12 V/24 V |
| Operating voltage range |
10.5-31 VDC |
| Current consumption 12 V (max) |
0.2 A |
| Current consumption 24 V (max) |
0.1 A |
| Average power draw |
2.4 W |
| Construction |
Robust weatherproof ABS (flame retardant and halogen-free) |
| Water and dust rating |
IP67 |
Control Options
|
| Momentary switch |
|
| Compatible MFD |
|
| Smart device |
|
| EOS-LUX-SUPRA Display |
|
Mounting Dimensions
|
| Dimensions (width) |
4.45″ (113 mm) |
| Dimensions (depth) |
2.4″ (61 mm) |
| Dimensions (height) |
1.3″ (33 mm) |
| Mechanical installation |
Screw fixings |
