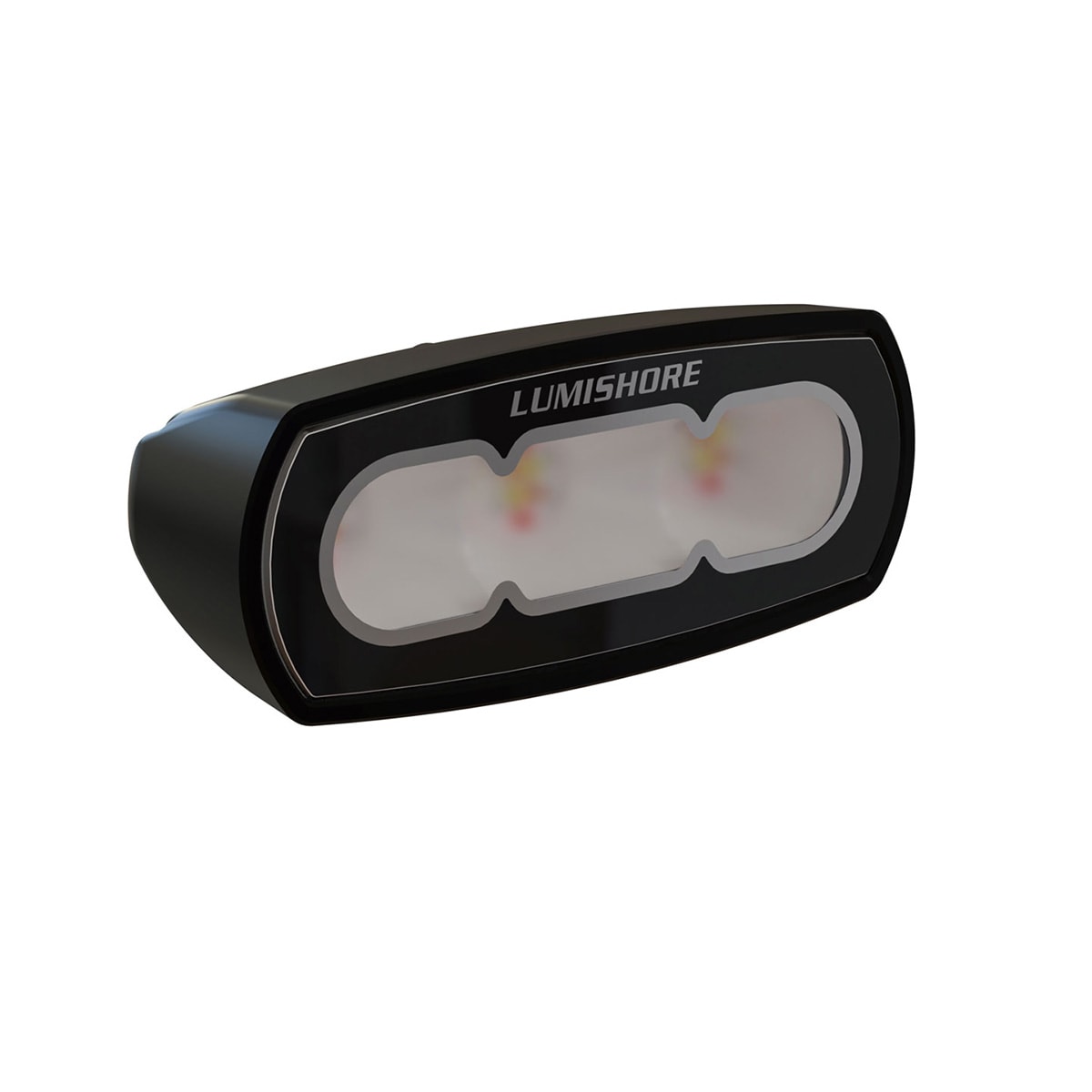

Lumishore LUX Flood Light is a full-color boat floodlight that is ideal for deck, cockpit, or general security lighting.
General |
|
| Warranty | 3 years |
|---|---|
| LED colors | CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture |
| LED type | 3 x 3 W Red 3 x 3 W Green 3 x 3 W Blue 3 x 3 W White 3 x 3 W Warm White |
| Fixture lumens | 4″: 1,050 18″: 7,500 |
| Beam angle | 70°-90° oval beam |
| Number of lights per LUX light control module | 16 maximum |
| Electrical installation | 3 wire |
| Operating voltage | 10.5-31 VDC |
| Current consumption 12 V (max) | 4″: 1.7 A 18″: 9.2 A |
| Current consumption 24 V (max) | 4″: 0.9 A 18″: 4.6 A |
| Average power draw | 4″: 22 W 18″: 110 W |
| Construction | Powder coated aluminum body with frosted lens |
| Water and dust rating | IP68 |
Control Options |
|
| Momentary switch | yes (via LUX Control Module) |
|---|---|
| EOS-LUX Command Center | |
| Compatible MFD | yes (via EOS-LUX Command Center) |
| Smart device | yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display | yes (via EOS-LUX Command Center) |
Mounting Dimensions |
|
| Dimensions (width) | 4″ (flush fit): 4.89″ (124 mm) 4″: 4.21″ (107 mm) 18″: 15.5″ (394 mm) |
|---|---|
| Dimensions (depth) | 4″ (flush fit): 1.76″ (45 mm) 4″: 2.2″ (55.8 mm) 18″: 2.68″ (68 mm) |
| Dimensions (height) | 4″ (flush fit): 1.89″ (48 mm) 4″: 1.77″ (45 mm) 18″: 2.08″ (53 mm) |
| Mechanical installation | 4″ (flush fit): Marine sealant and screws (not supplied) 4″/18″: Stainless steel fixing brackets (supplied) |
