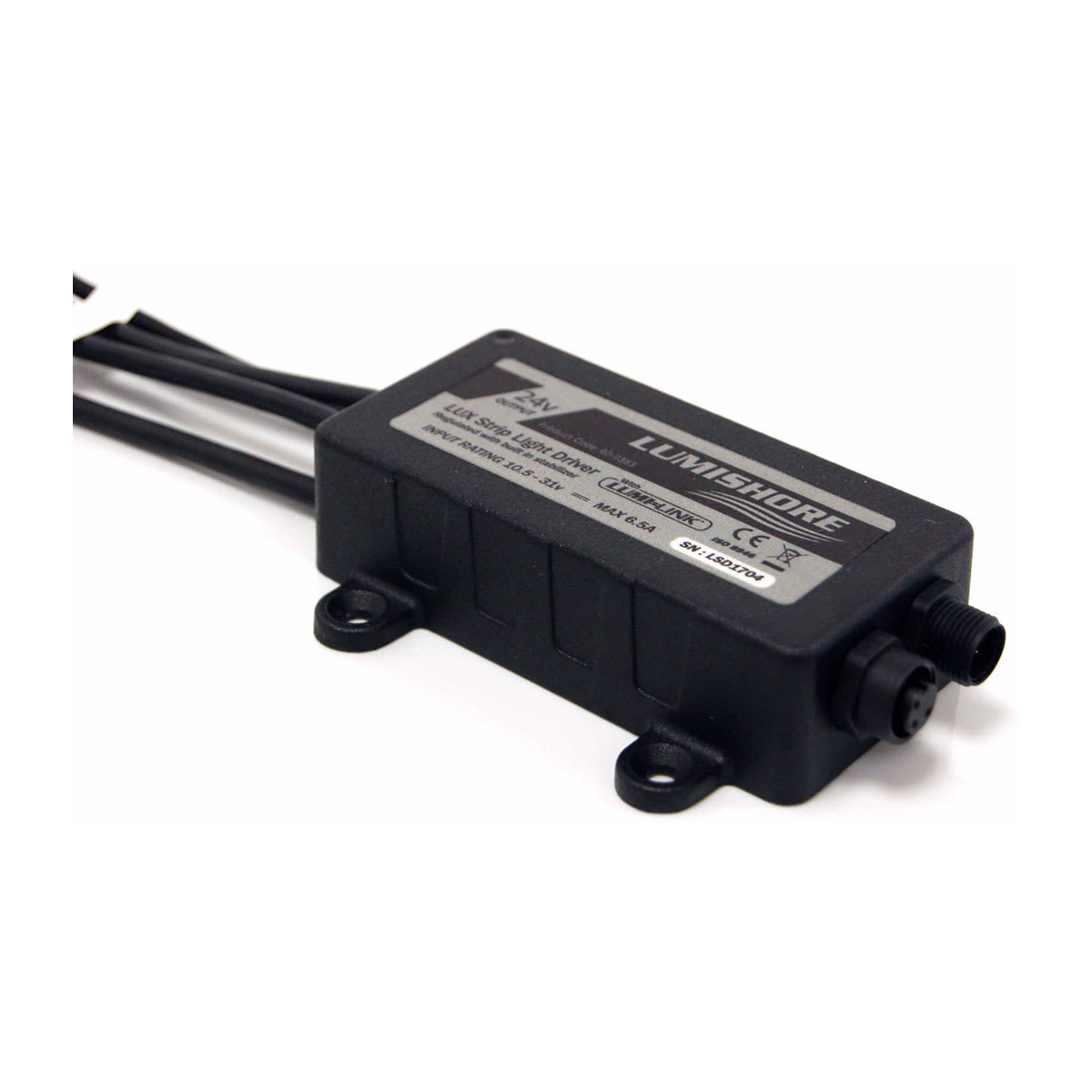

This driver regulates and controls your LUX strip lights and neon flex lights.
General |
|
| Warranty | 3 years |
|---|---|
| Length of strip per strip driver | up to 10 m total |
| Electrical installation | Plug and play/hard-wired |
| Operating voltage | 12 V/24 V |
| Operating voltage range | 10.5-31 VDC |
| Current consumption 12 V (max) | 0.05 A (device only) |
| Current consumption 24 V (max) | 0.03 A (device only) |
| Average power draw | 0.6 W (device only) |
| Construction | Powder-coated, marine-grade aluminium |
| Water and dust rating | IP68 |
Control Options |
|
| Momentary switch | |
|---|---|
| EOS-LUX Command Center | |
Mounting Dimensions |
|
| Dimensions (width) | 4.4″ (113 mm) |
|---|---|
| Dimensions (depth) | 1.06″ (27 mm) |
| Dimensions (height) | 3.03″ (77 mm) |
| Mechanical installation |
Screw fixings |
