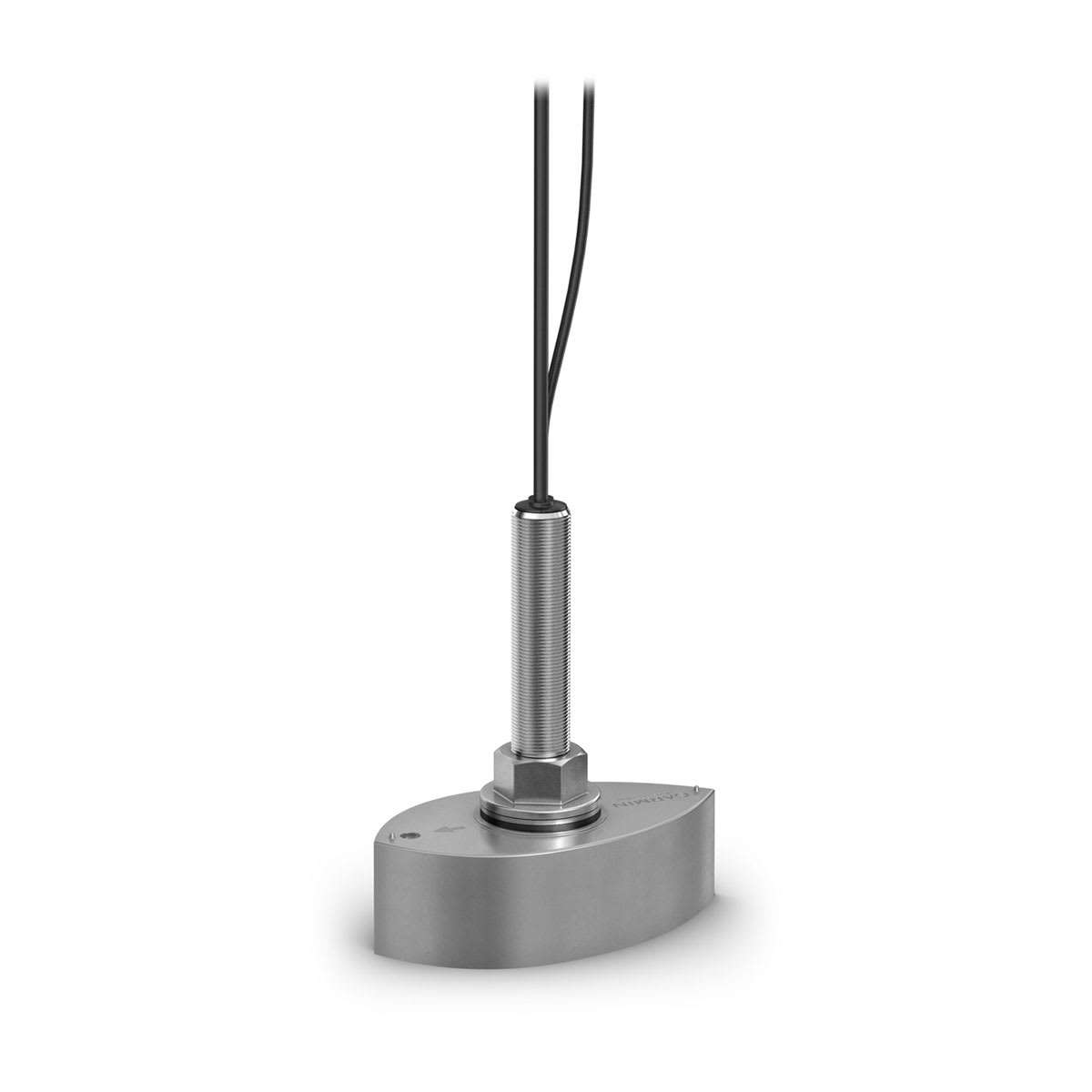

Panoptix PS70 is a live sonar transducer designed for offshore fishing with real-time live sonar images up to 1,000’ below the surface.
General
|
| Transducer beamwidth |
120° x 8° |
| Transducer cable length |
8 ft + 40 ft extension |
| Dimension |
8.50″ x 4.49″ x 9.61″ (21.6 x 11.4 x 24.4 cm) |
| Weight |
10.12 lbs (4.6 kg)
|
| Water rating |
IPX7 |
| Temperature range |
0° C to 40° C |
Electrical Features
|
| Power input |
10-35 V |
| Power usage |
35 W |
| Fuse |
7.5 A |
Sonar Features
|
| Frequency |
190-210 kHz |
| Transmit power |
800 W |
| Maximum depth |
Saltwater: 1000′ (304.8 m) |
| Sonar Type |
Multi-beam phased array |
Networking & Connections
|
| Garmin Marine Network Ports |
1 (small connector)
|
Sonar Modes
|
| RealVü 3D Historic |
|
| 3-beam traditional |
|
| Traditional sonar source |
|
