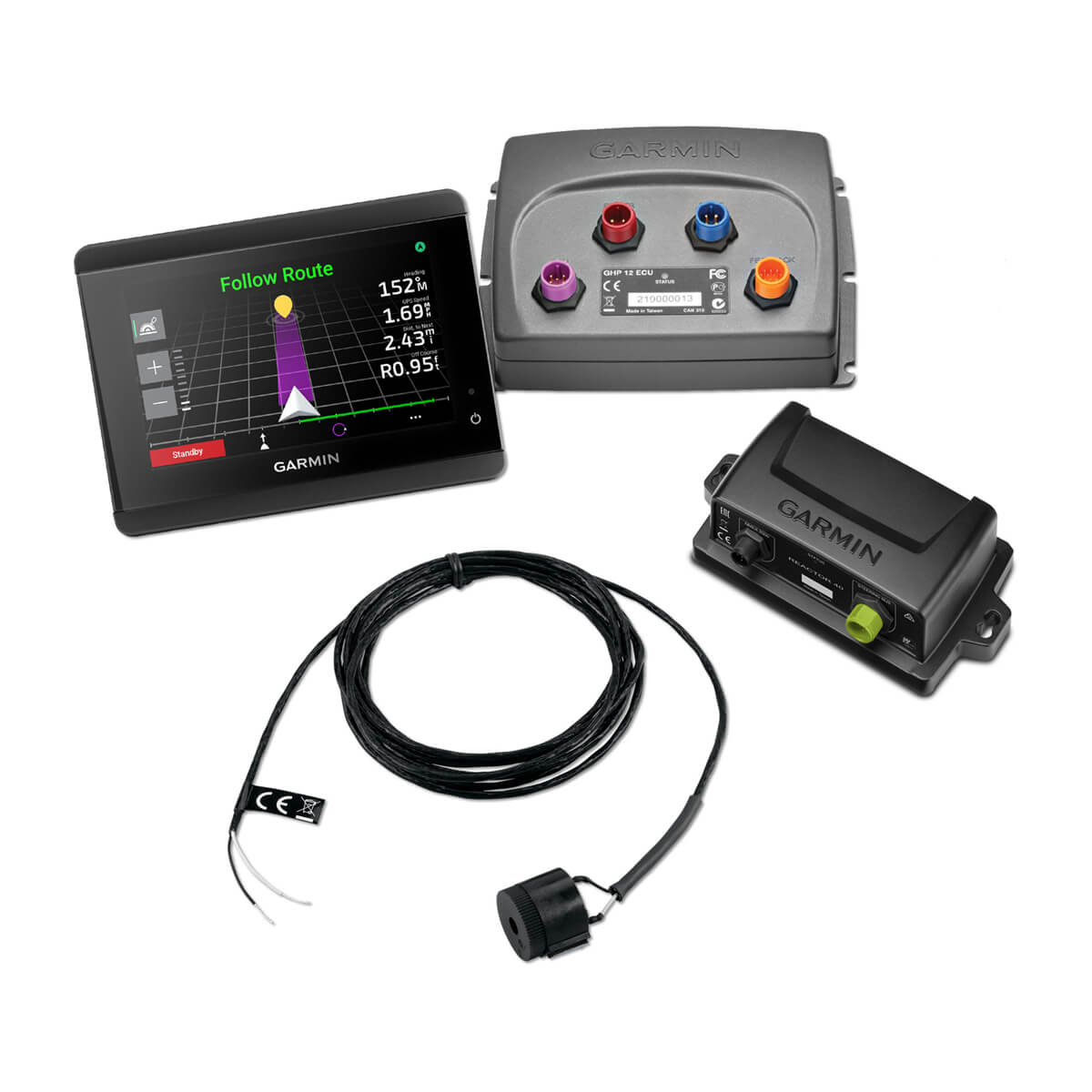

Reactor 40 Mechanical/Retrofit/Solenoid Corepack is a boat autopilot designed for powerboats & sailboats featuring corepack compatibility, & simple calibration.
- CCU dimensions: 4.3″ x 4.4″ x 1.9″ (10.9 x 11.2 x 4.8 cm)
- ECU dimensions: 6.6″ x 4.6″ x 2.1″ (16.8 x 11.7 x 5.3 cm)
- Supply voltage: 10 V to 30 V
- Operating temperature: -15° C to 60 C° (5° F to 140° F)
- Maximum sustained motor current: 15A
- Maximum instantaneous motor current: 40A
- Maximum clutch current: 2.5A (for drives requiring higher current than 2.5A, a relay needs to be added to the clutch circuit)
GHC 50 Specifications
Buzzer/Alarm Specifications
- Dimensions (L × Diameter): 29/32″ × 1″ (23 mm × 25 mm)
- Weight: 2.4 oz (68 g)
- Temperature range: from 5°F to 131°F (from -15°C to 55°C)
- Cable length: 10 ft (3.0 m)
