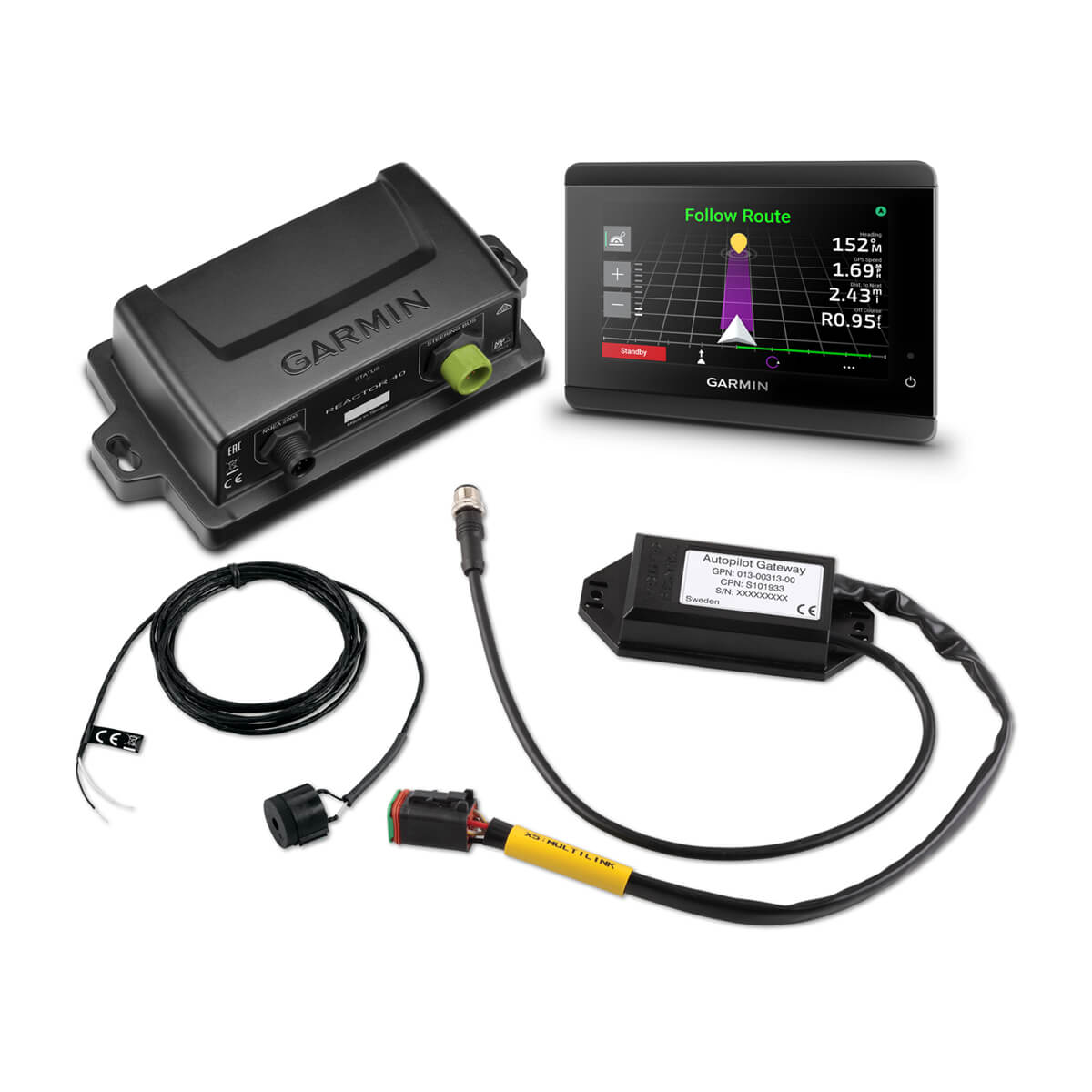

Reactor 40 Steer-by-wire Corepack for Volvo-Penta is a boat autopilot designed for yachts features including corepack compatibility, and simple calibration.
CCU Specifications
- Dimensions: 3 19/32″ diameter (91.4 mm)
- Weight: 5.6 oz (159 g)
- Temperature range: From 5°F to 131°F (from -15°C to 55°C)
- Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
- CCU cable length: 9.5 ft (3 m)
- NMEA 2000 power input: 9-16V
- NMEA 2000 LEN: 3 (150 mA)
GHC 50 Specifications
Buzzer/Alarm Specifications
- Dimensions (L × Diameter): 29/32″ × 1″ (23 mm × 25 mm)
- Weight: 2.4 oz (68 g)
- Temperature range: from 5°F to 131°F (from -15°C to 55°C)
- Cable length: 10 ft (3.0 m)
Autopilot Gateway Specifications
- Dimensions (L × Diameter): 5 1/8″ × 2 3/8″ x 1″ (130 mm × 60 mm x 25 mm)
- Weight: Less than 1 oz (28 g)
