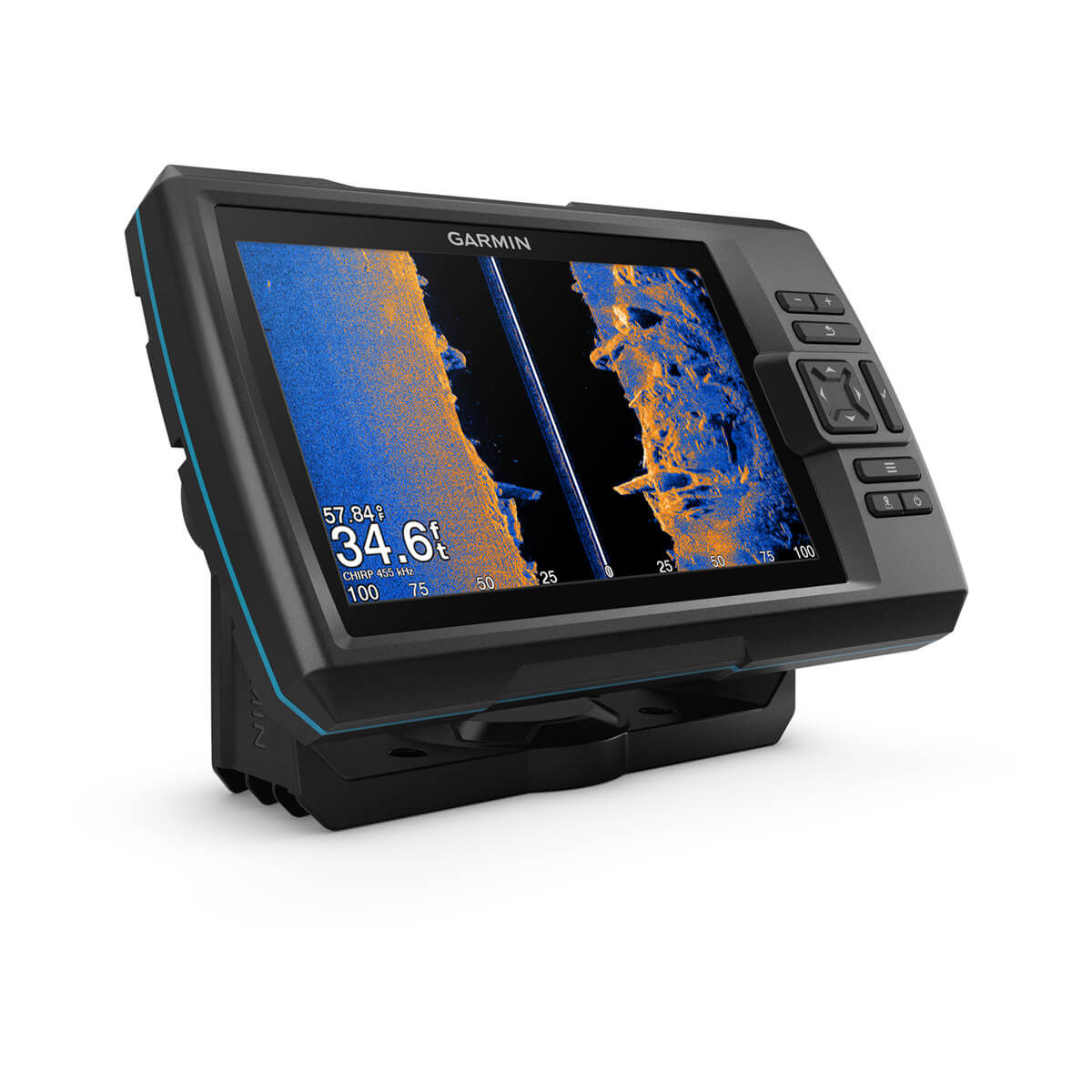

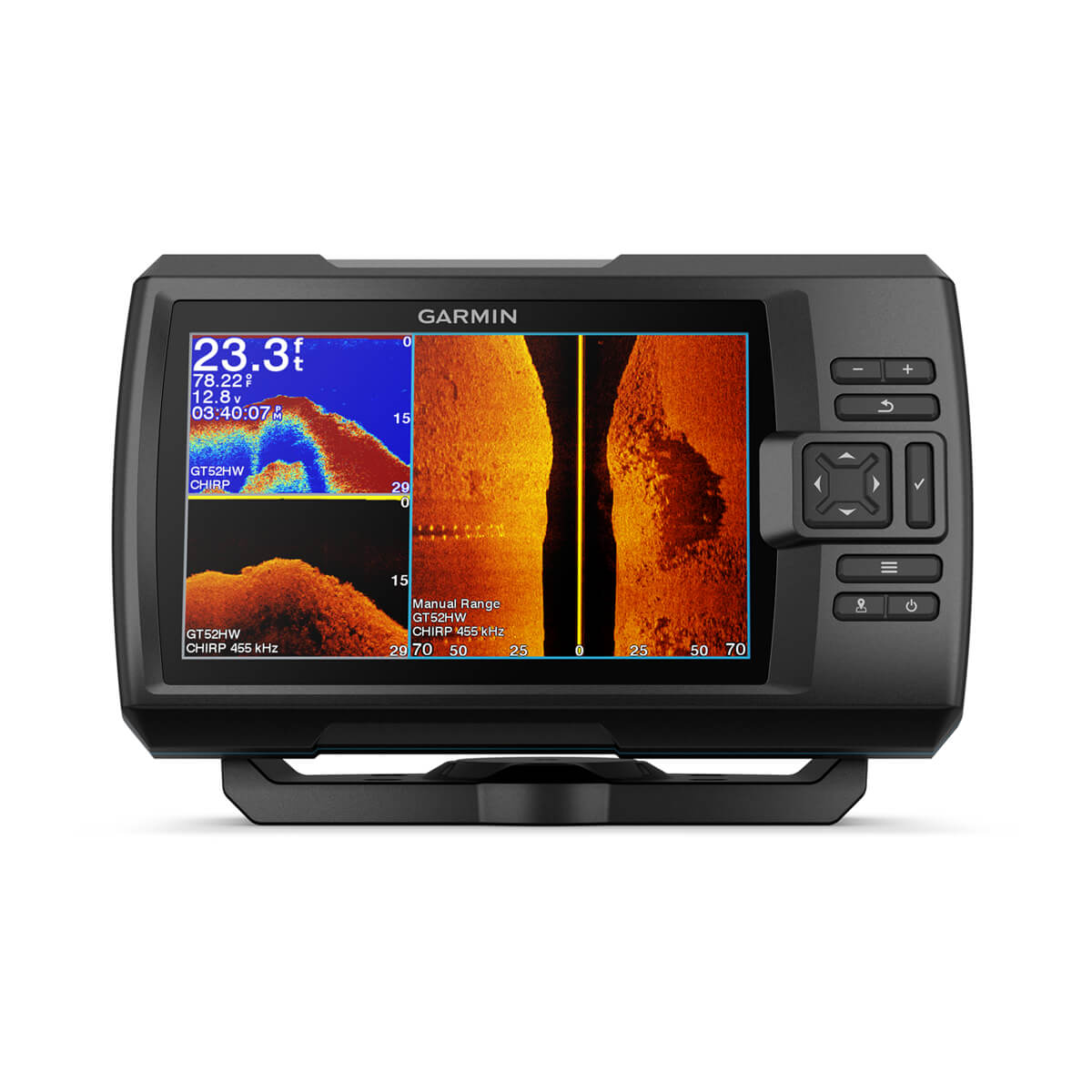

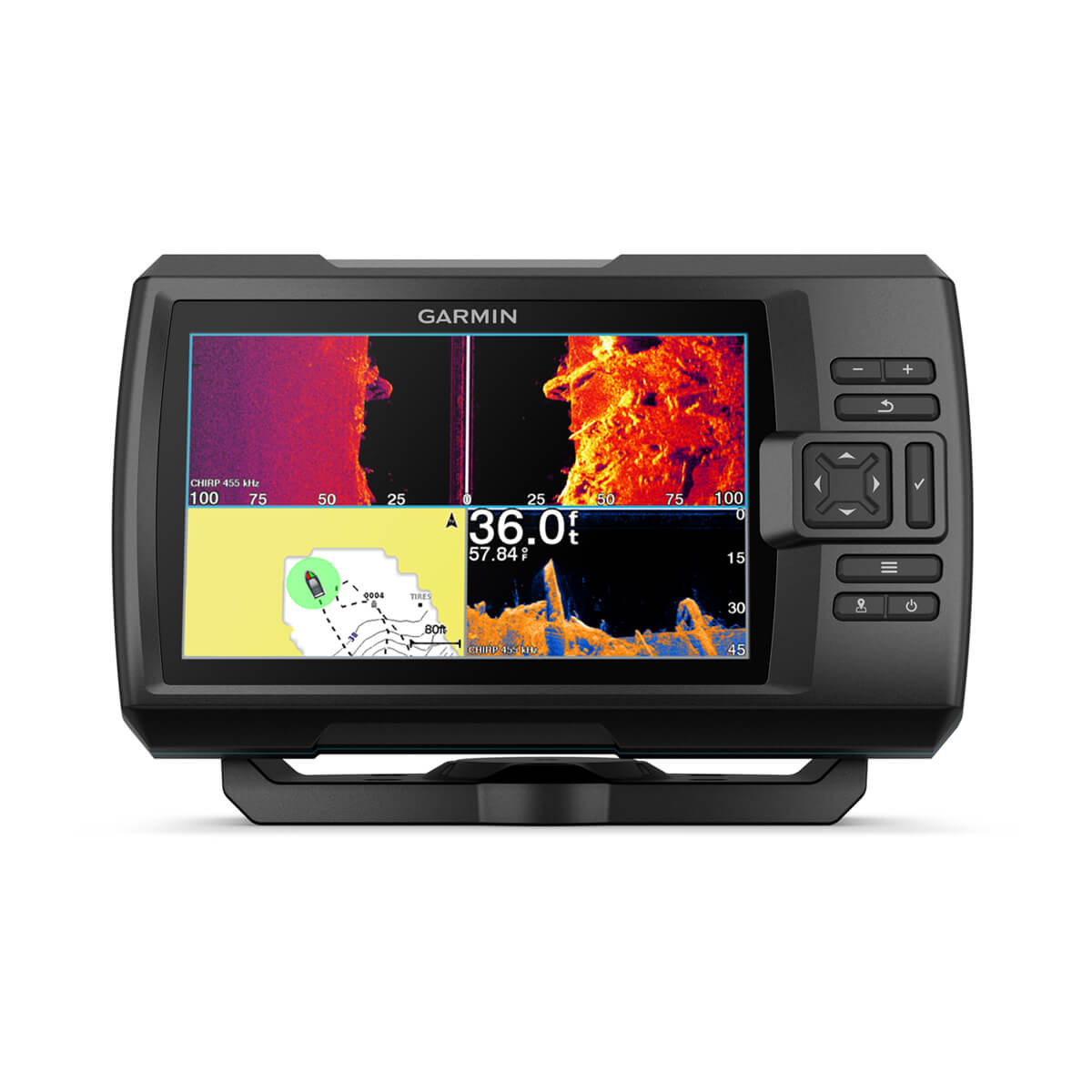

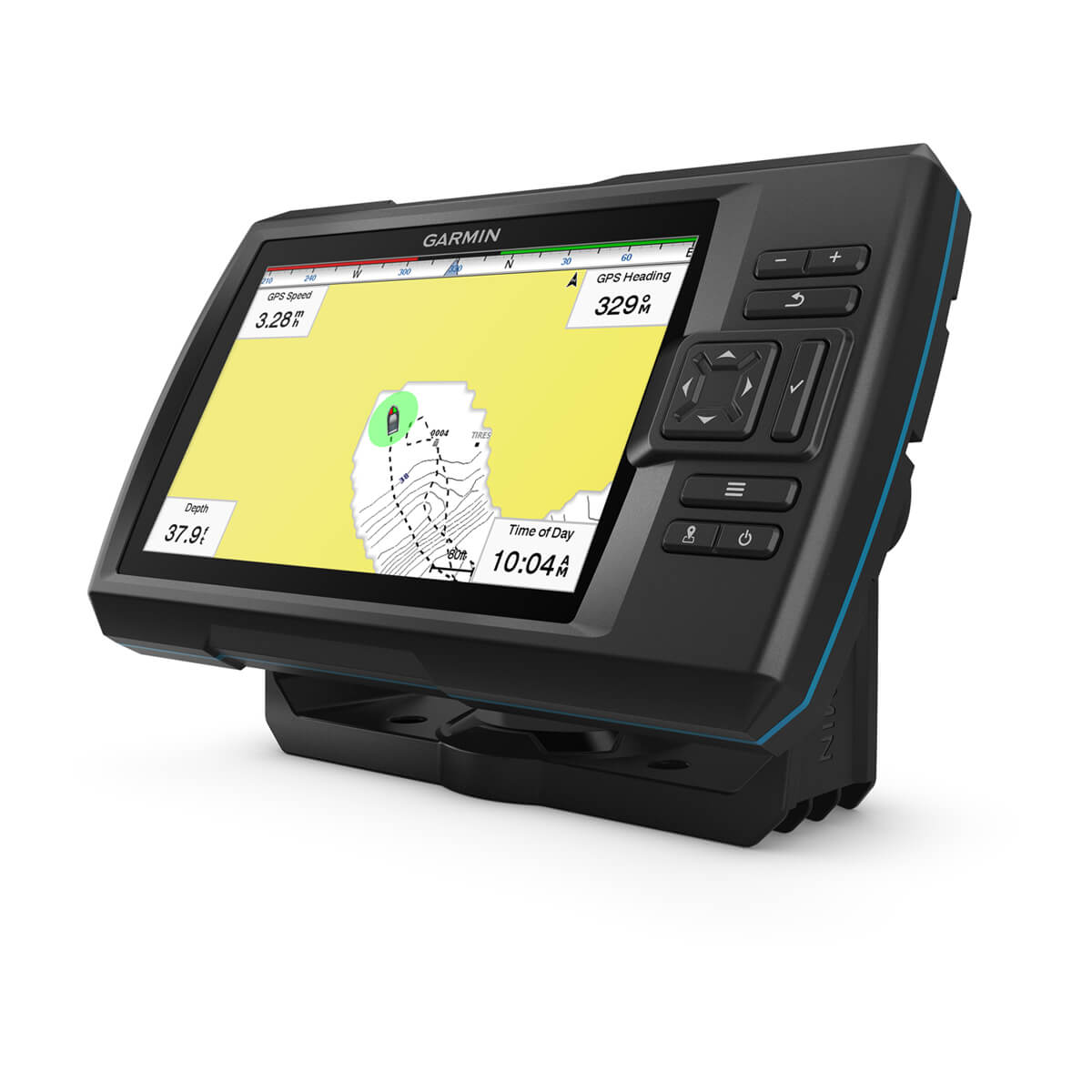

STRIKER Vivid 7cv fishfinder with transducer see fish and structure in maximum detail.
General
|
| Dimension |
9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm) |
| Weight |
1.7 lbs (770 g)
|
| Water rating |
IPX7 |
| Display Type |
WVGA color |
| Display Size |
3.4″ x 6.1″ (8.6 x 15.4 cm); 7.0″ diag (17.8 cm) |
| Display resolution |
800 x 480 pixels |
| Mounting Options |
flush, tilt/swivel |
| Input |
Keyed |
Maps & Memory
|
| Waypoints/favorites/locations |
5000 |
| Track points |
50,000 |
| Tracks |
50 |
| Navigation Routes |
100 |
Sensors
|
| GPS |
|
| Has built-in receiver |
|
| Supports WAAS |
|
Optional Map Support
|
| Garmin Quickdraw Contours |
|
Electrical Features
|
| Power Input |
12 to 20 Vdc |
| Typical current draw |
0.67 A |
| Max current draw |
1.5 A |
| Power Consumption |
8.0 |
Sonar Features
|
| Displays sonar |
|
| Traditional sonar (dual frequency/beam) |
Built-in |
| ClearVü |
|
| SideVü |
|
| Frequency |
Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü and SideVü 260/455/800 kHz |
| Transmit power |
500 W (RMS) |
| Bottom Lock (shows return from the bottom up) |
|
| Water Temperature Log |
|
Networking & Connections
|
| 4-pin transducer ports |
2 |
| Garmin Wi-Fi network (local connection) |
|
Fishfinder Features
|
| Split-screen zoom |
|
| Fish Symbol ID (helps identify fish targets) |
|
| Autogain technology (minimizes clutter; maximizes targets) |
|
| Adjustable depth line (measures depth of underwater objects) |
|
| A-scope (real time display of fish passing through transducer beam) |
|
| Water temperature sensor included |
|
| Depth range shading |
|
