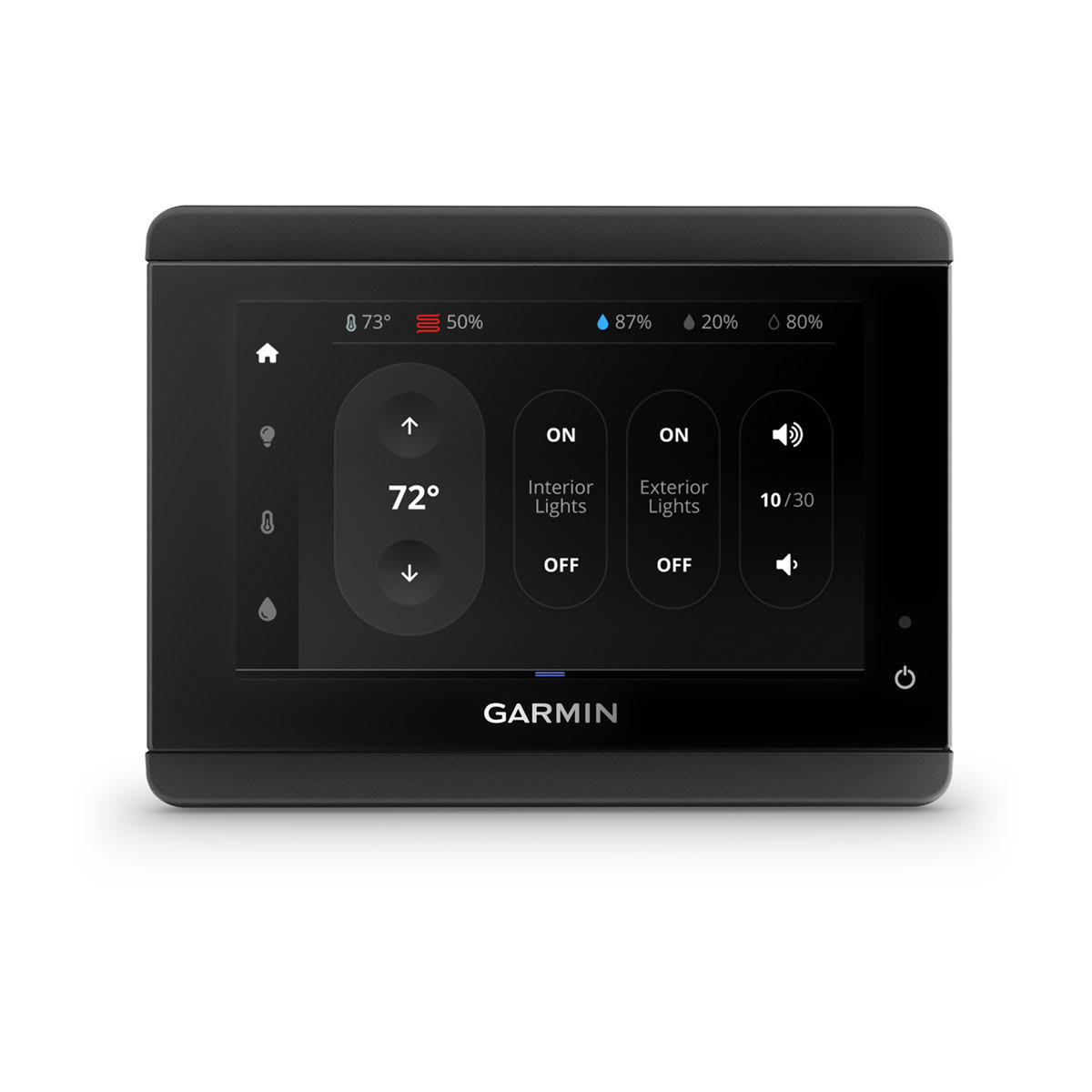

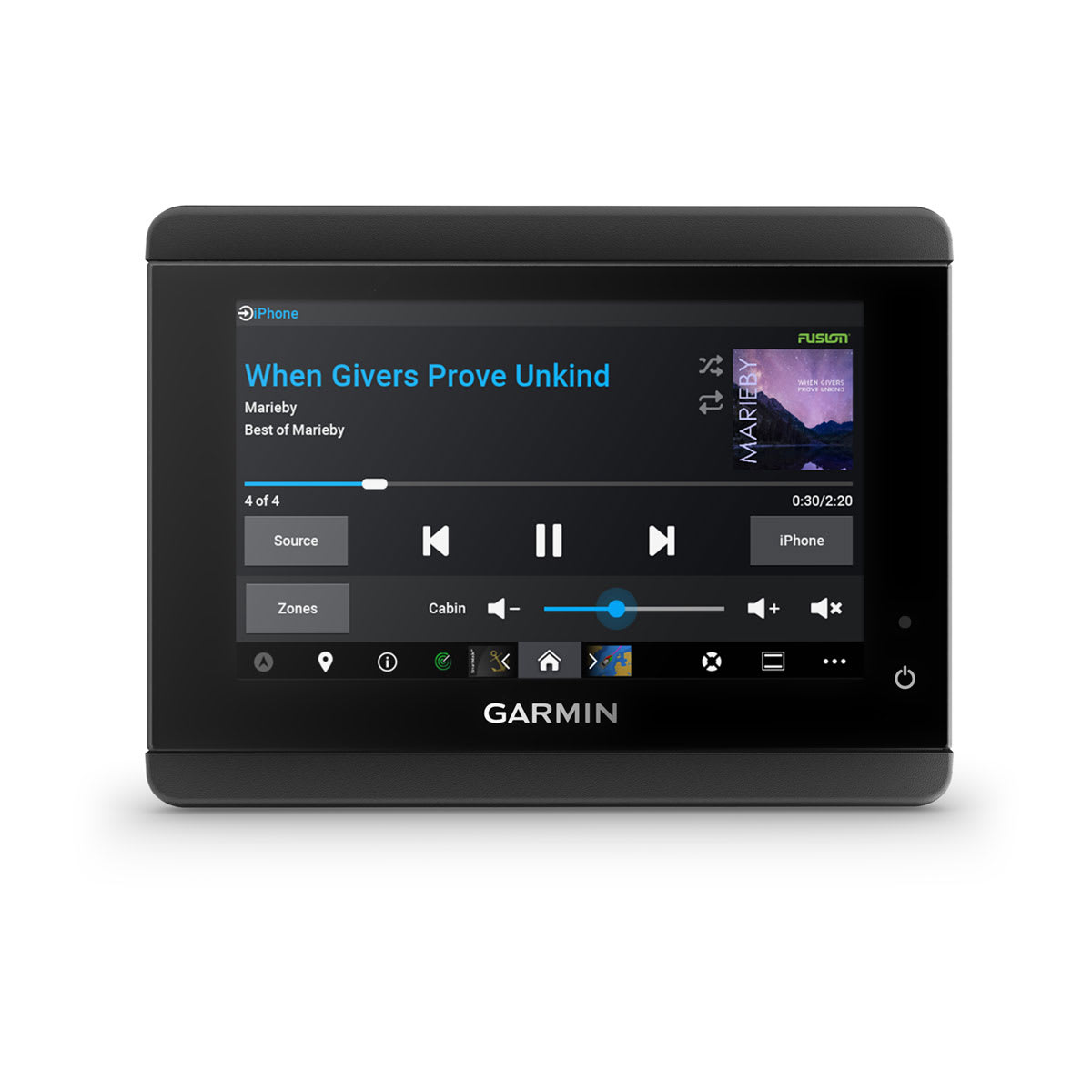

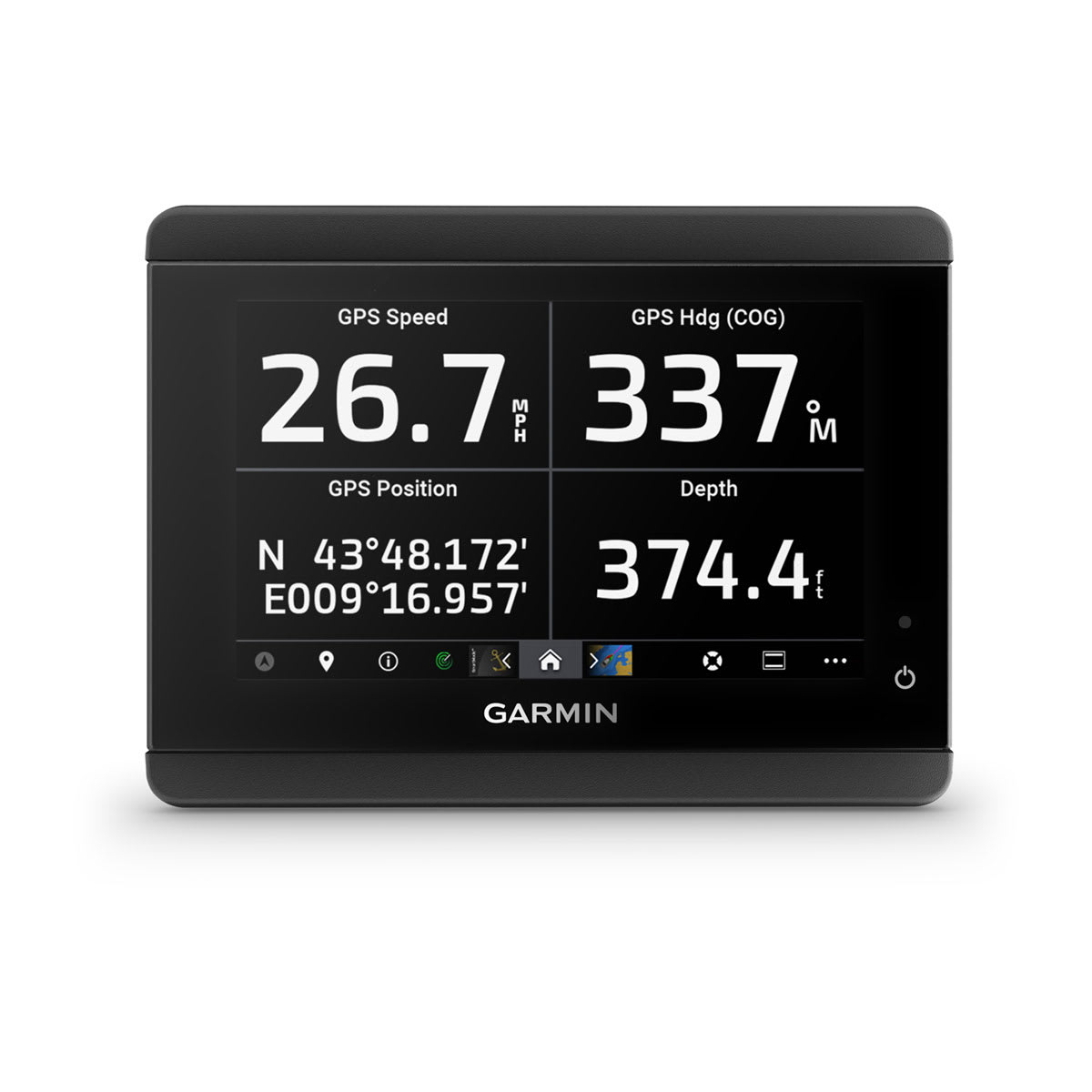

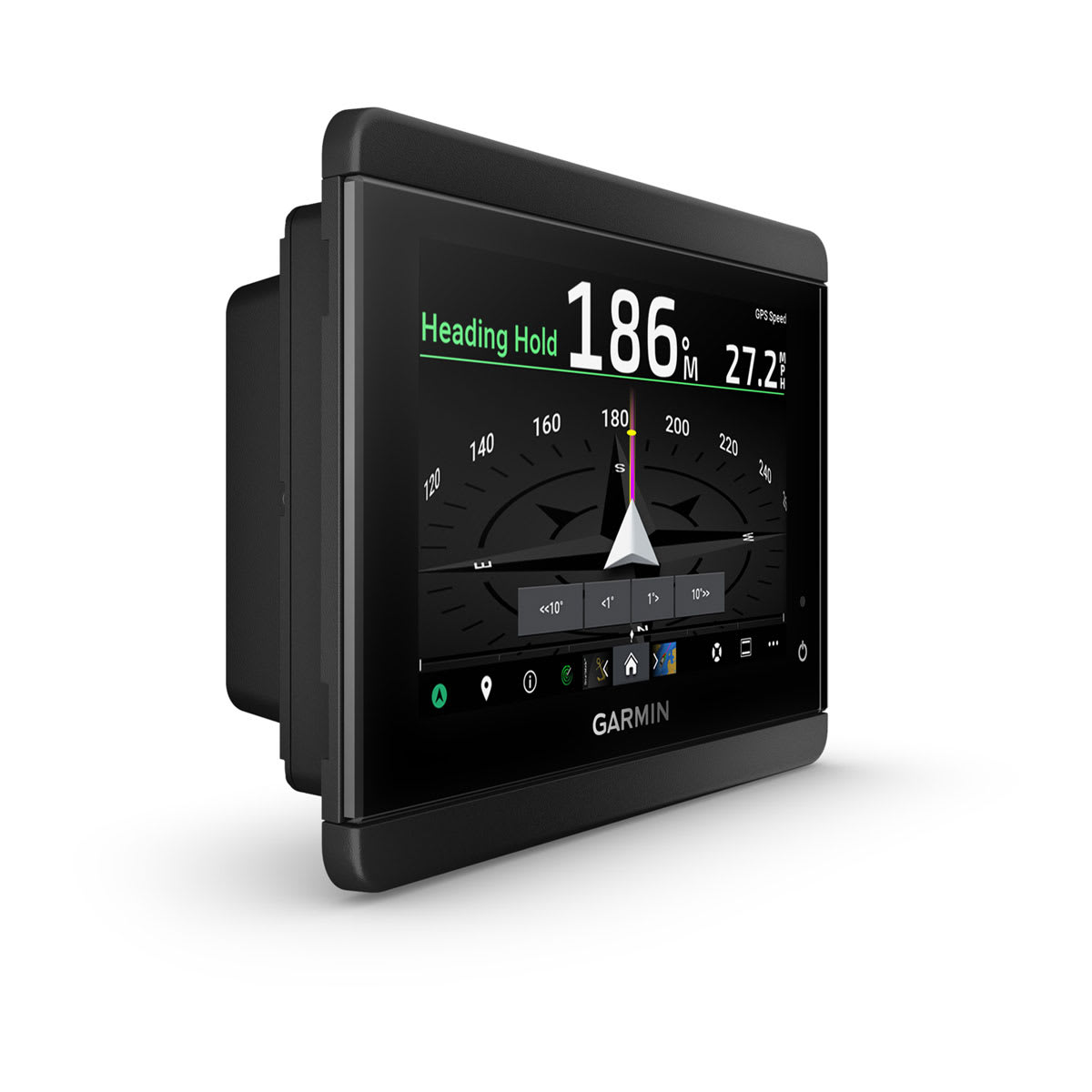

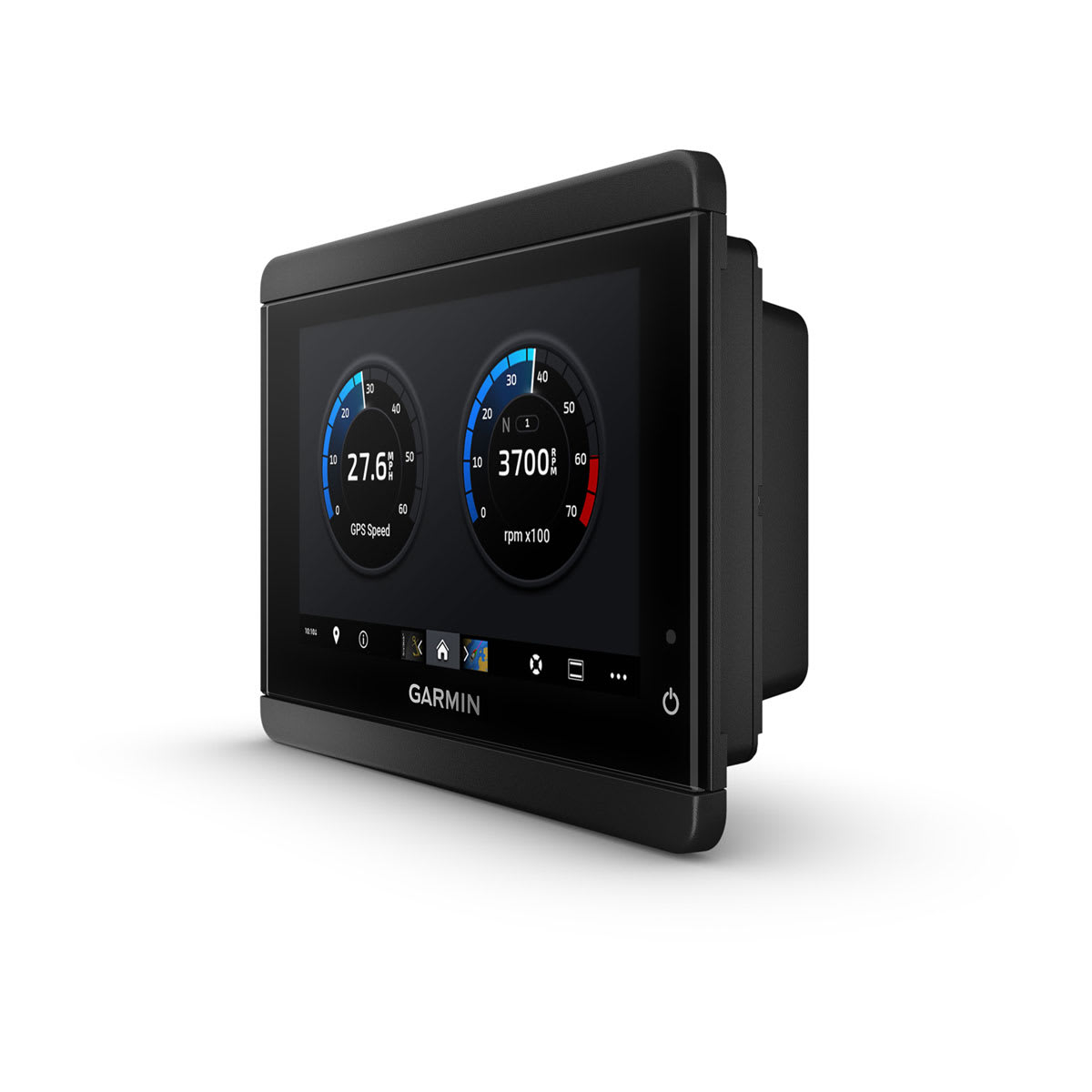

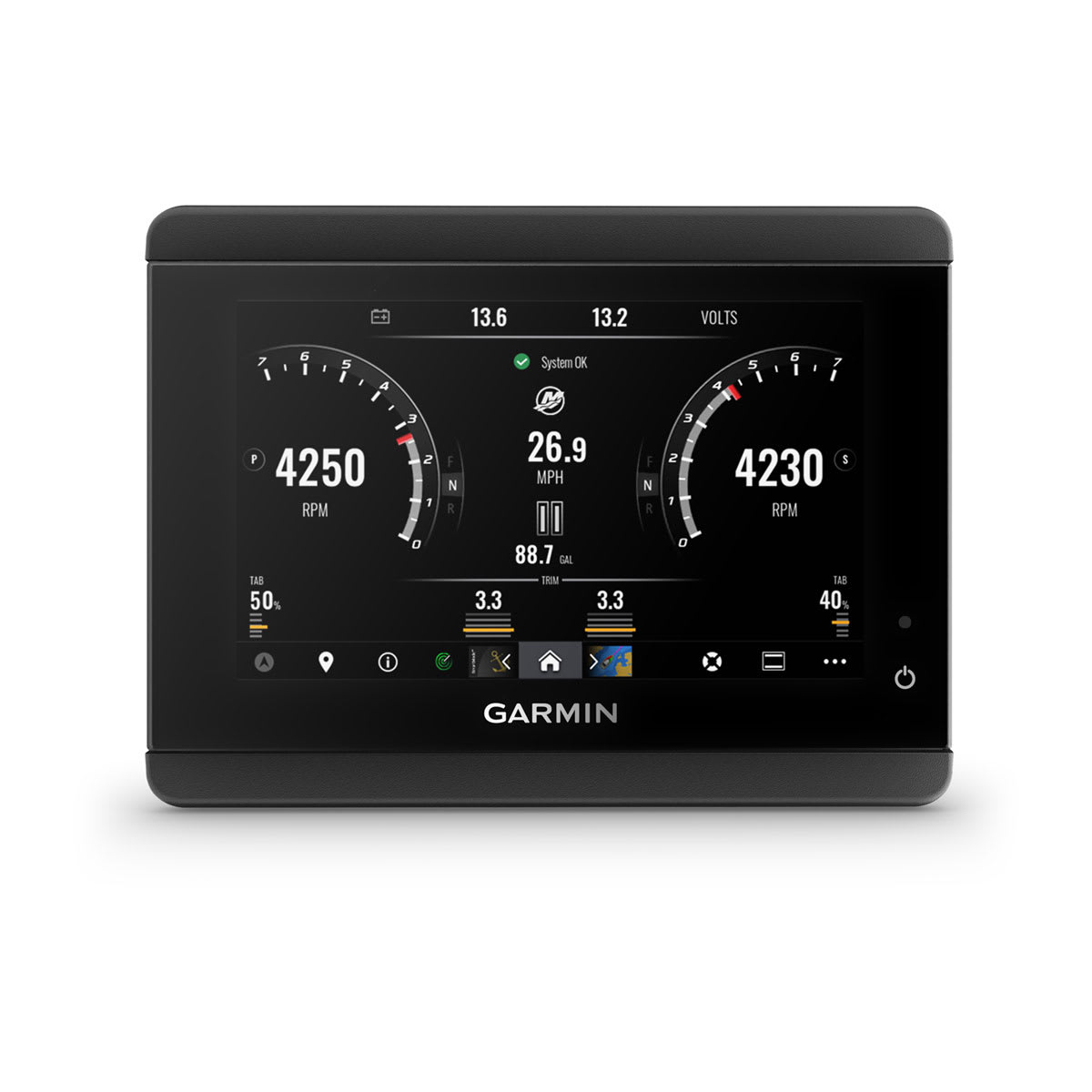

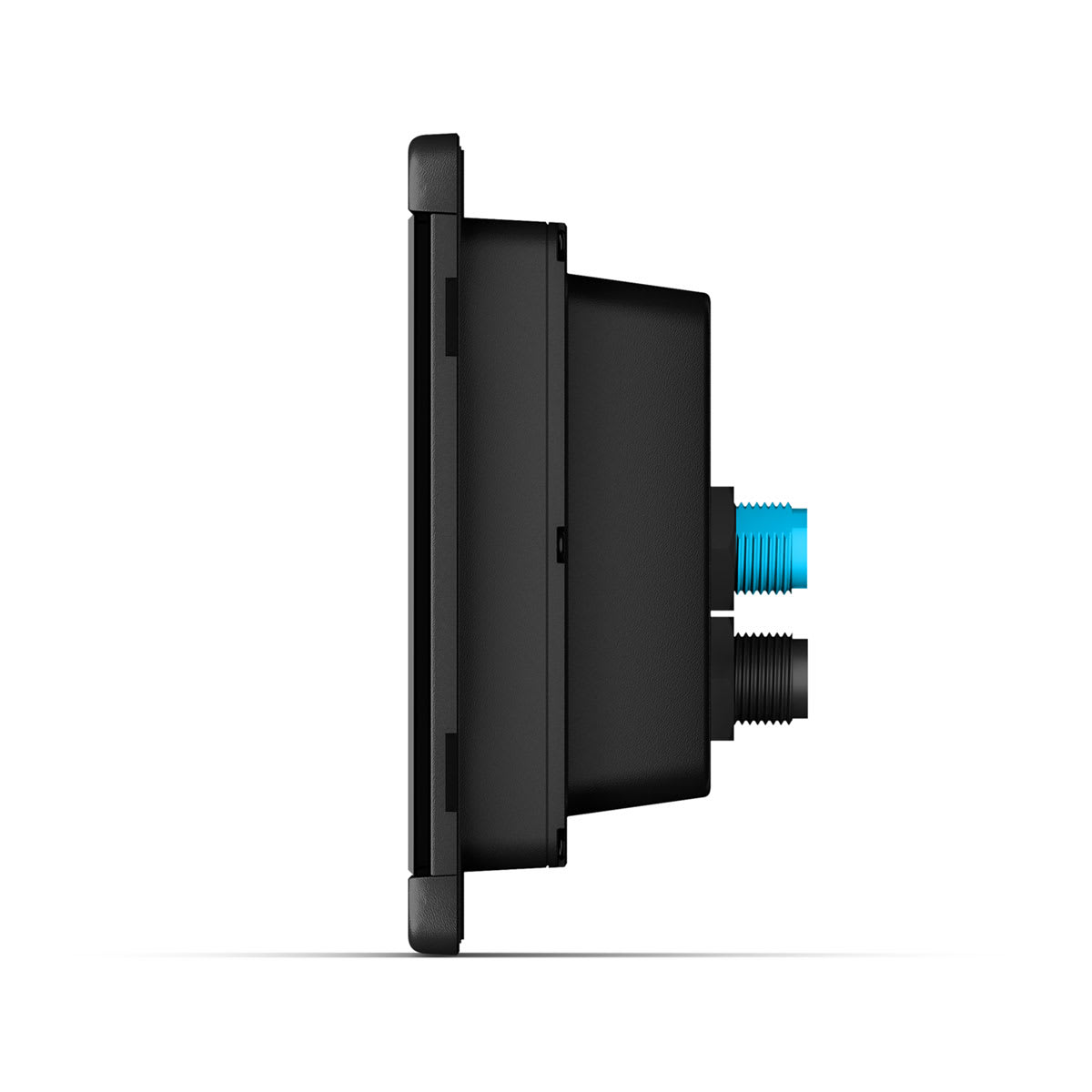

TD 50 is a 5” touchscreen display that lets you connect with your boat systems, sensors, and media for supplementary control, switching and data monitoring.
General |
|

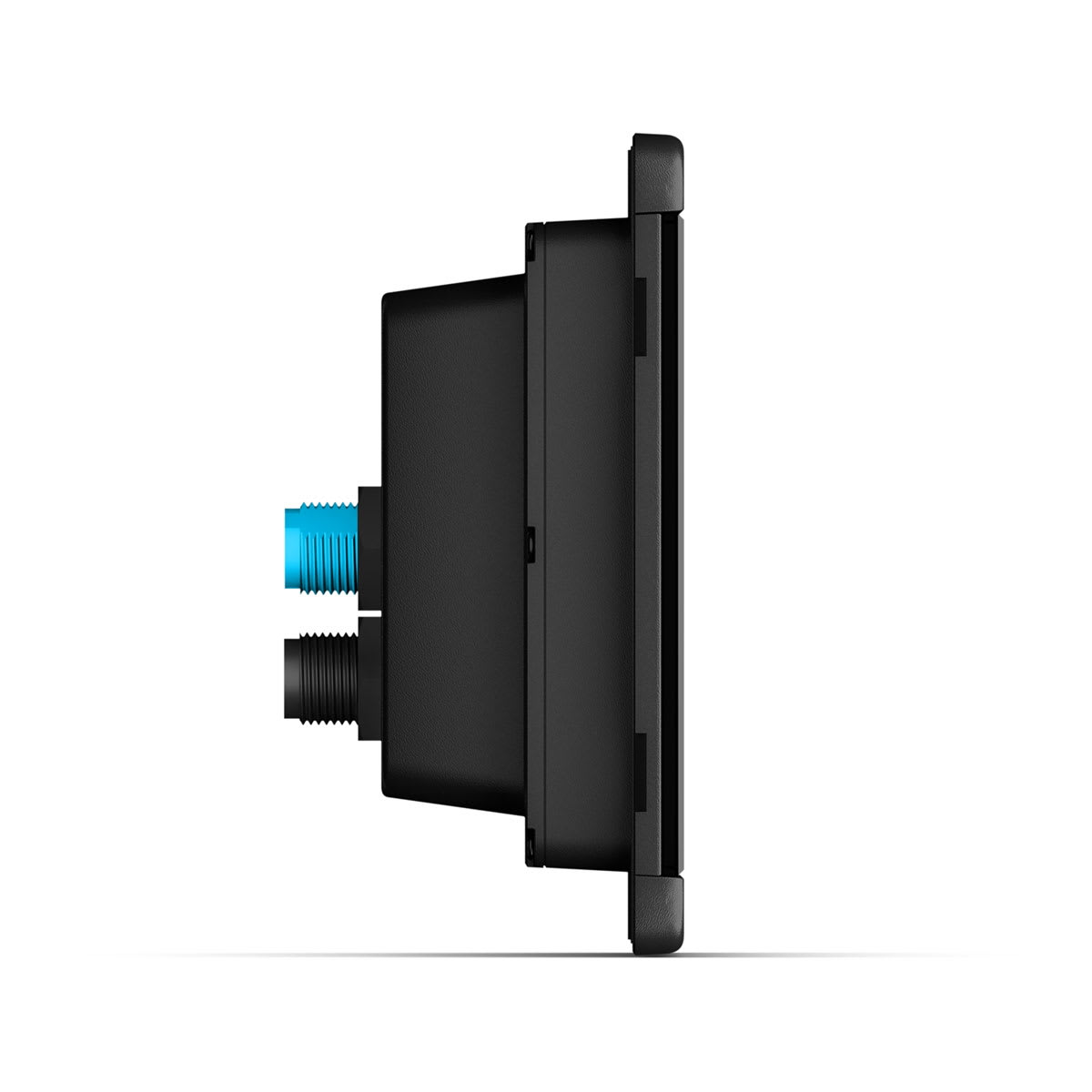

| Dimensions without sun cover (HxWxD) | 4.1" x 4.5" x 2.0" (10.5 x 14.0 x 5.1 cm) |
| Dimensions with sun cover (HxWxD) | 4.5" x 5.7" x 2.2" (11.3 x 14.4 x 5.6 cm) |
| Weight without sun cover | 11.6 oz (328 g) |
| Weight with sun cover | 13.2 oz (375 g) |
| Temperature range | from 5° to 131° F (from -15° to 55° C) |
| Compass-safe distance | 7.9" (20 cm) |
| Case material | fully-gasketed polycarbonate |
| Lens material | glass with anti-glare and anti-fingerprint finish |
| Water rating | IPX7 |
| Brightness | 1200 cd/m2 (NIT) |
| Power usage | 5.9 W max |
| NMEA 2000® input voltage | 9-16 Vdc |
| NMEA 2000 LEN @ 9 Vdc | 13 (650 mA) |
