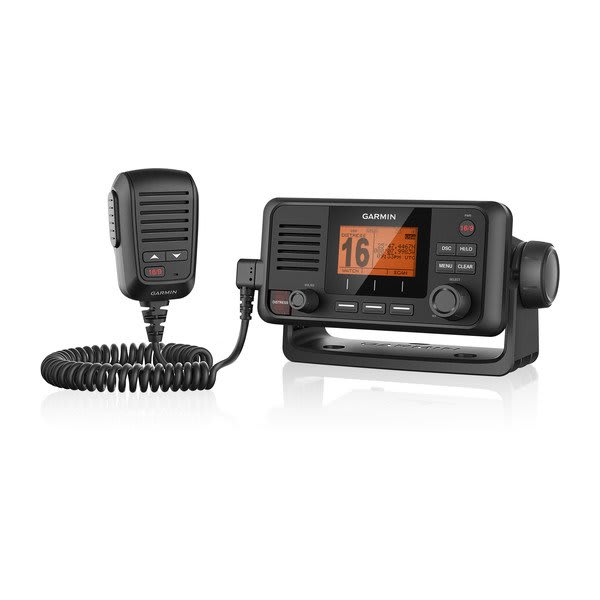

The VHF 115 Marine Radio includes a built-in GPS & allows you to stay in contact with the shore & other boats with ease via the Garmin the NMEA 2000 network.
General
|
| Unit size |
85 x 170 x 146 mm (3.4″ x 6.7″ x 5.8″) |
| Weight |
43.8 oz (1.24 kg)
|
| Operating voltage |
10.8 – 15.6 VDC |
| Water rating |
IPX7 |
| Display Type |
monochrome FSTN LCD |
| Operating temperature |
–15° to 55° C (5° to 131° F) |
| Inland waterways (ATIS) |
|
| Multi-language interface |
|
VHF Features
|
| Dual/Tri watch |
|
VHF Radio
|
| Region |
All U.S., Canadian and International marine channels |
| VHF frequency range Tx |
156.025–162.025 MHz |
| VHF frequency range Rx |
156.050 MHz to 163.275 MHz (including WX channels) |
| VHF transmit power (max) |
25 W, 1 W (high, low) |
| Transmitter frequency tolerance |
+/0.5 kHz |
| Adjacent channel power |
70 dB |
| Spurious emissions |
–80 dBc (at 25 W)/0.25uW |
| Sensitivity (12 dB SINAD) |
-118 dBm (-11 dBu/0.28 uV) |
| Adjacent channel selectivity |
70 dB |
| Spurious response |
70 dB |
| VHF intermodulation |
68 dB |
| Max antenna gain |
9 dBi |
DSC
|
| Class |
Class D |
| Sensitivity (1% BER) |
-113 dBm |
| Adjacent channel selectivity |
70 dB |
| Spurious response |
70 dB |
| Intermodulation |
68 dB |
GNSS
|
| Integrated GNSS receiver |
|
| Integrated GNSS antenna |
|
| Constellations |
GPS, GLONASS |
| Differential support |
WAAS, EGNOS |
| Navigation rate |
1 Hz |
Sensors
|
| NMEA 2000 Compatible |
|
| NMEA 0183 Compatible |
|
Audio
|
| Max speaker output power |
1 W |
| Max external speaker output power |
4 W at 4 Ω |
Electrical Features
|
| Typical current draw at 12 Vdc |
600 mA, 6 A max |
| Compass-safe distance |
27″ (70 cm) |
Networking & Connections
|
| External GNSS antenna connector |
BNC |
| Ant connector |
SO-239 (50 Ω) |
