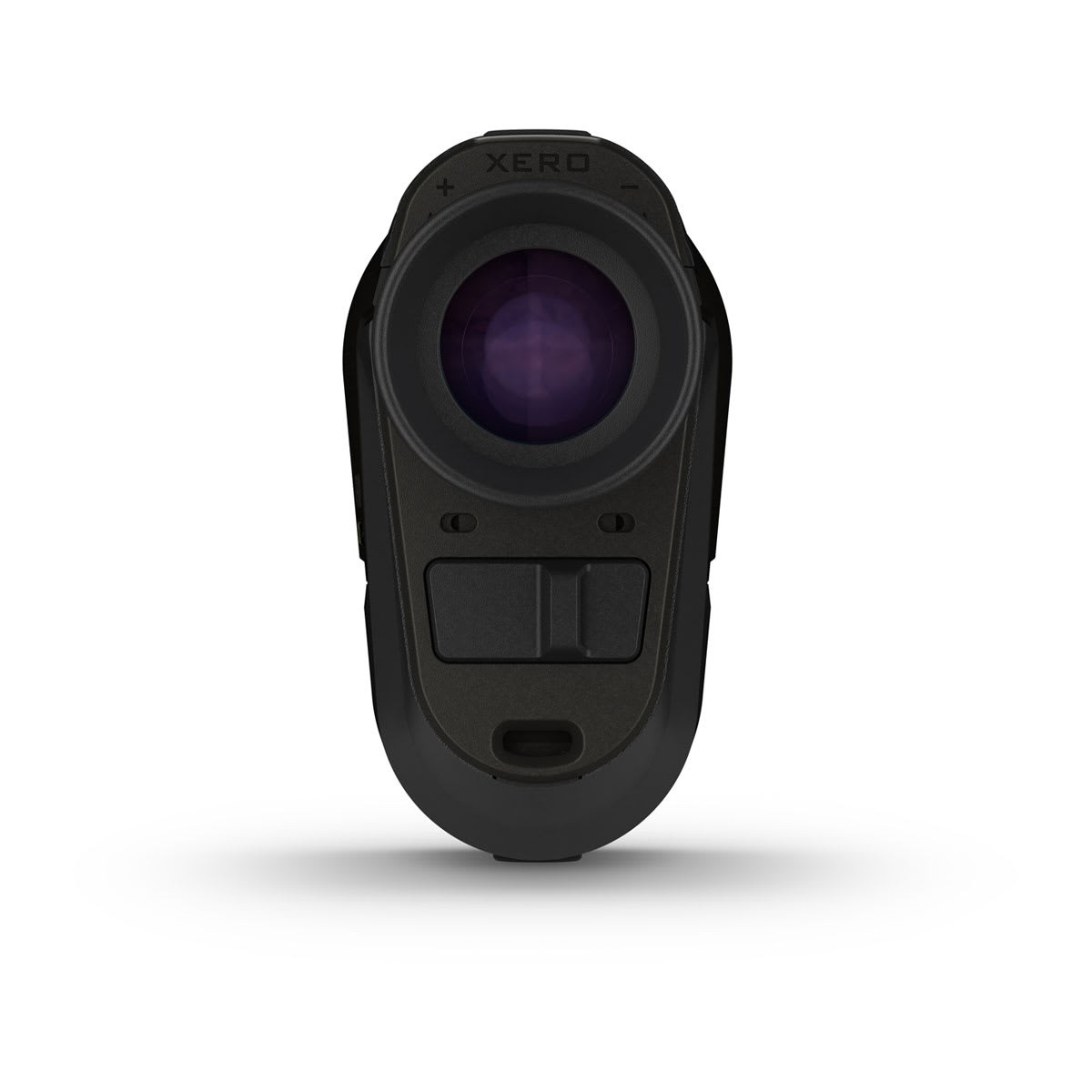

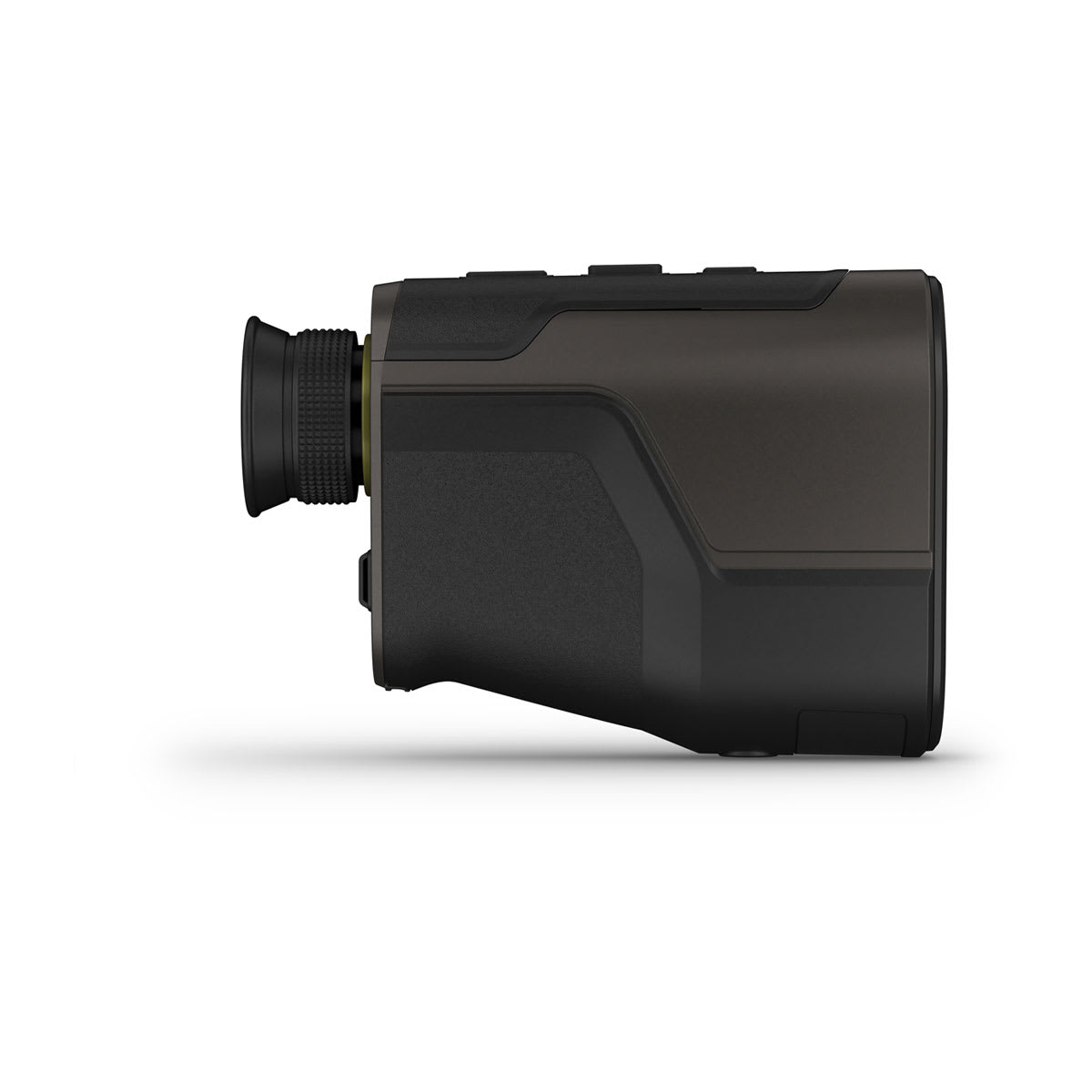

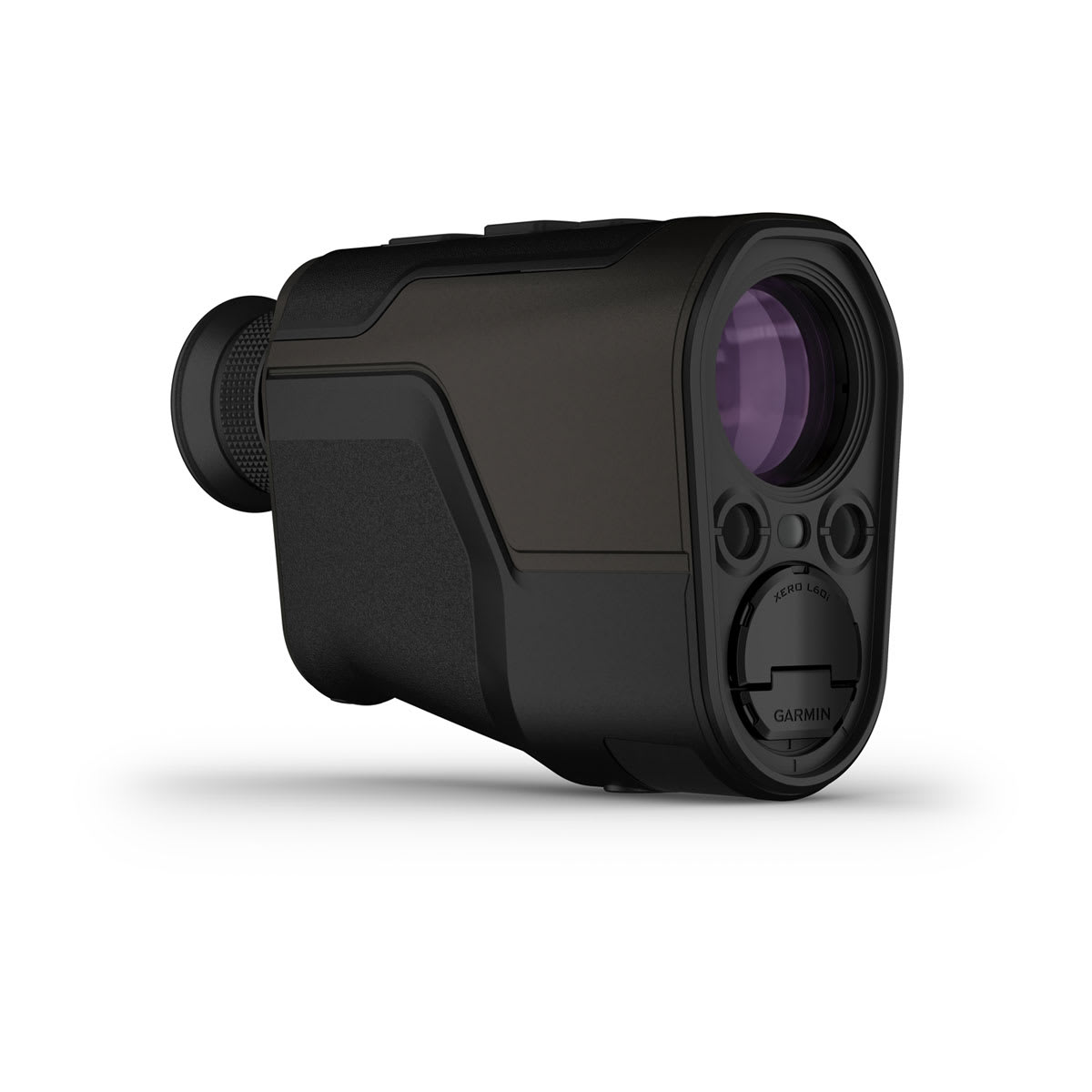

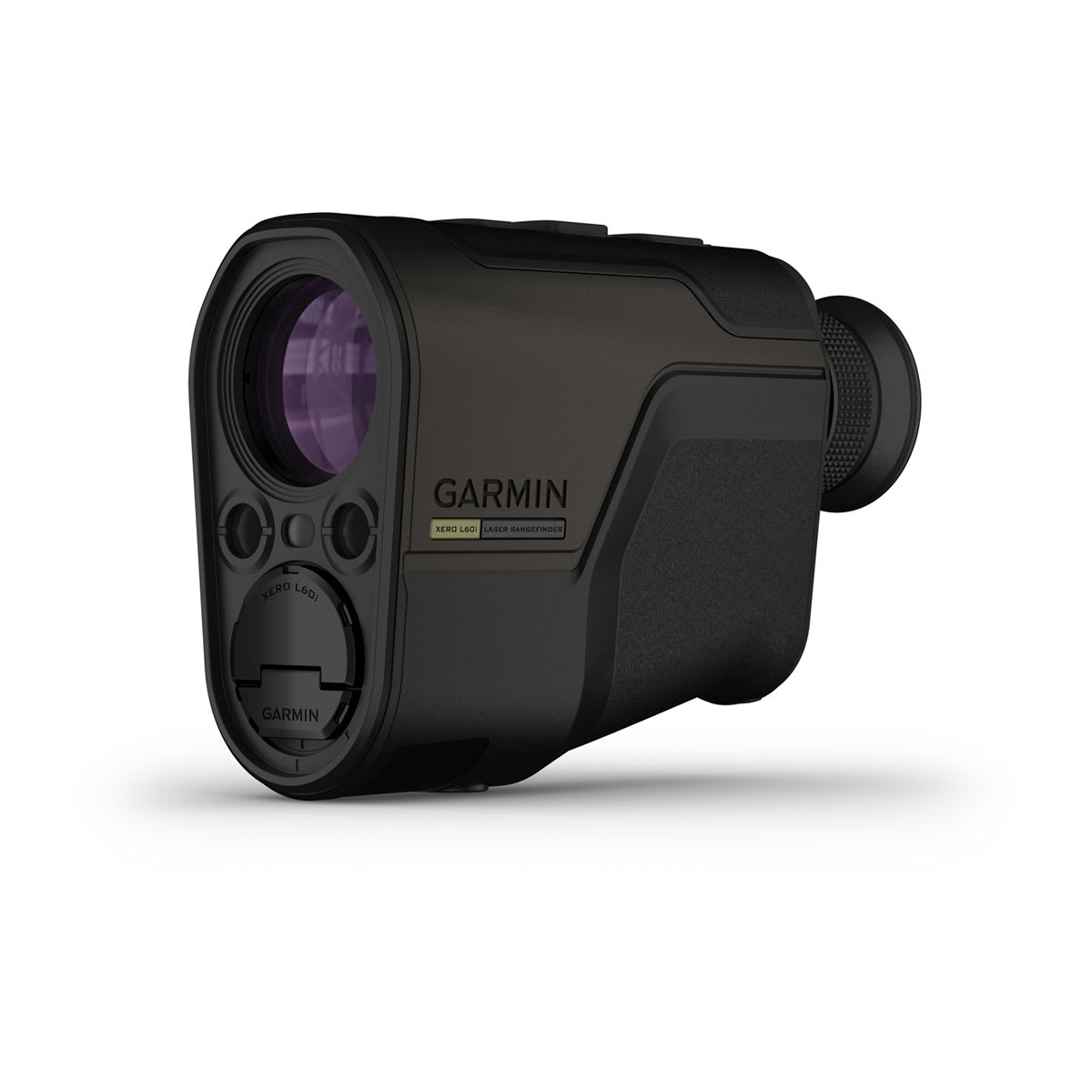

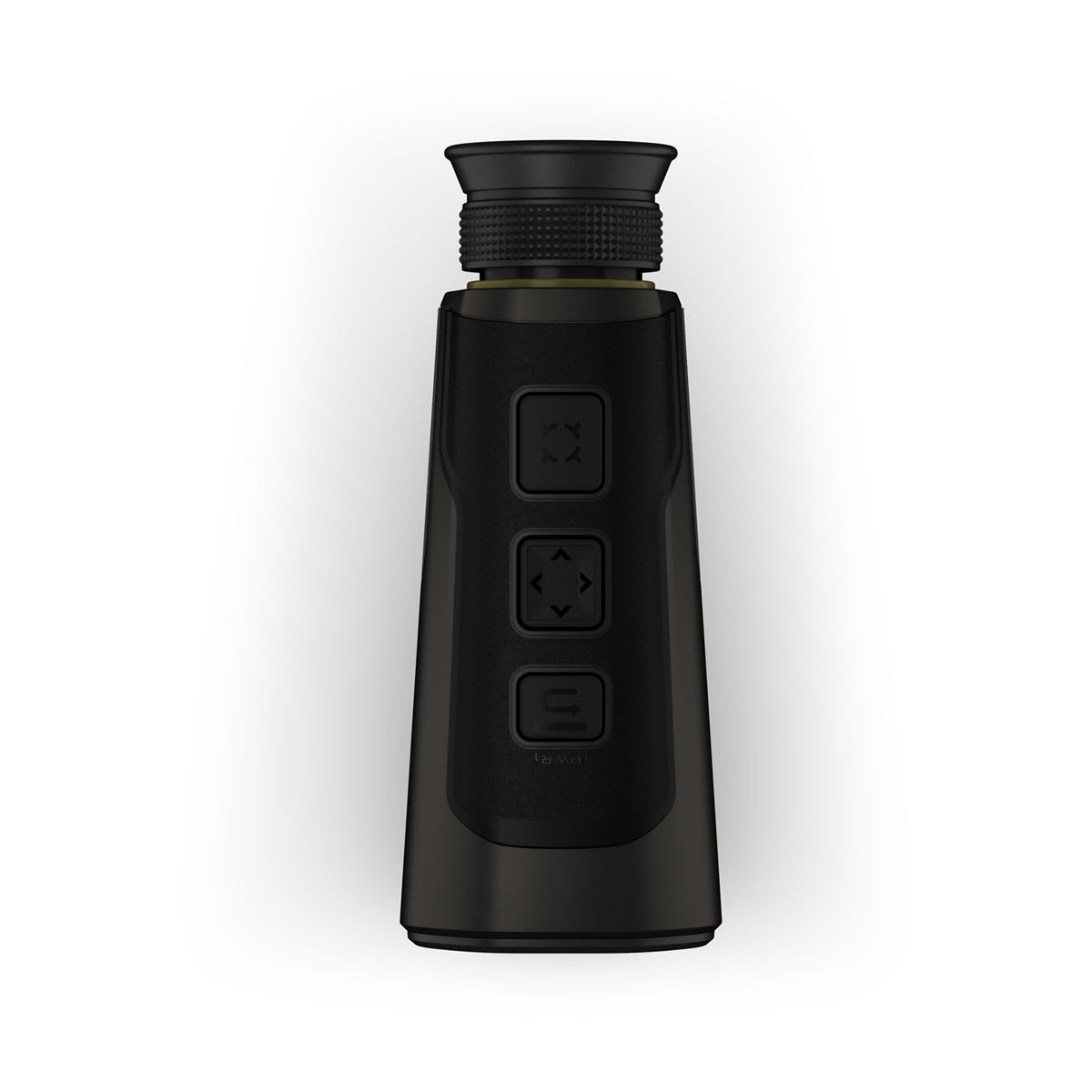

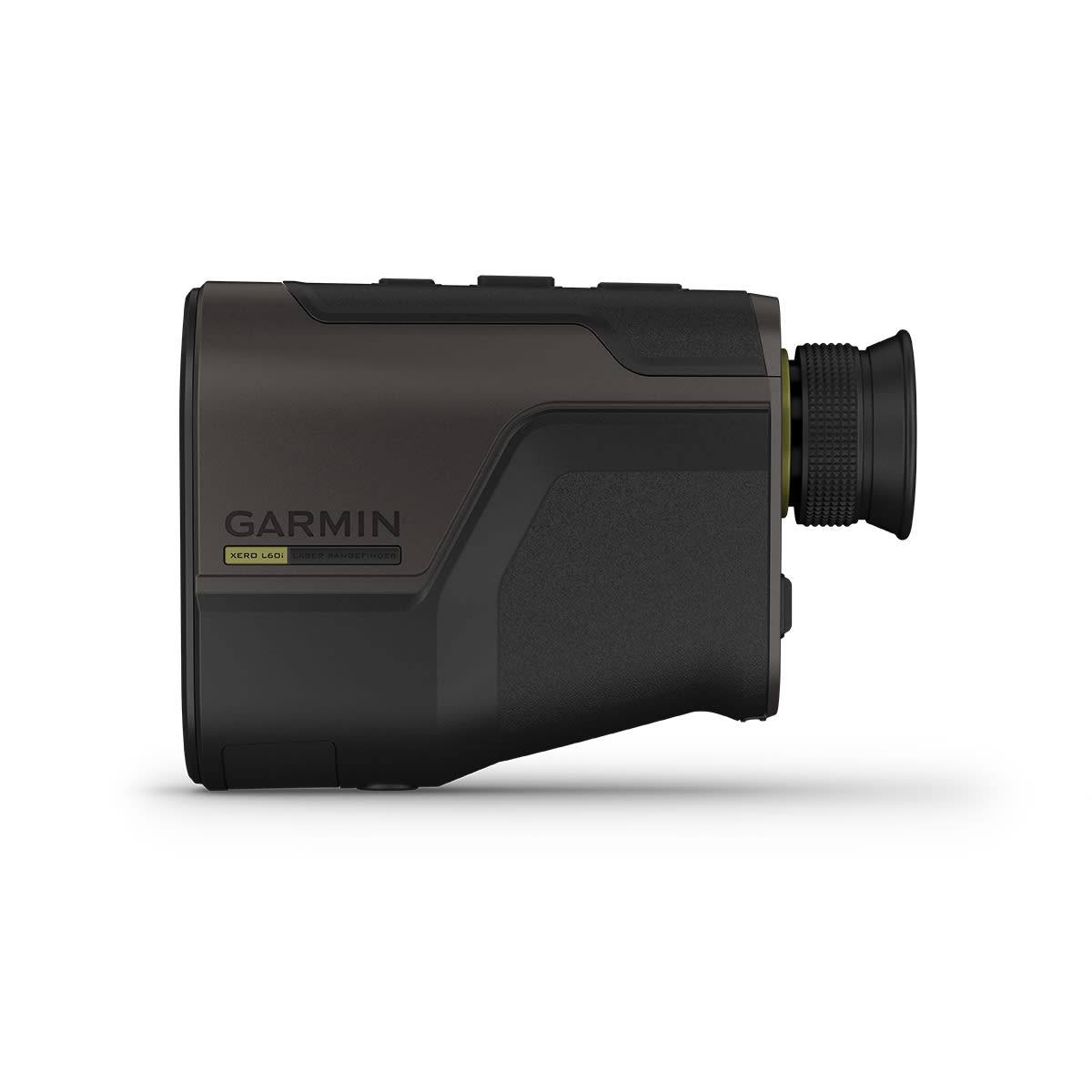

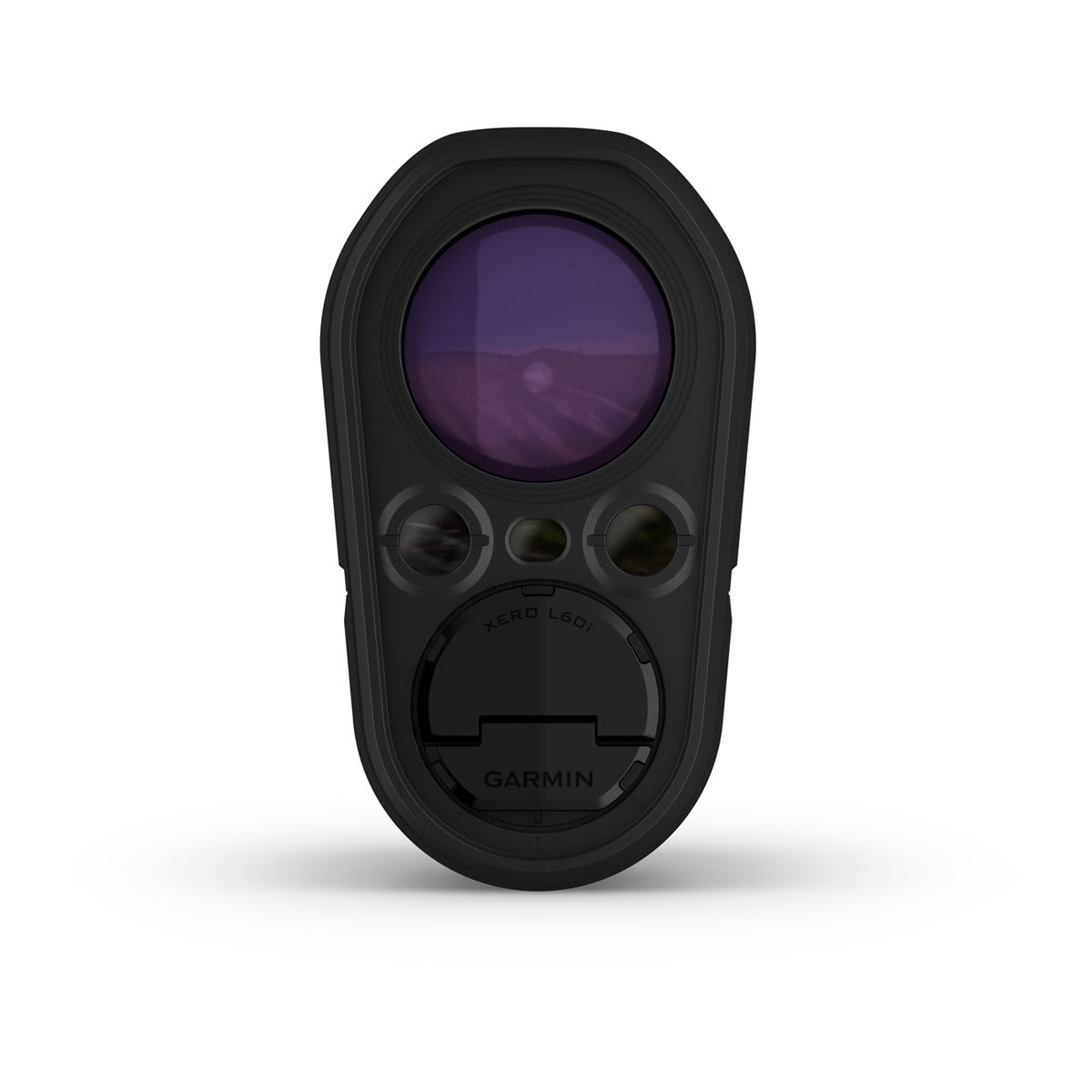

Xero® L60i Laser Rangefinder has premium glass, integrated mapping and navigation, high-resolution display, 7X magnification, and can range out to 1500 yards.
General |
|
| Dimension | 4.94″ x 3.53″ x 1.99″ (125.41 mm x 89.66 mm x 50.59 mm) |
|---|---|
| Weight |
No battery: 0.80 lbs (362.88 g) |
| Water rating | IPX7 |
| Display Type | DLP augmented reality |
| Display Size | Overlaid on visual scene |
| Display resolution | 960 x 540 pixels |
| Battery Type | 2 AAA lithium batteries (included) |
| Battery life |
1,400 ranges (1 sec range, 10 sec display) |
| Multi-color display | |
| Operating range | -20° C to 60° C (-4° F to 140° F) |
| Memory/History | 32 GB internal less file system space |
| Interface | USB-C |
| Laser classification | Class 1 |
Daily Smart Features |
|
| Connectivity | Bluetooth® |
|---|---|
| Mobile app | Explore App |
Xero Laser Range Finder Features |
|
| Magnification | 7x |
|---|---|
| Objective | 32 mm |
| Field of view | 7 degrees |
| Field of View (linear feet at 1,000 yards) | 365 ft |
| Eye relief | 0.71″ (18 mm) |
| Exit pupil diameter | 4.6 mm |
| Focus adjustment | +/- 4 diopters |
| Compass | |
| Barometer | |
| Precision | +/- .1 m |
| Accuracy | +/- .25 m out to 1,000 m +/- 1.0 m beyond 1,000 m |
| Distance to targets (full sun) | Animals: 1,375 m (1,500 yds); Trees: 1,800 m (2,000 yds); Retro reflective: 5,000 m (5,500 yds) |
| Distance to targets (optimal conditions) | Animals: 2,775 m (3,000 yds); Trees: 3,600 m (4,000 yds); Retro reflective: 7,000 m (7,500 yds) |
| Laser Locate | |
| Sensor Locate | |
| Onboard mapping | |
| Visual recall | |
| Applied Ballistics Solver | Ultralight, access via AB Quantum app |
| Archery ballistics | |
| Angle compensated distance | |
| Garmin share | |
| Stores locations, tracks and courses | |
| Measures distances between 2 points | |
| Area calculation | |
| Compatible with Garmin Explore App | |
| Carrying case | yes (included) |
| Laser beam divergence | 0.5 x 0.5 mrad |
