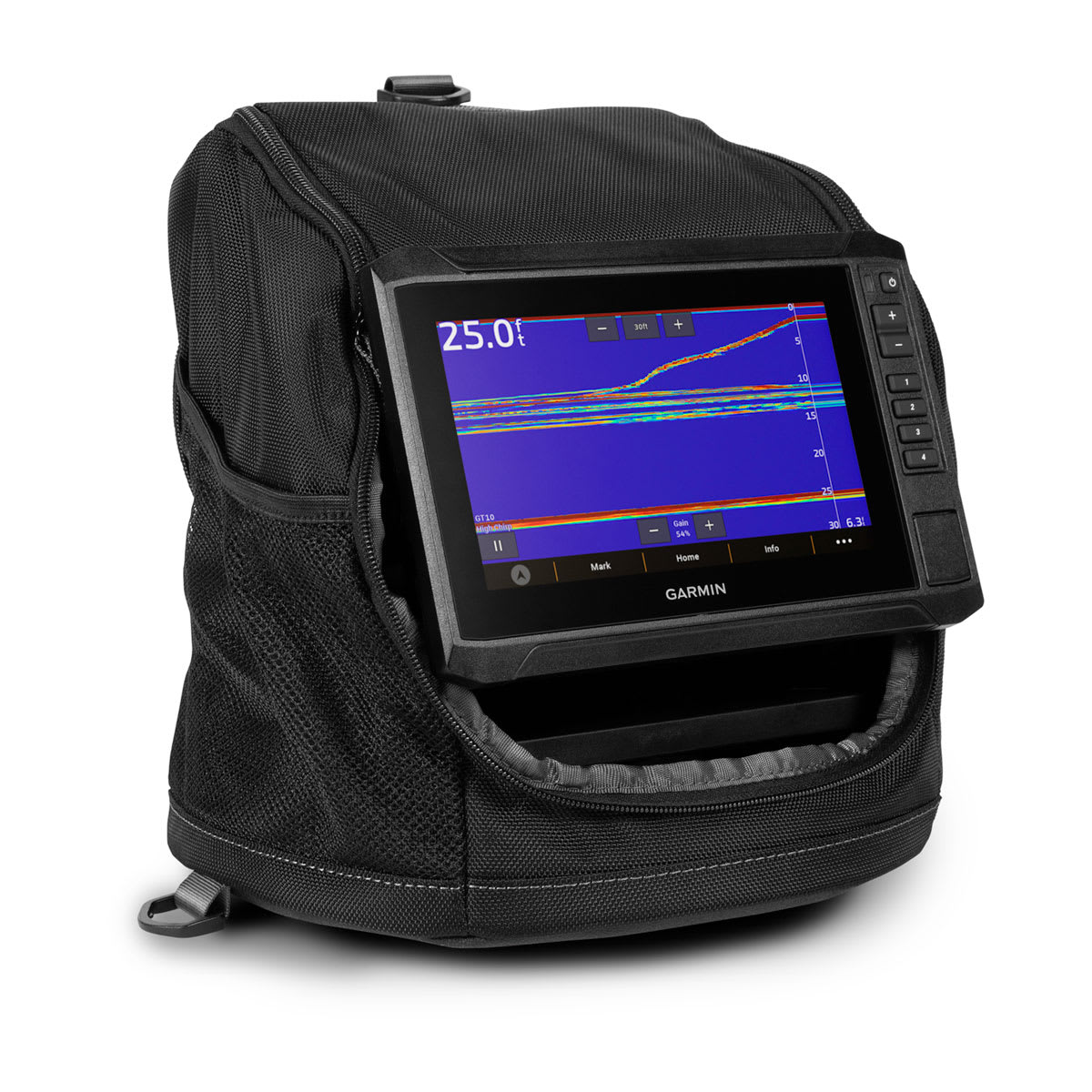

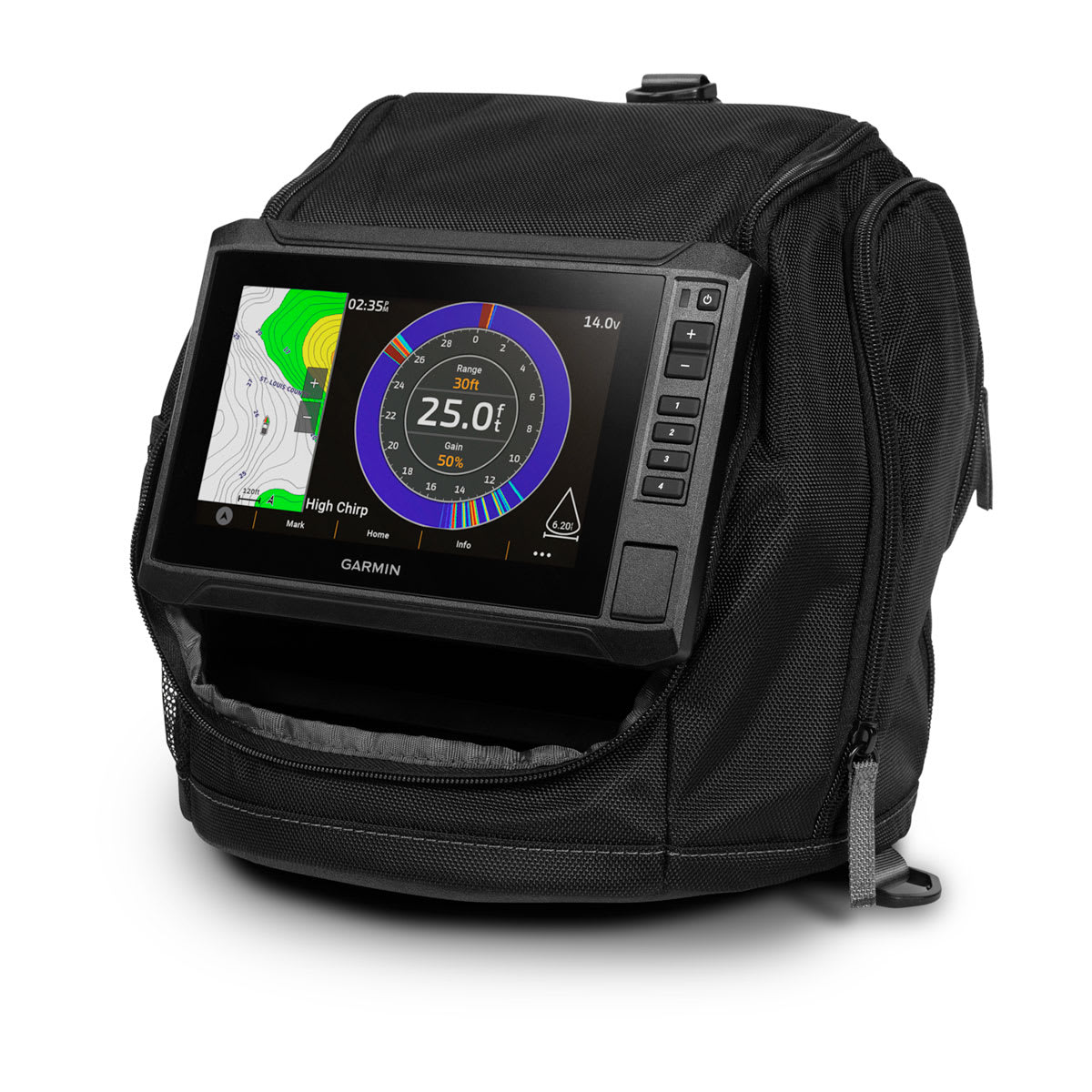

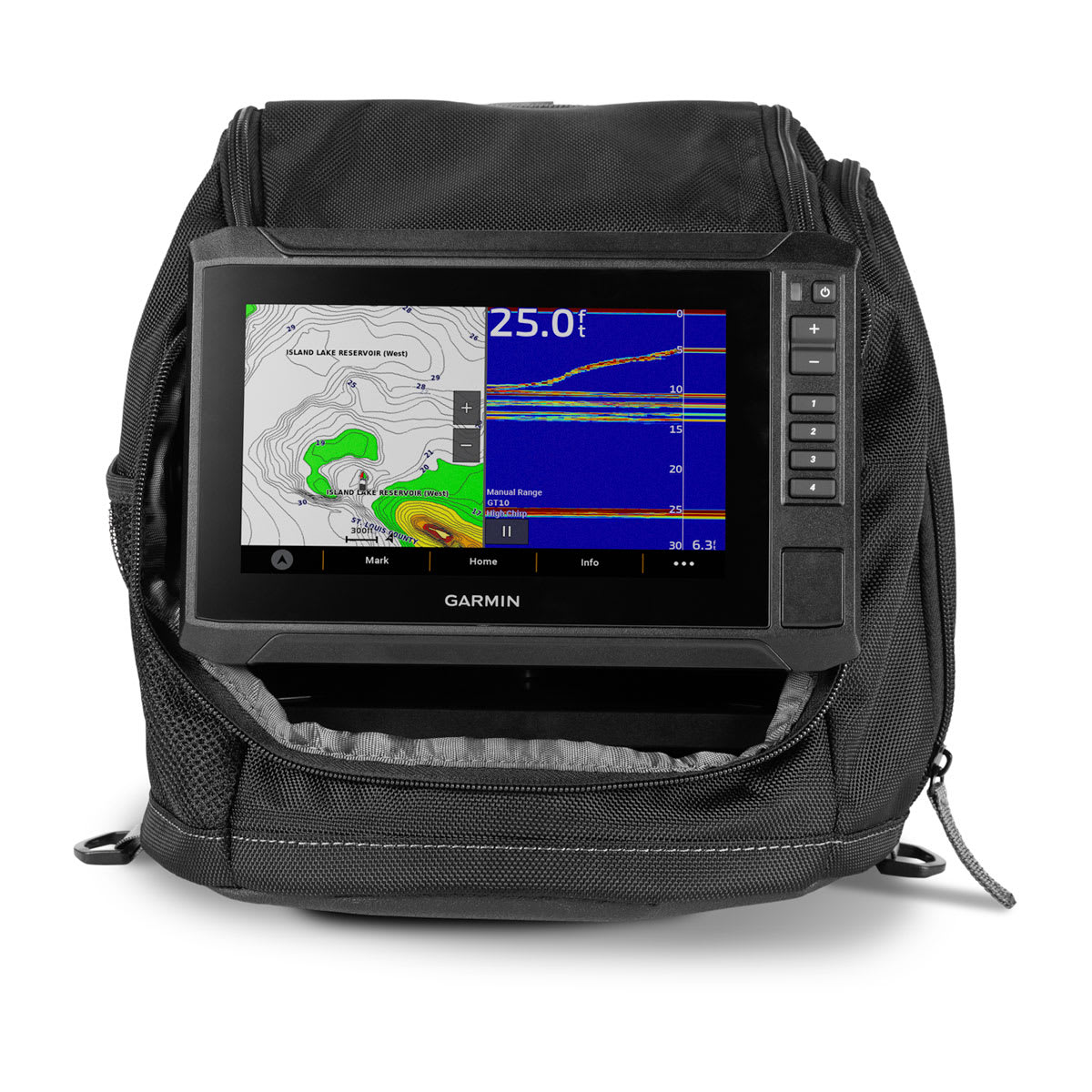

Ice Fishing Bundle includes an ECHOMAP™ UHD2 73sv chartplotter with a GT10HN-IF Transducer provide detailed maps, sonar, and a 7” touchscreen display.
General
|
| Dimension |
10.5″ × 9.5″ × 10.5″ (26.7 × 22.9 × 26.7 cm) |
| Weight |
11.0 lbs (5.0 kg)
|
| Water rating |
IPX7
|
| Touchscreen |
|
| Display Type |
WVGA, TN |
| Display Size |
6.1″ x 3.4″, 7.0″ (15.5 x 8.7, 17.8 cm) |
| Display resolution |
800 x 480 pixels |
| Input |
Touchscreen with keyed assist |
Maps & Memory
|
| Accepts Data Cards |
1 microSD™ card; 32 GB maximum size
|
| Waypoints |
5000
|
| Track points |
50,000 |
| Tracks |
50 saved tracks |
| Navigation Routes |
100 |
Ice Fishing Details
|

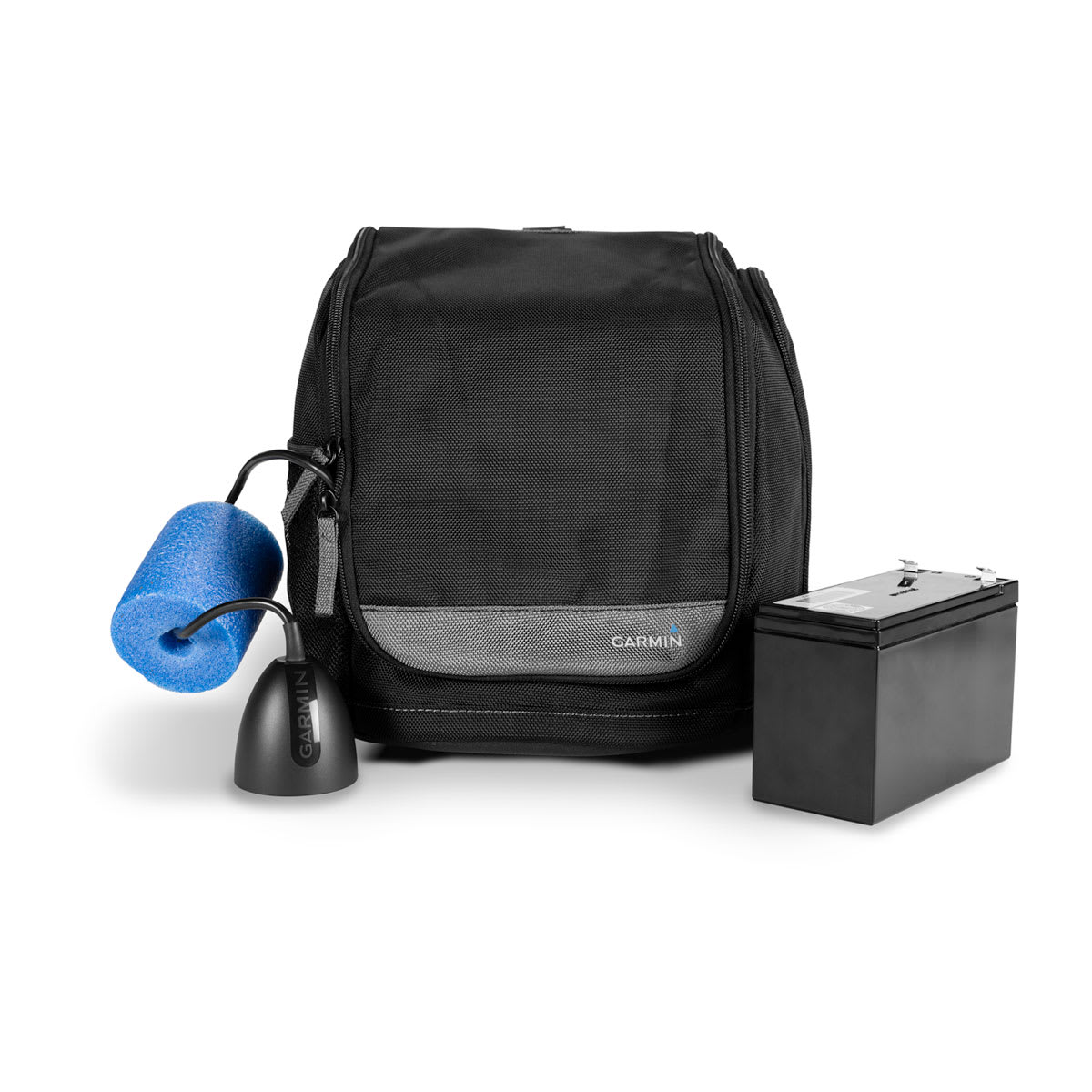

| Battery type, size |
SLA, 7Ah |

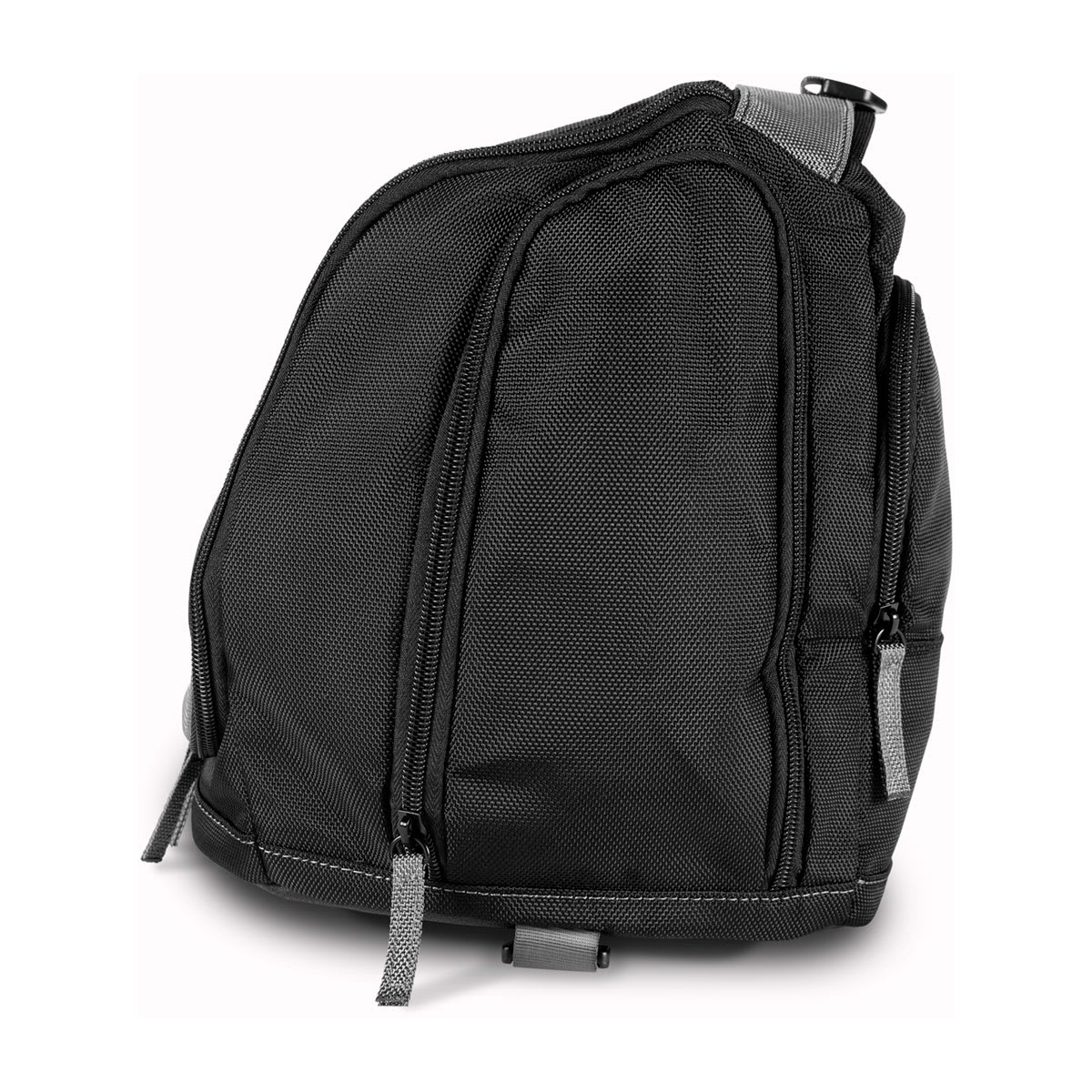

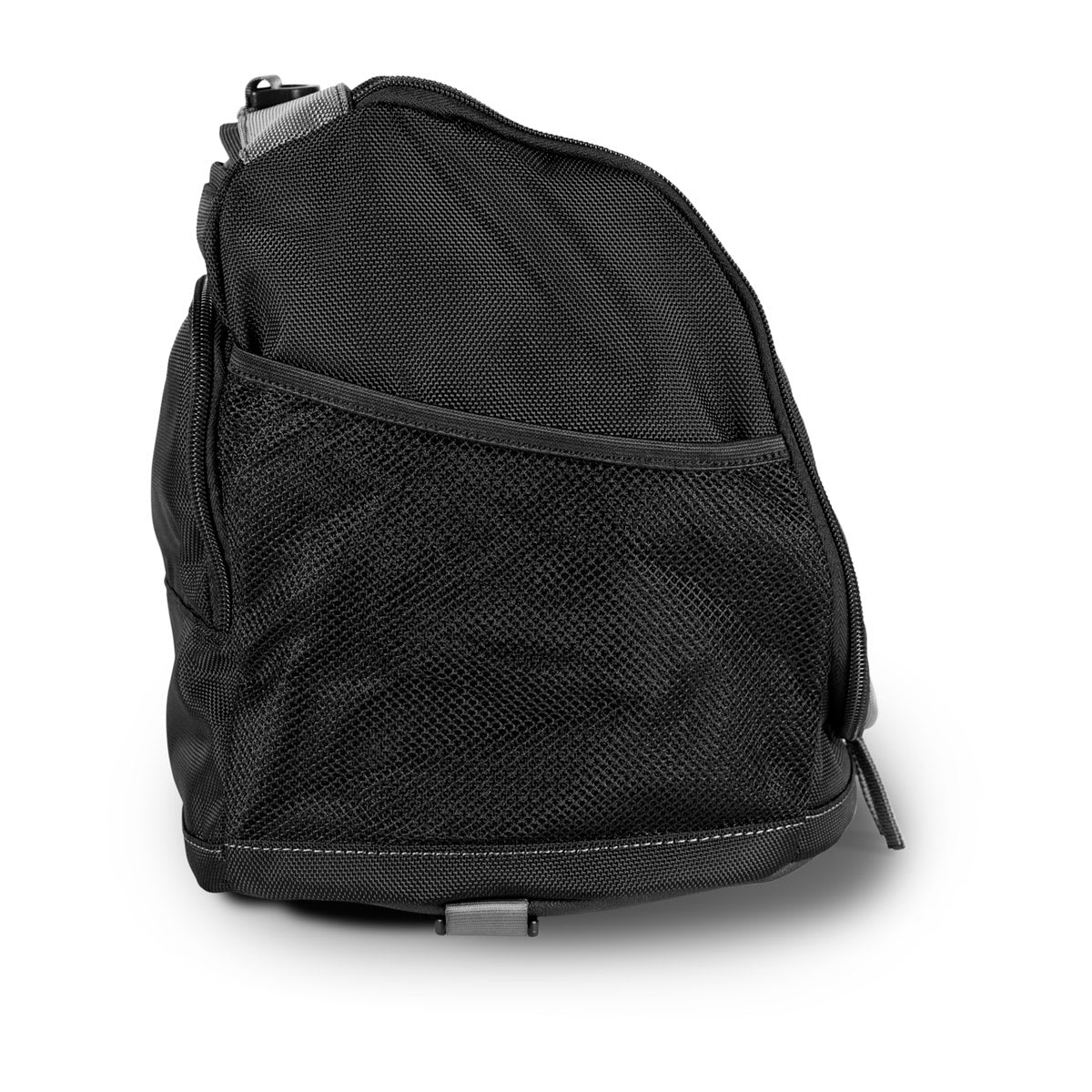

| Bag size |
S |
| Included transducer |
GT10HN-IF |
| Transducer holding feature |
Foam float |
Sensors
|
| GPS |
|
| GLONASS |
|
| Galileo |
|
| BeiDou |
|
| Has built-in receiver |
|
| Receiver |
10 Hz
|
| NMEA 2000 Compatible |
|
| Supports WAAS |
|
| Supports multi-band, multi-constellation GPS |
|
Built-in Maps
|
| Built-in Auto Guidance+ |
yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal |
yes (see Additional) |
| Garmin Navionics+ (Inland) |
yes (see Additional) |
Optional Map Support
|
| Garmin Navionics+™ |
|
| Garmin Navionics Vision+™ |
|
| TOPO 100K |
|
| Standard Mapping |
|
| Garmin Quickdraw Contours |
|
Chartplotter Features
|
| ActiveCaptain® compatible |
yes
|
Electrical Features
|
| Power Input |
9 to 18 Vdc |
Sonar Features
|
| Displays sonar |
|
| Power output |
500 W |
| Traditional sonar (dual frequency/beam) |
Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü |
Built-in 260/455/800/1000/1200 kHz |
| SideVü |
Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar |
|
| LiveScope |
|
Networking & Connections
|
| NMEA 2000® ports |
|
| Garmin Marine Network Ports |
1 |
| 12-pin transducer ports |
1 |
| Bluetooth® pairing |
|
| ANT® (Connectivity) |
|
| Garmin Wi-Fi network (local connection) |
|
Additional
|
| Additional |
Garmin Navionics+ Inland & Coastal: 75sv Canada
Garmin Navionics + (Inland): 73sv U.S. Lakes
|
