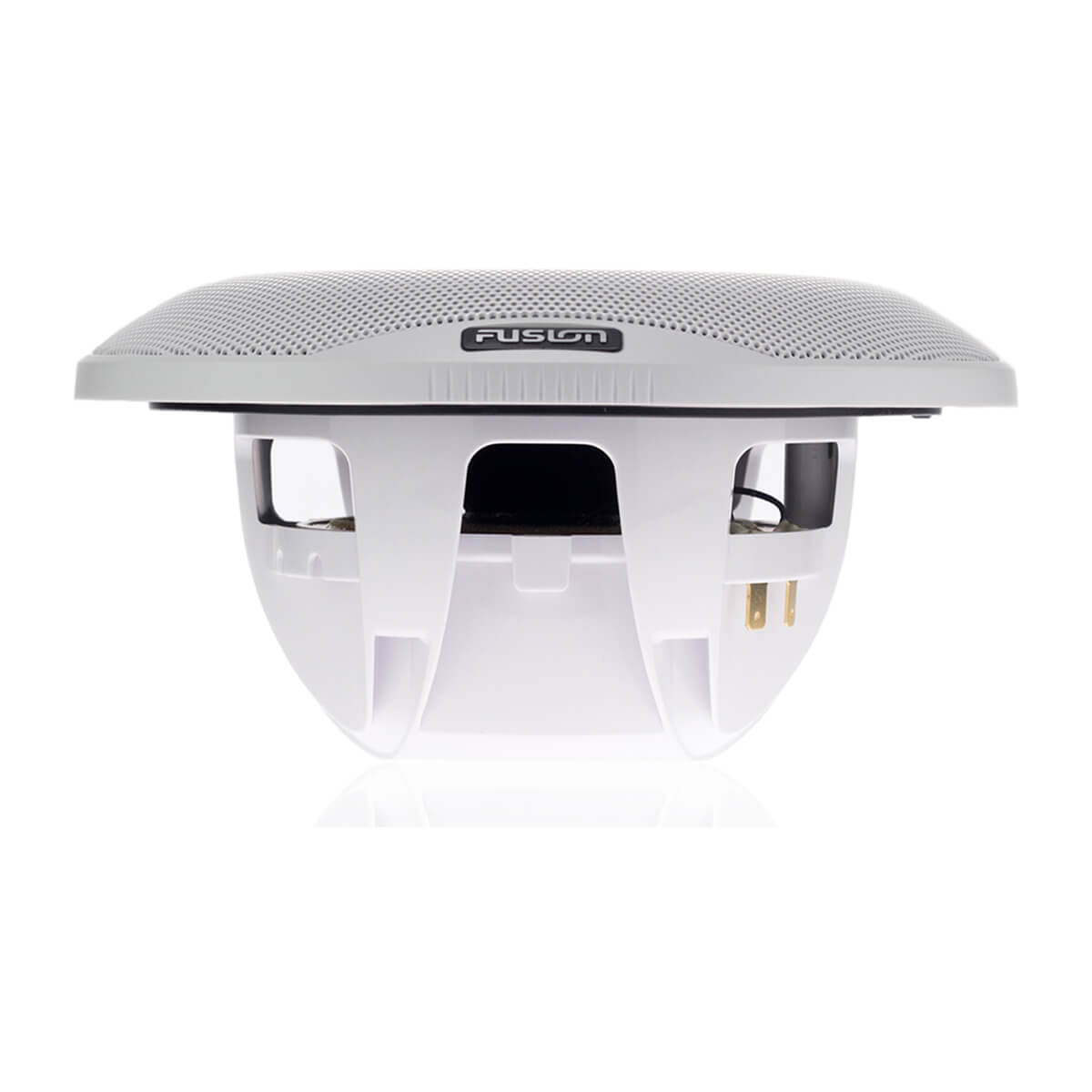

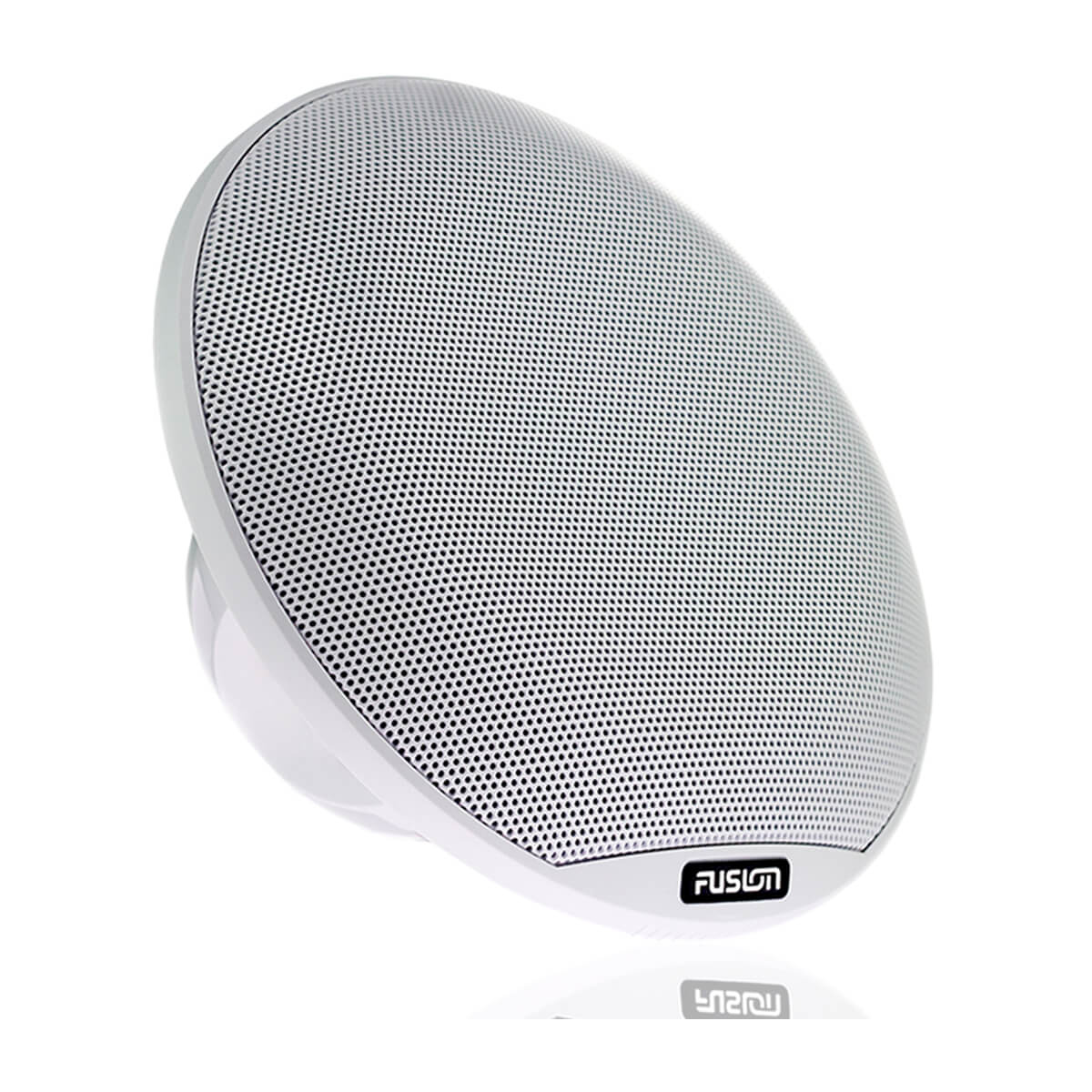

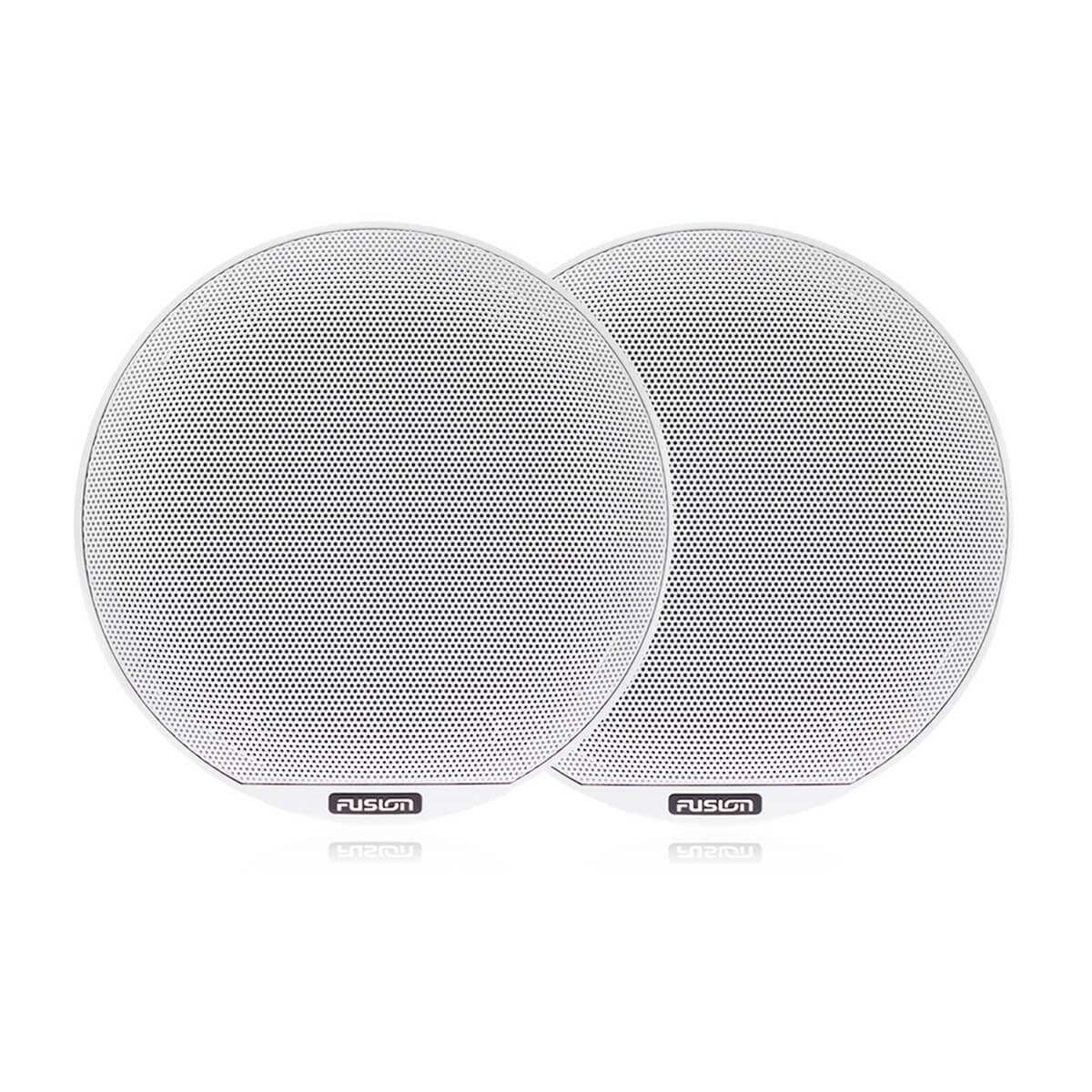

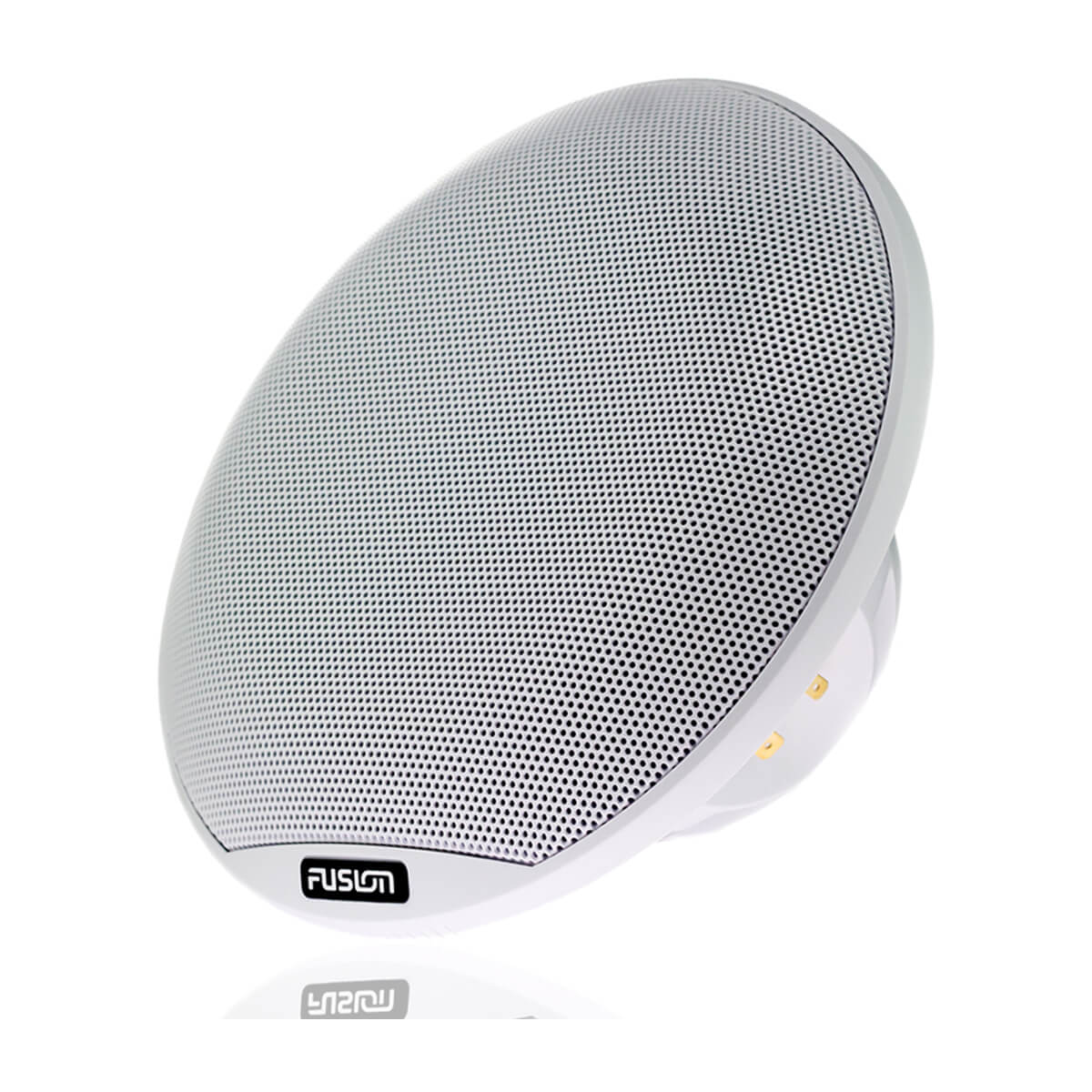

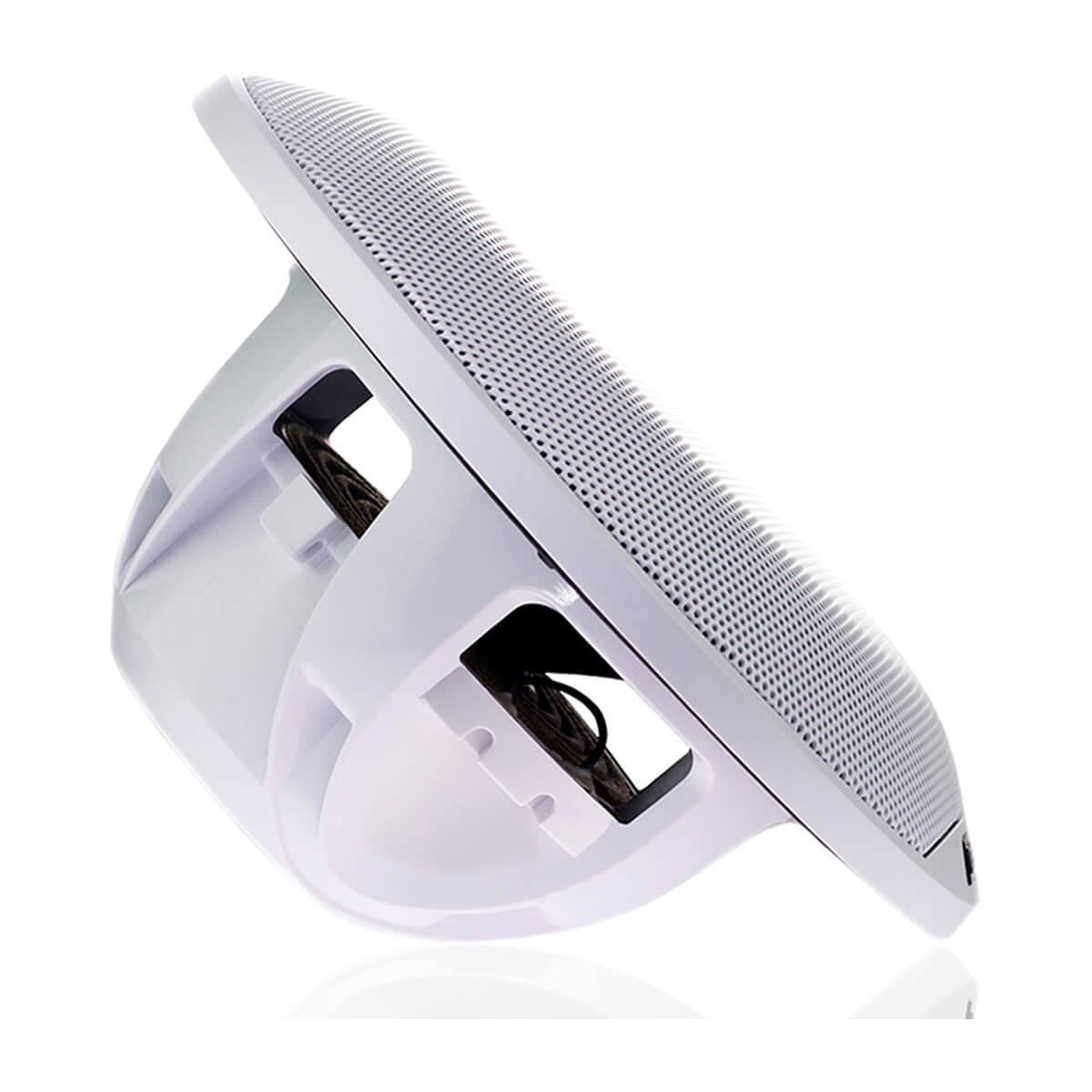

Fusion Signature Series 3 Marine Speakers deliver unparalleled performance – even when exposed to harsh marine environments.
General |
|
| Physical dimensions (Diameter x Depth) | 8.8″ classic speaker: 9.75″ x 5.19″ (247 x 131.5 mm) 8.8″ sports speaker: 8.82″ x 5.24″ (224 x 133 mm) 7.7″ classic speaker: 8.66″ x 4.31″ (220 x 109.5 mm) 7.7″ sports speaker: 7.72″ x 4.31″ (196 x 111 mm) 6.5″ classic speaker: 7.87″ x 4.06″ (200 x 103 mm) 6.5″ sports speaker: 6.93″ x 4.11″ (176 x 104.5 mm) |
| Water and dust rating | IP65 |
| Configuration | coaxial |
| Speaker size | SG-FL882SPW / SG-FL882SPC / SG-F882W: 8.8″ SG-FL772SPW / SG-FL772SPC / SG-F772W: 7.7″ SG-FL652SPW / SG-FL652SPC / SG-F652W: 6.5″ |
| Peak power (Watts) | 8.8″ speaker: 330 W 7.7″ speaker: 280 W 6.5″ speaker: 230 W |
| RMS power (Watts) | 8.8″ speaker: 130 W 7.7″ speaker: 100 W 6.5″ speaker: 75 W |
| Sensitivity (1 W / 1 m) | 8.8″ speaker: 91 dB 7.7″ speaker: 91 dB 6.5″ speaker: 90 dB |
| Frequency response | 8.8″ speaker: 50 Hz – 20 kHz 7.7″ speaker: 60 Hz – 22 kHz 6.5″ speaker: 70 Hz – 22 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 8.8″ speaker: 25 140 W/Ch 7.7″ speaker: 25-120 W/Ch 6.5″ speaker: 30-90 W/Ch |
| LED lighting | yes – CRGBW (sports-style only) |
| LED Supply Voltage | 10.8-16 VDC (sports-style only) |
| LED load current @ 14.4 VDC | 300 mA (sports-style only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 8.8″ speaker: 1.5″ 7.7″ speaker: 1.4″ 6.5″ speaker: 1.2″ |
| Cone material | CURV cone with rubber surround |
| Tweeter type | Silk dome |
| Compass-safe distance | 8.8″ speaker: 162″ (412 cm) 7.7″ speaker: 141″ (358 cm) 6.5″ speaker: 122″ (310 cm) |
| Warranty | 3 years |
Mounting Dimensions |
|
| Mounting diameter clearance | 8.8″ speaker: 7.44″ (188 mm) 7.7″ speaker: 6.14″ (156 mm) 6.5″ speaker: 5.35″ (136 mm) |
| Mounting depth clearance | 8.8″ speaker: 4.13″ (106 mm) 7.7″ speaker: 3.39″ (86 mm) 6.5″ speaker: 3.11″ (79 mm) |
Optimum Enclosure Recommendations |
|
| Sealed enclosure volume (fully filled with absorption material) | 8.8″ speaker: 0.78 cubic ft (22 L) 7.7″ speaker: 0.71 cubic ft (20 L) 6.5″ speaker: 0.64 cubic ft (18 L) |
| Ported (vented) enclosure volume (lined with absorption material) | 8.8″ speaker: 1.23 cubic ft (35 L) 7.7″ speaker: 1.06 cubic ft (30 L) 6.5″ speaker: 0.88 cubic ft (25 L) |
| Port diameter | 3″ (76 mm) |
| Port length | 8.8″ speaker: 6.7″ (170 mm) 7.7″ speaker: 6.3″ (160 mm) 6.5″ speaker: 6.4″ (162 mm) |
