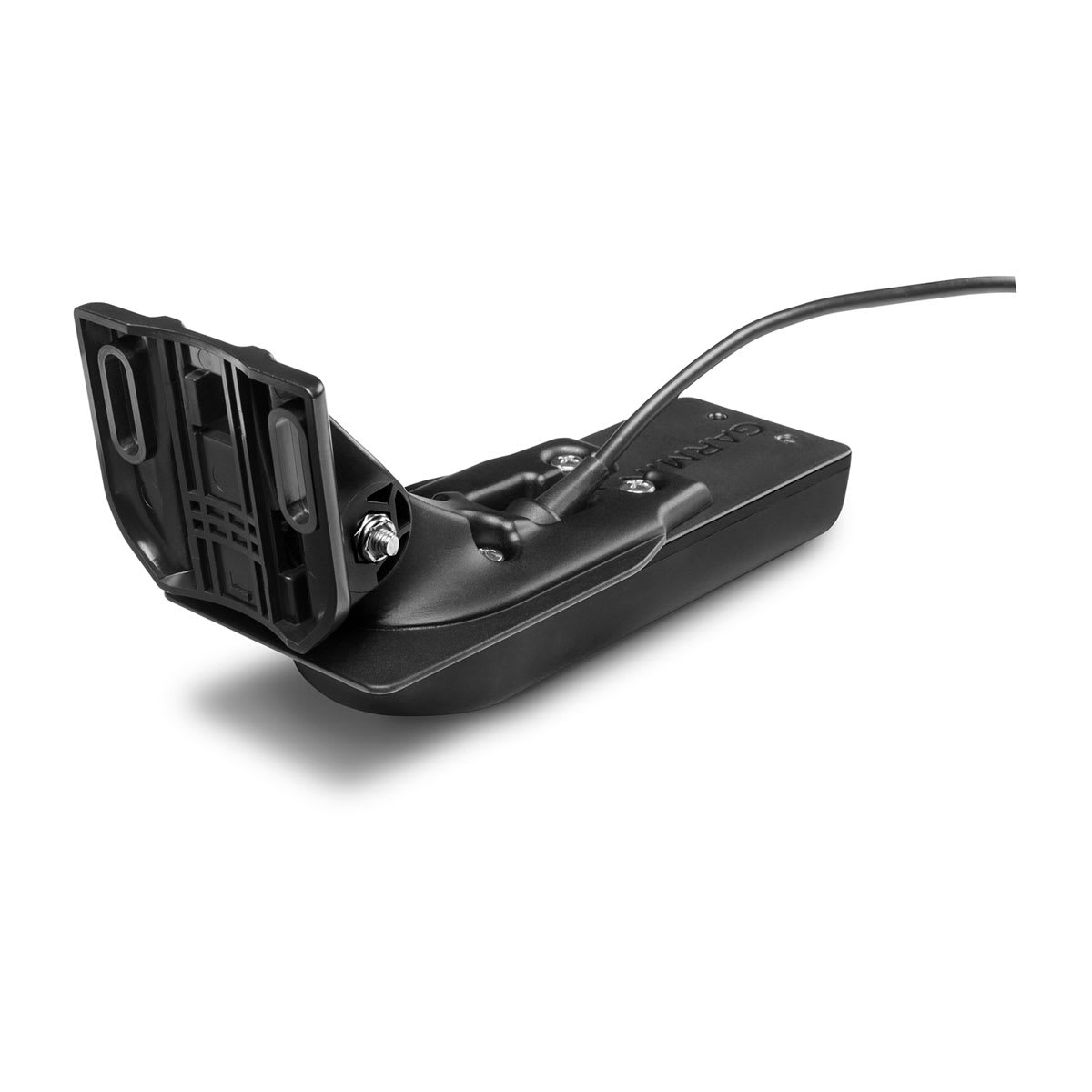

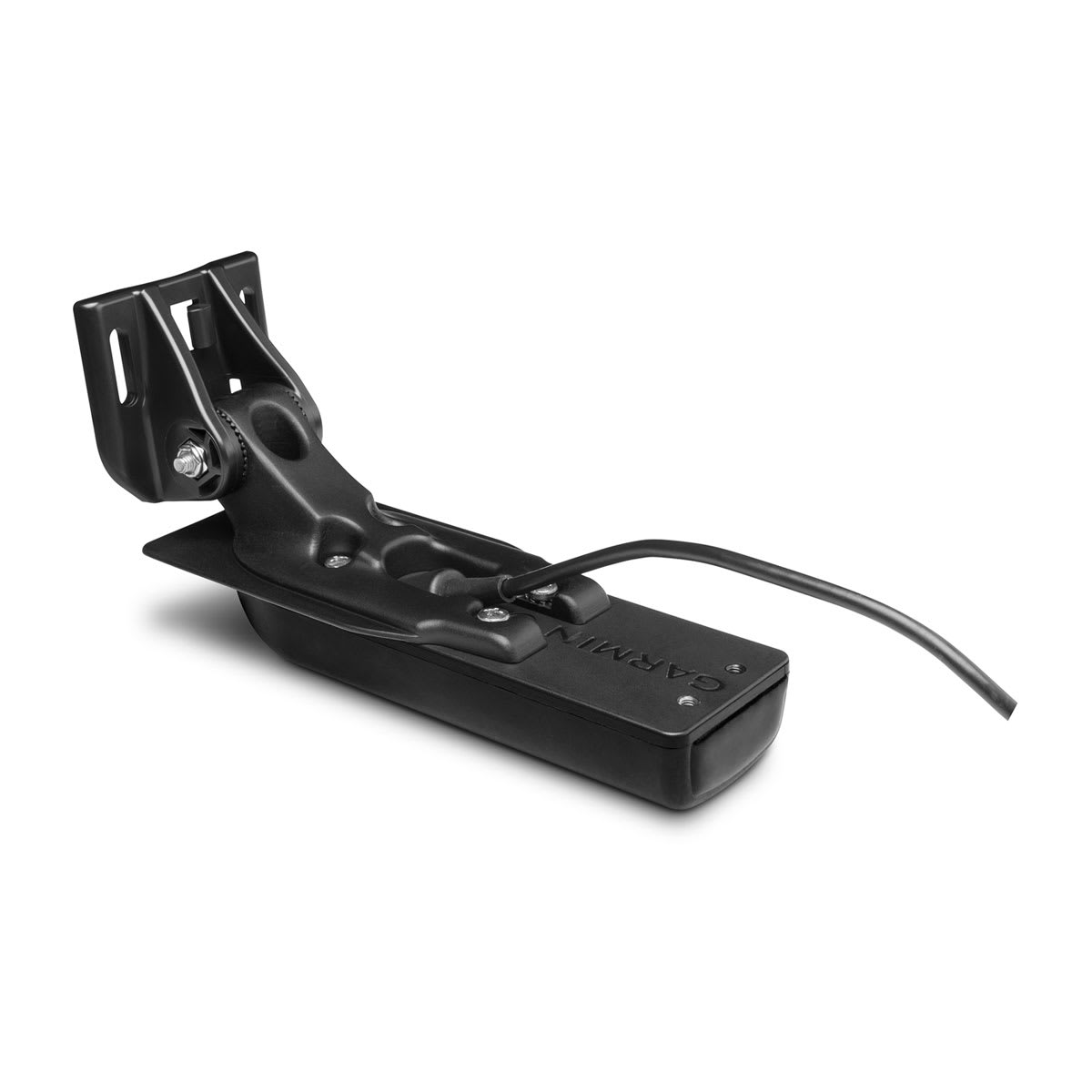

The Garmin GT52HW-TM is a transom mounted transducer that is ideal for freshwater fisherman who want traditional, CHIRP ClearVü & CHIRP SideVü scanning sonar.
General |
|
| Transducer frequency | CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
|---|---|
| Transducer power | Traditional 250 W; ClearVü/SideVu 350 W |
| Transducer beamwidth | Traditional: 24°-16° ClearVü/SideVü: 2.0°x50° @ 455 kHz and 1.0°x30° @ 800 kHz |
| Transducer maximum depth | Traditional: 800 ft.; ClearVü: 500 ft.; SideVü: 500 ft. |
| Transducer cable length | 20 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 12-pin |
| Transducer supported deadrise/transom angles | 0°-70° degree transom |
Transducer Support |
|
| Transducer frequency | CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
|---|---|
