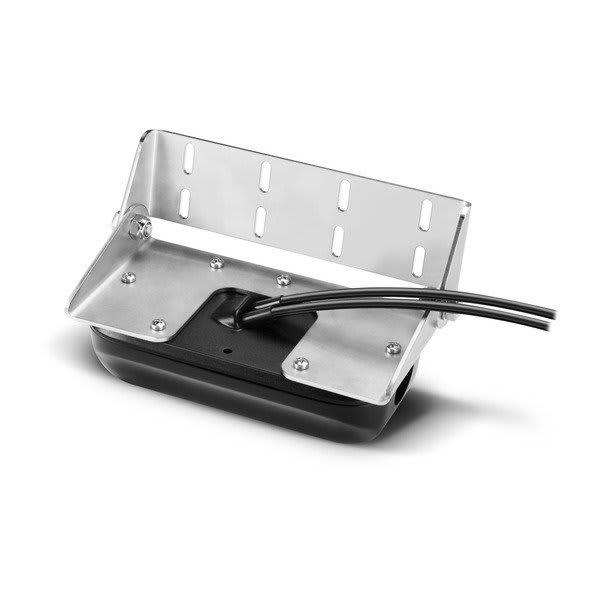

The Panoptix™ PS30 is a down transducer that provides: LiveVü Down, RealVü 3-D Down & RealVü 3-D Historical views enabling you to see fish swimming under your boat.
General
|
| Transducer beamwidth |
120° x 60° |
| Transducer cable length |
15 ft, power; 30 ft, Ethernet |
| Dimension |
3.6″ x 1.7″ x 6.7″ (9.1 x 4.2 x 17 cm) |
| Weight |
1.8 lbs (800 g)
|
| Temperature range |
0° C to 40° C |
Electrical Features
|
| Power input |
10-35 V |
| Power usage |
10 W |
| Fuse |
4.0 A |
Sonar Features
|
| Frequency |
417 kHz |
| Transmit power |
144 W |
| Maximum depth |
300′ |
| Sonar Type |
Multi-beam phased array |
Networking & Connections
|
| Garmin Marine Network Ports |
1 (large RJ45)
|
Sonar Modes
|
| LiveVü Down |
|
| RealVü 3D Down |
|
| RealVü 3D Historic |
|
