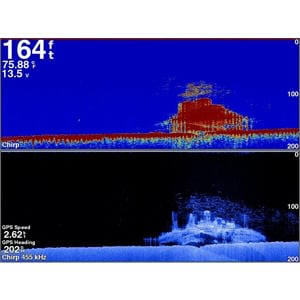

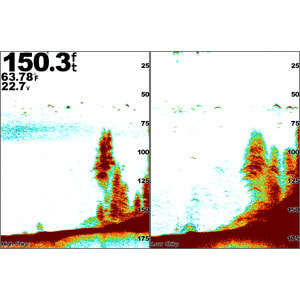

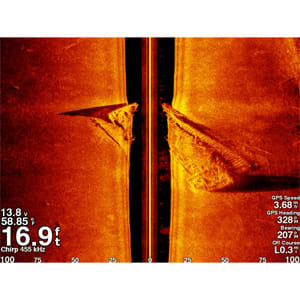

The GSD™ 25 Premium Sonar Module provides a remote network sonar solution with CHIRP SideVü and ClearVü scanning sonar for the clearest images on the water.
General |
|
| Case material | Polycarbonate |
|---|---|
| Dimension | 9.9″×7.6″×2.6″ (251 mm × 192 mm × 66 mm) |
| Weight | 1.7 lbs (0.77 kg) |
| Water rating | IPX7 |
| Temperature range | From 5°F to 158°F (from -15°C to 70°C) |
Electrical Features |
|
| Power input | 10-35 V |
|---|---|
| Power usage | 27 W maximum |
| Fuse | 4.0 A |
| Compass-safe distance | 30 cm (11.8 in.) |
Sonar Features |
|
| Frequency |
Traditional: 50/200, 77/200, 83/200 Single Channel CHIRP: 40-250 Dual Channel CHIRP: 40-250 SideVü/ClearVü: CHIRP 455/800 & CHIRP 260/455 (dependent on transducer) |
|---|---|
| Transmit power | 1 kW |
| Maximum depth | 5,000 ft. (1,524 m) |
Networking & Connections |
|
| Garmin Marine Network Ports |
1 |
|---|---|
