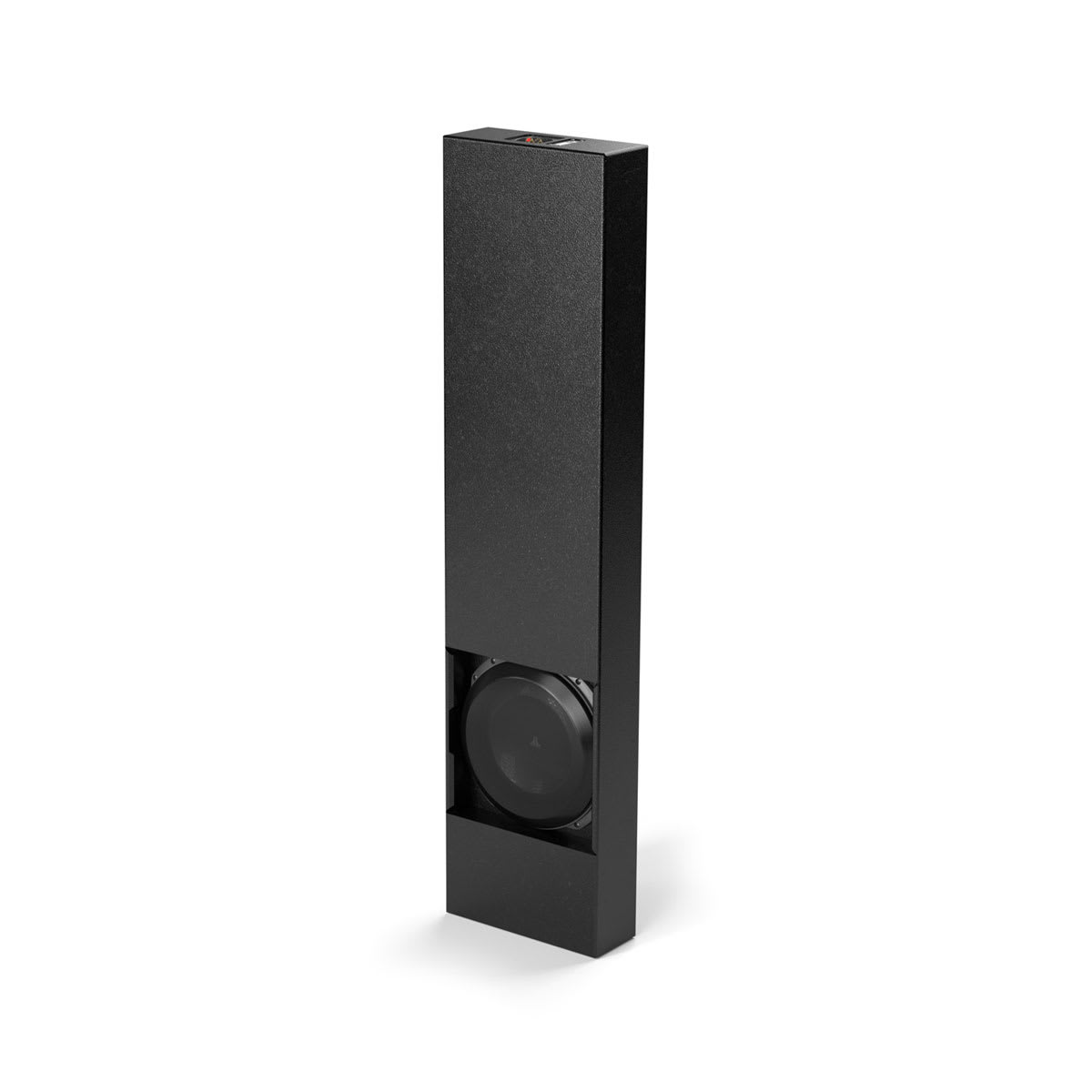

Fathom® Custom Theater Subwoofer is an in-wall, subwoofer systems with up to 2,000 watts of power are available in a variety of enclosure sizes, come with and single or dual 13.5-inch thin-line subwoofer models..
General |
|
| Warranty | 3 years |
|---|---|
| Sizes | 13.5″/Dual 13.5″ (driver) 5.25″/5.75″/9″/14″ (enclosure depth) |
| Physical dimensions (Height) | 13.5″ (5.25″ depth): 58.75″ (1,492 mm) 13.5″ (5.75″ depth): 23.94″ (608 mm) 13.5″ (9″ depth): 30.69″ (780 mm) Dual 13.5″ (9″ depth): 59.20″ (1,504 mm) 13.5″ (14″ depth): 19.56″ (497 mm) |
| Physical dimensions (Width) | 13.5″ (5.25″ depth): 14″ (356 mm) 13.5″ (5.75″ depth): 23.94″ (608 mm) 13.5″ (9″ depth): 14″ (356 mm) Dual 13.5″ (9″ depth): 14″ (356 mm) 13.5″ (14″ depth): 14″ (356 mm) |
| Physical dimensions (Depth) | 13.5″ (5.25″ depth): 5.25″ (133 mm) 13.5″ (5.75″ depth): 5.75″ (146 mm) 13.5″ (9″ depth): 9″ (229 mm) Dual 13.5″ (9″ depth): 9″ (229 mm) 13.5″ (14″ depth): 14″ (356 mm) |
| Continuous power handling (RMS) | 13.5″: 1000 W Dual 13.5″: 2000 W |
| Frequency response (Anechoic) | 28 Hz-117 Hz (± 1.5 dB) |
| Frequency response (Anechoic, -3dB) | 25 Hz/123 Hz |
| Frequency response (Anechoic, -10dB) | 22 Hz/150 Hz |
| Enclosure type | Sealed |
| Enclosure finish | Black texture-coated |
| Grille(s) included | |
Parameters |
|
| Effective piston area (SD) | 13.5″: 98.26 in² (0.0634 m²) Dual 13.5″: 196.51 in² (0.1268 m²) |
|---|---|
| Effective displacement | 13.5″: 147.3 cu in (2.41 L) Dual 13.5″: 294.6 cu in (4.82 L) |
