General |
|
| Warranty | 5 years |
|---|---|
| Sizes | 6.5″/7.7″/8.8″ |
| Color | Satin black or Satin white |
| Physical dimensions (Diameter) | 6.5″: 8.34″ (212 mm) 7.7″: 9.13″ (232 mm) 8.8″: 10.25″ (260 mm) |
| Physical dimensions (Depth) | 6.5″: 4.24″ (108 mm) 7.7″ 4.64″ (118 mm) 8.8″: 6.78″ (172 mm) |
| Weight |
6.5″: 3.21 lbs (1.45 kg) 7.7″: 5.35 lbs (2.43 kg) |

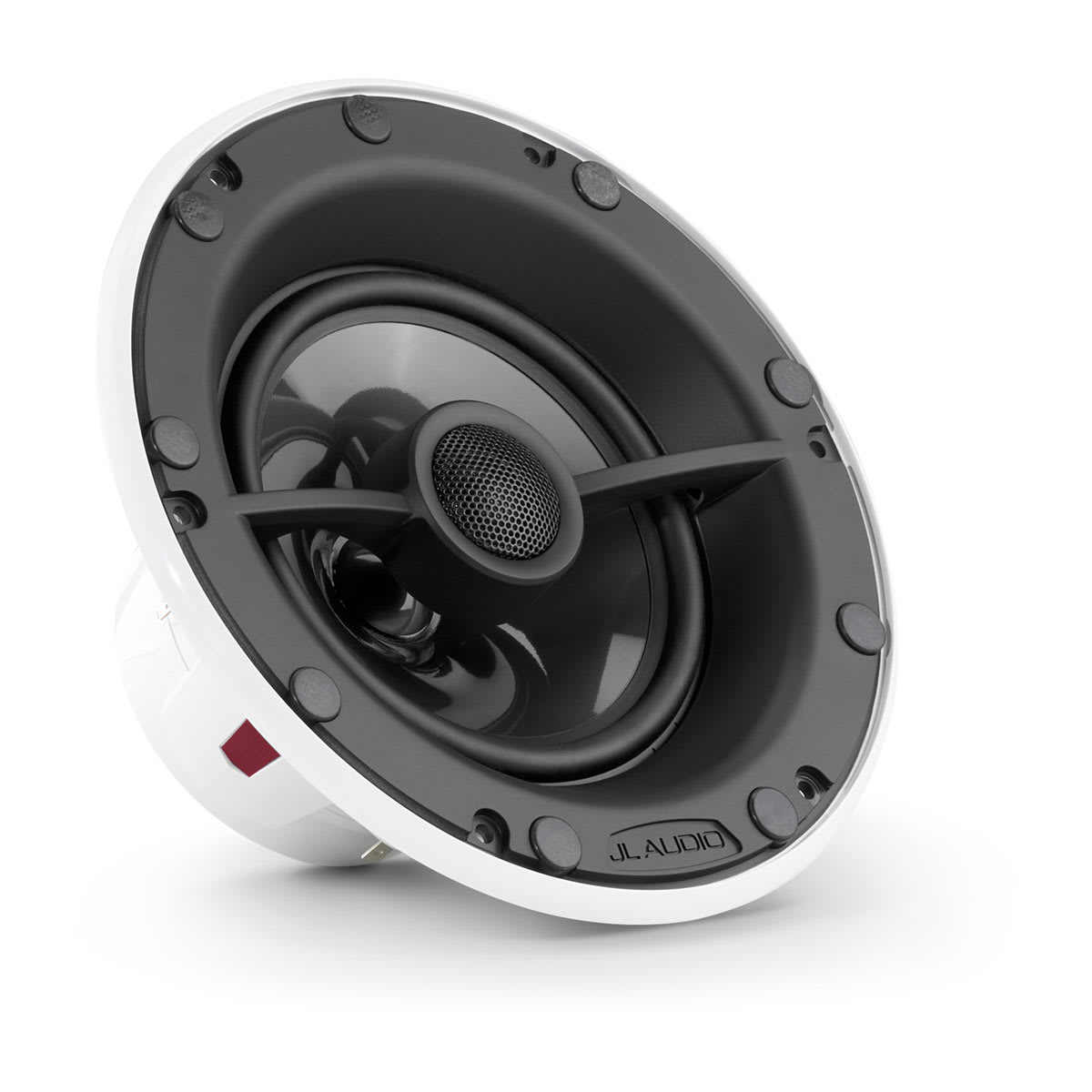

| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5″: 60 W 7.7″: 80 W 8.8″: 100 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5″: 89.5 dB 7.7″: 91.0 dB 8.8″: 90.5 dB |
| Frequency response (+/- 3 dB) | 6.5″: 55 Hz-25 kHz 7.7″: 45 Hz-25 kHz 8.8″: 38 Hz-20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5″: 30-120 W/Channel 7.7″: 40-160 W/Channel 8.8″: 50-200 W/Channel |
| Cone material | Injection-molded, mica-filled polypropylene |

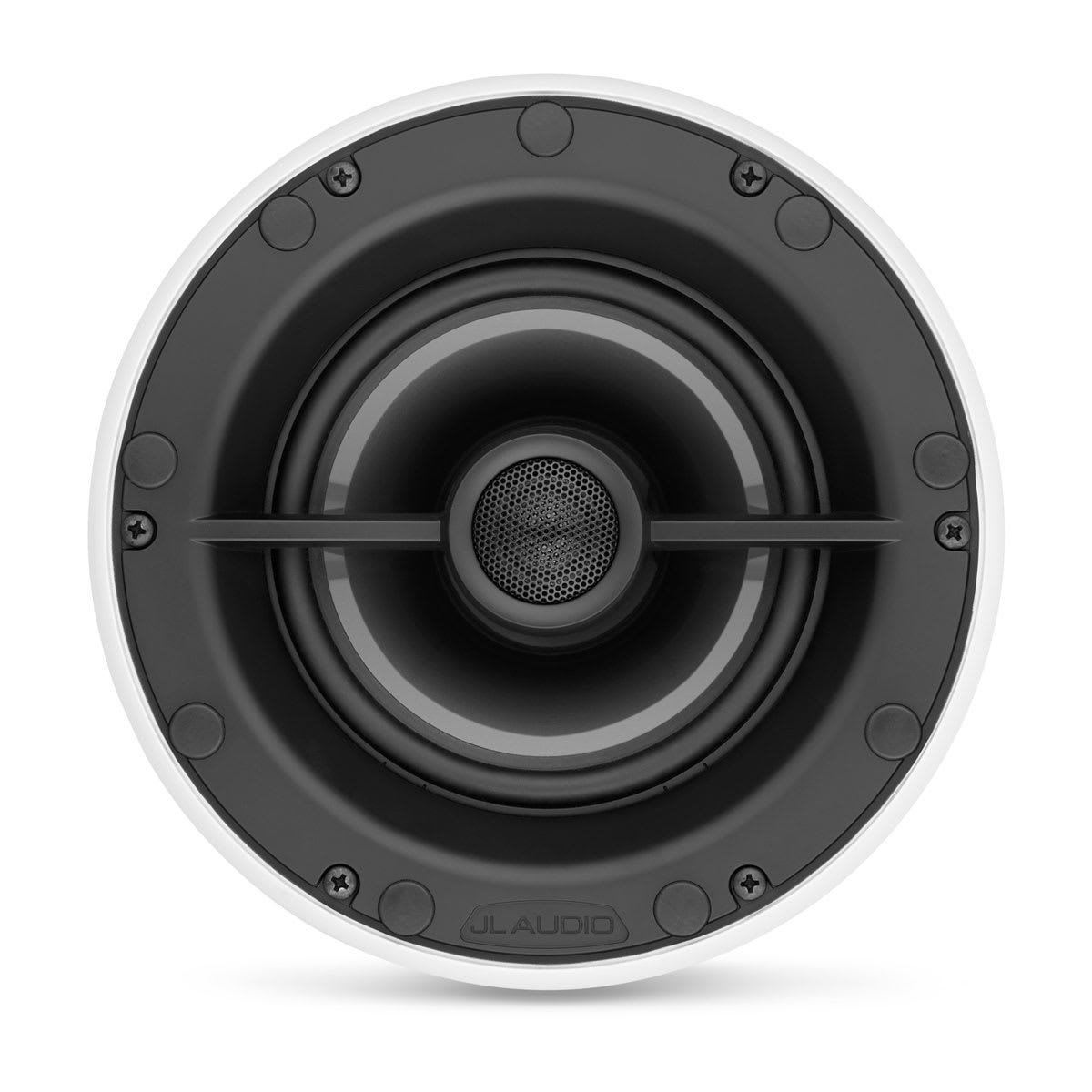

| Tweeter type | Silk Dome |
| Tweeter size | 6.5″: 0.8″ (20 mm) 7.7″: 1″ (25 mm) 8.8″: 1.25″ (32 mm) |
Networking & Connections |
|

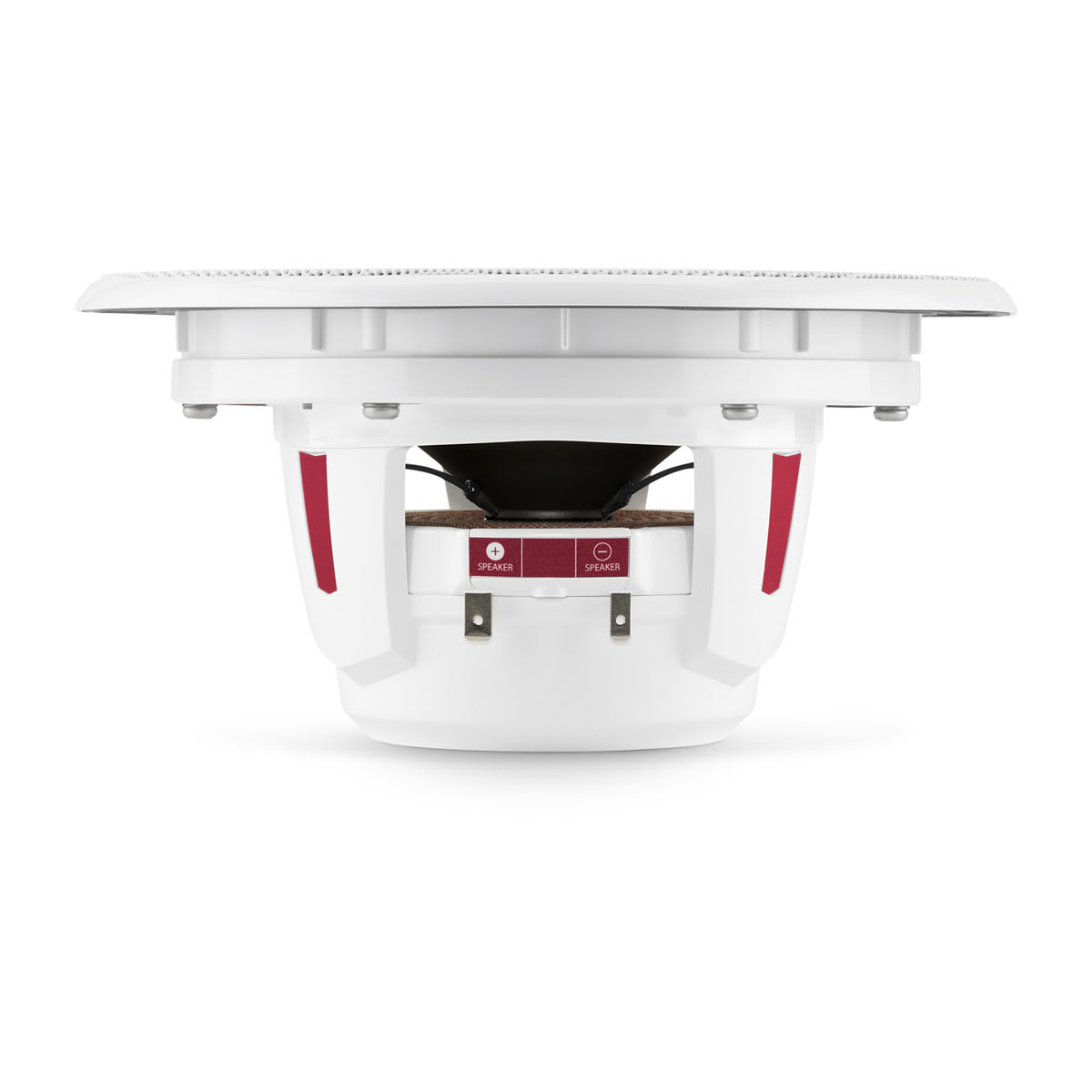

| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
Mounting Dimensions |
|

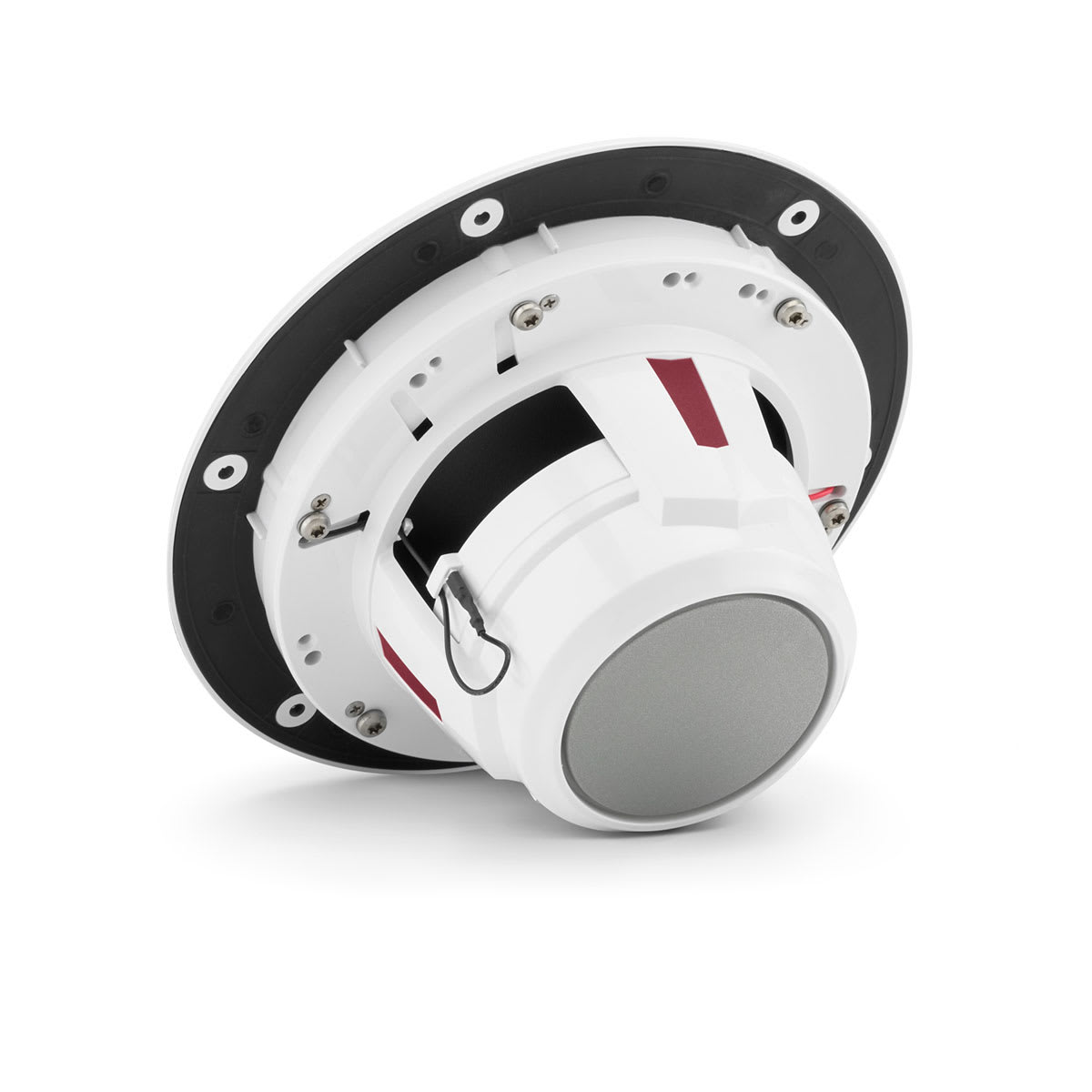

| Mounting depth clearance | 6.5″: 3.87″ (98 mm) 7.7″: 4.26″ (108 mm) 8.8″: 6.30″ (160 mm) |
|---|---|
| Frontal grille protrusion | 6.5″: 0.37″ (9 mm) 7.7″: 0.38″ (10 mm) 8.8″: 0.48″ (12 mm) |
| Mounting hole | 6.5″: 6.875″ (175 mm) 7.7″: 7.625″ (194 mm) 8.8″: 8.75″ (222 mm) |
| Bolt hole circle | 6.5″: 7.39″ (188 mm) 7.7″: 8.18″ (208 mm) 8.8″: 9.27″ (235 mm) |
