General |
|
| Warranty | 3 years |
|---|---|
| Sizes | 8″/Dual 8″ |
| 12 V trigger output capacity | 150 mA (1/8″ (3.5 mm) mini jack) |
| Amplifier Power (RMS) | 8″: 300 W short-term Dual 8″: 600 W short-term |
| Frequency response (Anechoic) | 24.9 Hz-109 Hz (± 1.5 dB) |
| Frequency response (Anechoic, -3dB) | 24.6 Hz/111 Hz |
| Frequency response (Anechoic, -10dB) | 23.4 Hz/118 Hz |
| Enclosure type | Ported |
| Enclosure finish | Black texture-coated |
| Grille(s) included | |
| Power modes | off, on or automatic (signal-sensing or 12V trigger) |
Signal Processing |
|

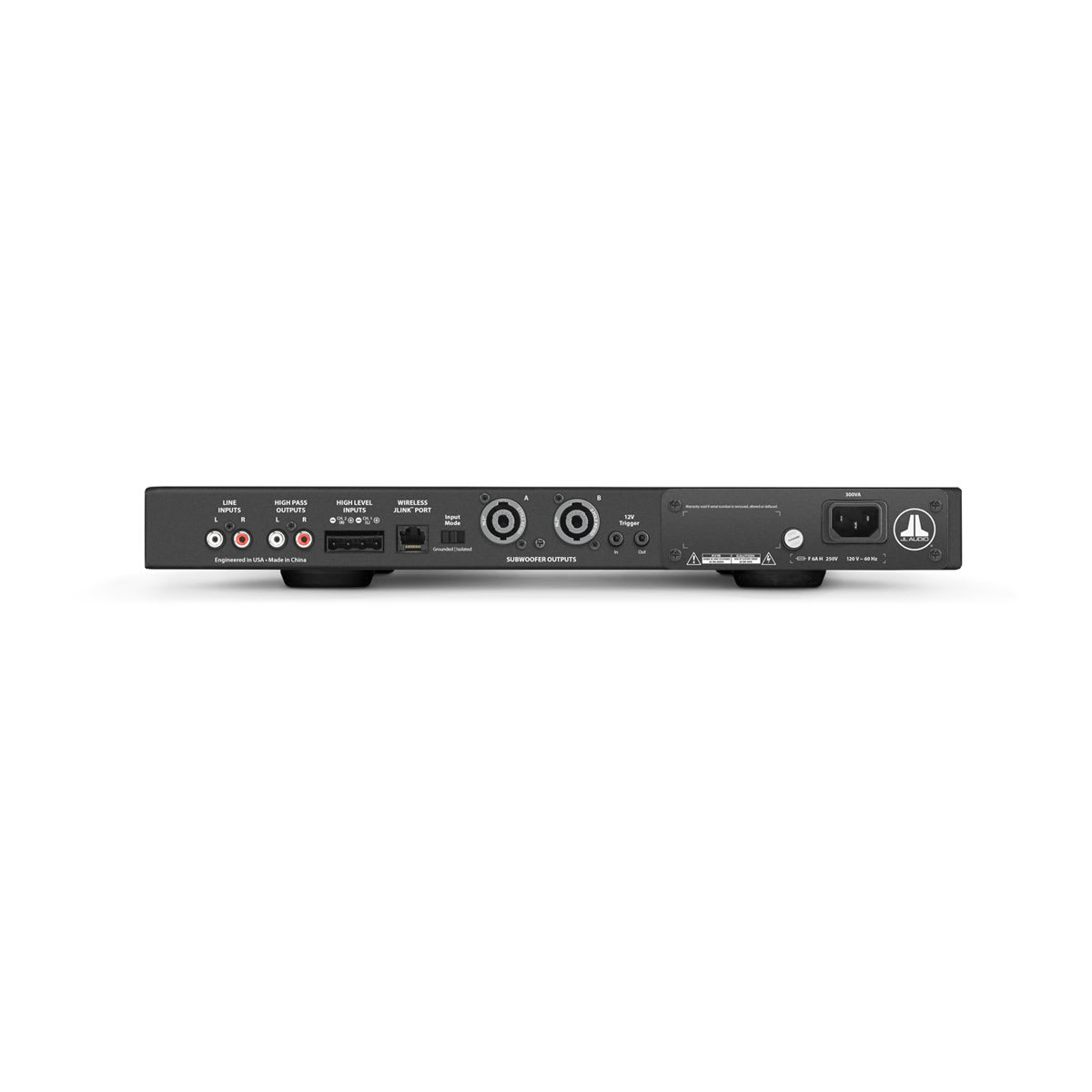

| Unbalanced input(s) | Stereo or mono (two RCA jacks – Input Impedance of 50k Ohms) |
|---|---|
| Speaker/High-level inputs | Stereo or mono (removable plug – Input Impedance of 4.4k Ohms) |
| Input grounding | Isolated or grounded |
| Input modes | none |
| Level control | Reference (fixed gain) or Variable from -50 dB to +15 dB over reference gain (0.5 dB increments) |
| Filter mode(s) | Low-pass, with tracking High-pass Outputs |
| Filter slope(s) | 12/24 dB/octave |
| Filter frequency range | 30 Hz-130.1 Hz |
| Filter defeat function | |
| Polarity | 0 or 180º |
| Delay (Phase) | Variable from 0-25 ms (0.1 ms increments, Sub and HP outputs) |
| Extreme Low Frequency (E.L.F.) trim | Variable, -12 dB to +3 dB at 25 Hz (0.5 dB increments) |
| Line outputs | Stereo or mono (two RCA jacks – Pass-through or High-pass) |
| Subwoofer outputs | Neutrik speakOn® 2-Pole Connectors (uses Neutrik part: NL2FX) |
| Calibration mode | Digital Automatic Room Optimization (D.A.R.O.), requires microphone (sold separately) |
| Equalizer bands | 3 |
| Equalizer frequency range | 20 to 160 Hz (1 Hz increments) |
| Equalizer gain range | -12 dB to +12 dB (0.2 dB increments) |
| Equalizer Q range | 0.7 to 5.0 (0.1 increments) |

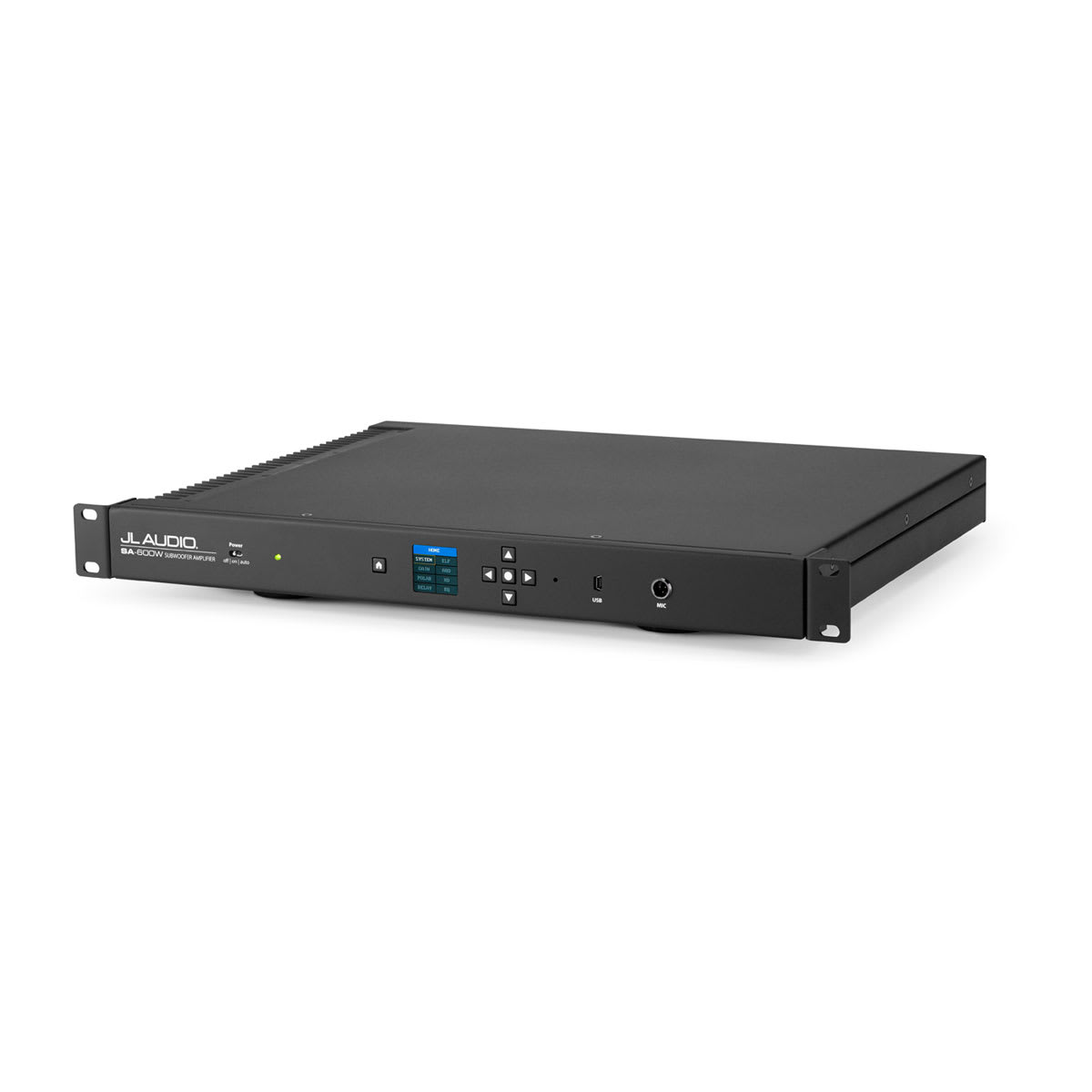

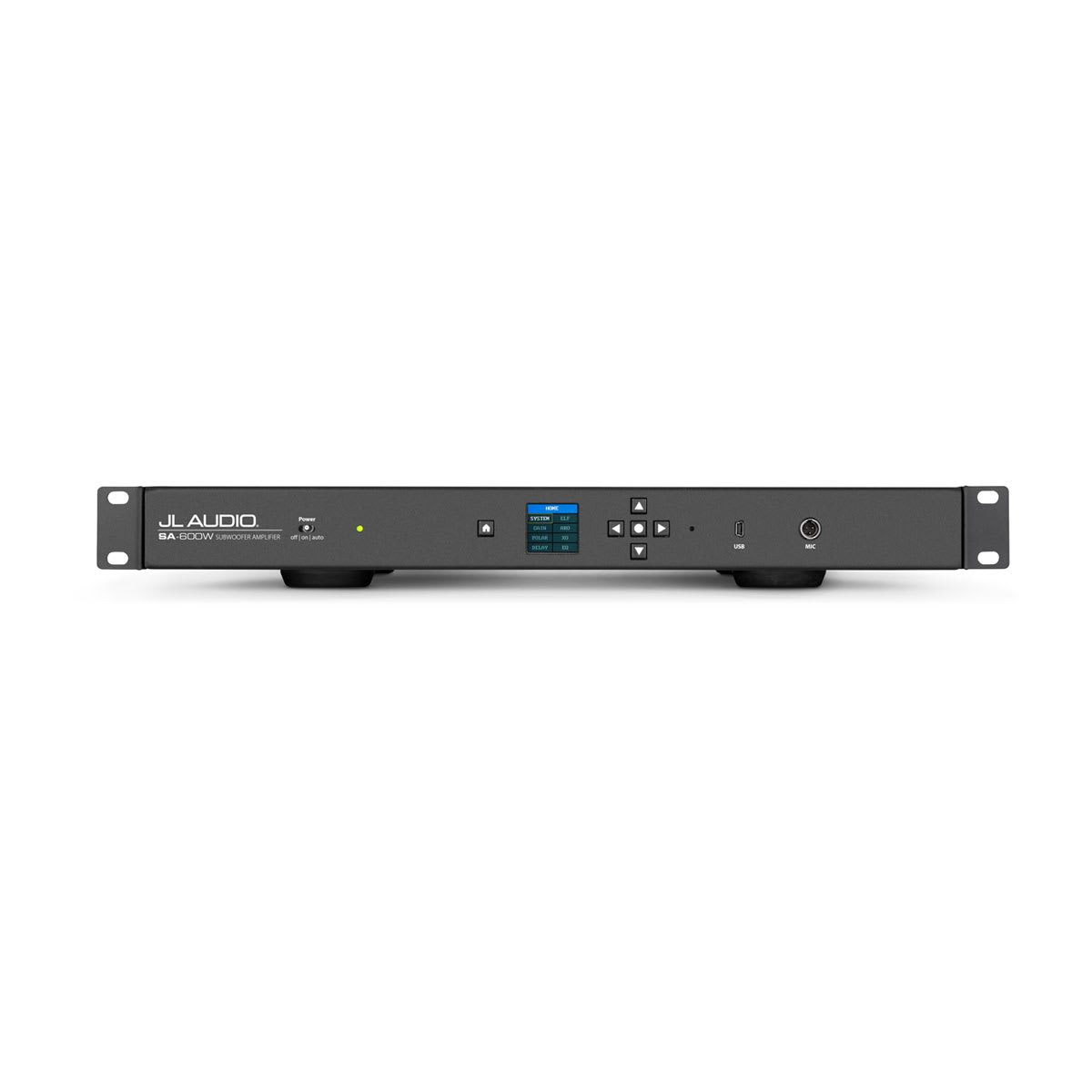

Amplifier Specifications |
|
| Width (W) | 16.84″ (428 mm) |
|---|---|
| Height (H) | 1.75″ (44 mm) |
| Depth (D) | 13.63″ (346 mm) |
| Net weight (each) | 13.5 lbs (6.12 kg) |

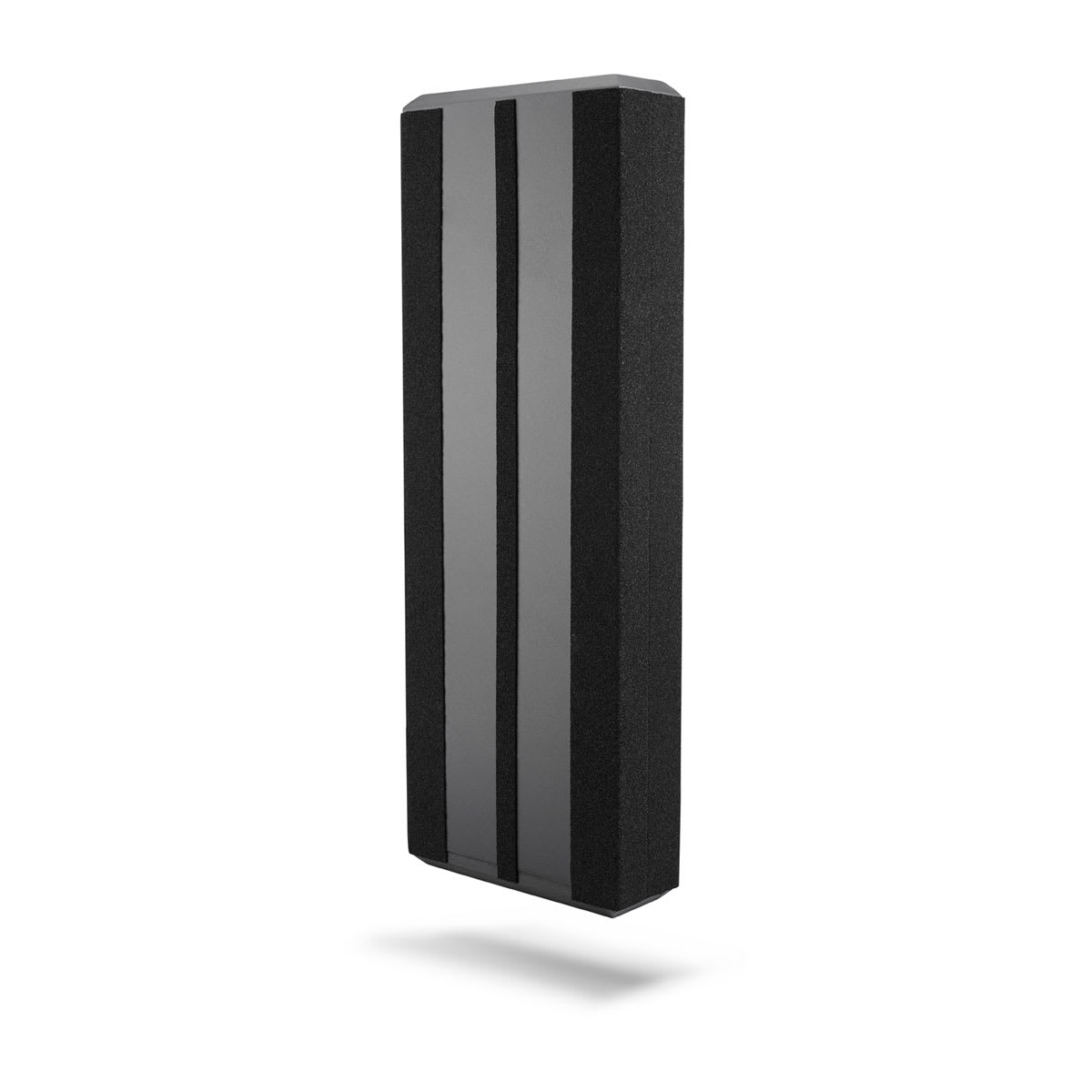

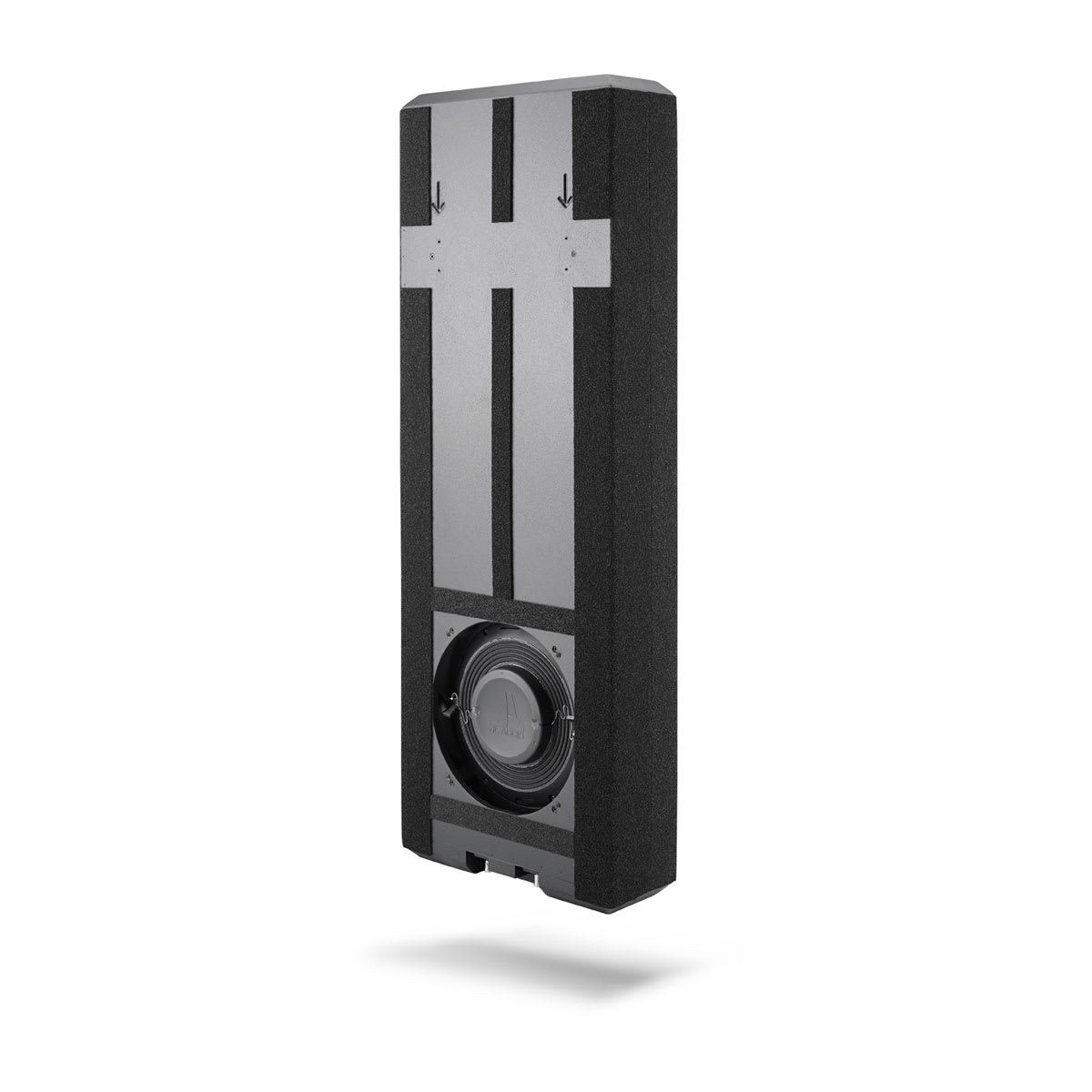

Enclosure Specifications for 2″ x 4″ Stud Construction |
|
| Cavity Width (W): Minimum | 14.375″ (365 mm) |
|---|---|
| Cavity Width (W): Maximum | 15.5″ (394 mm) |
| Cavity Height (H): Minimum | 75″ (1,905 mm) |
| Width (W) | 14″ (355 mm) |
| Height (H) | 61.63″ (1,565 mm) |
| Depth (D) | 3.25″ (83 mm) |
Enclosure Specifications for 2″ x 6″ Stud Construction |
|
| Cavity Width (W): Minimum | 16″ (406 mm) |
|---|---|
| Cavity Width (W): Maximum | 25.5″ (648 mm) on-center |
| Cavity Height (H): Minimum | 58″ (1,473 mm) |
| Width (W) | 14″ (355 mm) |
| Height (H) | 40.71″ (1,034 mm) |
| Depth (D) | 5.13″ (130 mm) |

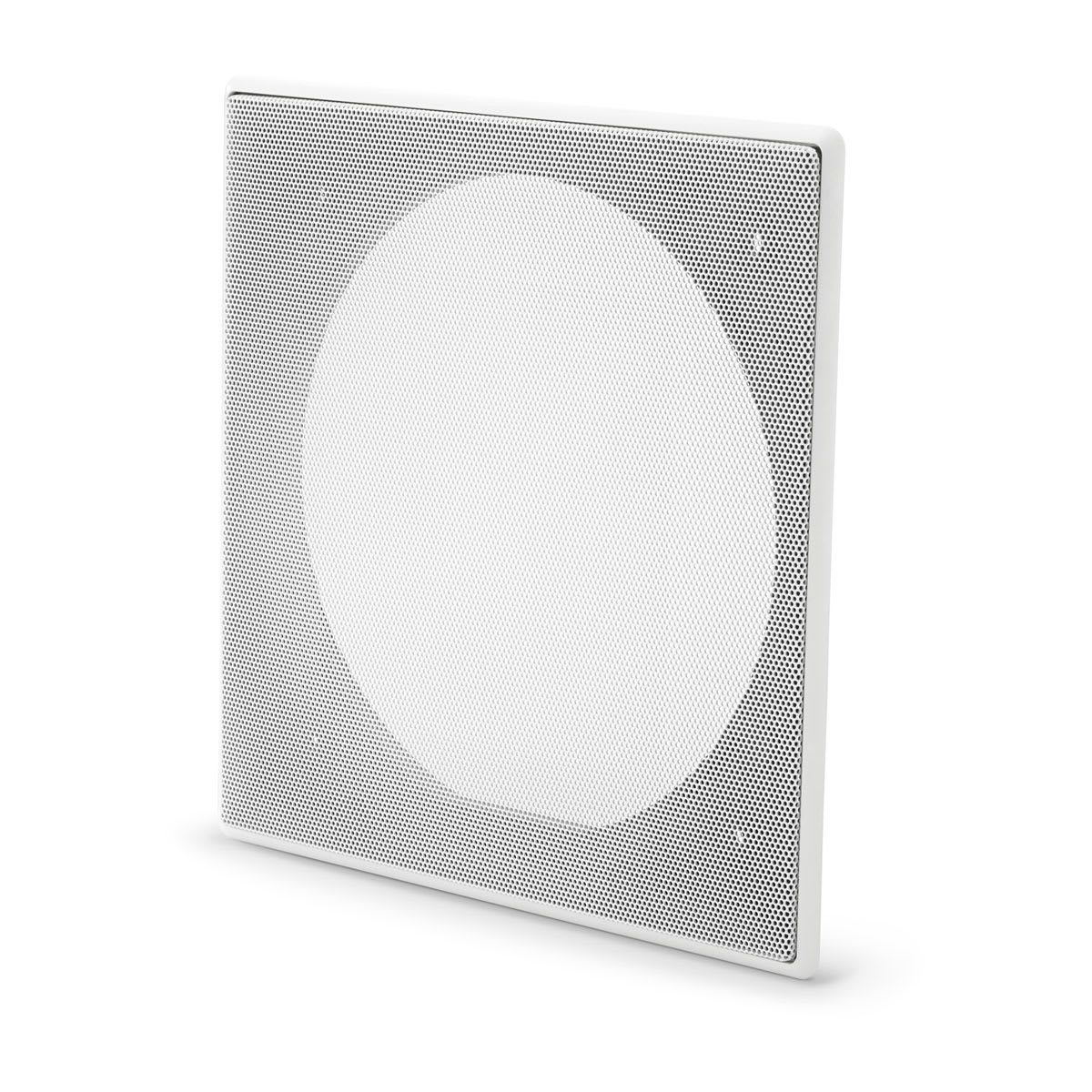

Grille Specifications |
|
| Grille width (W) | 10.5″ (267 mm) |
|---|---|
| Grille height (H) | 10.5″ (267 mm) |
| Opening width (W) | 9.75″ (248 mm) |
| Opening height (H) | 9.75″ (248 mm) |
| Wallboard thickness compatibility | 0.5″ to 1.75″ (13 mm to 44 mm) |
Parameters |
|
| Effective piston area (SD) | 8″: 31.62 in² (0.0204 m²) Dual 8″: 63.24 in² (0.0408 m²) |
|---|---|
| Effective displacement | 8″: 47.5 cu in (0.78 L) Dual 8″: 95.0 cu in (1.56 L) |
