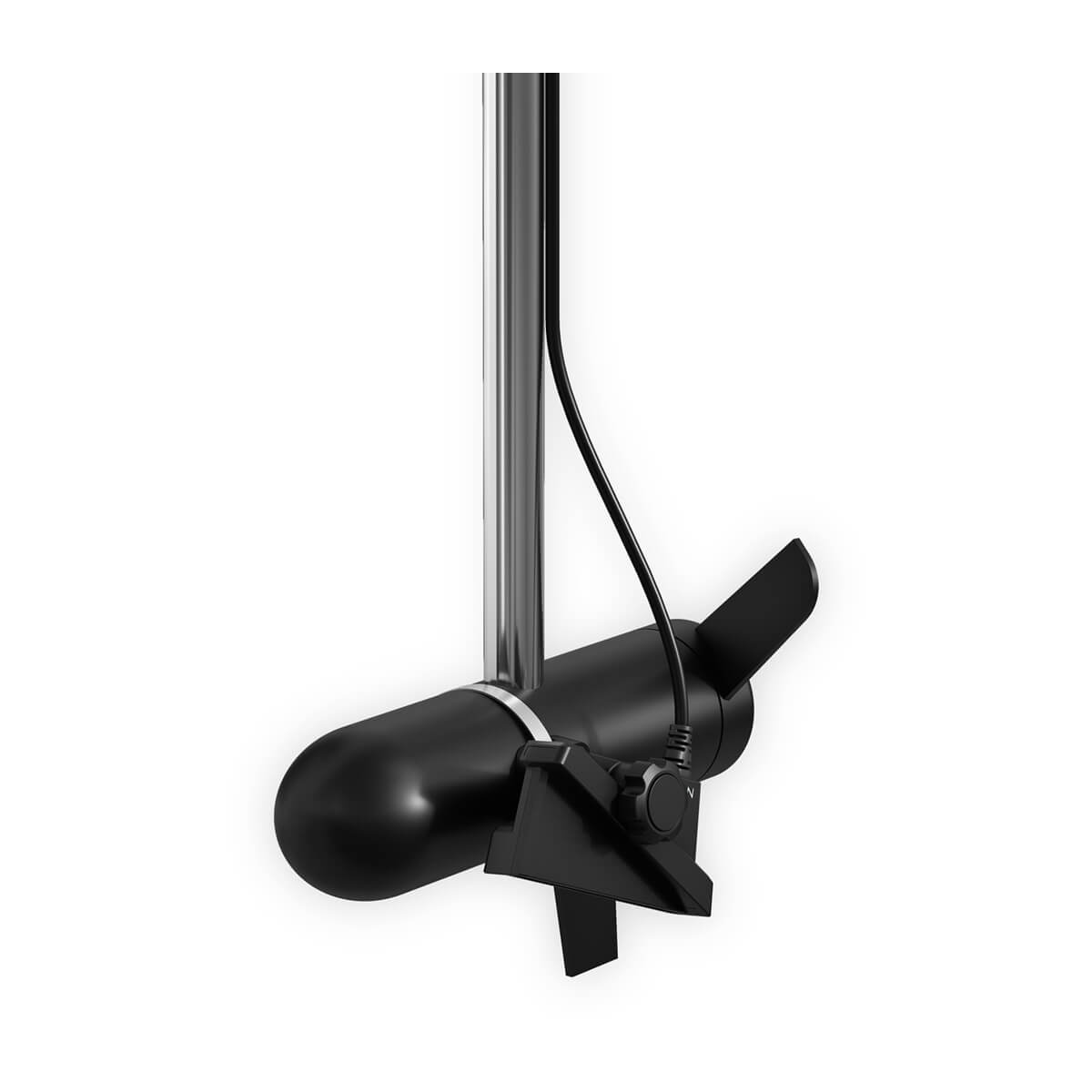

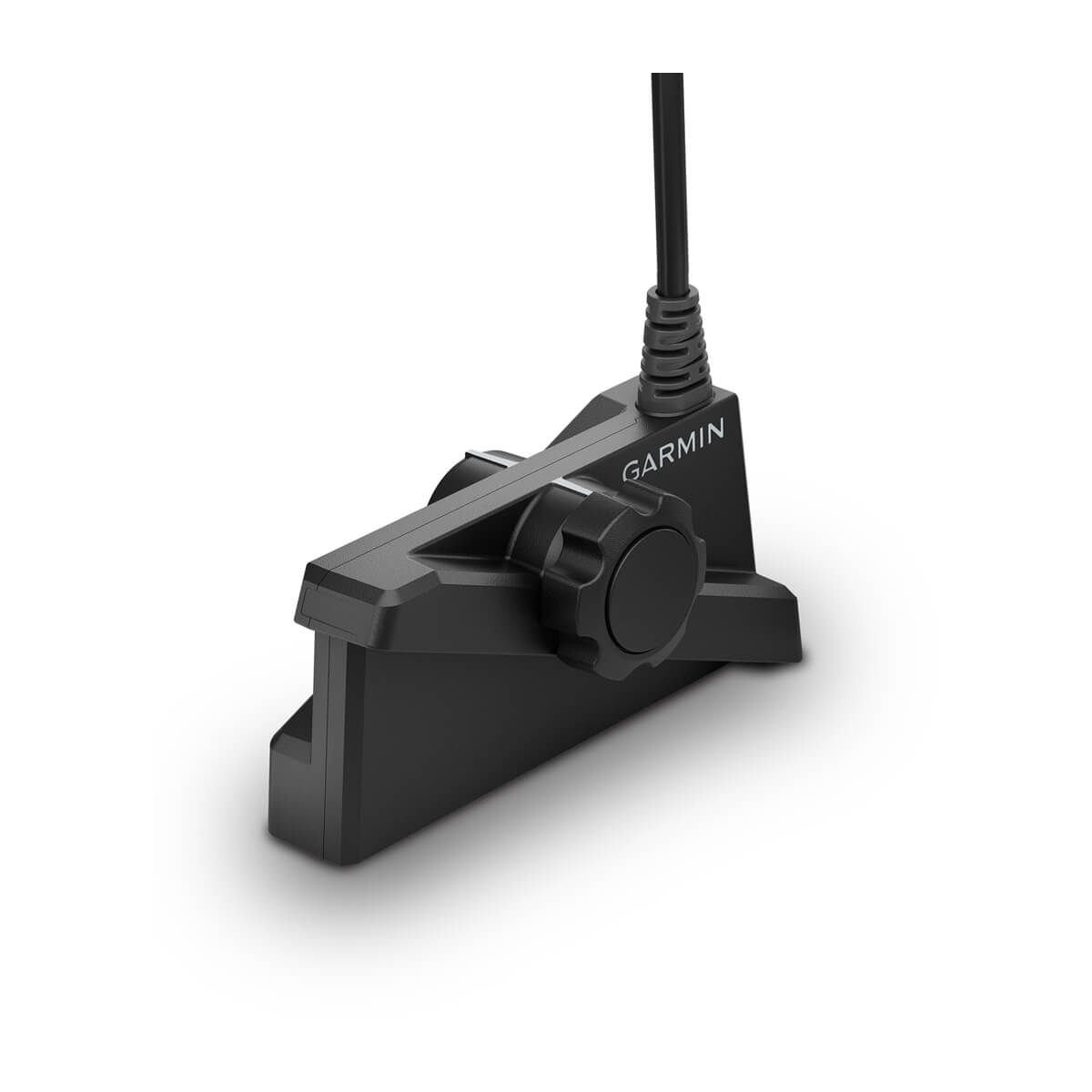

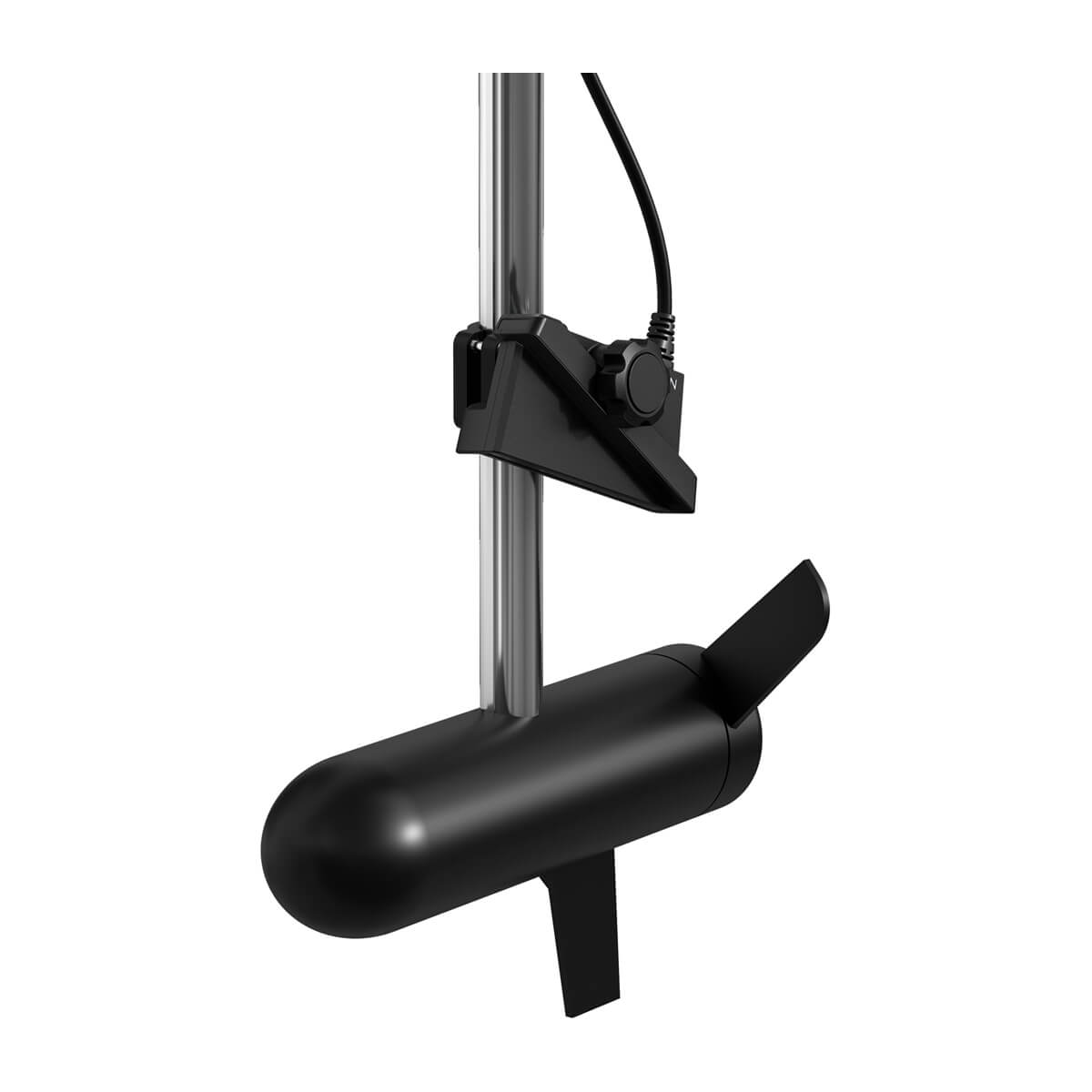

Upgrade your existing Livescope System with the GLS10 compatible Livescope™ Plus LVS34 transducer.
General
|
| Transducer beamwidth |
20° x 135° |
| Transducer cable length |
20 ft |
| Transducer number of pins |
21 |
| Dimension |
6.4” x 3.1” x 1.9” (16.2 x 3.1 x 4.8 cm) |
| Weight |
2.25 lbs (1.02 kg)
|
| Temperature range |
Operating: 0 C to 40 C
|
Electrical Features
|
| Power input |
10-32 V |
| Power usage |
21 W typical, 58 W max |
| Fuse |
7.5 A |
| Compass-safe distance |
4″ (0.1 m) |
Sonar Features
|
| Frequency |
530 – 1,100 kHz |
| Transmit power |
500 W |
| Maximum depth |
Down and Forward: 200’ (61.0 m) |
| Sonar Type |
Live |
| Target Separation @ 100′ |
14″ |

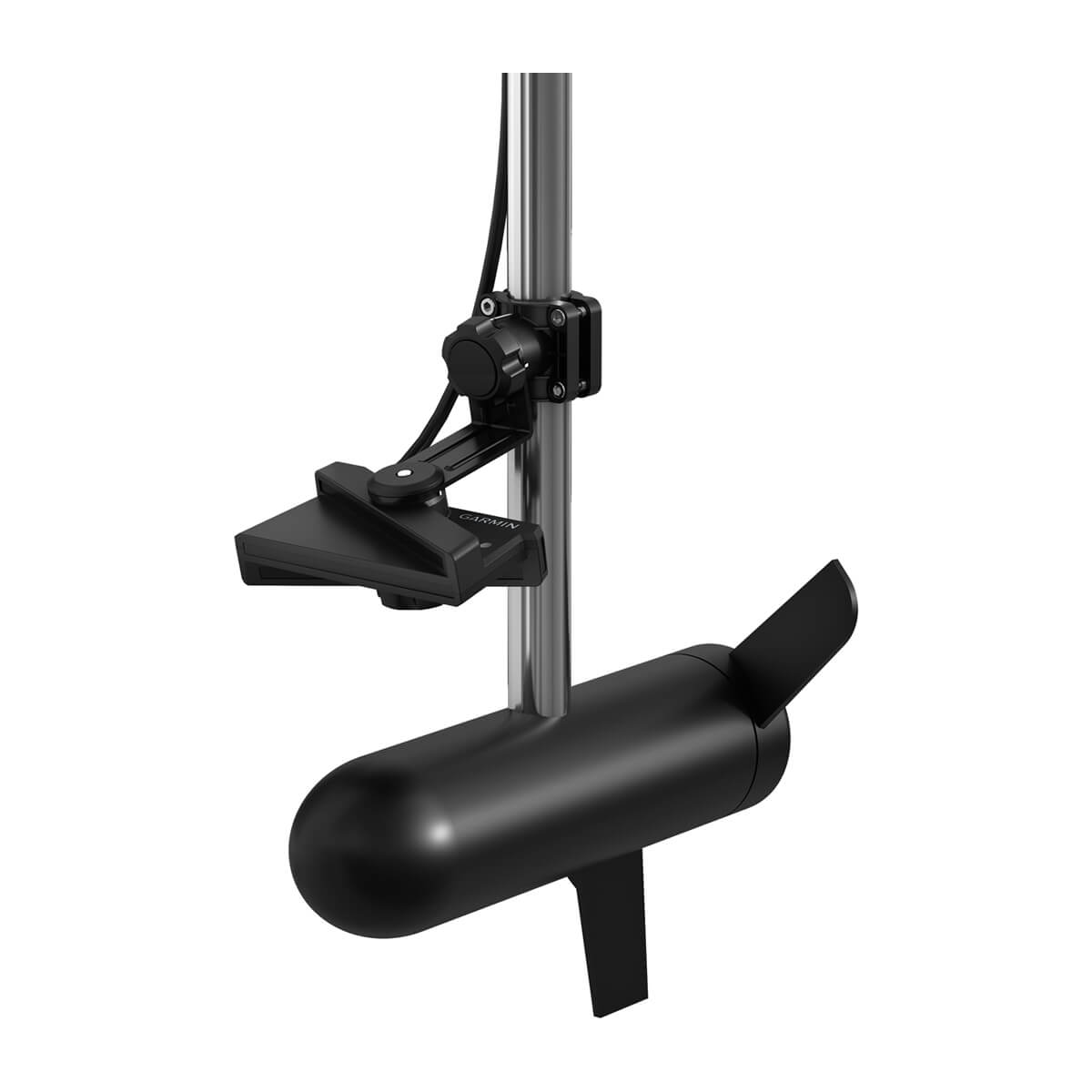

| Perspective Mode Mount Included |
|
Networking & Connections
|
| Garmin Marine Network Ports |
1 (small connector)
|
