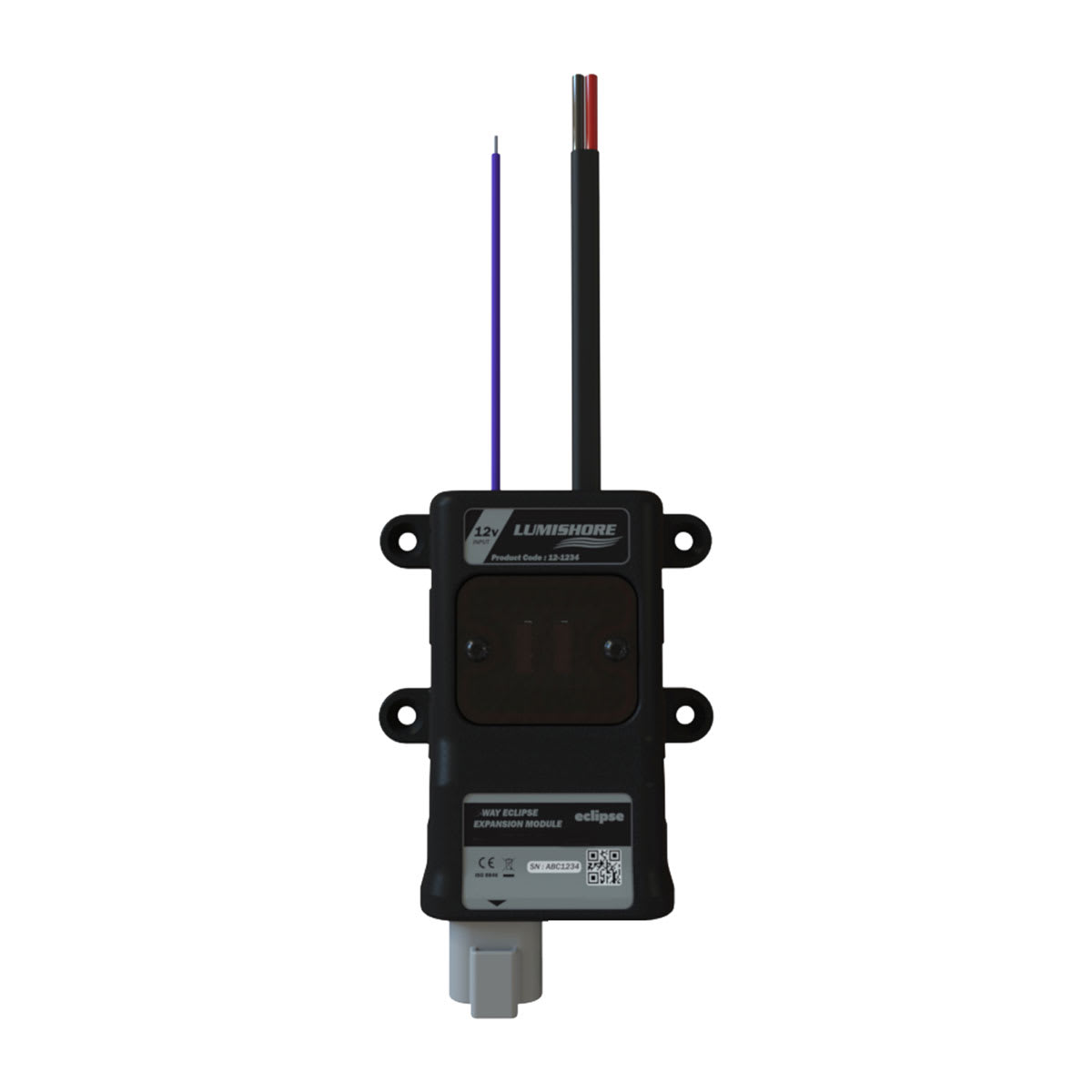

Add additional lighting zones to your ECLIPSE lighting system with 1-zone and 2-zone expansion modules1. Compatible with your ECLIPSE Command Center, these modules increase system capacity to a total of 6 independent lighting zones.
General
|
| Warranty |
3 years |
| Number of lights per Eclipse Comand Center/Expansion module zone |
Dependent on connected lights |
| Electrical installation |
Plug and play/hard-wired |
| Operating voltage |
12 V |
| Operating voltage range |
10-15 VDC |
| Current consumption 12 V (max) |
0.04 A (device only) |
| Average power draw |
<0.5 W (device only) |
| Construction |
Robust weatherproof ABS (flame retardant and halogen-free) |
| Water and dust rating |
IP67 |
Control Options
|
| Momentary switch |
yes (via ECLIPSE Command Center) |
| Eclipse Command Center |
|
| Compatible MFD |
yes (via ECLIPSE Command Center) |
| Smart device |
yes (via ECLIPSE Command Center) |
Mounting Dimensions
|
| Dimensions (width) |
3.32″ (84 mm) |
| Dimensions (depth) |
4.55″ (116 mm) |
| Dimensions (height) |
1.53″ (39 mm) |
| Mechanical installation |
Screw fixings
|
