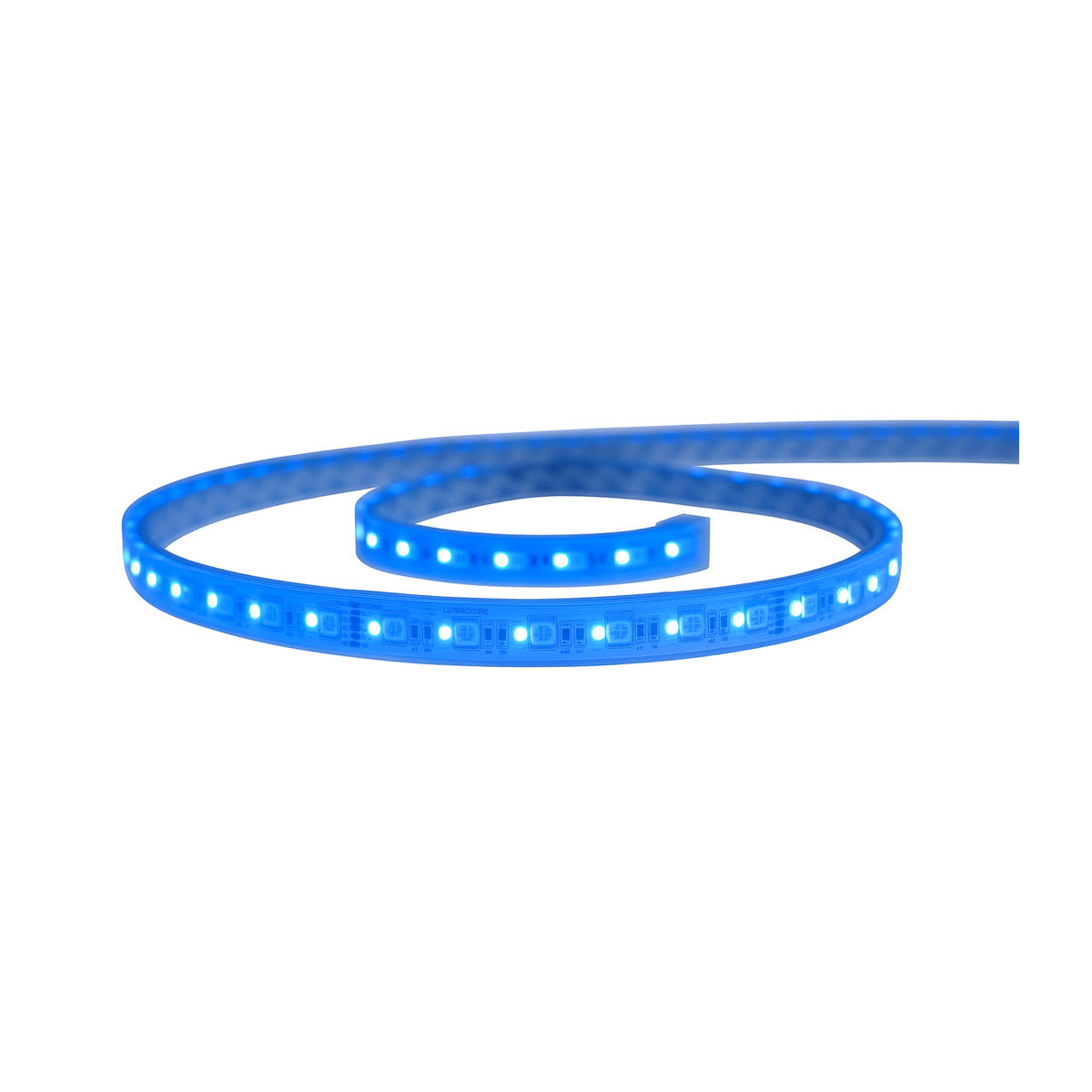

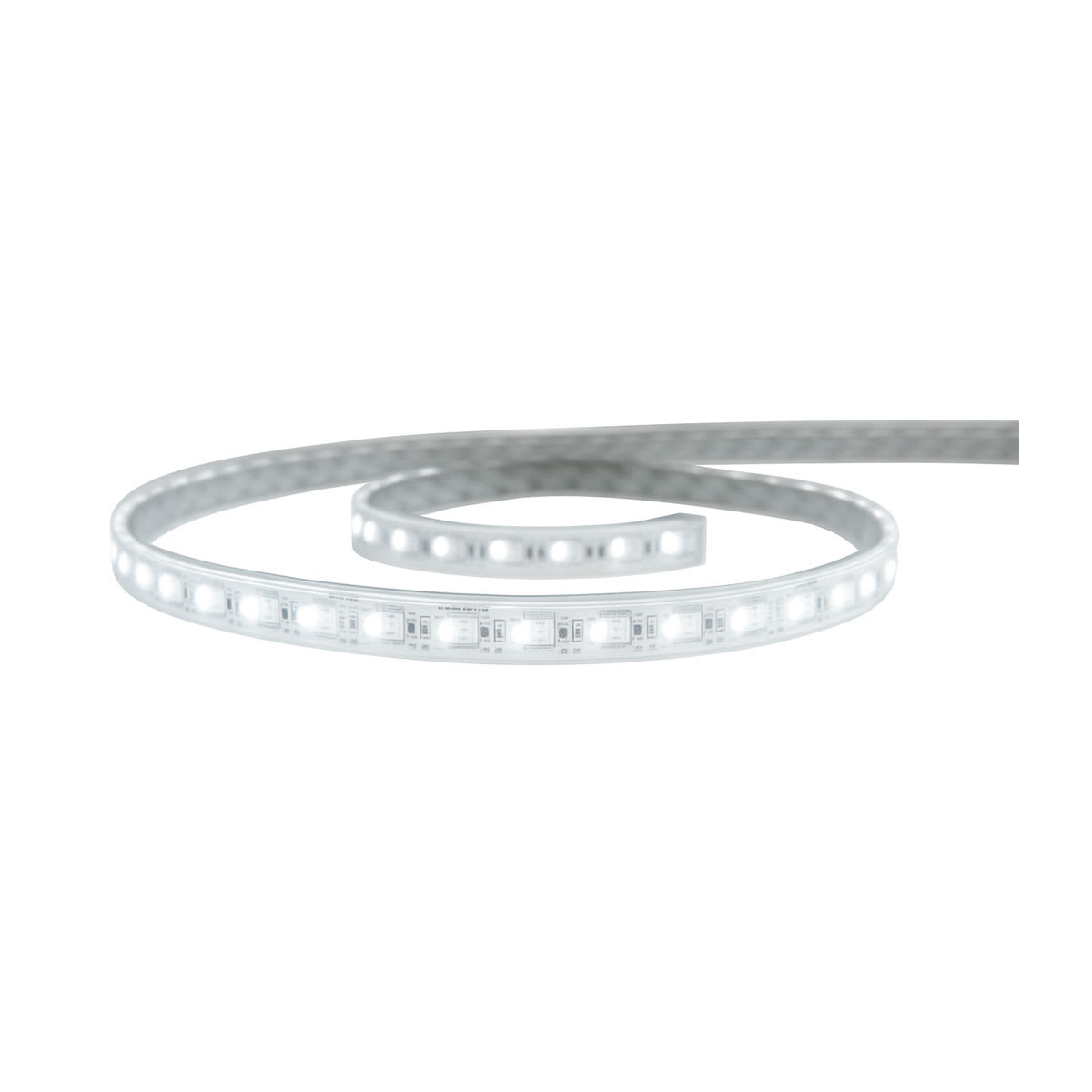

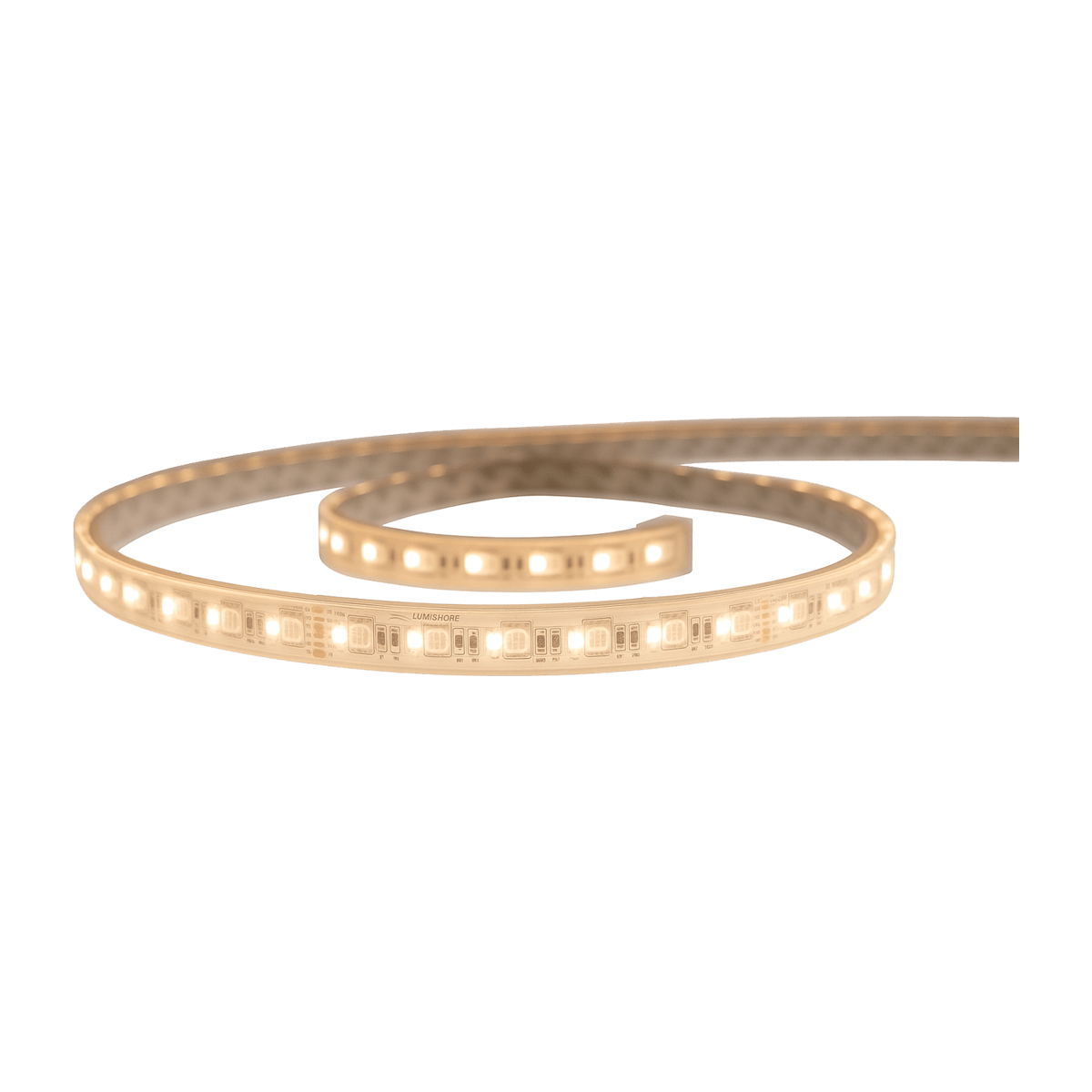

These strip lights deliver vivid, tunable CRGBW illumination and can be seamlessly integrated into gunwales, under furniture and behind ceiling panels for extra mood lighting while remaining mostly hidden.
General
|
| Warranty |
3 years |
| LED colors |
CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture |
| LED type |
60 CRGBW/m |
| Length of strip per strip driver |
up to 10 m total |
| Electrical installation |
Plug and play |
| Operating voltage |
10.5-31 VDC (via LUX Control Module) |
| Current consumption 12 V (max) |
0.6 A/m (via Strip Driver) |
| Current consumption 24 V (max) |
0.36 A/m (via Strip Driver) |
| Average power draw |
8.7 W/m |
| Construction |
Fully encapsulated and potted |
| Water and dust rating |
IP68 |
Control Options
|
| Momentary switch |
yes (via Strip Driver) |
| EOS-LUX Command Center |
|
| Compatible MFD |
yes (via EOS-LUX Command Center) |
| Smart device |
yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA Display |
yes (via EOS-LUX Command Center) |
Mounting Dimensions
|
| Dimensions (depth) |
0.197″ (5 mm) |
| Dimensions (height) |
0.571″ (14.5 mm) |
| Mechanical installation |
Mount with adhesive strips, screw clips (supplied) or stainless steel clips (optional)
|
